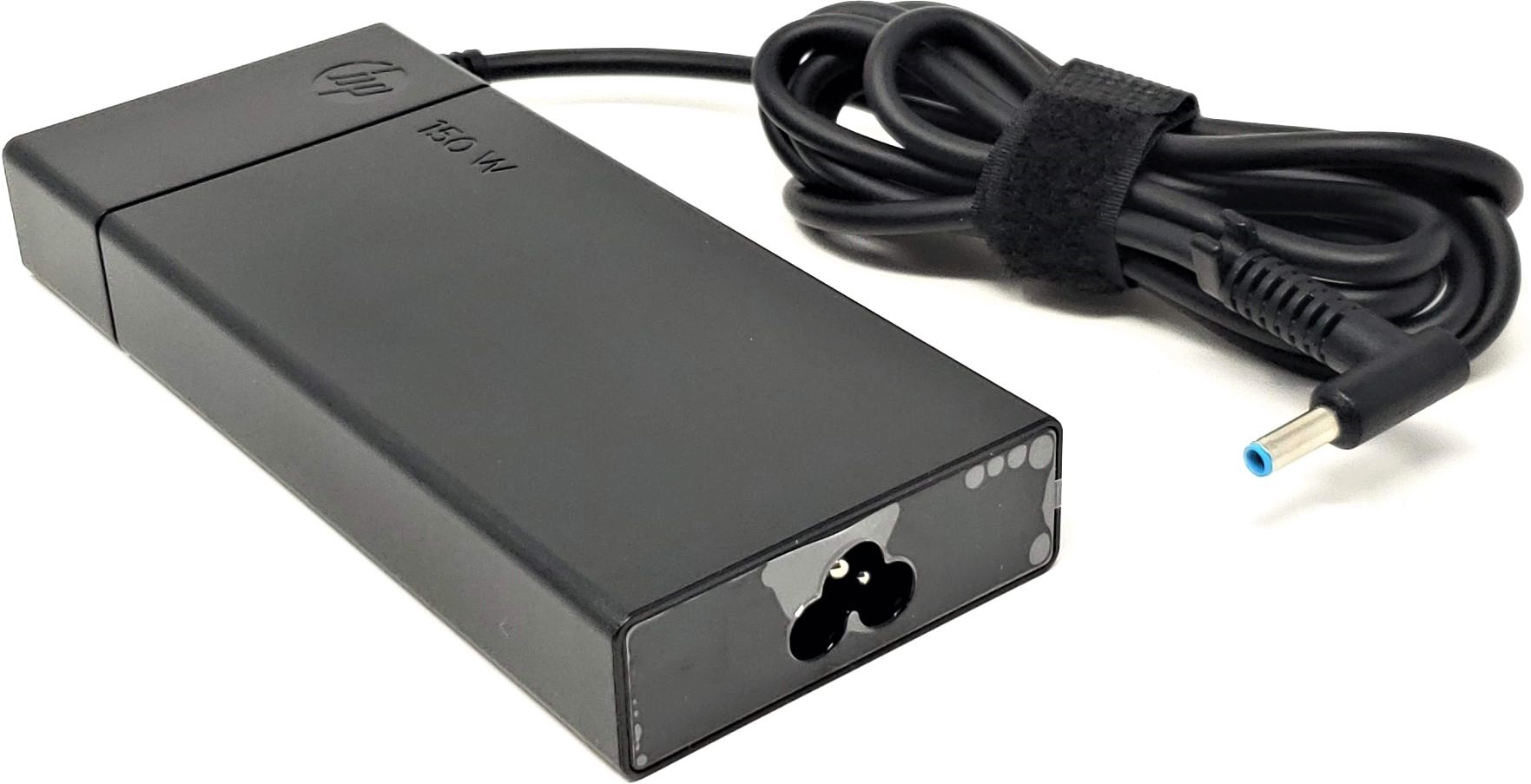

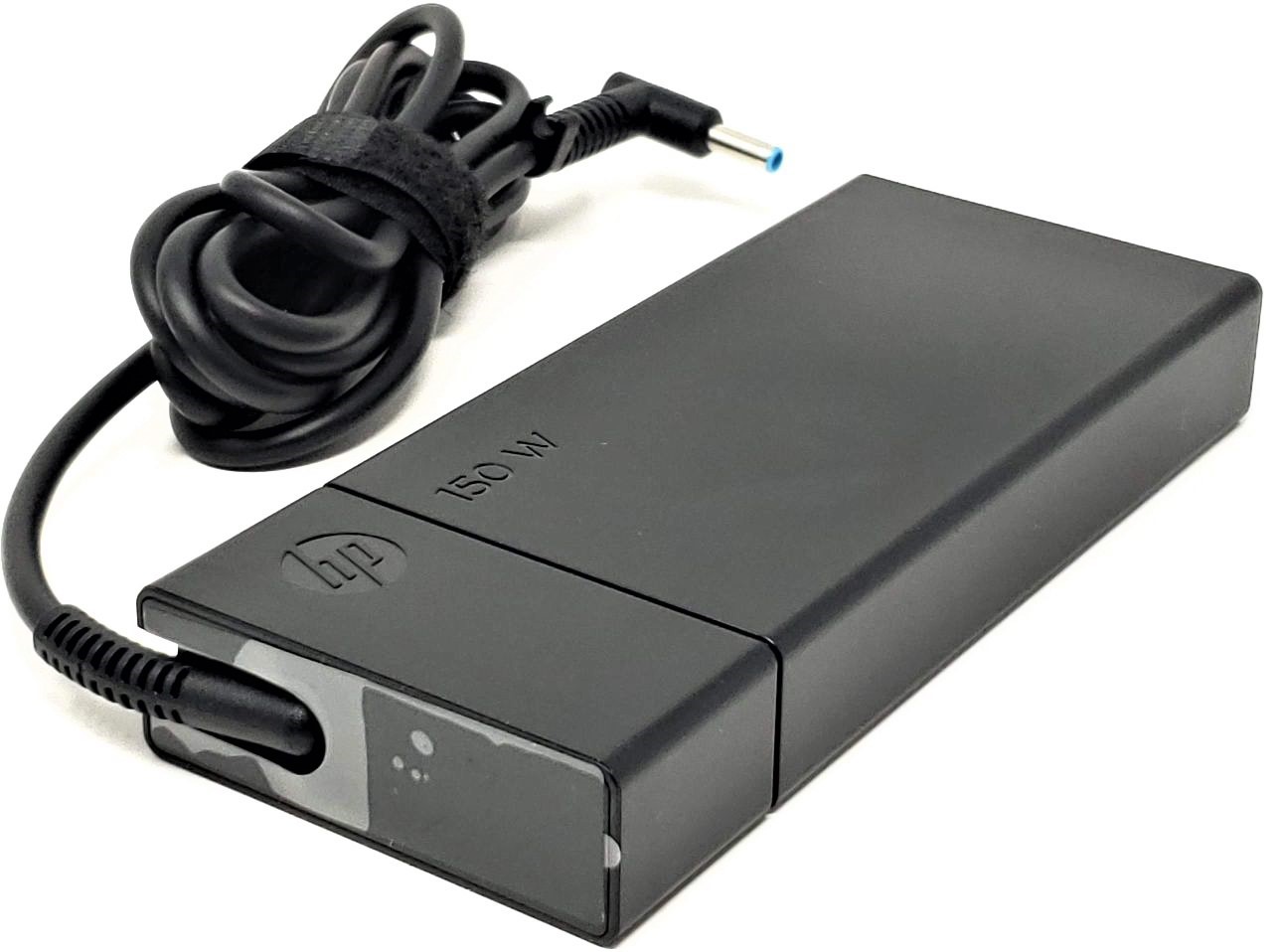

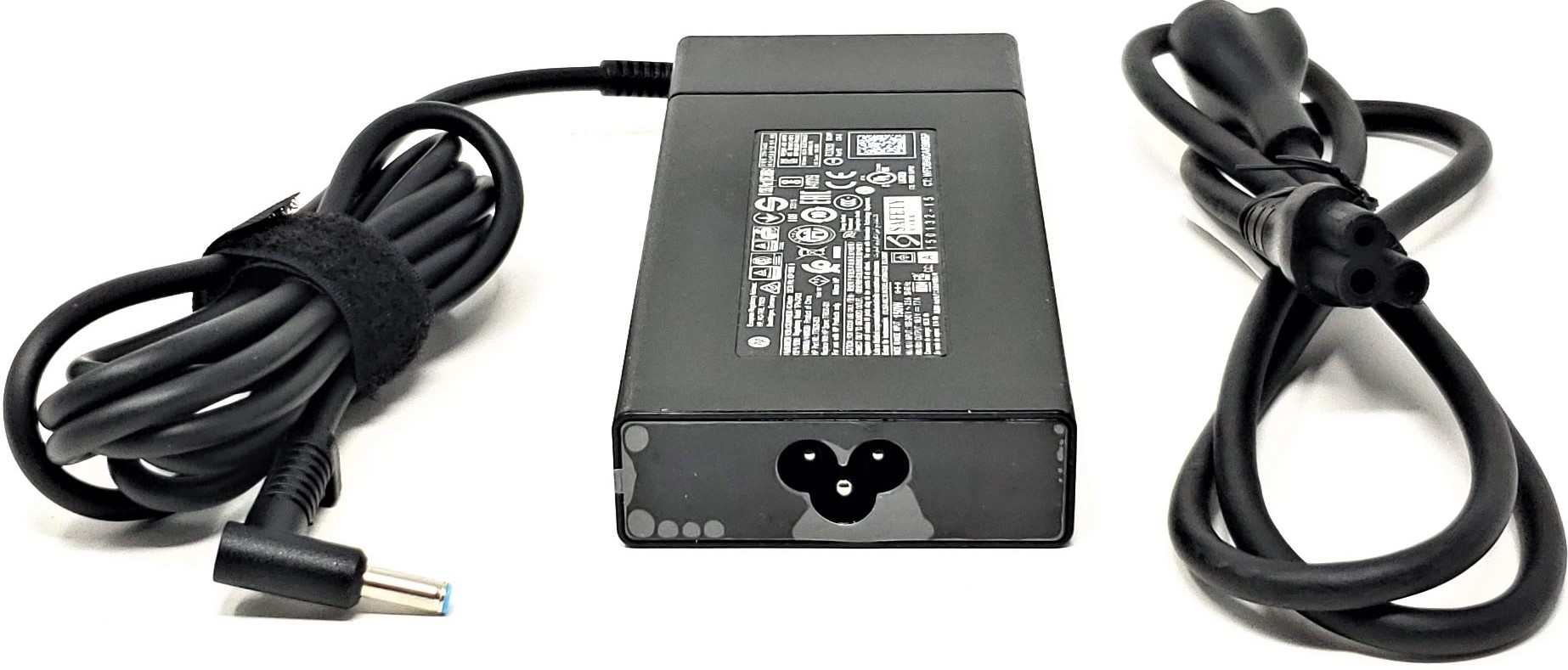

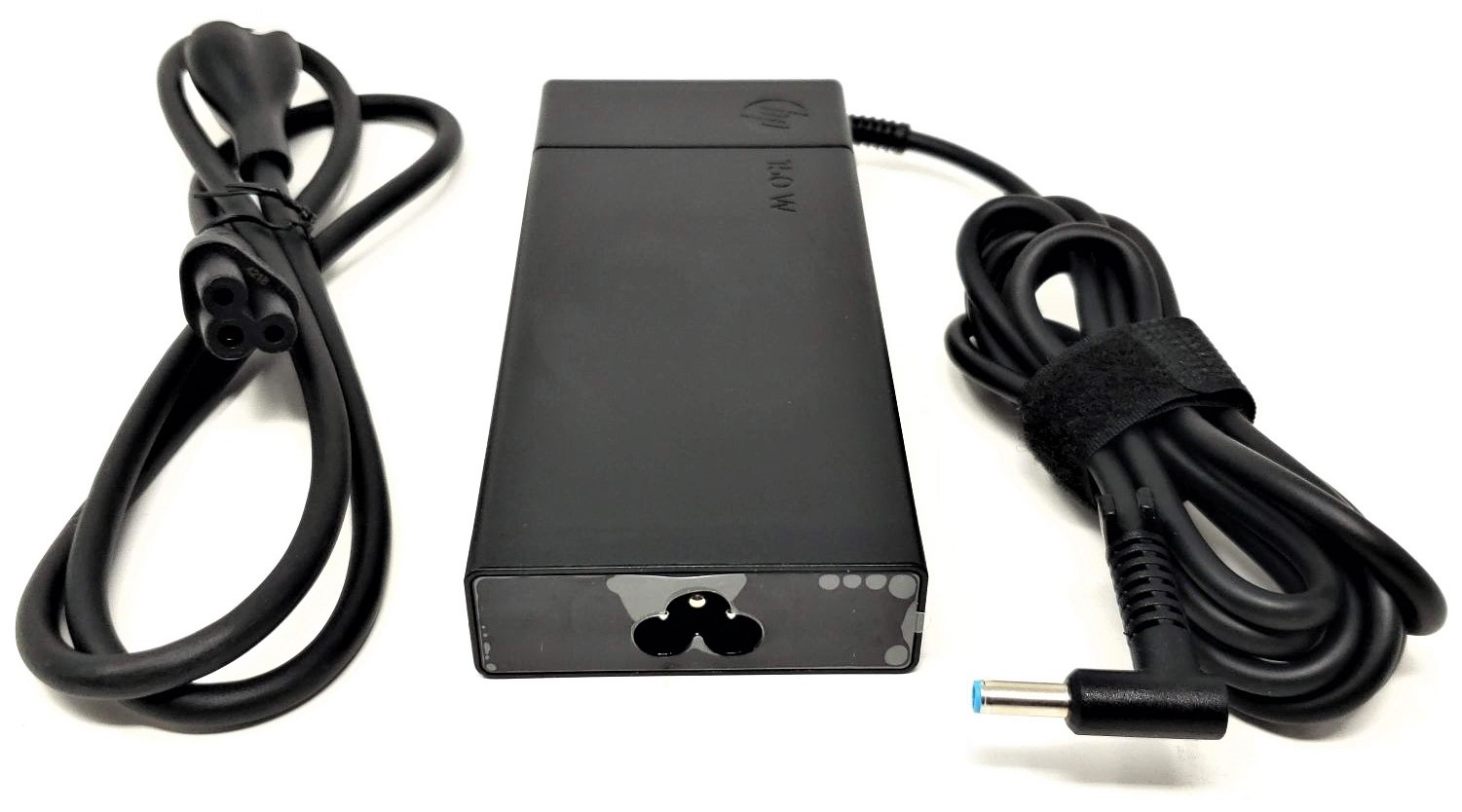

L48757-001 - 150W 19.5V 7.7A 3.0mm Blue Tip AC Adapter for HP ZBook 15 15u Studio G3 G4 G5 OMEN 15 OMEN 17 Series

150W 19.5V 7.7A 4.5mm Blue Tip AC Adapter Charger for Omen 15 17 Pavilion Gaming 15 Spectre x360 15 ZBook 15

High-power 150W 19.5V blue-tip AC adapter for performance HP notebooks and mobile workstations. Designed for systems that ship with 150W 4.5mm x 3.0mm adapters and also suitable as a higher-watt replacement for lower-watt 19.5V blue-tip chargers, as long as voltage and connector match.

Technical Specifications

• Max Power: 150W
• Input: 100–240V ~ 2.5A, 50–60Hz
• Output: 19.5V ~ 7.7A (150W max)
• Connector Type: 4.5mm (outer) x 3.0mm (inner) blue-tip barrel
• AC Cord: Standard 3-prong power cable included (region may vary)
• Protection: Over-voltage, over-current, short-circuit protection

Interchangeable / Replacement Part Numbers
917649-850, 917677-001, 917677-002, 917677-003, 775626-001, 775626-002, 775626-003, 776620-001, 776620-003, L32661-001, L32661-002, L32661-003, L48757-001, L48757-002, L48757-003, M85394-001, M85394-002, M85394-003, TPN-CA11, TPN-DA09, TPN-DA03, PA-1151-08HT, PA-1151-08HF, ADP-150XB, ADP-150XB B, A150A05AL, HSTNN-CA27, 4SC18UT#ABA, 4SC18AA, 4SC18AA#ABB

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ HP OMEN Gaming Laptops (Blue-Tip 150W/135W/200W capable)
OMEN 15-ax000, 15-ax100, 15-ax200 series
OMEN 15-ce000, 15-ce100, 15-ce200 series
OMEN 15-dc000, 15-dc100, 15-dc200 series
OMEN 15 (general) with 4.5mm blue-tip 150W or 135W adapter
OMEN 17-an000, 17-an100, 17-an200 series
OMEN 17-w000, 17-w100, 17-w200 series
OMEN 17 (general) with 4.5mm blue-tip adapter

✔️ HP Pavilion Gaming Series
Pavilion Gaming 15-bc000, 15-bc200, 15-bc300, 15-bc400 series
Pavilion Gaming 15-cb000, 15-cb100 series
Pavilion Gaming 15-cx000, 15-cx100 series
Pavilion Gaming 16-a0000 series
Pavilion 17-ab000, 17-ab100, 17-ab200, 17-ab300 series

✔️ HP Spectre x360 & Performance Ultrabooks
Spectre x360 15-ch000, 15-ch100 series
Spectre x360 15-df000, 15-df100, 15-df200, 15-df300 series
Spectre x360 15 (any configuration shipped with 135W or 150W 4.5mm adapter)
EliteBook 1050 G1

✔️ HP ZBook Mobile Workstations (4.5mm blue tip)
ZBook 15 G3, ZBook 15 G4, ZBook 15 G5
ZBook 15u G3, ZBook 15u G4, ZBook 15u G5
ZBook Studio G3, ZBook Studio G4, ZBook Studio G5

✔️ Additional HP Performance & Multimedia Notebooks
HP ENVY 15-j000, 15-j100, 15-k000, 15-k100, 15-k200, 15-k300 series (4.5mm connector configurations)
HP ENVY 17-j000, 17-j100, 17-k000, 17-k200 series with 4.5mm blue-tip adapter
HP ENVY TouchSmart m6/m7 series with 4.5mm adapter
HP Pavilion 15-bc, 15-cb, 15-cx, 17-ab series (all variants using 19.5V blue-tip adapter)

✔️ Backward-Compatible HP 4.5mm Blue-Tip Systems (higher-watt upgrade)
This 150W adapter can safely replace lower-watt 19.5V 4.5mm blue-tip adapters (65W/90W/120W) in many HP 14", 15", and 17" notebook series, including:
Pavilion 14-e000, 14-n000, 14-d000, 14-d100 series
Pavilion 15-e000, 15-n000, 15-n200, 15-p000, 15-bc000 series
Pavilion 17-e000, 17-e100 series
Compaq 14-a000, 14-a100, 15-a100 series
HP 240/242/246/248/250 G2 notebook families

☑️ Key Features

• ☑️ High-output 150W design for gaming laptops and mobile workstations
• ☑️ 4.5mm x 3.0mm blue-tip connector for modern HP notebooks
• ☑️ Backward compatible with lower-watt HP 19.5V blue-tip adapters (laptop only draws the power it needs)
• ☑️ Universal 100–240V input for worldwide use (region-appropriate AC cord required)
• ☑️ Integrated safety protections against over-voltage, over-current, and short circuits

⚙️ Fit Notes

• This listing is for the small blue-tip 4.5mm x 3.0mm connector. It is not compatible with older HP adapters that use the larger 7.4mm barrel plug.
• Always match voltage (19.5V) and connector type. A higher-watt adapter (150W) can replace a lower-watt blue-tip adapter, but not the other way around.
• If your system shipped with a 200W 4.5mm adapter or you prefer additional power headroom, you can use our 200W blue-tip adapter (part numbers L00818-850, 835888-001, L00895-003, 815680-002) available here
