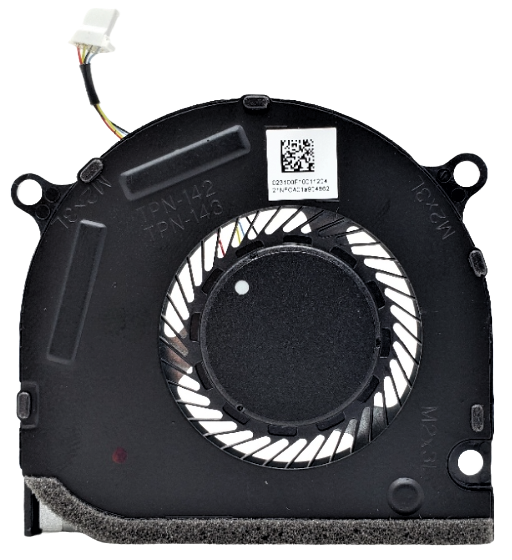

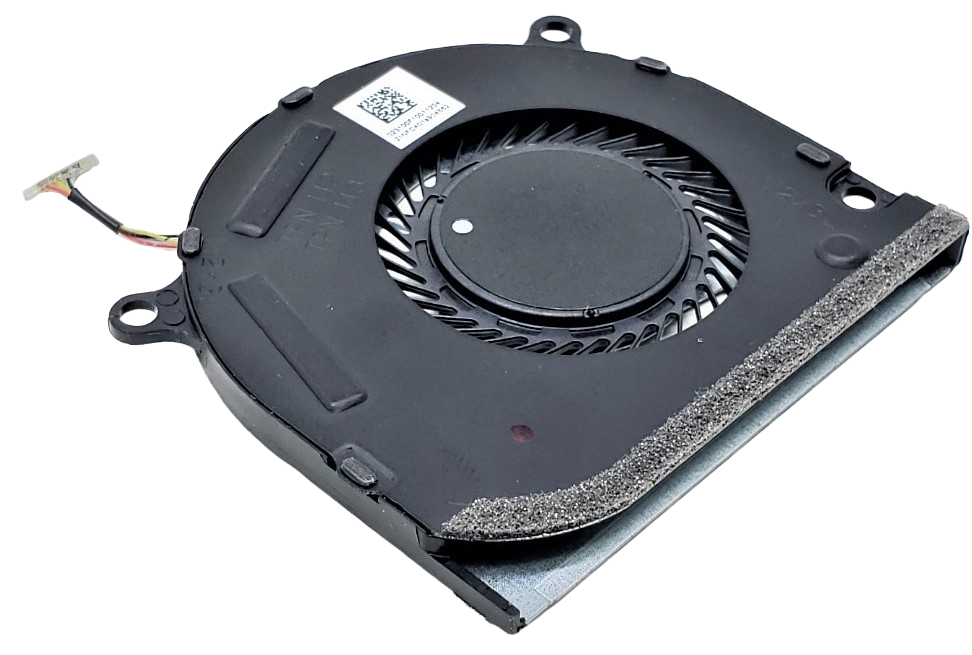

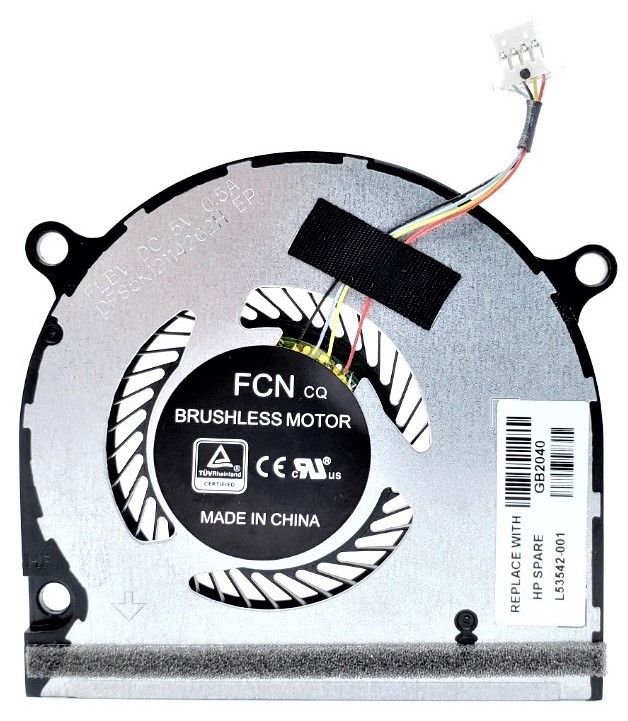

L53542-001 - GPU Cooling Fan for HP Envy X360 15-DS 15-DR Series Laptop

L53542-001 - GPU Cooling Fan for HP Envy x360 15-DS / 15-DR Series

OEM GPU-side cooling fan designed for HP Envy x360 15-DS and 15-DR convertible laptops. This slim, precision blower delivers targeted cooling to the dedicated graphics card and is essential for maintaining quiet, stable performance.

Description

The L53542-001 fan is engineered for the GPU (graphics) side of HP Envy x360 15-inch convertible systems. It works alongside the CPU fan to ensure proper airflow throughout the system. Replace this fan to resolve GPU-related overheating, thermal throttling, or loud fan operation. This is a direct-fit OEM part designed for easy installation.

Technical Specifications

• Manufacturer: HP
• Spare Part Number (SPN): L53542-001
• Alternate PNs: DFS5K12114262H, TPN-142, TPN-143, 023100F1000119214D, DTA01A001524
• Electrical: DC 5V, 0.5A
• Fan Dimensions: 11 mm x 7 mm x 5 mm
• Cable Length: ~16 mm
• Connector: 4-pin / 4-wire
• Screws: Uses 3x M2x3L screws
• Position: GPU-side cooling fan

Compatibility

✅ HP Envy x360 Convertible:
15-DR Series (15-DR0000, DR0011DX, DR1012DX, DR1008CA, DR1075CL, DR1XXX, DR0000TU, DR0001TX, DR0003TX, DR1020TX, DR1050TX, etc.)
15-DS Series (15-DS0003CA, DS0013NR, DS1010WM, DS1063CL, DS1097NR, DS0XXX, DS1XXX, DS0040AU, DS0044AU, etc.)
15M-DR Series (15M-DR0011DX, DR1012DX, etc.)
15M-DS Series (15M-DS0011DX, DS0023DX, etc.)
15T-DR000 / 15T-DR100 Series
15Z-DS000 / 15Z-DS100 Series

(This list includes dozens of sub-model SKUs; verify your exact product number to ensure fit.)

Key Features

☑️ Dedicated GPU-side blower for Envy x360 dual-fan systems
☑️ 4-pin PWM fan for precise speed control and thermal management
☑️ Slim, high-efficiency design for convertible laptop airflow
☑️ Works with CPU fan for balanced system cooling
☑️ Easy drop-in replacement using factory screw points

Cross-Reference & Technician Notes

• Designed for HP Envy x360 15-DR and 15-DS dual-fan configurations
• GPU fan is often paired with a separate CPU fan; replace together if both are noisy or failing
• Always clear dust buildup from venting and heatsinks during installation

Recommended Thermal Paste (Not Included)

Use Shin-Etsu G751 High-Performance OEM-Grade Thermal Paste for best thermal transfer.
Buy Here

What’s Included

• GPU cooling fan (L53542-001)
• Screws not included (reuse your original 3x M2x3L screws)
• Thermal paste not included (see link above)
