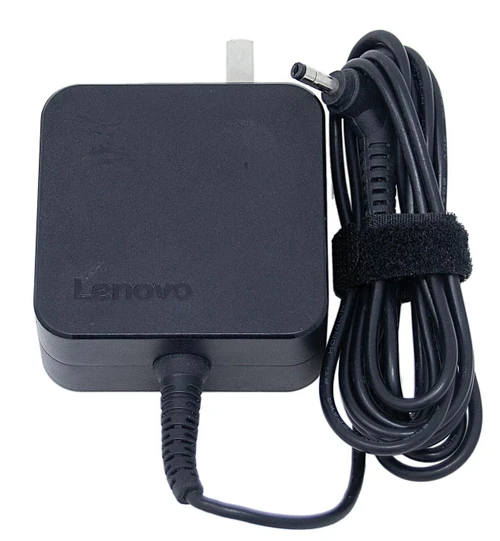

45W 20V 2.25A 4.0 x 1.7mm Round Tip Genuine OEM AC Adapter for Yoga IdeaPad Flex Miix

This OEM 45W AC adapter supplies the correct 20V 2.25A output for compatible Yoga, IdeaPad, Flex, Miix, Chromebook, and related notebook configurations that use the small 4.0mm outer × 1.7mm inner round power connector.

Genuine supplier, housing, label, cable length, and AC input style may vary by OEM revision. Each compatible version provides the same required 20V output and round-tip connection.

Technical Specifications

• Product Type: Genuine OEM AC power adapter
• Output Power: 45W
• Output Voltage: 20V DC
• Output Current: 2.25A
• Connector: Round 4.0mm outer diameter × 1.7mm inner diameter
• Center Pin: No
• AC Input: 100–240V AC, 50/60Hz
• Color: Black
• Adapter Style: Wall-mount or detachable-cord configuration depending on exact OEM revision
• Included Quantity: One Genuine OEM AC adapter
• Revision Variations: Supplier code, housing, cable length, input connection, regulatory markings, and label layout may vary

Interchangeable / Replacement Part Numbers

Native 45W service and assembly numbers:

00HM684, 00HM685, 01FR000, 01FR001, 01FR013, 01FR014, 01FR015, 01FR016, 01FR017, 01FR018, 01FR019, 01FR020, 01FR021, 01FR036, 01FR049, 01FR054, 01FR109, 01FR110, 01FR111, 01FR112, 01FR113, 01FR114, 01FR115, 01FR116, 01FR117, 01FR118, 01FR119, 01FR120, 01FR121, 01FR122, 01FR123, 01FR124, 01FR125, 01FR126, 01FR127, 01FR128, 01FR129, 01FR130, 01FR131, 01FR132, 01FR133, 01FR134, 5A10H42917, 5A10H42918, 5A10H42919, 5A10H42920, 5A10H42921, 5A10H42922, 5A10H42923, 5A10H42925, 5A10H42926, 5A10H43616, 5A10H43617, 5A10H43618, 5A10H43619, 5A10H43620, 5A10H43621, 5A10H43622, 5A10H43623, 5A10H43624, 5A10H43625, 5A10H43626, 5A10H43627, 5A10H43628, 5A10H43629, 5A10H43630, 5A10H43631, 5A10H43632, 5A10H43633, 5A10W86291, 5A11H02879, 5A11H02880, 5A11H02888, SA10L02297, SA10M42530, SA10M42696, SA10M42697, SA10M42699, SA10M42700, SA10M42701, SA10M42706, SA10M42709, SA10M42711, SA10M42721, SA10M42726, SA10M42734, SA10M42736, SA10M42737, SA10M42742, SA10M42743, SA10M42746, SA10M42748, SA10M42752, SA10M42768, SA10M42771, SA10M42774, SA10M42785, SA10M42786, SA10M42790, SA10M42792, SA10M42795, SA10M42800, SA10M42804

Retail and package numbers:

GX20K11838, GX20L23044, GX20L23048

Manufacturer model and revision numbers:

ADL45WCA, ADL45WCB, ADL45WCC, ADL45WCD, ADL45WCE, ADL45WCF, ADL45WCG, ADL45WCH, ADL45WCK, ADP-45DW A, ADP-45DW AA, ADP-45DW B, ADP-45DW BA, ADP-45DW C, ADP-45DW CA, ADP-45DW D, ADP-45DW DA, ADP-45DW E, ADP-45DW EA, ADP-45DW G, ADP-45DW GA, ADP-45DW H, ADP-45DW HA, ADP-45DW J, ADP-45DW JA, ADP-45DW K, ADP-45DW KA, PA-1450-55LG, PA-1450-55LI, PA-1450-55LK, PA-1450-55LL, PA-1450-55LN, PA-1450-55LR, PA-1450-55LS, PA-1450-55LU, PA-1450-55LZ

Searchable label variations:

ADP-45DWA, ADP-45DWD, ADP-45DWBA, 5A10K69453, PA-1450-55IN

Compatible 65W higher-output replacements:

ADLX65CLGC2A, 5A10K78736

These two references provide 20V 3.25A and 65W through the same round connector. They can replace the 45W adapter when the system requires 20V and the identical 4.0 × 1.7mm connector, but they are not native 45W models.

⭐ Bulk / Volume Orders

Need a bulk or project quantity? We regularly supply schools, businesses, repair facilities, resellers, refurbishers, and IT deployments.

Simply enter the required quantity and place the order directly through the website. Available bulk quantities can be purchased through the normal online checkout, and we will get the order processed, carefully prepared, and moved through fulfillment promptly.

⚠️ Important Note

Always compare the complete specification with the original adapter: 20V DC, 2.25A, 45W, and a round 4.0mm outer × 1.7mm inner barrel connector without a center pin.

This is not the rectangular Slim Tip or USB-C version. A connector that looks similar can still have a different size or electrical configuration. Using the wrong voltage, connector, or adapter type can cause charging problems or equipment damage.

☑️ Key Features

☑️ Genuine OEM power adapter
☑️ Native 45W output with 20V DC and 2.25A current
☑️ Small 4.0 × 1.7mm round connector without a center pin
☑️ Worldwide 100–240V AC input support
☑️ Broad support across compatible Yoga, IdeaPad, Flex, Miix, Chromebook, and related notebook families
☑️ Extensive service-number, retail-number, and manufacturer-revision cross-reference coverage
☑️ Suitable as a replacement adapter, spare charger, travel adapter, or bulk deployment unit

⚙️ Fit Notes

• Confirm the original adapter says 20V 2.25A 45W and uses the 4.0mm outer × 1.7mm inner round connector.
• This adapter does not fit rectangular Slim Tip or USB-C charging ports.
• Do not cross-reference ADLX45NAC3A with this round-tip adapter; that model uses the incompatible rectangular connector.
• Some product families were sold with 45W, 65W, or higher-wattage adapters depending on the processor, graphics, and regional configuration.
• If the original adapter is rated 65W, use a compatible 65W replacement unless the system’s service documentation specifically permits 45W.
• A 65W adapter with the same 20V output and identical 4.0 × 1.7mm connector can normally replace a 45W adapter because the computer draws only the current it requires.
• Housing style, supplier, cable length, AC wall connection, and printed model suffix may vary across genuine revisions.
• A matching wattage alone does not establish compatibility; voltage, connector dimensions, connector style, and polarity must also match.

✅ Confirmed Compatibility

The following list consolidates verified 45W round-tip system families and configurations. Some model families were manufactured with both 45W and 65W adapters. For models marked “selected configurations,” confirm that the original adapter is rated 20V 2.25A 45W and uses the 4.0 × 1.7mm round connector.

Yoga and Flex Convertible Systems

✔️ Yoga 300 Series: 310-11IAP, 310-14IAP, 310-14IKB, 310-14ISK
✔️ Yoga 500 Series: 510-14AST, 510-14IKB, 510-14ISK, 510-15IKB, 510-15ISK, 520-14IKB, 520-14IKBR, 520-15IKB in selected 45W round-tip configurations
✔️ Yoga 700 Series: 710-11IKB, 710-11ISK, 710-13IKB, 710-13ISK, 710-14IKB, 710-14ISK, 710-15IKB, 710-15ISK in selected 45W round-tip configurations
✔️ Flex 4 Series: Flex 4-1130, Flex 4-1435, Flex 4-1470, Flex 4-1480, Flex 4-1570, Flex 4-1580
✔️ Flex 5 Series: Flex 5-1470 and Flex 5-1570 in selected 45W round-tip configurations
✔️ Flex 6 Series: Flex 6-11IGM, Flex 6-14ARR, Flex 6-14IKB in selected 45W round-tip configurations
✔️ IdeaPad Flex 3: Flex 3-11ADA05

Miix Detachable Systems

✔️ Miix 510: Miix 510-12IKB, Miix 510-12ISK, Types 80U1 and 80XE
✔️ Miix 520: Miix 520-12IKB, Types 20M3, 20M4, and 81CG

IdeaPad 100 and 100S Series

✔️ IdeaPad 100: 100-14IBY, 100-15IBD, 100-15IBY
✔️ IdeaPad 100S: 100S-11IBY, 100S-14IBR
✔️ 100S-14IBR Configurations: 80R90004US, 80R9005KUS, 80R90073US
✔️ 100-14IBY Configurations: 80MH000XUS, 80MH000YUS, 80MH0012US, 80MH005HUS, 80MH005KUS, 80MH005LUS
✔️ 100-15IBD Configurations: 80QQ0060US, 80QQ00CEUS, 80QQ002DUS, 80QQ00E6US, 80QQ00JGUS

IdeaPad 110 120S and 130 Series

✔️ IdeaPad 110: 110-14IBR, 110-14ISK, 110-15ACL, 110-15AST, 110-15IBR, 110-15ISK, 110-17ACL, 110-17IKB, 110-17ISK in applicable 45W round-tip configurations
✔️ IdeaPad 110S: 110S-11IBR, 110S-11IGM
✔️ IdeaPad 120S: 120S-11IAP, 120S-14IAP
✔️ IdeaPad 130: 130-14AST, 130-14IKB, 130-15AST, 130-15IKB in applicable 45W configurations
✔️ IdeaPad S130: S130-11IGM, S130-14IGM

IdeaPad 300 Series

✔️ IdeaPad 310: 310-14IAP, 310-14IKB, 310-14ISK, 310-15ABR, 310-15IAP, 310-15IKB, 310-15ISK in applicable 45W configurations
✔️ IdeaPad 310S: 310S-11IAP, 310S-14AST, 310S-14ISK, 310S-15IKB, 310S-15ISK
✔️ IdeaPad 320: 320-14AST, 320-14IKB, 320-15ABR, 320-15AST, 320-15IAP, 320-15IKB, 320-15IKBR, 320-15ISK, 320-17AST, 320-17IKB, 320-17ISK in selected 45W round-tip configurations
✔️ IdeaPad 320S: 320S-13IKB, 320S-14IKB, 320S-15ABR, 320S-15AST, 320S-15IKB, 320S-15ISK in selected 45W configurations
✔️ IdeaPad 330: 330-14AST, 330-14IGM, 330-14IKB, 330-14IKBR, 330-15ARR, 330-15AST, 330-15IGM, 330-15IKB, 330-15IKBR, 330-17AST, 330-17IKB, 330-17IKBR in selected 45W round-tip configurations
✔️ IdeaPad 330S: 330S-14IKB, 330S-15ARR, 330S-15AST, 330S-15IKB in selected 45W round-tip configurations

IdeaPad 500 and 700 Series

✔️ IdeaPad 510: 510-14AST, 510-14IKB, 510-14ISK, 510-15IKB, 510-15ISK in applicable 45W configurations
✔️ IdeaPad 510S: 510S-13ISK, 510S-14IKB, 510S-14ISK
✔️ IdeaPad 520S: 520S-14IKB and related 45W round-tip configurations
✔️ IdeaPad 710S: 710S-13IKB, 710S-13ISK, 710S-13ISK-IFI, 710S-13ISK-ISE, 710S-13ISK-ITH
✔️ IdeaPad 710S Plus: 710S Plus-13IKB in selected 45W round-tip configurations

Later Low-Power IdeaPad Systems

✔️ IdeaPad 1: 11ADA05, 11IGL05, 14ADA05, 14IGL05, 14IGL7, 14IJL7, 15ADA05, 15IGL7, 15IJL7 in documented 45W round-tip configurations
✔️ IdeaPad 3: 14IGL05, 15IGL05, 17IML05 and other configurations specifically supplied with a 45W round-tip adapter
✔️ IdeaPad 5: 14IIL05 and 15IIL05 in selected 45W round-tip configurations only

S L B and V Series

✔️ S145: S145-14AST, S145-14IGM, S145-14IKB, S145-14IML, S145-14IWL, S145-15AST, S145-15IGM, S145-15IKB, S145-15IML, S145-15IWL in applicable 45W round-tip configurations
✔️ BS145: BS145-15IGM and selected BS145-15IWL configurations
✔️ S340: S340-14IIL, S340-14IWL, S340-15IIL, S340-15IWL in selected 45W round-tip configurations
✔️ L340: L340-15IWL and L340-17IWL in selected 45W round-tip configurations
✔️ B Series: B50-10, B50-50, B110-14IBR
✔️ V140: V140-14IWL, V140-15IWL
✔️ V14 / V15: V14-IGL, V15-IGL, plus selected V14-IKB, V14-IWL, V15-IKB, V15-IWL, and V15-IML 45W round-tip configurations
✔️ V340: V340-17IWL in selected 45W round-tip configurations

Chromebook Systems

✔️ 100S Chromebook: 80QN0009US
✔️ N-Series Chromebook: N22, N22-20, N23, N42, N42-20 and corresponding 45W round-tip configurations
