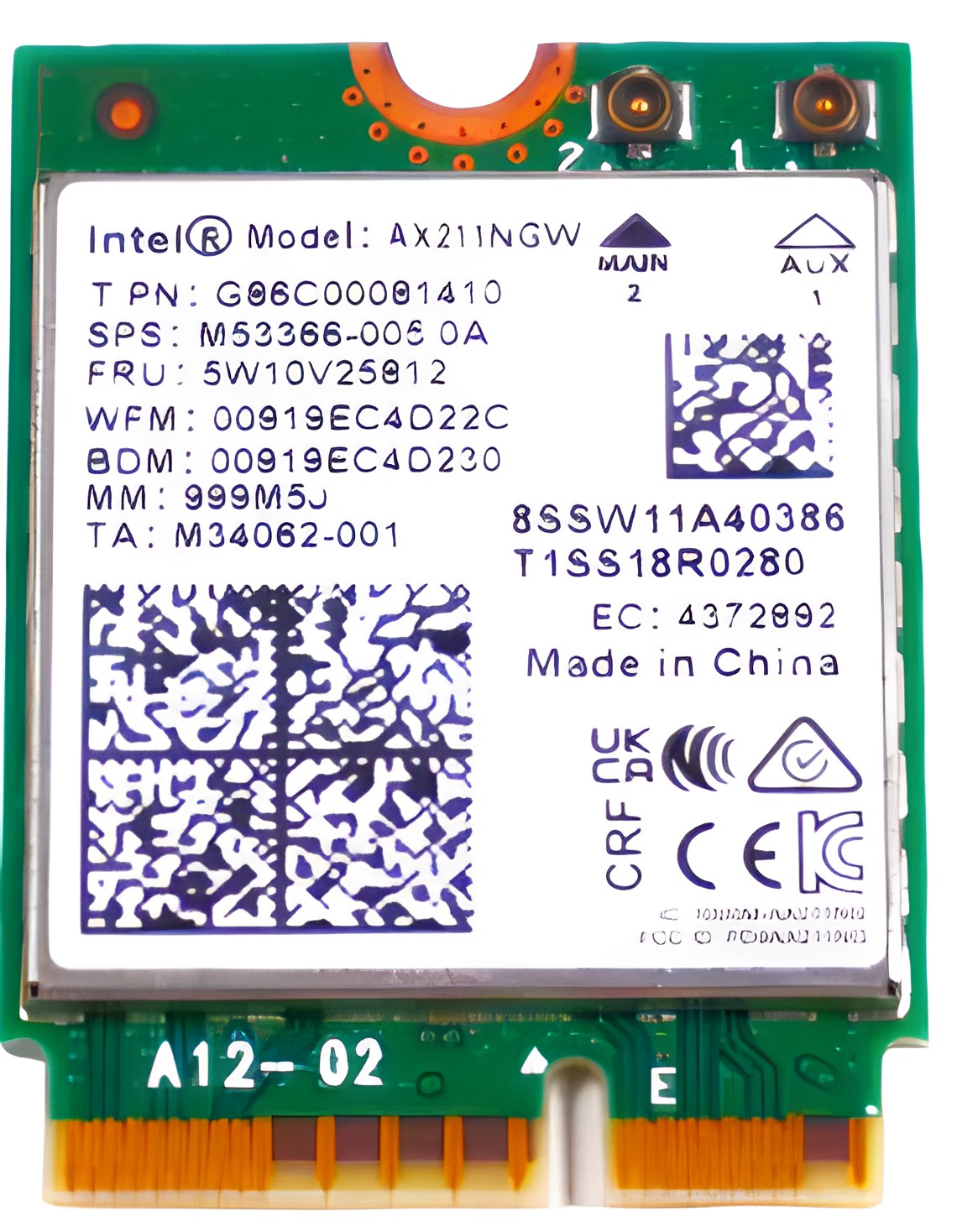

Intel AX211NGW Wi-Fi 6E Bluetooth 5.3 M.2 2230 Wireless Card

The Intel AX211NGW is a high-performance tri-band wireless module designed for modern notebooks, small form factor PCs, and mini PCs that use an M.2 2230 CNVio2 slot. It delivers Wi-Fi 6E connectivity across the 2.4 GHz, 5 GHz, and 6 GHz bands with 2x2 MU-MIMO and 160 MHz channel support, enabling throughput up to 2.4 Gbps. Alongside Wi-Fi, it integrates Bluetooth 5.3 for low-power wireless peripherals such as keyboards, mice, headsets, and IoT devices.

This card is ideal as a replacement or upgrade for systems originally equipped with AX211NGW-class adapters. All part numbers listed below are fully interchangeable and share the same core Intel AX211NGW hardware and feature set.

Technical Specifications

• Model: Intel Wi-Fi 6E AX211 (AX211NGW)
• Form Factor: M.2 2230 (22 x 30 mm), A/E-key
• Interface: Intel CNVio2 (requires compatible Intel platform; not backward-compatible with PCIe-only or CNVio1 slots)
• Wireless Standards: IEEE 802.11ax (Wi-Fi 6 / Wi-Fi 6E), 802.11ac, 802.11n, 802.11a/b/g

• Frequency Bands:

• 2.4 GHz
• 5 GHz
• 6 GHz (Wi-Fi 6E, where regionally allowed)


• Spatial Streams: 2x2 MU-MIMO
• Channel Width: Up to 160 MHz
• Maximum PHY Rate: Up to 2.4 Gbps (with 160 MHz channel, 2x2)
• Security: WPA3, WPA2, 802.1X (EAP) support (OS-dependent)
• Bluetooth: Version 5.3 (backward-compatible with 5.x/4.x)
• Antenna Connections: 2 x MHF4 antenna jacks (MAIN / AUX)

• Operating Systems:

• Windows 10 / 11 64-bit (Intel driver support)
• Linux distributions with Intel AX2xx driver support



Interchangeable / Replacement Part Numbers
(All of the following refer to the same Intel AX211NGW Wi-Fi 6E + Bluetooth 5.3 module.)

• Intel model: AX211, AX211NGW
• HP SPS / spare / TA: M53366-005, M53363-001, M53366-001, M34062-001, M34062-002, M34062-004
• Lenovo FRU: 5W10V25812
• Asus PN: 0C012-00160700 (and equivalent 0C012-xxxx variants for AX211)
• Dell DPN: G83J7 (CN-0G83J7-xxxx)
• Toshiba / OEM board PN: G86C00081410

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

Because AX211NGW is a CNVio2 device, it is intended for systems with 11th-generation or newer Intel platforms that explicitly support Intel AX2xx wireless modules.

✔ HP: Select recent Pavilion, ENVY, Spectre, OMEN, Victus and ProBook / EliteBook notebooks that ship with Intel Wi-Fi 6E AX211 or AX201 cards and use an M.2 2230 CNVio2 wireless slot.
✔ Lenovo: Select ThinkPad (T-series, X-series, L-series), IdeaPad / Yoga, and Legion laptops that list FRU 5W10V25812 or AX211NGW in their parts catalog and have an M.2 2230 CNVio2 WLAN socket.
✔ Dell: Select Latitude 5000/7000, Precision mobile workstations, Inspiron and XPS systems that use the G83J7 AX211NGW card or are advertised with Wi-Fi 6E AX211 support.
✔ Asus / Acer / MSI / other OEM systems: Many modern ultrabooks and gaming laptops that pair Intel 11th–14th Gen Core CPUs with Intel AX211NGW or AX210-class wireless modules and provide an M.2 2230 CNVio2 WLAN slot.

☑️ Key Features

☑️ Tri-band Wi-Fi 6E (2.4 / 5 / 6 GHz) for higher throughput, lower latency and less congestion on supported 6 GHz channels.
☑️ 2x2 MU-MIMO with 160 MHz channels, supporting aggregate speeds up to 2.4 Gbps for demanding applications like 4K streaming and large file transfers.
☑️ Integrated Bluetooth 5.3 for reliable, low-power connectivity to headsets, mice, keyboards and other peripherals.
☑️ Backward compatible with Wi-Fi 4/5/6 networks and older Bluetooth generations for flexible deployment in mixed environments.
☑️ Compact M.2 2230 form factor suitable for thin-and-light notebooks, mini PCs and embedded systems.

⚙️ Fit Notes

• This is a CNVio2-interface wireless module, not a standard PCIe-only M.2 Wi-Fi card. It requires a compatible Intel chipset/CPU platform and WLAN slot designed for CNVio2 (AX2xx-class) cards.
• Many older systems that use Intel 8260/8265/9560 or AX200/AX210 (PCIe) modules will not work with AX211NGW, even if the physical slot looks similar.
