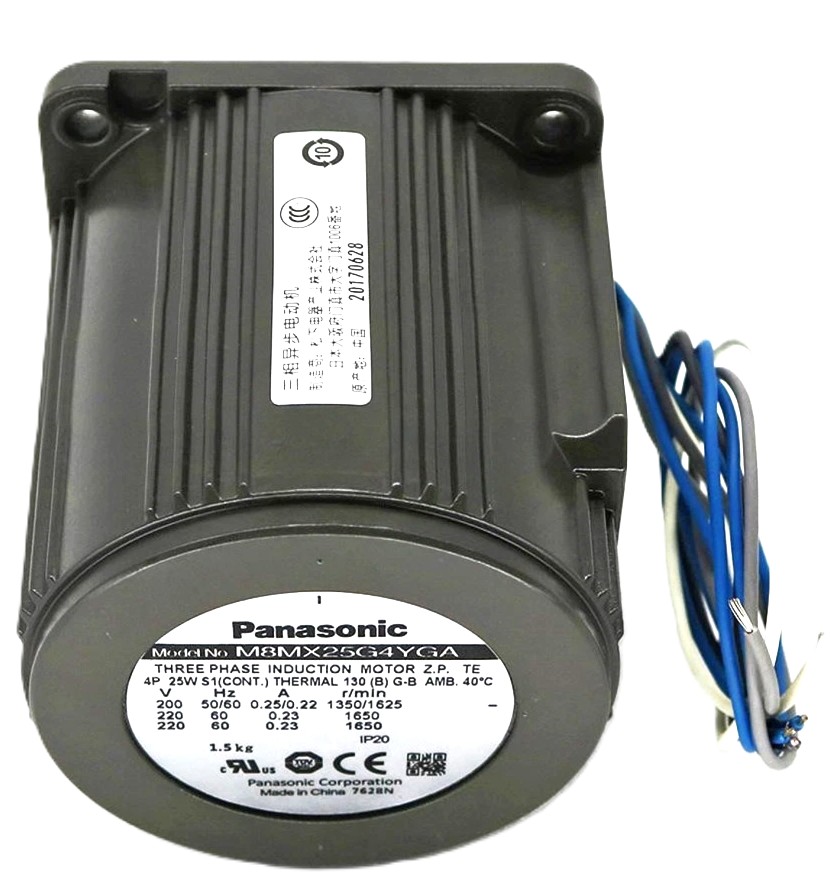

M8MX25G4Y – 3-Phase AC Induction Motor (25 W, 200/220 V)
Description
The M8MX25G4Y is a precision-engineered three-phase AC induction motor built for reliability and continuous operation in industrial automation systems. With an output of 25 W and a compact 80 mm frame size, it delivers smooth rotation, long service life, and excellent efficiency under continuous duty. Commonly used in conveyors, machine tools, assembly lines, and control systems requiring dependable, low-noise performance.
Technical Specifications
- Part Number: M8MX25G4Y
- Series: SHIN-G
- Motor Type: 3-Phase AC Induction Motor
- Output Power: 25 W
- Rated Voltage: 200/220 V AC (50/60 Hz)
- Current (approx.): 0.25 A
- Speed: 1350 rpm (50 Hz) / 1600 rpm (60 Hz)
- Poles: 4
- Frame Size: 80 mm × 80 mm
- Shaft Type: Round shaft
- Rotation: Reversible (depends on phase wiring)
- Insulation Class: B
- Enclosure Type: Totally Enclosed, Fan Cooled (TEFC)
- Operating Temperature: 0 °C – +40 °C
- Duty Cycle: Continuous (S1)
- Mounting Orientation: Any position
✅ Confirmed Compatibility
- ✔ Automation systems requiring compact 25 W three-phase motors
- ✔ Conveyor drives, small pumps, and feeder mechanisms
- ✔ Compatible with standard 80 mm mounting plates and gear reducers from SHIN-G series
- ✔ Industrial control panels designed for 200/220 V AC 3-phase operation
☑️ Key Features
- ☑️ Compact 80 mm frame ideal for tight installation spaces
- ☑️ Three-phase design provides smooth rotation and higher torque efficiency
- ☑️ Quiet operation suitable for precision motion and lab equipment
- ☑️ High reliability and long service life under continuous duty
- ☑️ Reversible rotation through phase sequence control
- ☑️ Standard shaft and mounting compatible with geared and brake motor assemblies
