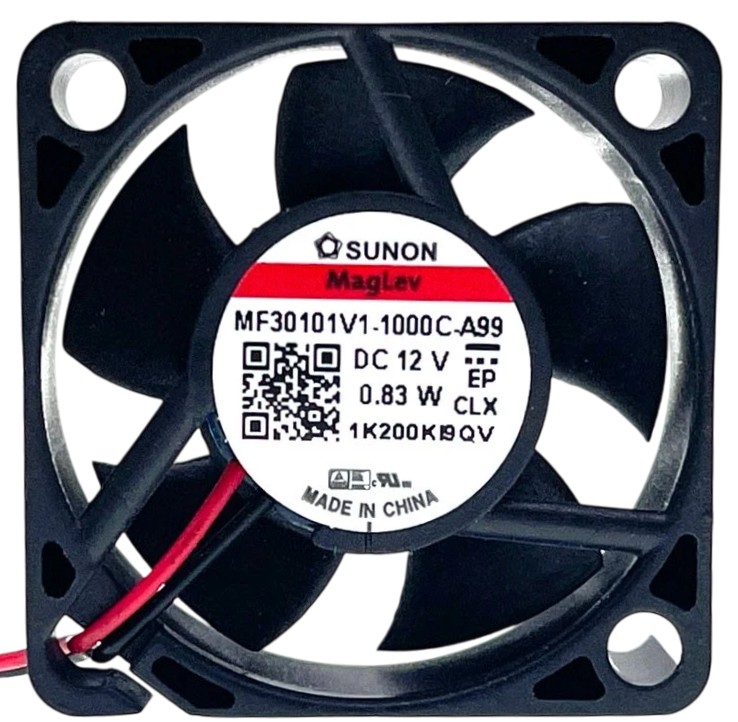

MF30101V1-1000C-A99 - 30x30x10mm 3010 DC12V 0.83W 2-Lead Wires Connector Micro Cooling Fan
Description
Compact 30mm x 10mm DC brushless fan for spot cooling inside tight electronics bays. Ideal for control modules, small inverters, networking gear, SBC enclosures, and chipset/VRM heatsinks where a focused 30mm airflow source is required. The 2-wire lead with connector enables quick drop-in replacement.
Technical Specifications
- Dimensions: 30 x 30 x 10 mm (3010)
- Rated Voltage: DC 12V
- Rated Power: 0.83W
- Approx. Rated Current: ~0.07A (derived from 0.83W ÷ 12V)
- Leads / Connector: 2-wire with 2-pin connector (+V / GND)
- Fan Type: DC brushless axial
- Bearing System: Magnetic-levitation (long-life)
- Mounting: Standard 30mm square pattern
- Rotation / Airflow Indicators: Arrows molded on housing
Interchangeable / Replacement Part Numbers
MF30101V1-1000C-A99
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Mini inverters and compact VFD control modules
✔ SBC enclosures (Raspberry Pi/Jetson-class cases using 30mm fans)
✔ Routers, access points, and small networking gear with 30mm fan bays
✔ Chipset, VRM, and small heatsink assemblies in embedded/industrial PCs
✔ DVR/NVR security recorders and compact power supplies requiring 30mm cooling
☑️ Key Features
- ☑️ 30x30x10mm footprint for space-constrained installations
- ☑️ 12V DC operation with low 0.83W power draw
- ☑️ Simple 2-wire hookup for fast field replacement
- ☑️ Magnetic-levitation bearing designed for continuous duty
- ☑️ Standard 30mm mounting pattern for broad mechanical fit
⚙️ Fit Notes
- Verify your device requires a 30x30x10mm 12V DC 2-wire fan and that the connector style/pinout matches your harness.
- Typical wiring: Red = +12V, Black = Ground (confirm on your controller).
- Align airflow and rotation using the molded arrows on the frame; keep intake and exhaust paths unobstructed.
- This 2-wire model does not provide tach (RPM) or PWM control—it runs at native speed when powered.
