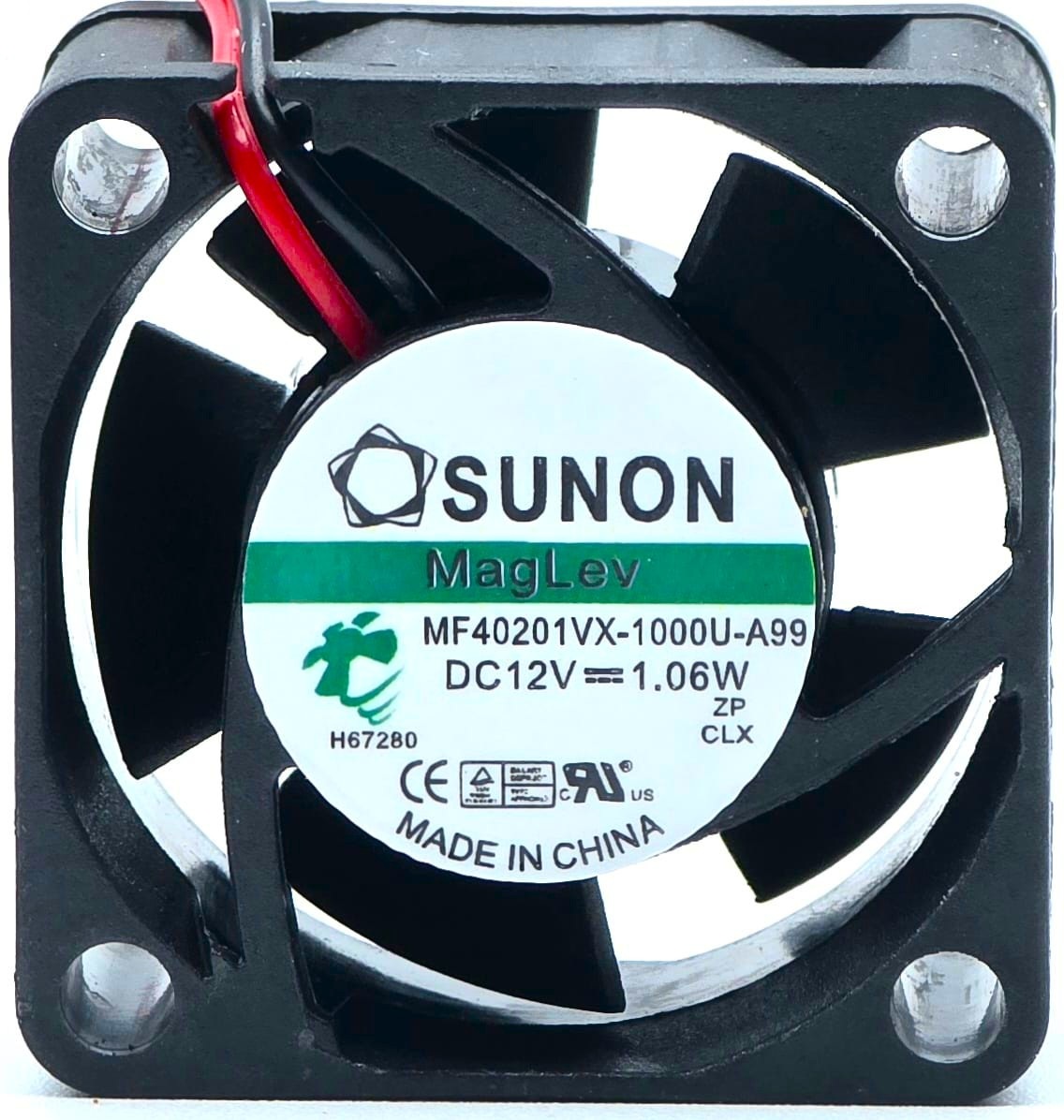

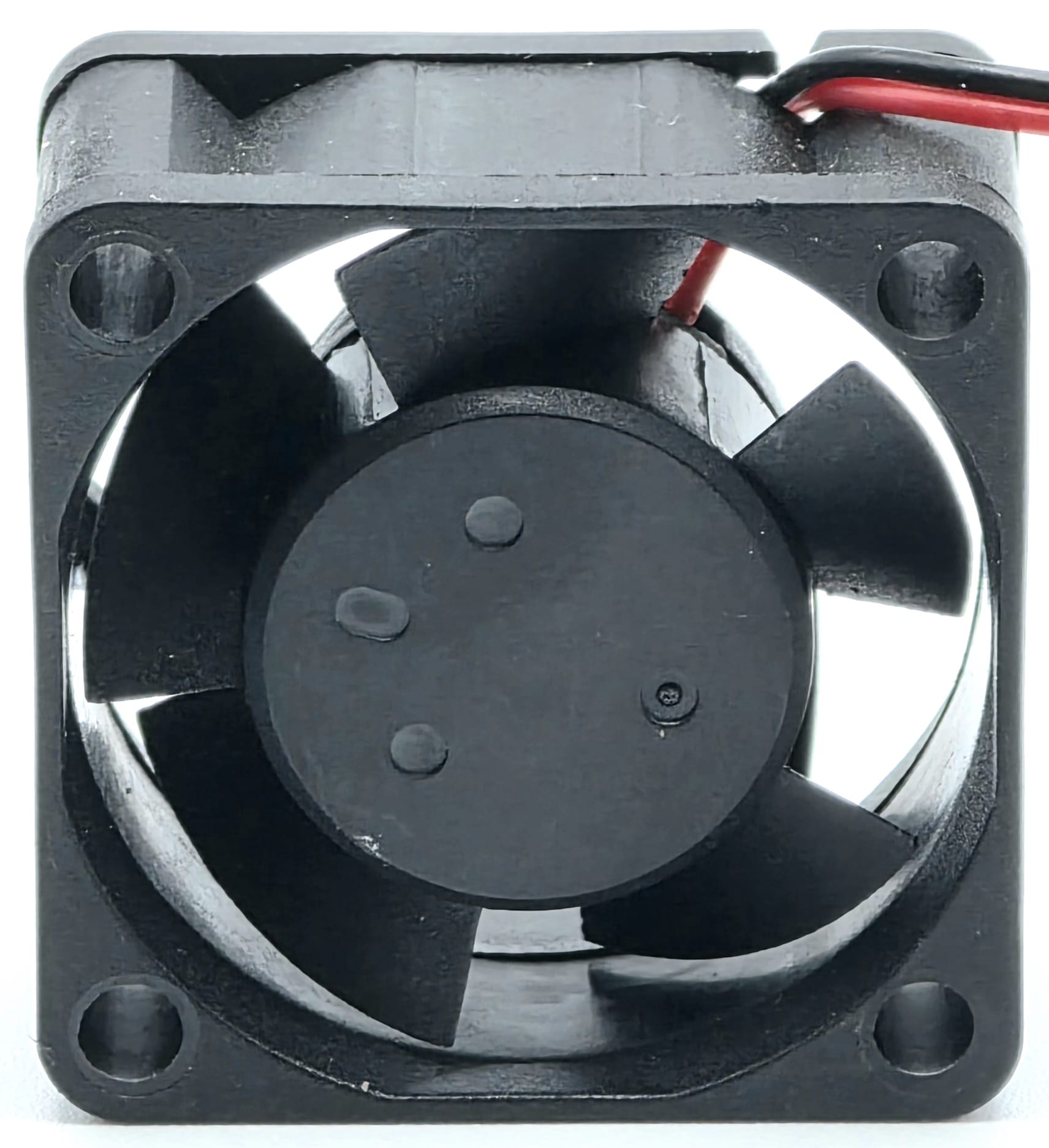

MF40201V2-1000U-A99 - 40x40x20mm 4020 DC12V 1.06W 2-Lead Wires DC Brushless Cooling Fan
Description
Compact 40mm x 20mm DC brushless cooling fan designed for control modules, inverter bays, and electronics enclosures where reliable spot cooling is required. Operates at 12V DC with simple 2-lead wiring.
Technical Specifications
- Dimensions: 40 x 40 x 20 mm (4020)
- Rated Voltage: DC 12V
- Rated Power: 1.06W
- Approx. Rated Current: ~0.09A (derived from 1.06W ÷ 12V)
- Interface: 2-wire leads (+V / GND)
- Fan Type: DC brushless axial
- Mounting: Standard 40mm square pattern
- Airflow/Rotation Indicators: Arrows molded on housing
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Control boards and inverter modules
✔ PLC and small automation panels
✔ Embedded electronics and networking gear
✔ Compact power supplies and equipment housings
☑️ Key Features
- ☑️ 40x40x20mm footprint for space-constrained installs
- ☑️ 12V DC operation with low 1.06W power draw
- ☑️ Simple 2-wire hookup for quick replacement
- ☑️ Brushless design for stable, continuous duty
- ☑️ Standard 40mm mounting for broad mechanical fit
⚙️ Fit Notes
- Verify your device requires a 40x40x20mm 12V DC 2-wire fan and that the lead/connector style and pinout match your harness.
- Typical wiring convention: Red = +12V, Black = Ground (confirm on your controller).
- Align airflow and rotation with the molded arrows on the frame; keep intake and exhaust paths unobstructed.
- This 2-wire model does not provide tach feedback or PWM control—it runs at native speed when powered.
