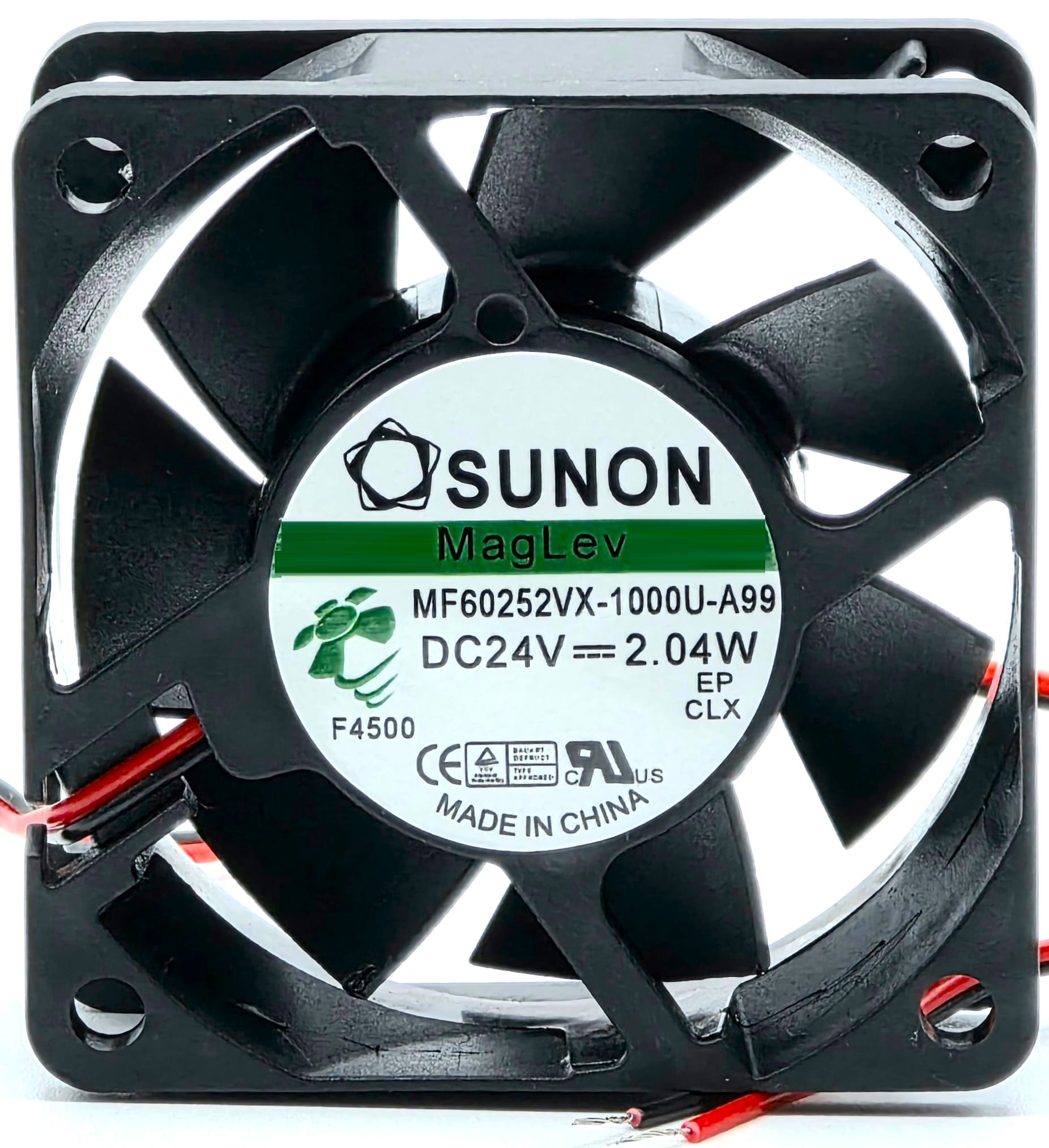

MF60252VX-1000U-A99 - 60x60x25mm 6025 DC24V 2.04W 2-Lead Wires Connector DC Brushless Inverter Cooling Fan
Description
Compact 60mm x 25mm DC brushless cooling fan designed for inverter bays, control modules, and electronics enclosures where reliable spot cooling is required. Operates on 24V DC with a simple 2-wire lead and connector.
Technical Specifications
- Dimensions: 60 x 60 x 25 mm (6025)
- Rated Voltage: DC 24V
- Rated Power: 2.04W
- Approx. Rated Current: ~0.085A (derived from 2.04W ÷ 24V)
- Interface: 2-wire lead with connector (+V / GND)
- Fan Type: DC brushless axial
- Mounting: Standard 60mm square pattern
- Airflow/Rotation Indicators: Arrows molded on housing
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Inverter and VFD cooling bays
✔ PLC and automation control panels
✔ Industrial power supplies and rectifiers
✔ Embedded electronics and small equipment housings
☑️ Key Features
- ☑️ 60x60x25mm footprint for space-constrained installs
- ☑️ 24V DC operation with low 2.04W power draw
- ☑️ Simple 2-wire hookup for quick replacement
- ☑️ Brushless design for stable, continuous duty
- ☑️ Standard 60mm mounting for broad mechanical fit
⚙️ Fit Notes
- Verify your device requires a 60x60x25mm 24V DC 2-wire fan and that the connector type and pinout match your harness.
- Typical wiring convention: Red = +24V, Black = Ground (confirm on your controller).
- Align airflow and rotation with the molded arrows on the frame; keep intake and exhaust paths unobstructed.
- This 2-wire model does not provide tach feedback or PWM control—it runs at native speed when powered.
