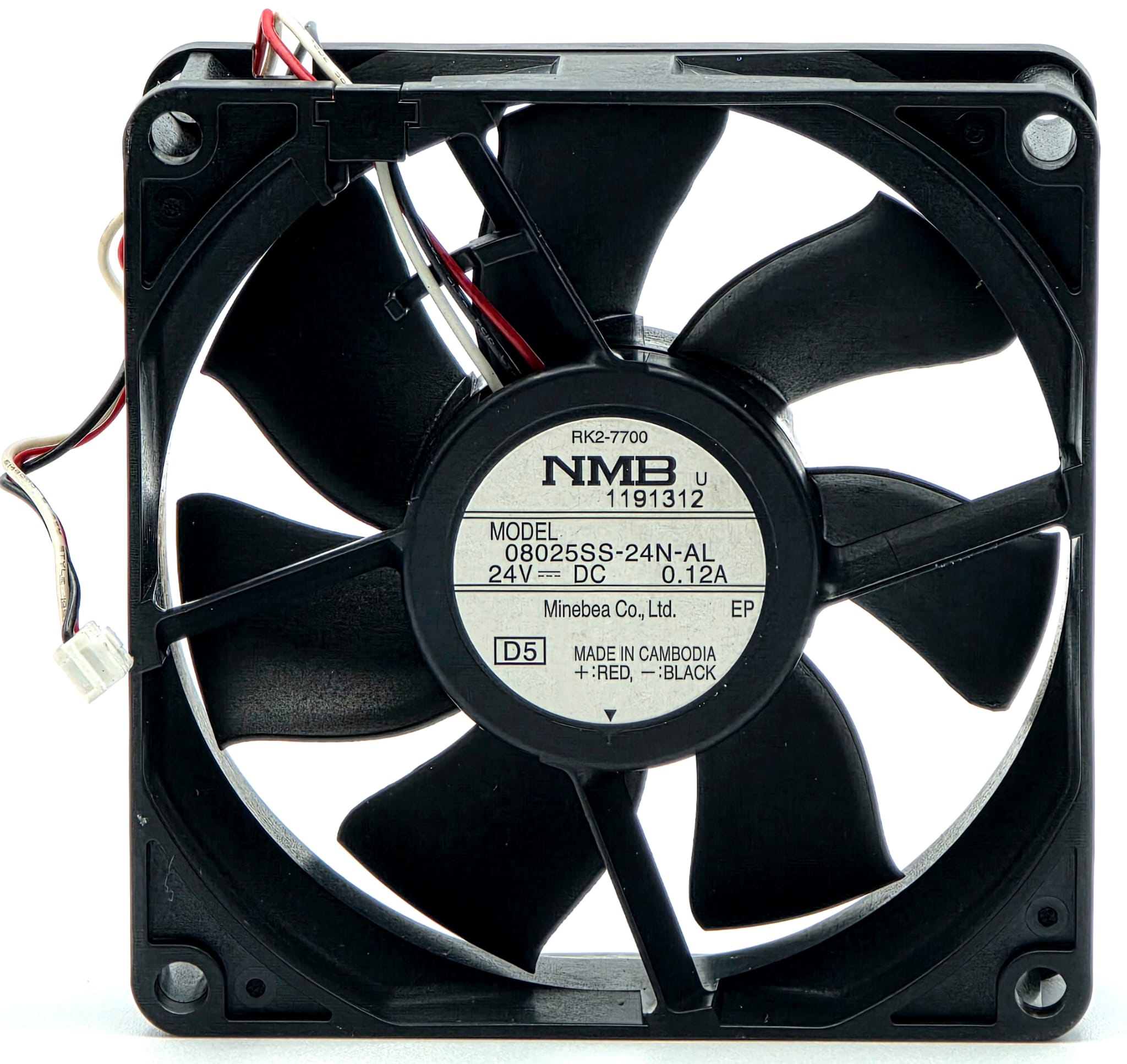

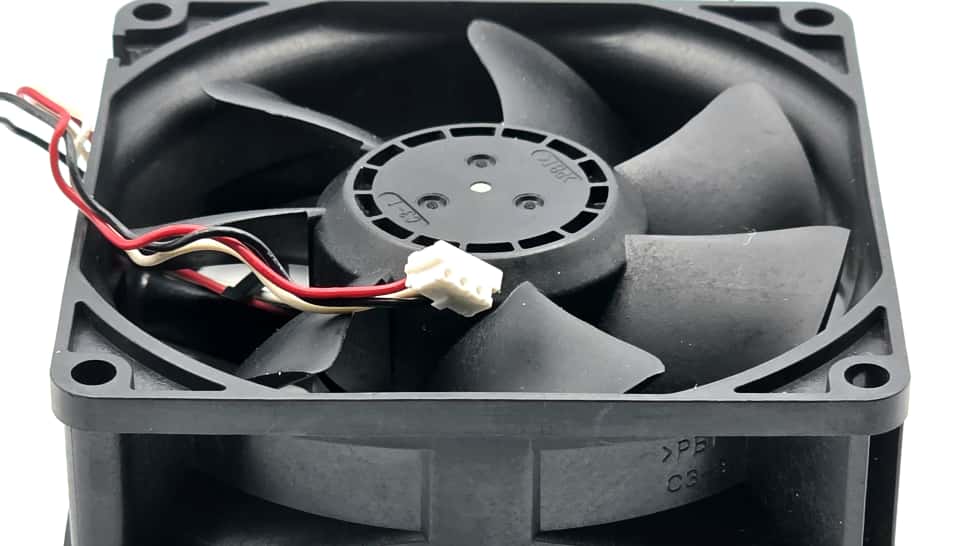

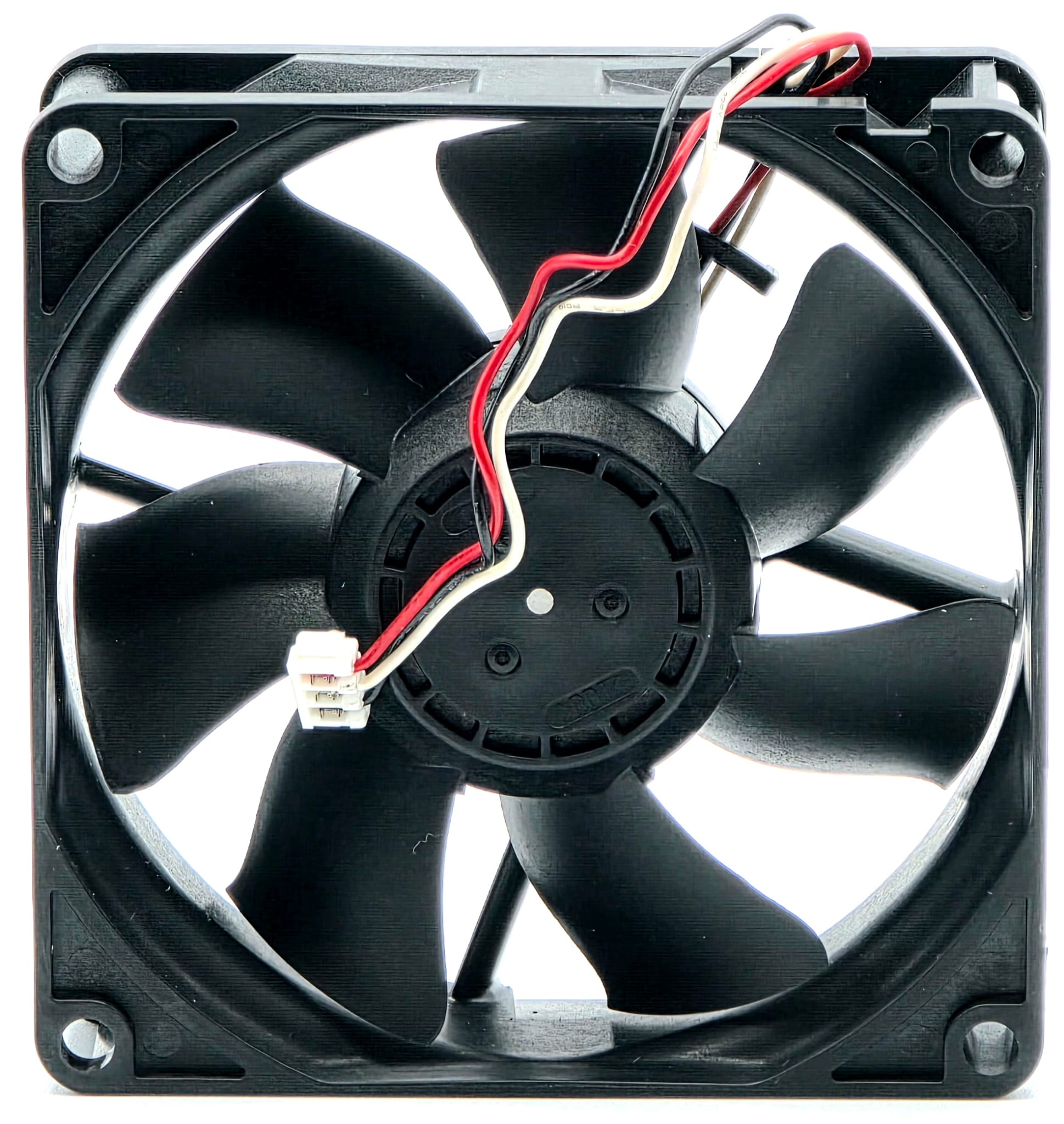

08025SS-24N-AL - 80x80x25mm 24V 0.12A 3-Wire DC Brushless Cooling Fan
Description
High-efficiency 80mm x 25mm DC brushless cooling fan engineered for inverter, power supply, and control panel ventilation. The 08025SS-24N-AL provides quiet, stable performance at 24V DC with a 3-wire tachometer signal for monitoring fan speed. Designed for continuous-duty industrial applications where reliability and low noise are critical.
Technical Specifications
- Dimensions: 80 x 80 x 25 mm
- Rated Voltage: 24V DC
- Operating Voltage Range: 18–26V DC
- Rated Current: 0.12A
- Power Consumption: 2.9W
- Bearing Type: Dual Ball Bearing
- Speed: 2800–3200 RPM (typical)
- Airflow: ~32 CFM
- Noise Level: 28–32 dBA
- Connector Type: 3-Pin (3-Wire with Tachometer Output)
- Lead Wire Length: Approx. 12 inches (300mm)
- Rotation: Counterclockwise (viewed from label side)
- Operating Temperature: -10°C to +70°C
- Frame Material: Thermoplastic PBT (UL94V-0 rated)
Interchangeable / Replacement Part Numbers
- 08025SS-24N-AL
- May replace equivalent 80mm 24V 3-wire fans in the same electrical and mechanical class
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Industrial control cabinets, PLC enclosures, inverters
✔ Power supplies, UPS systems, CNC controllers
✔ Audio amplifiers and high-end communications equipment
✔ Embedded electronics and industrial PCs
☑️ Key Features
- ☑️ 24V DC operation for industrial-grade applications
- ☑️ Dual ball bearing design for long operational lifespan
- ☑️ 3-wire configuration with tachometer signal output
- ☑️ Quiet performance at approximately 30 dBA
- ☑️ Compact 80mm square frame ideal for confined cooling spaces
⚙️ Fit Notes
- Ensure your device uses an 80x25mm 24V 3-wire fan before installation.
- Connect red to +24V, black to ground, and yellow for tachometer (optional monitoring).
- Mount using standard 80mm screw holes; ensure airflow direction matches system requirements (arrows on housing indicate airflow and rotation).
