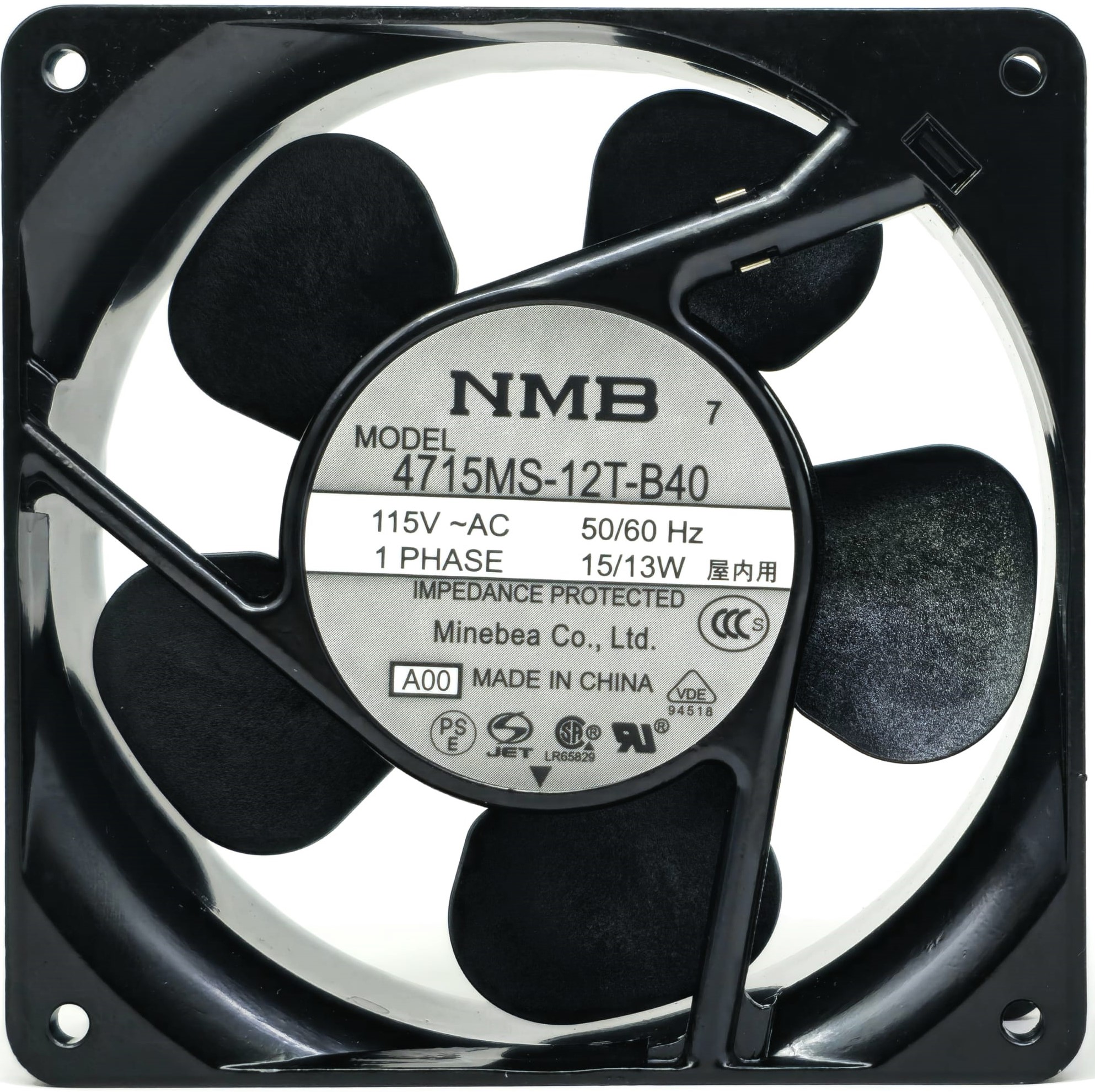

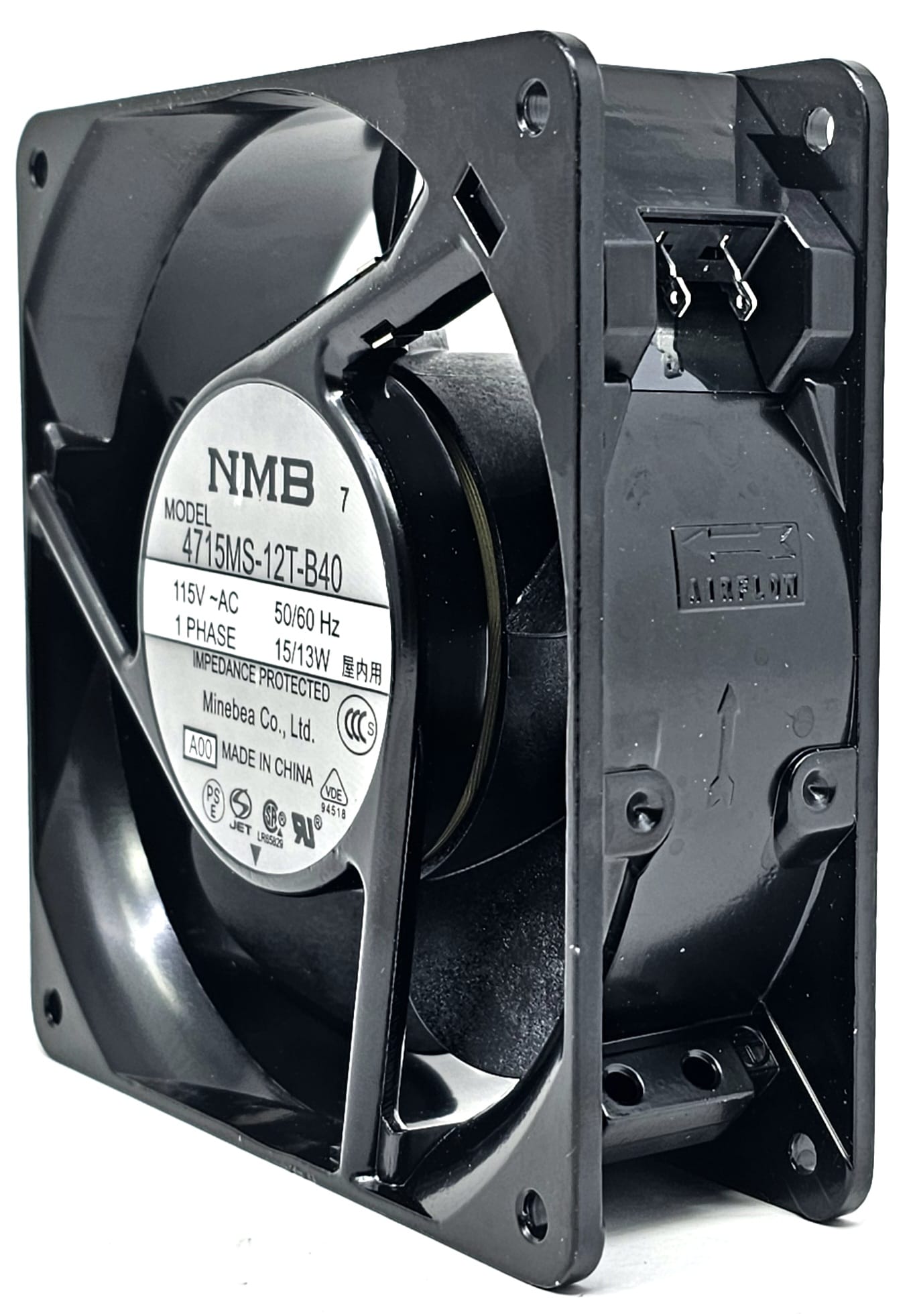

4715MS-12T-B40 - 120x120x38mm 115VAC 50/60Hz 13W Ball Bearing Tubeaxial Cooling Fan

This 120mm AC cooling fan is a strong replacement option for industrial equipment, power supplies, control cabinets, rack enclosures, and other systems that require a 115VAC tubeaxial fan in the 120 x 120 x 38mm class. It uses a durable ball bearing design, aluminum frame, fiberglass-reinforced polycarbonate blades, and 2-terminal power connection for dependable airflow in continuous-duty applications.

Technical Specifications

• Part Number: 4715MS-12T-B40
• Full Manufacturer Reference: 4715MS-12T-B40-A00
• Fan Type: AC tubeaxial cooling fan
• Rated Voltage: 115VAC
• Frequency: 50/60Hz
• Current Rating: 0.190A
• Power Consumption: 13W
• Size / Dimension: 119mm x 119mm
• Thickness: 38mm
• Common Size Reference: 120 x 120 x 38mm
• Air Flow: 95.0 CFM (2.66m3/min)
• Static Pressure: 0.259 in H2O (64.6 Pa)
• Speed: 2750 RPM
• Noise Level: 39.0 dB
• Bearing Type: Ball bearing
• Termination: 2 terminals
• Frame Material: Aluminum
• Blade Material: Polycarbonate fiberglass reinforced
• Operating Temperature: 14°F to 158°F (-10°C to 70°C)
• Approvals: CE, CSA, TUV, UL, VDE
• Approximate Weight: 1.2 lbs (544.3g)
• Life Expectancy: 50,000 hours at 25°C

Interchangeable / Replacement Part Numbers

4715MS-12T-B40, 4715MS-12T-B40-A00, 11938MB-A1M-EA-00

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Exact Part Number Match: 4715MS-12T-B40, 4715MS-12T-B40-A00
✔️ Identical Successor Part Number: 11938MB-A1M-EA-00
✔️ Electrical / Mechanical Match: systems requiring a 115VAC 50/60Hz 119 x 119 x 38mm fan with 2-terminal connection
✔️ Industrial Equipment: control cabinets, machine controls, inverter panels, automation enclosures, and similar industrial systems using this exact AC axial fan class
✔️ Power and Cooling Equipment: UPS systems, power supplies, battery backup units, charger cabinets, and cooling assemblies using a 120mm 115VAC fan with matching thickness and terminals
✔️ Rack / Cabinet Cooling Applications: server enclosures, telecom cabinets, network equipment housings, and electronics cabinets that use a 120 x 120 x 38mm AC fan with matching electrical and mounting requirements

☑️ Key Features

☑️ 120mm class AC tubeaxial cooling fan for industrial and equipment-cooling applications
☑️ 115VAC 50/60Hz operation with 13W power draw and 0.190A current rating
☑️ Strong 95 CFM airflow with 0.259 in H2O static pressure
☑️ Ball bearing design for dependable service life and continuous-duty use
☑️ Aluminum frame and reinforced polycarbonate impeller for durability
☑️ 2-terminal connection for compatible equipment using quick-connect terminal style AC fans
☑️ Verified cross-reference to the exact manufacturer part and identical successor part number

⚙️ Fit Notes

• This listing is for the fan only.
• Please verify your original fan part number before ordering.
• Match voltage, frequency, dimensions, thickness, mounting pattern, and terminal style carefully before purchase.
• This is an AC fan and is not interchangeable with DC brushless fans of similar size.
