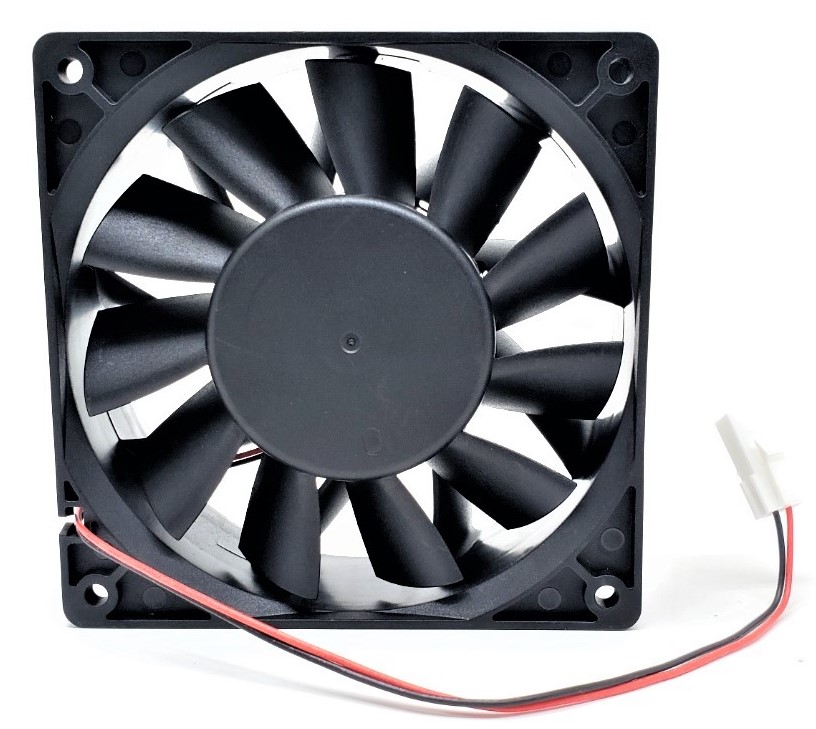

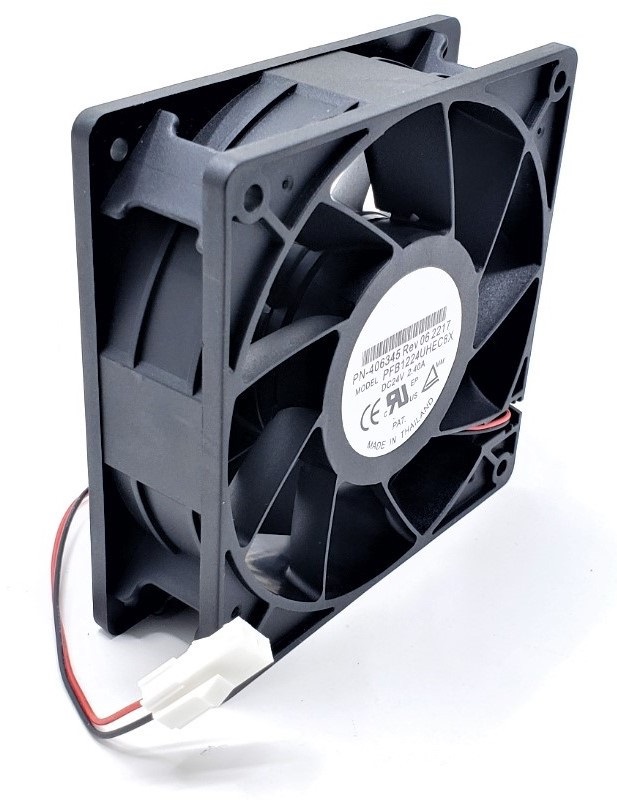

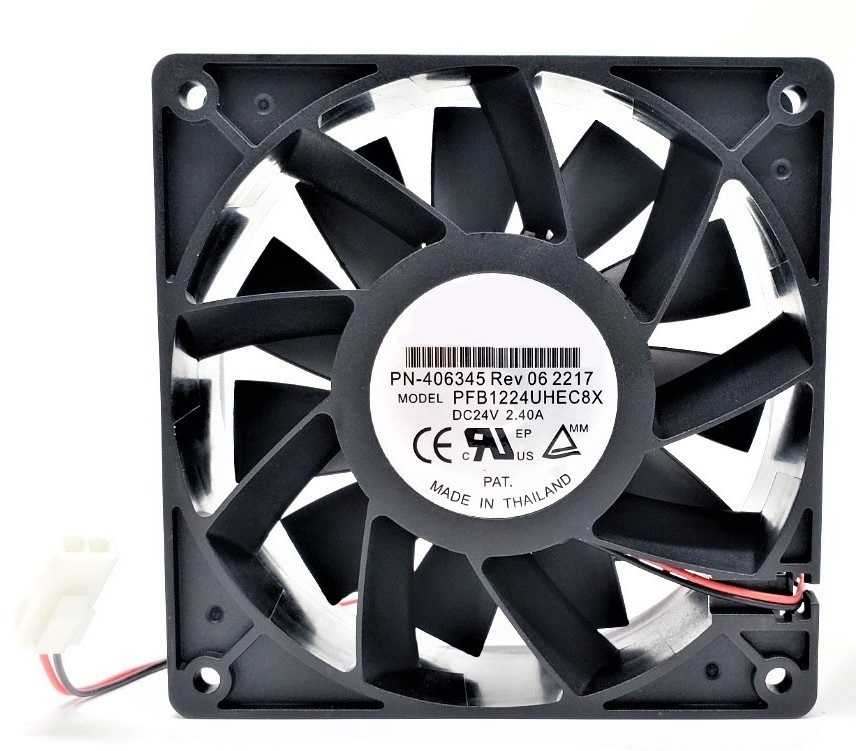

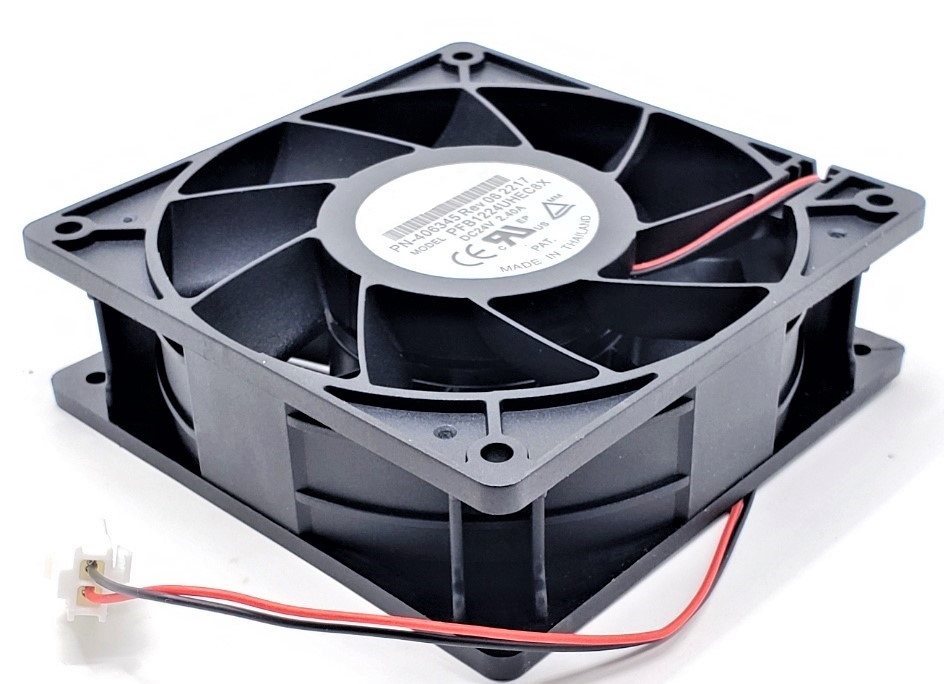

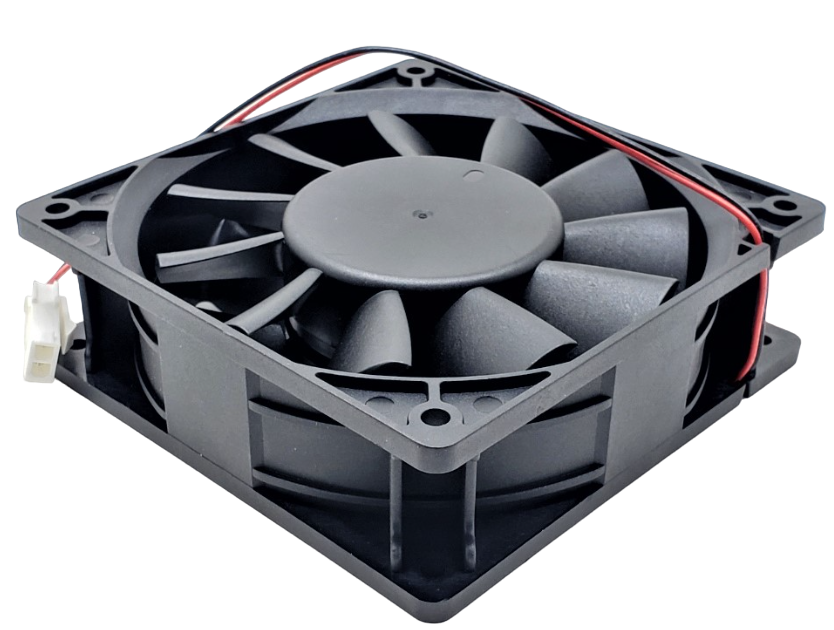

The PFB1224UHEC8X is a 120mm x 120mm x 38mm industrial cooling fan designed for high-demand applications that require maximum airflow and continuous reliability. Running at 24V DC with a 2.40A current draw, this fan provides extremely strong airflow, making it ideal for inverters, servers, telecom racks, and industrial enclosures.
With its dual ball bearing design, the PFB1224UHEC8X delivers extended operational life, even in environments exposed to heat and vibration. The 2-pin connector allows simple installation in systems where speed control or monitoring is not required.
| Specification | Details |
|---|---|
| Part Number | PFB1224UHEC8X |
| Dimensions | 120 x 120 x 38 mm (4.72" x 4.72" x 1.5") |
| Rated Voltage | 24V DC |
| Current | 2.40A |
| Power Consumption | ~57.6W |
| Airflow | ~252 CFM |
| Speed | Up to 6,800 RPM |
| Noise Level | ~65 dBA |
| Bearing Type | Dual Ball Bearing |
| Connector | 2-Pin |
| Frame Material | Reinforced Plastic (UL94V-0 flame-retardant) |
| Weight | ~455g |
| Operating Temp | -10°C to +70°C |
| Expected Life | 60,000 hours (at 40°C, 65% RH, rated voltage) |
☑️ Extreme Airflow Output – Delivers up to 252 CFM for maximum cooling.
☑️ Heavy-Duty Reliability – Built for continuous industrial and server use.
☑️ Dual Ball Bearings – Longer service life in high-heat, high-vibration environments.
☑️ High-Speed Performance – Speeds up to 6,800 RPM for aggressive cooling.

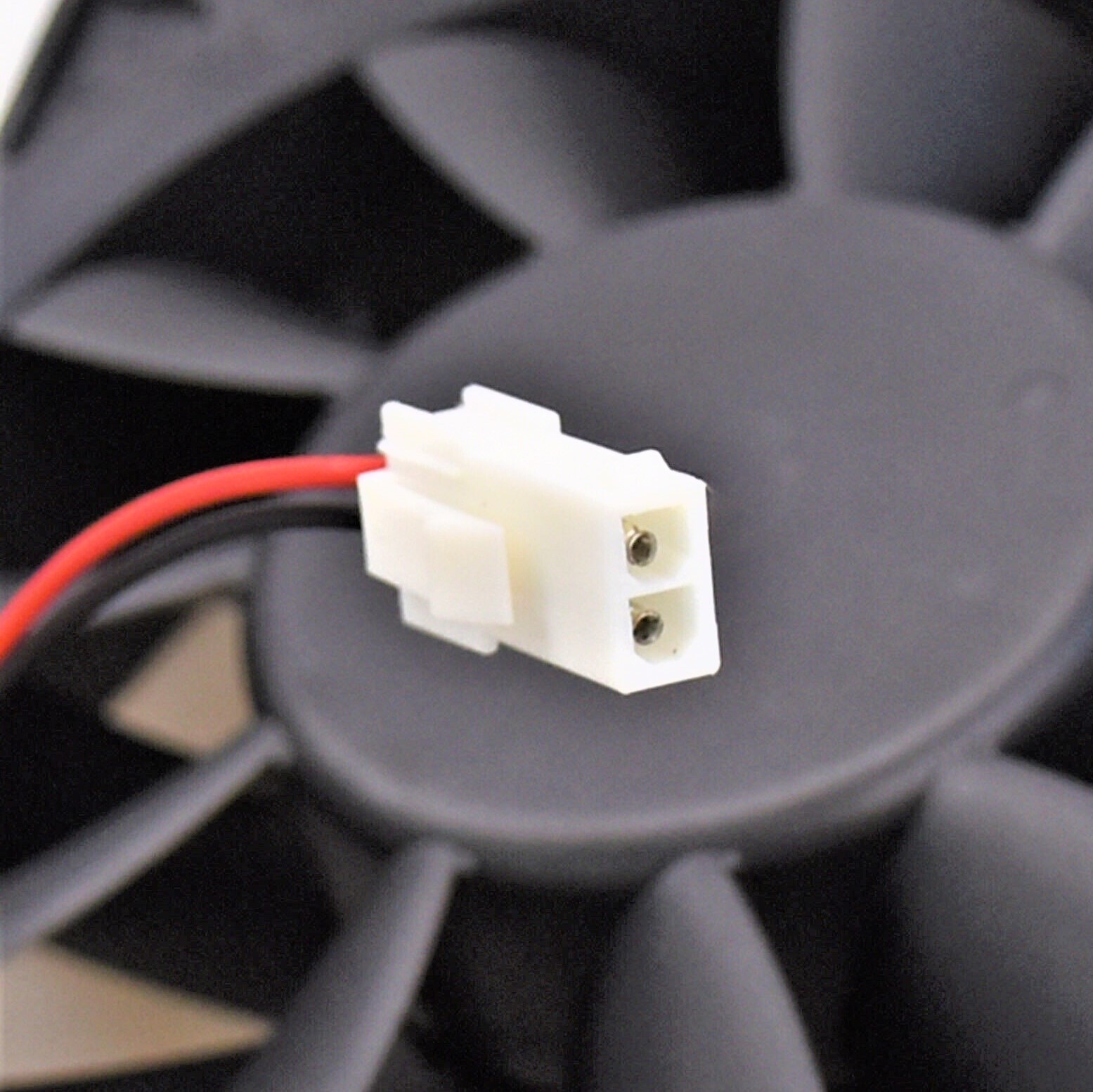

☑️ Simple 2-Pin Design – Easy installation into existing systems.
☑️ Durable Build – Flame-retardant reinforced plastic housing.
Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Inverters & Power Systems: Solar inverters, motor drives, and industrial controllers.
✔ Telecom Equipment: Networking gear, telecom racks, and base station cooling.
✔ Servers & Data Centers: Enterprise-grade systems using 120mm x 38mm 24V fans.
✔ Industrial Applications: UPS units, CNC machinery, HVAC systems, and custom enclosures.
