ACDP-240E01 - 225W DC 24V 9.4A AC Adapter Charger for Sony FW KD XBR Series TVs FW-55XE9001 FW-65XE9001 KD-55X9300E XBR-65X935D

225W power adapter designed to deliver stable 24V DC / 9.4A output for select Sony professional displays and TVs in the FW / KD / XBR series.

Important: This listing is for the AC adapter only. The required cables are sold separately:

• Original DC Cable Cord for ACDP-240E01 / ACDP-240E02
• Original Power Cable Cord for ACDP-240E01 / ACDP-240E02

Need the higher-wattage version? See:

• ACDP-240E02 (240W 24V 10A)

Technical Specifications

• Model: ACDP-240E01
• Alternate / Reference PN: 1-493-117-51
• Output Power: 225W
• Output Voltage: 24V DC
• Output Current: 9.4A
• Input: 100-240V AC, 50/60Hz

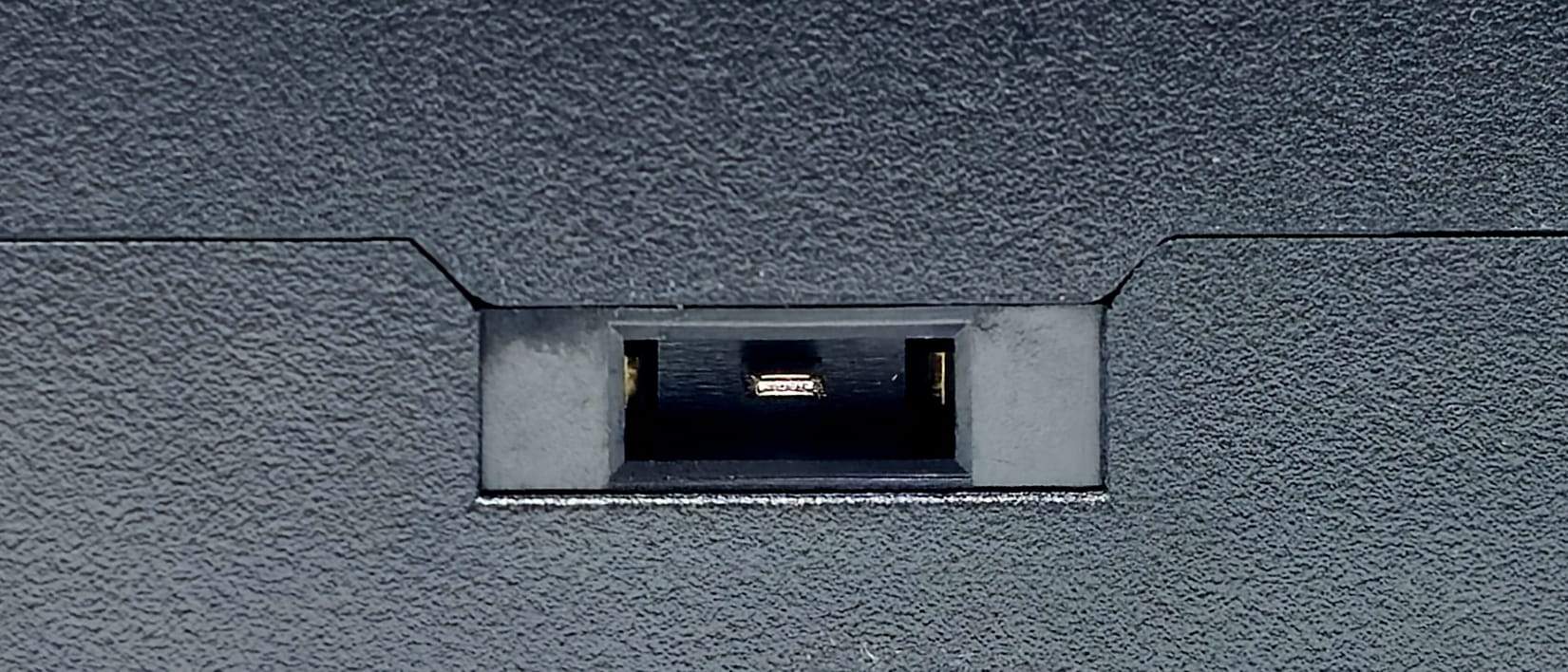

• Connector Type: Round barrel DC connector
• Color: Black
• Protection Features: Overvoltage, Overcurrent, Short Circuit
• Cable Part Number (DC cable reference): 1-493-117-14
• Approx. Weight: ~1.1 lb (500g)
• Approx. Dimensions: 7.87 x 3.94 x 1.77 in

Interchangeable / Replacement Part Numbers

ACDP-240E01, 1-493-117-51

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔ Sony FW Series: FW-55XE9001, FW-65XE9001
✔ Sony KD Series: KD-55X9300E, KD-65X9400E, KD-75X9400D, KD-55XD9305, KD-65XD9305, KD-65XE9005
✔ Sony XBR Series: XBR-55X930D, XBR-65X935D, XBR-65X9000E, XBR-55X930E
✔ Other Devices: Any compatible device requiring 24V DC up to 9.4A (225W max) with the same connector type

☑️ Key Features

☑️ 225W stable output (24V 9.4A) for supported TVs/displays
☑️ Built-in protection features (overvoltage / overcurrent / short circuit)
☑️ Worldwide input support (100-240V AC)
☑️ Plug-and-play replacement adapter (cables sold separately)
☑️ Ideal replacement for lost or failed power adapters

⚙️ Fit Notes

• This part is the adapter only — required cords are not included unless explicitly stated.
• If you need the required cords, purchase them here:
• Original DC Cable Cord for ACDP-240E01 / ACDP-240E02
• Original Power Cable Cord for ACDP-240E01 / ACDP-240E02


• Always confirm your device label shows 24V DC input, wattage requirements, and connector match before ordering.
