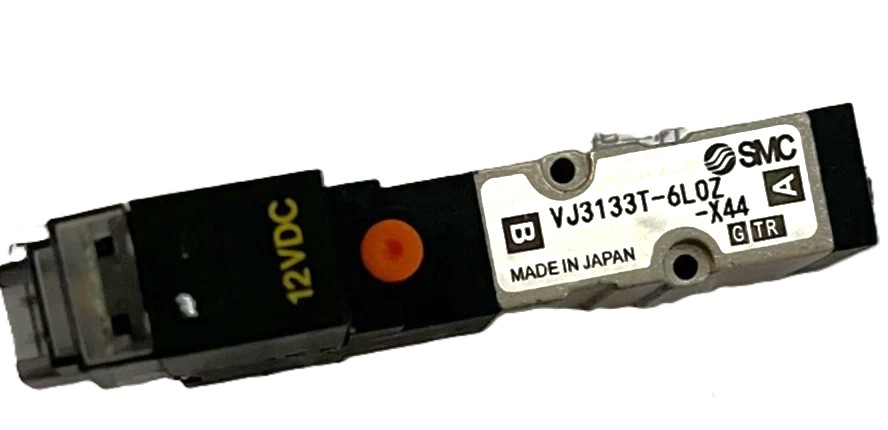

VJ3133T – 12V DC 3-Port Solenoid Valve
Description
The SMC VJ3133T is a compact 3-port solenoid valve designed for high-speed pneumatic control in automation systems. Operating on 12V DC, it provides reliable switching performance in applications such as air cylinders, robotics, and machine actuation. Built with SMC’s proven reliability, this valve offers precise air control and a long operational lifespan in demanding environments.
Technical Specifications
- Part Number: VJ3133T
- Type: 3-Port Solenoid Valve
- Operation: Direct-acting
- Voltage: 12V DC
- Power Consumption: Approx. 1.8 W
- Response Time: ≤ 12 ms
- Pressure Range: 0 – 0.7 MPa
- Effective Orifice (Cv): 0.09
- Port Size: M5 × 0.8 or Ø4 mm one-touch fitting (depending on sub-model)
- Mounting Type: Manifold or single-unit base mount
- Ambient & Fluid Temperature: 5 °C to 50 °C
- Lubrication: Not required (lubricated air acceptable)
- Manual Override: Non-locking push type
- Enclosure Rating: Equivalent to IP40
- Lead Wire: Prewired 300 mm or optional connector cable
- Weight: Approx. 50 g
Interchangeable / Replacement Part Numbers
- VJ3130-5LZ-12VDC (functionally similar with light/surge suppressor)
- VQZ1131-5L (updated high-speed SMC equivalent)
- VJ3143T (same series, alternate flow configuration)
✅ Confirmed Compatibility
- ✔ SMC pneumatic manifolds and VJ3000 series bases
- ✔ Compact automation systems, pick-and-place robots, air grippers, and valve blocks
- ✔ Suitable for low-flow actuation in industrial control circuits
- ✔ Compatible with PLC-driven 12V DC output modules
☑️ Key Features
- ☑️ Fast 12 ms response for precise pneumatic control
- ☑️ Compact, lightweight body ideal for tight spaces
- ☑️ Reliable SMC solenoid design ensures long service life
- ☑️ Non-lube operation reduces maintenance needs
- ☑️ Optional LED indicator and surge suppressor on certain variants
- ☑️ Easy manifold mounting for multi-valve configurations
