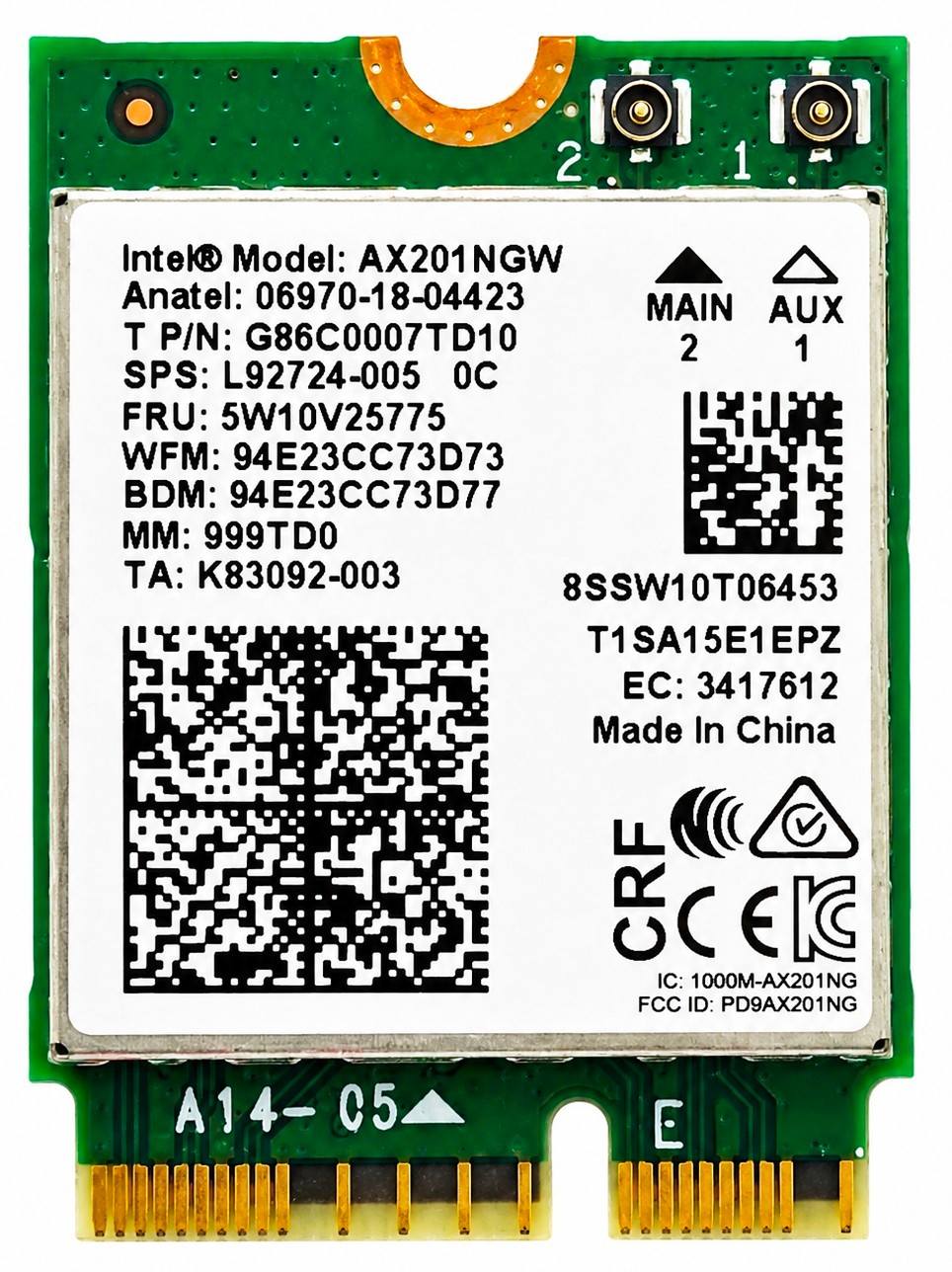

AX201NGW Wi-Fi 6 Bluetooth 5.2 M.2 2230 CNVio2 Wireless Card

This Intel Wi-Fi 6 AX201NGW non-vPro wireless card is a removable M.2 2230 CNVio2 module for supported Intel-based systems. It provides dual-band 2.4GHz and 5GHz 2x2 Wi-Fi 6 connectivity at theoretical speeds up to 2.4Gbps, 160MHz channel support, and integrated Bluetooth 5.2 hardware support. Compatibility requires a CNVio2-capable host platform, a removable M.2 Key E 2230 wireless-card slot, supported system firmware and drivers, and two compatible antenna leads.

The same AX201NGW module family appears under multiple manufacturer service, order, assembly, and label references. The exact reference offered by an individual listing is identified in that listing's product title and images; the cross-reference information below is provided for part matching and compatibility research.

Technical Specifications

• Primary Part Number: AX201NGW
• Manufacturer: Intel
• Product Type: Wi-Fi 6 and Bluetooth M.2 wireless card
• Wireless Model: AX201NGW
• Product Family: Intel Wi-Fi 6 AX201 Gig+
• Platform Codename: Harrison Peak 2
• Catalog Description Reference: SKO-WLAN 11AX 2X2 INT AX201NGW-W HRP2 NV
• Feature Version: Non-vPro
• Form Factor: Removable M.2 2230 plug-in card
• System Interface: M.2 CNVio2 companion-radio interface
• Connector Key: M.2 Key E
• Module Dimensions: 22mm x 30mm x 2.4mm
• Reference Weight: Approximately 2.33g
• Wi-Fi Generation: Wi-Fi 6
• Supported Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax
• Frequency Bands: 2.4GHz and 5GHz dual band
• Spatial Streams: 2x2 transmit and receive
• Maximum Channel Width: 160MHz
• Maximum Theoretical Wi-Fi Speed: Up to 2.4Gbps with a compatible Wi-Fi 6 router and configuration
• Wireless Technologies: MU-MIMO, OFDMA, and 1024-QAM
• Wireless Security: WPA3 support with compatible software and network equipment
• Bluetooth: Integrated Bluetooth 5.2 hardware support; the reported version and available features depend on the host platform, operating system, driver, and connected peripheral
• Antenna Terminals: Two snap-on MHF4 terminals for MAIN and AUX antenna leads
• Listed Reference: Identified in the individual product title and images
• Quantity Included: One wireless card; antenna leads, mounting screw, bracket, tools, and software are not included

Interchangeable / Replacement Part Numbers

The references below identify removable non-vPro AX201NGW M.2 2230 CNVio2 modules. Manufacturer-specific firmware, regional approvals, service labeling, and wireless-card allowlists can apply. Match the original reference and the exact number displayed in the product title whenever possible.

AX201NGW, AX201.NGWG.NV, AX201.NGWG.NVW, 985855, 999TD0, L55990-001, L55990-002, L57250-001, L57250-002, L57250-005, L92724-001, L92724-002, L92724-005, L92724-006, L92724-007, L92724-008, N29135-001, P1C6J, XVV0P, 01AX798, 5W10V25765, 5W10V25775, KE.11X0N.006, KE.11X0N.014, 0C012-00150400, 0C012-00151900, S57-08004W0-I06, S57-08004X0-I06, P000816110, G86C0007TD10, SW10M73288, SW10T06453, 11S01AX798, 8SSW10M73288, 8SSW10T06453, 0P1C6J, 0XVV0P, G86C0007T810, J86328-001, J86328-002, K54774-001, K54774-002, K54774-003, K54774-004, K54774-005, K54774-006, K54774-007, K83092-001, K83092-002, K83092-003, K83092-004, K83092-005, K83092-006

These additional strings can appear as assembly references, barcode-label strings, board identifiers, or Intel tracking-authorization revisions on matching AX201NGW stock. SW10M73288 and SW10T06453 are commonly used as exact module identifiers but are not orderable FRUs. service labels can add a leading zero or a regional prefix to P1C6J or XVV0P without creating a different service part number. Always confirm that the module itself is marked AX201NGW and that the host system supports CNVio2.

➕ Recommended Antenna Kit - Sold Separately

Need a pair of internal antennas for a compatible custom installation? Add the Pair of Internal IPEX MHF4 Antenna Cables for M.2 NGFF Wi-Fi and Bluetooth Wireless Cards to your order. This separately sold kit provides two MHF4 leads for the card's MAIN and AUX terminals and supports 2.4GHz / 5GHz Wi-Fi applications. Chassis placement, cable routing, adhesive mounting, signal performance, and regulatory suitability must be verified for the intended system.

• CPU Medics Antenna Kit Number: CM-M.2-NGFF-ANTENNA
• Antenna Kit Quantity: One pair
• Antenna Kit Status: Sold separately; wireless card not included with the antenna kit

✅ Confirmed Compatibility

The models below have manufacturer parts, specification, service, or authorized parts-catalog documentation showing AX201 or one of the listed non-vPro AX201NGW references. Compatibility applies only to configurations built for a removable M.2 2230 AX201NGW CNVio2 card. Many model families also shipped with different wireless options, and some similarly named systems use a soldered radio. Match the exact product or machine type, original module marking, approved service reference, CNVio2 support, firmware, operating region, removable wireless-card slot, and two compatible antenna leads before ordering.

Business Notebooks and Education Systems

✔️ EliteBook Convertible: EliteBook x360 830 G8
✔️ ProBook Education System: ProBook x360 11 G7 Education Edition
✔️ Essential 200 Series: 240 G8, 250 G8, 256 G8, 240R 14-inch G10, 250R 15.6-inch G9, 250RT 15.6-inch G9, 256R 15.6-inch G9
✔️ Essential 300 and 400 Series: 340 G7, 340S G7, 348 G7, 470 G7, 470 G8
✔️ 17 Notebook: 17-cn1xxx, 17t-cn100
✔️ 15 Notebook - Select AX201 Configurations: 15-fd1xxx, 15t-fd100
✔️ Pavilion 14 and 15 Notebooks - Select AX201 Configurations: Pavilion 14-dv0xxx, Pavilion 14t-dv000, Pavilion 14-dv1xxx, Pavilion 15-eg0000, Pavilion 15-eg1000, Pavilion 15-eg3000
✔️ Pavilion x360 14-inch Systems: Pavilion x360 14-dw1000, Pavilion x360 14-dw2000, Pavilion x360 14-dy1xxx, Pavilion x360 14q-dy1xxx, Pavilion x360 14t-dy100
✔️ Pavilion x360 15-inch Systems: Pavilion x360 15-dq2000, Pavilion x360 15-er0xxx, Pavilion x360 15t-er000, Pavilion x360 15-er1000
✔️ Pavilion Gaming Notebook: Pavilion Gaming 15-dk2000
✔️ Pavilion All-in-One Systems - Select AX201 Configurations: Pavilion 31.5-inch All-in-One 32-b0000, Pavilion 31.5-inch All-in-One 32-b1000
✔️ Spectre Convertible: Spectre x360 16-f2000
✔️ ENVY x360 Systems: ENVY x360 15-ed1000, ENVY x360 15-es0xxx, ENVY x360 15m-es0xxx, ENVY x360 15-es1000
✔️ ENVY 17 Systems - Select AX201 Configurations: ENVY 17-ce2055cl, ENVY 17-cg1000, ENVY 17t-cg100, ENVY 17-ch0000, ENVY 17-ch1000
✔️ ENVY Desktop: ENVY Desktop TE02-0250XT
✔️ OMEN 25L Systems - Select AX201 Configurations: OMEN 25L GT11-1000i, OMEN 25L GT12-1000i, OMEN 25L GT15-0000i
✔️ OMEN 30L 40L and 45L Systems - Select AX201 Configurations: OMEN 30L GT13-1350st, OMEN 40L GT21-0000i, OMEN 45L GT22-0000i
✔️ EliteDesk Systems - Select AX201 Configurations: EliteDesk 800 G8 Tower, EliteDesk 880 G8 Tower, EliteDesk 800 G8 Desktop Mini
✔️ Commercial All-in-One System - Select AX201 Configurations: Engage One Pro All-in-One
✔️ Chromebox: Chromebox G3
✔️ Chromebook 14 Systems: Chromebook 14 G7, Chromebook 14a-na0xxx, Chromebook 14a-na1xxx, Chromebook 14at-na000, Chromebook 14at-na100, Chromebook x360 14b-cb0xxx, Chromebook x360 14bt-cb000
✔️ Chromebook 11 Systems: Chromebook 11 G9 Education Edition, Chromebook x360 11 G4 Education Edition
✔️ Fortis Chromebook Systems: Fortis 11-inch G9 Chromebook Intel-based non-Q configurations, Fortis x360 11 G3 J Chromebook, Fortis x360 11 G4 Chromebook, Fortis 14 G10 Chromebook
✔️ G Series: G3 15 3500, G15 5510, G15 5520, G15 5521 Special Edition, G15 5530, G16 7620, G16 7630, G7 15 7500
✔️ Alienware System: Alienware m15 R7
✔️ Inspiron 13 and 14 Systems: Inspiron 13 5310, Inspiron 13 5320, Inspiron 14 Plus 7420, Inspiron 14 7430 2-in-1
✔️ Inspiron 16 System: Inspiron 16 7630 2-in-1
✔️ Vostro Systems: Vostro 13 5310, Vostro 14 3420, Vostro 16 5630
✔️ Latitude Systems: Latitude 5310, Latitude 5310 2-in-1, Latitude 7210 2-in-1, Latitude 9410 2-in-1
✔️ Precision Mobile Workstation: Precision 7550
✔️ OptiPlex Systems: OptiPlex 3090, OptiPlex 5080, OptiPlex 5090, OptiPlex 7080, OptiPlex 7090 configurations using the removable AX201NGW module
✔️ Inspiron Desktops: Inspiron Desktop 3891, Inspiron Desktop 3910 configurations using the removable AX201NGW module
✔️ ThinkPad E Series: ThinkPad E14 Gen 2 types 20TA and 20TB, ThinkPad E15 Gen 2 types 20TD and 20TE, ThinkPad E14 Gen 4 types 21E3 and 21E4, ThinkPad E15 Gen 4 types 21E6 and 21E7, ThinkPad E14 Gen 5 types 21JK and 21JL, ThinkPad E16 Gen 2 types 21MA and 21MB
✔️ Flex and IdeaPad 01AX798 Applications: Flex 5-14IIL05 type 81WS, IdeaPad 3-15IML05 type 82BS, IdeaPad Gaming 3-15IMH05 type 82CG, IdeaPad S340-15IIL Touch type 81WW
✔️ Flex and Yoga 5W10V25775 Applications: Flex 5-14ITL05 type 82LT, Yoga 7-14ITL5 type 82BH, Yoga 7-15ITL5 type 82BJ
✔️ IdeaPad 5W10V25775 Applications: IdeaPad 3-14ITL6 type 82H7, IdeaPad Gaming 3-15IHU6 type 82MG, IdeaPad Gaming 3-15IAH7 type 82S9
✔️ Chromebook Application: IdeaPad 5 Chromebook 14ITL6 type 82M8
✔️ Desktop and Workstation Applications: IdeaCentre AIO 3-24IAP7 type F0GH, ThinkStation P3 Tiny, V17 G2 ITL type 82NX
Additional 01AX798 Catalog Applications - Original FRU Verification Required
✔️ IdeaPad 3 Systems: IdeaPad 3-14IML05 type 81WA, IdeaPad 3-15IML05 type 81WB, IdeaPad 3-17IML05 type 81WC, IdeaPad 3-14IIL05 type 81WD, IdeaPad 3-15IIL05 type 81WE, IdeaPad 3-14ITL05 type 81X7, IdeaPad 3-15ITL05 type 81X8
✔️ IdeaPad 5 Systems: IdeaPad 5-14IIL05 type 81YH, IdeaPad 5-15IIL05 type 81YK
✔️ Flex 5 Systems: Flex 5-14IIL05 type 81X1, Flex 5-15IIL05 type 81X3, Flex 5 Chromebook 13IML05 type 82B8
✔️ ThinkPad E Series Gen 1: ThinkPad E14 Gen 1 types 20RA and 20RB, ThinkPad E15 Gen 1 types 20RD and 20RE
✔️ ThinkBook Systems: ThinkBook 13s, 14s, 14, 15, Plus, and 15p IML or IIL families using machine types 20RR, 20RS, 20RV, 20RW, 20SL, 20SM, 20TG, or 20V3
✔️ Legion Systems: Select Intel-based Legion 5, Legion 5P, Legion 7, and Legion S7 families using machine types 81Y6, 81Y8, 81YT, 81YU, 82AU, 82AW, 82B3, or 82BC
✔️ ThinkCentre System: ThinkCentre M60e Tiny types 11LU and 11LV
✔️ Yoga Systems: Select Intel-based Yoga S740, Yoga C740, Yoga Slim 7, and Yoga 9 families using machine types 81RS, 81TC, 81TD, 82A1, 82AA, 82AB, or 82DE
✔️ Acer Aspire 3 Systems: Aspire 3 A315-55, Aspire 3 A315-55G
✔️ Acer Aspire 5 Systems: Aspire 5 A514-52, Aspire 5 A514-52G, Aspire 5 A515-54, Aspire 5 A515-54G, Aspire 5 A515-55
✔️ Acer Swift 3 Systems: Swift 3 SF314-57, Swift 3 SF314-57G
✔️ Acer Nitro 5 System: Nitro 5 AN515-58 configurations originally equipped with the removable AX201NGW module
✔️ MSI Modern 14 Systems: Modern 14 B11M, Modern 14 B11MO, Modern 14 B11MOL, Modern 14 B11MOU, Modern 14 B11SB, Modern 14 B11SBL, Modern 14 B11SBU
✔️ MSI Modern 15 Systems: Modern 15 A11M, Modern 15 A11ML, Modern 15 A11MU, Modern 15 A11SB, Modern 15 A11SBL, Modern 15 A11SBU
✔️ MSI Prestige 14 Systems: Prestige 14 A11SB, Prestige 14 A11SCS, Prestige 14 A11SCX, Prestige 14 Evo A11M
✔️ MSI Summit B14 and B15 Systems: Summit B14 A11M, Summit B14 A11MOT, Summit B15 A11M, Summit B15 A11MT
✔️ MSI Summit E14 Systems: Summit E14 A11SCS, Summit E14 A11SCST
✔️ MSI Stealth 15M Systems: Stealth 15M A11SDK, Stealth 15M A11SEK, Stealth 15M A11UEK, Stealth 15M B12UE
✔️ MSI Stealth 17M System: Stealth 17M A12UE
✔️ MSI WF76 Systems: WF76 11UI, WF76 11UJ
✔️ MSI GF65 and GV15 Systems: GF65 Thin 10UX and GV15 Thin 11SC configurations originally equipped with AX201NGW
✔️ ASUS Z490 Motherboards: TUF GAMING Z490-PLUS WI-FI, ROG MAXIMUS XII APEX, ROG STRIX Z490-I GAMING, ROG STRIX Z490-G GAMING WI-FI
✔️ ASUS Additional Motherboards: ROG STRIX B560-A GAMING WIFI, TUF GAMING H470-PRO WI-FI
✔️ Dynabook Satellite Pro Systems: Satellite Pro C30-K, Satellite Pro C40-K, Satellite Pro C50-K, Satellite Pro L50-J
✔️ Dynabook Portégé Systems: Portégé X30-G, Portégé X40-G, Portégé X50-G, Portégé X40-J
✔️ Dynabook Tecra Systems: Tecra A30-J, Tecra A50-J

☑️ Key Features

☑️ Intel AX201NGW Wi-Fi 6 and Bluetooth removable wireless module
☑️ Dual-band 2.4GHz and 5GHz operation with 2x2 transmit and receive streams
☑️ Supports 160MHz channels and theoretical Wi-Fi speeds up to 2.4Gbps with compatible equipment
☑️ Wi-Fi 6 technologies include OFDMA, MU-MIMO, 1024-QAM, and WPA3 support
☑️ Integrated Bluetooth 5.2 hardware support for compatible wireless peripherals
☑️ Compact removable M.2 2230 Key E form factor
☑️ Manufacturer service references and printed module identifiers are separated for accurate part matching
☑️ Deep model-specific compatibility spanning notebook, desktop, all-in-one, gaming, education, Chrome, and workstation systems

⚙️ Fit Notes

• AX201NGW uses the CNVio2 companion-radio interface. It is not a universal PCIe / USB M.2 wireless card, and physical fit in a Key E slot does not establish electrical compatibility.
• AX200 and AX210 cards use a different interface and are not direct substitutes for AX201NGW. AX211 and AX411 are later companion-radio generations and are not automatic drop-in replacements.
• This page covers the removable M.2 2230 AX201NGW non-vPro module. Soldered M.2 1216 variants and vPro AX201 cards are not interchangeable with this version.
• Match the original feature version when a managed business system requires vPro functionality.
• The card supports 2.4GHz and 5GHz Wi-Fi. It does not support the 6GHz band used by Wi-Fi 6E.
• Two compatible MHF4 antenna leads connected to MAIN and AUX are required for full 2x2 operation. Do not assume antenna-wire colors; follow the service guide or original routing for the exact system.
• The recommended CPU Medics antenna kit is a generic internal option for suitable custom installations. It is unnecessary when the system's original antenna assembly is present, and its physical fit, routing, placement, and regulatory suitability are not guaranteed for every chassis.
• Match the exact product number, original AX201NGW card label, and approved service part number whenever possible. A model-family match alone does not prove that every configuration has CNVio2 support or a removable wireless-card slot.
• Manufacturer-specific wireless-card allowlists can apply. A cross-reference match does not override the host system's firmware, service-reference, or regional-authorization requirements.
• Install the system manufacturer's customized wireless and Bluetooth drivers when available. A generic Intel driver is a fallback and can expose different features from the system-specific package.
• Later AX201 production revisions can require Wi-Fi driver 22.40PV and Bluetooth driver 22.30PV or newer. Update the system firmware and drivers before evaluating a replacement card.
• Wireless-module replacement can be limited by regional radio approvals. Use only a module authorized for the host system and operating region.
• Shut down the system, disconnect external power, disconnect the internal battery when service documentation requires it, and use proper electrostatic-discharge precautions before handling the card.
• MHF4 antenna connectors are small and easily damaged. Lift and press them straight at the connector rather than pulling or twisting the antenna cable.
• The stated 2.4Gbps rate is theoretical and requires compatible Wi-Fi 6 equipment, 160MHz channel operation, suitable signal conditions, current drivers, and a supported system configuration. Actual throughput will be lower.
