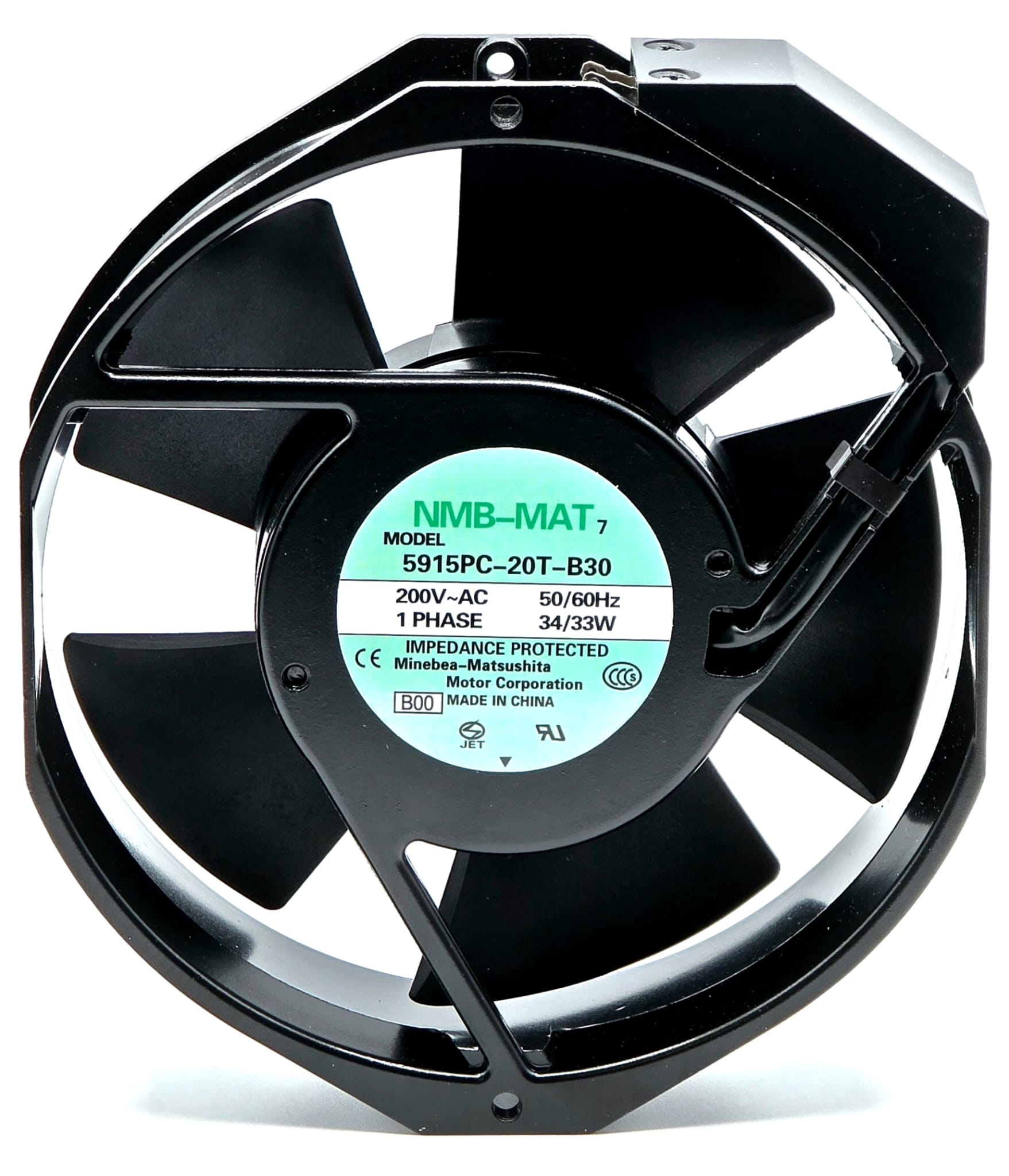

172x150x38mm 200VAC Ball Bearing AC Axial Fan for Control Cabinets Drives and Industrial Enclosures

This 172mm x 150mm x 38mm AC axial cooling fan is built for continuous-duty industrial airflow applications including control cabinets, VFD cabinets, CNC equipment, automation panels, power electronics, and electronics enclosures. The 5915PC-20T-B30 uses a ball bearing design, capacitor-run induction motor, rugged metal frame, and terminal-style connection points for dependable long-life service in demanding environments where stable cabinet cooling is critical.

Technical Specifications

• Part Number: 5915PC-20T-B30
• Fan Type: AC axial cooling fan
• Frame Size: 172mm x 150mm x 38mm
• Rated Voltage: 200VAC
• Frequency: 50/60Hz
• Bearing Type: Ball bearing
• Motor Type: Capacitor-run induction motor
• Protection: Thermal or impedance protection depending on version
• Rotation Direction: Counterclockwise when viewed from label side
• Airflow Direction: Exhausts out over the strut side
• Termination: 2 terminal lugs / Faston #110 style connection
• Frame Material: Aluminum
• Impeller Material: Reinforced plastic
• Expected Life: L10 100,000 hours at 25°C
• Performance at 50Hz:
  • Speed: 2700 RPM
  • Airflow: 176.5 CFM
  • Static Pressure: 0.629 in H2O
  • Noise Level: Approx. 52 dBA
• Performance at 60Hz:
  • Speed: Approx. 3200 RPM
  • Airflow: Approx. 212 CFM
  • Static Pressure: Approx. 0.86 in H2O
  • Noise Level: Approx. 56 dBA

Interchangeable / Replacement Part Numbers

5915PC-20T-B30, 5915PC-20T-B30-B00, 5915PC-20T-B30-BM0, 5915PC-20T-B30-SM0, 15038PB-B0L

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Industrial Control Cabinets: Standard 172x150x38mm cabinet cooling applications using a 200VAC terminal-style axial fan
✔️ VFD and Drive Enclosures: Variable frequency drive cabinets and motor control enclosures requiring a high-airflow AC fan in this size and voltage class
✔️ CNC and Automation Panels: CNC control cabinets, automation panels, and motion-control enclosures using the same frame size and AC input requirements
✔️ Power Electronics Enclosures: Inverters, converters, UPS systems, rectifier cabinets, and industrial power assemblies using a 172x150x38mm AC cooling fan
✔️ Retrofit and Replacement Applications: Existing equipment already using a 172x150x38mm 200VAC ball bearing terminal-type axial fan with matching mounting and airflow direction

☑️ Key Features

☑️ High-airflow 172x150x38mm AC axial fan for industrial cooling applications
☑️ 200VAC 50/60Hz operation for control cabinets and power equipment
☑️ Ball bearing design for long service life in continuous-duty environments
☑️ Capacitor-run induction motor for reliable operation and stable airflow
☑️ Terminal lug connection design for clean field replacement and serviceability
☑️ Durable aluminum frame and reinforced impeller for demanding industrial use

⚙️ Fit Notes

• Please confirm the exact part number, voltage, frequency, frame size, depth, terminal style, and airflow direction before ordering.
• This is a 200VAC fan and is not a replacement for 12V, 24V, 48V, or other low-voltage DC fan assemblies.
• Verify cabinet cutout dimensions and ensure there is clearance for the full 38mm fan depth.
• Confirm your application uses terminal-lug style connections and not lead wires or a plug-style connector.
• Airflow exits over the strut side, so proper installation orientation is important.
