Brand-new original-style evaporator fan motor designed for select Frigidaire-manufactured top-freezer and side-by-side refrigerators. This 120V motor circulates cold air across the evaporator coil and throughout the freezer and fresh-food compartments. It is a direct replacement when the original motor uses the same three-terminal electrical layout, shaft dimensions, mounting plate, and listed part number.
Fan blade, wiring harness, terminal adapters, mounting screws, rubber bushings, and additional hardware are not included unless specifically shown or stated.
1465278, 1637660, 215951002, 240315801, 240315802, 240315803, 240369701, 240369702, 241537301, 241854301, 5303210356, 5303918549, 5304445861, AH2331827, AH3419839, AP4343697, AP4700070, EA2331827, EA3419839, EAP2331827, EAP3419839, ER240369701, FD-F6110A-6020, PS2331827, PS3419839, SM4301, SM8549
The current 5303918549 service kit uses an updated motor and may include terminal connectors, clips, a wiring harness, or installation instructions. Those additional service-kit components are not included with this original-style three-terminal motor unless specifically shown.
The complete refrigerator model number and suffix are essential. A family designation such as FRT18 or FRS26 by itself does not confirm compatibility because different revisions can use different motors, wiring, brackets, and fan blades. The following are exact catalog-confirmed examples.
✔️ Frigidaire FRT15 and FRT17 Top-Freezer Models: FRT15B1BW2, FRT15B3AW3, FRT15B3AW5, FRT15B3AW7, FRT15B3AW9, FRT15G4BQ0, FRT15G5AW0, FRT17B3AQ0, FRT17B3AQ1, FRT17B3AQ2, FRT17B3AW3, FRT17B3AW4, FRT17B3AW5, FRT17B3AWB, FRT17G4AW0, FRT17G4AW1, FRT17G4BQ0, FRT17G4BQ3, FRT17G4BQ4, FRT17G4BW2, FRT17G4BW4, FRT17G4BW5, FRT17G4BW6, FRT17G4BW7, FRT17G4BW8, FRT17G5AW0, FRT17G5CSBA, FRT17L3FW0
✔️ Frigidaire FRT18 Top-Freezer Models: FRT18B1BW4, FRT18B4AQ0, FRT18B4AQ4, FRT18B4AQ6, FRT18B4AQA, FRT18B4AW6, FRT18B4AW8, FRT18C4AW0, FRT18C5AW0, FRT18C5AW4, FRT18FS5AW4, FRT18FS5AW6, FRT18G4AQ2, FRT18G4AQ4, FRT18G4AQA, FRT18G4AQC, FRT18G4AWA, FRT18G4AWJ, FRT18G4AWM, FRT18G5AW7, FRT18G5AW9, FRT18H6CB5, FRT18H6CQ5, FRT18H6CW3, FRT18H6CW5, FRT18HS6AB5, FRT18HS6AQ5, FRT18HS6AW5, FRT18HS6DB1, FRT18HS6DB3, FRT18HS6DB5, FRT18HS6DB7, FRT18HS6DQ1, FRT18HS6DW1, FRT18HS6DW9, FRT18KD3AW0, FRT18KD3AW4, FRT18KD4AW0, FRT18KD4AW2, FRT18KG3CW0, FRT18KG3CW2, FRT18P5AQ7, FRT18P5AW0, FRT18P5AW1, FRT18P5AW3, FRT18S6AQ0, FRT18S6AQX, FRT18S6AW0, FRT18S6AW3, FRT18S6AW4, FRT18S6AW7, FRT18S6AW8, FRT18S6AWH, FRT18S6AWK, FRT18S6AWL, FRT18S6AWM, FRT18S6AWT, FRT18S6AWV, FRT18S6AWX
✔️ Frigidaire FRT21 Top-Freezer Models: FRT21C5AQ0, FRT21C5AQ6, FRT21C5AW3, FRT21C5AW5, FRT21C5AW6, FRT21C5AW8, FRT21C5AW9, FRT21FD3AW2, FRT21FD3AW4, FRT21G3AQ1, FRT21G3AW0, FRT21G3AW1, FRT21G4BW3, FRT21G4BW4, FRT21G4BW7, FRT21H7ASB2, FRT21H7ASB7, FRT21IL4FW0, FRT21IL4FW2, FRT21IL5DB0, FRT21IL5DB8, FRT21IL5DBN, FRT21IL5DBP, FRT21IL5DQ8, FRT21IL5DQP, FRT21IL5DWR, FRT21IL5DW0, FRT21IL5DW2, FRT21IL5DW8, FRT21IL5DWC, FRT21IL5DWE, FRT21P5AW0, FRT21P5AW2, FRT21P5AW3, FRT21P5AW7, FRT21P5AW9, FRT21S6AW0, FRT21S6AW1, FRT21S6AW2, FRT21S6AW5, FRT21S6AW8, FRT21S6AWN
✔️ Frigidaire GLRT Top-Freezer Models: GLRT13TEB1, GLRT13TEQ1, GLRT13TES0, GLRT13TES1, GLRT13TES5, GLRT13TEW0, GLRT13TEW1, GLRT13TEW3, GLRT180SAW0, GLRT182SAW1, GLRT182SAW2, GLRT182SAW4, GLRT182SAW5, GLRT183TDBH, GLRT183TDQ0, GLRT183TDQA, GLRT183TDW0, GLRT183TDW4, GLRT183TDW8, GLRT183TDWA, GLRT183TDWB, GLRT183TDWD, GLRT183TDWG, GLRT183TDWH, GLRT183TDWL, GLRT184RAB1, GLRT212IDB1, GLRT212IDW1, GLRT212IDW4, GLRT212IDW5
✔️ Frigidaire FRS23 Side-by-Side Models: FRS23BH5CQ0, FRS23BH5CQ1, FRS23BH6CS0, FRS23F4CW0, FRS23F4CW3, FRS23F4CW5, FRS23H5ASB0, FRS23H5ASB3, FRS23H5ASB5, FRS23H5ASB6, FRS23H5ASB7, FRS23H5ASB9, FRS23H5DSB3, FRS23H5DSB6, FRS23H7CSB0, FRS23H7CSB2, FRS23HF5AB1, FRS23HF5AW1, FRS23HF5AW3, FRS23KF5CW0, FRS23KF5DW0, FRS23KF5DW4, FRS23KF6CB1, FRS23KF6DB5, FRS23KF6EM3, FRS23KF7AB2, FRS23KF7AW6, FRS23LH5DB0, FRS23LH5DB2, FRS23LH5DB6, FRS23LH5DQ6, FRS23LH5DS2, FRS23LH5DS3, FRS23LH5DS6, FRS23LH5DS7, FRS23LH5DSR, FRS23LH5DW5, FRS23R4AB0, FRS23R4AB2, FRS23R4AQ1, FRS23R4AQ2, FRS23R4AQ5, FRS23R4AQ6, FRS23R4AW0, FRS23R4AW1, FRS23R4AW2, FRS23R4AW4, FRS23R4AW6, FRS23R4AW7, FRS23R4AW9, FRS23R4CB0, FRS23R4CB2, FRS23R4CB3, FRS23R4CB5, FRS23R4CQ0, FRS23R4CQ2, FRS23R4CQ3, FRS23R4CW2, FRS23R4CW3, FRS23R4CW5
✔️ Frigidaire FRS26 Side-by-Side Models: FRS26BH6CB0, FRS26BH6CB3, FRS26BH6CB4, FRS26BH6CQ4, FRS26BH6CS1, FRS26BH6CS5, FRS26BH6CW4, FRS26DR7DS0, FRS26DR7DS2, FRS26F4CB0, FRS26F4CB1, FRS26F4CB3, FRS26F4CQ0, FRS26F4CQ1, FRS26F4CW1, FRS26H5ASB3, FRS26H5ASB6, FRS26H5ASB7, FRS26H5ASBA, FRS26H5DSB0, FRS26H5DSB1, FRS26H5DSB2, FRS26H5DSB3, FRS26H5DSB5, FRS26H7CB0, FRS26H7CB4, FRS26H7CQ4, FRS26H7CSB0, FRS26H7CSB1, FRS26H7CSB3, FRS26H7CSB4, FRS26H7CW4, FRS26HF5AB0, FRS26HF5AB1, FRS26HF5AB4, FRS26HF5AB5, FRS26HF5AQ0, FRS26HF5AW0, FRS26HF5AW2, FRS26HF5AW3, FRS26HF5AW4, FRS26HF6BB0, FRS26HF6BB2, FRS26HF6BB6, FRS26HF6BQ2, FRS26HF6BQ6, FRS26HF6BW0, FRS26HF6BW1, FRS26HF6BW2, FRS26HF6BW3, FRS26HF6BW6, FRS26KF6CB4, FRS26KF6CQ4, FRS26KF6DB0, FRS26KF6DB1, FRS26KF6DB2, FRS26KF6DB3, FRS26KF6DB5, FRS26KF6DQ0, FRS26KF6DQ1, FRS26KF6DQ2, FRS26KF6DQ3, FRS26KF6DQ5, FRS26KF6DW0, FRS26KF6DW1, FRS26KF6DW2, FRS26KF6DW5, FRS26KF6EM0, FRS26KF6EM2, FRS26LF7DS0, FRS26LF7DS1, FRS26LF7DS2, FRS26LF7DS5, FRS26LF7DS9, FRS26LF7DSB, FRS26LF7DSN, FRS26LF7DSP, FRS26LF7DSR, FRS26LF8CB1, FRS26LF8CB2, FRS26LF8CB3, FRS26LF8CQ1, FRS26LF8CQ2, FRS26LF8CQ3, FRS26LF8CS1, FRS26LF8CS2, FRS26LF8CS3, FRS26LF8CS4, FRS26LF8CS5, FRS26LF8CS7, FRS26LF8CW1, FRS26LF8CW2, FRS26LF8CW3
✔️ Additional Frigidaire Side-by-Side Models: FRS3R5EMB0, FRS3R5EMB4, FRS3R5EMB5, FRS3R5EMB6, FRS3R5EMB8, FRS3R5EMB9, FRS3R5EMBA, FRS3R5EMBE, FRS6HR5HB1, FRS6HR5HB3, FRS6HR5HSB3, FRS6HR5HW1, FRS6HR5HW3, FRS6LF7FB0, FRS6LF7FB2, FRS6LF7FB3, FRS6LF7FB6, FRS6LF7FB8, FRS6LF7FM0, FRS6LF7FM6, FRS6LF7FM8, FRS6LF7FS2, FRS6LF7FS3, FRS6LF7FW0, FRS6LF7FW3, FRS6LF7FW4, FRS6LF7FW6, FRS6LF7FW8, FRS6LR5EB2, FRS6LR5EM0, FRS6LR5EM2, FRS6LR5ES2, FRS6LR5ES5, FRS6LR5EW2, FRS6LR5EW5, FRS6R3EW0, FRS6R3EW1, FRS6R3EW4, FRS6R3EW6, FRS6R3EW7, FRS6R4EB0, FRS6R4EB7, FRS6R4EBA, FRS6R4EQ0, FRS6R4EQ6, FRS6R4EQ7, FRS6R4EW0, FRS6R4EW7, FRS6R5EMB0, FRS6R5EMB1, FRS6R5EMB6, FRS6R5EMB8, FRS6R5EMBC, FRS6R5ESB0, FRS6R5ESB2, FRS6R5ESBB, FRS6R5ESBC, FRS6R5ESBE
✔️ Gallery and Professional Models: GLHS66EESB0, GLHS66EESB4, GLHS66EFSB1, GLHS66EFSB2, GLHS66EFSB3, GLHS66EEW0, GLHS66EEW4, GLHS68EEPW0, GLHS68EEPW4, GLHS68EGPB2, GLHS68EGPW1, GLHS69EHSB0, GLRS264ZAB0, GLRS264ZAB4, GLRS264ZAW0, GLRS264ZAW1, GLRS267ZAB0, GLRS267ZAB5, GLRS267ZAW0, GLRS267ZAW1, GLRS267ZAW4, GLRS267ZAW5, GLRS267ZAW6, GLRS267ZCB1, GLRS267ZCW1, GLRS267ZCW3, GLRS267ZDW0, GLRS267ZDW2, GLRS267ZDW4, PLHS237ZAB1, PLHS237ZAB3, PLHS237ZAB5, PLHS239ZCB2, PLHS267ZAB1, PLHS267ZAB2, PLHS267ZAB4, PLHS267ZAB5, PLHS267ZAB6, PLHS267ZCB0, PLHS267ZCB1, PLHS267ZDB2, PLHS267ZDB4, PLHS267ZDB5, PLHS269ZCB0, PLHS269ZCB1, PLHS269ZDB0, PLHS269ZDB2, PLHS269ZDB3, PLHS269ZDB4, PLHS269ZDBB, PLHS269ZDBC, PLHS269ZDBD, PLHS67EESB0, PLHS67EESB4, PLHS67EESB7, PLHS67EESB9, PLHS67EGSB0, PLHS67EGSB1, PLHS67EGSB3, PLHS67EGSB5, PLHS69EGSS2, PLHS69EGSS3, PLHS69EGSS4, PLHS69EGSS5, PLHS69EESS1, PLHS69EESS5, PLRS267ZAB0, PLRS267ZAB5, PLRS267ZAB6, PLRS267ZAB7, PLHT217TAB3, PLHT219SCB5, PLHT219TCB4
✔️ Kenmore / Sears 253-Series Models: 25331113300, 25331113302, 25331113304, 25331113308, 2533111330A, 2533111330B, 2533111330C, 2533111330D, 2533111330E, 2533111330F, 2533111330G, 25331115300, 25331115302, 25331115304, 25331115308, 2533111530A, 2533111530B, 2533111530C, 2533111530D, 2533111530E, 2533111530F, 2533111530G, 25331123300, 25331123302, 25331125300, 25331125302, 25331133300, 25331133302, 25331133303, 25331133306
✔️ Crosley Models: CRTE187AK0, CRTE187AS0
✔️ Gibson Models: GRT17G4AW0, GRT18C5AQ4, GRT18C6AW5, GRT18C6AWG
✔️ White-Westinghouse Models: WRT5B1EW2, WRT5B1EW4, WRT8A1EWC, WRT8G3EWC, WRS6R3EW0, WRS6R3EW8, WRS6W1EW7
☑️ Circulates cold air across the evaporator and through both refrigerator compartments
☑️ Original-style replacement for 240369702 and 240369701 motors
☑️ 120V AC 60Hz electrical rating
☑️ 3000 RPM single-speed operation
☑️ Three male quick-connect terminals
☑️ Includes the metal mounting plate shown
☑️ Supports numerous confirmed top-freezer and side-by-side refrigerator models
☑️ Replaces multiple discontinued motor numbers
☑️ Useful for confirmed motor failures causing poor airflow or uneven cooling
☑️ Can correct squealing, grinding, buzzing, intermittent rotation, or a seized fan when the motor is the diagnosed cause

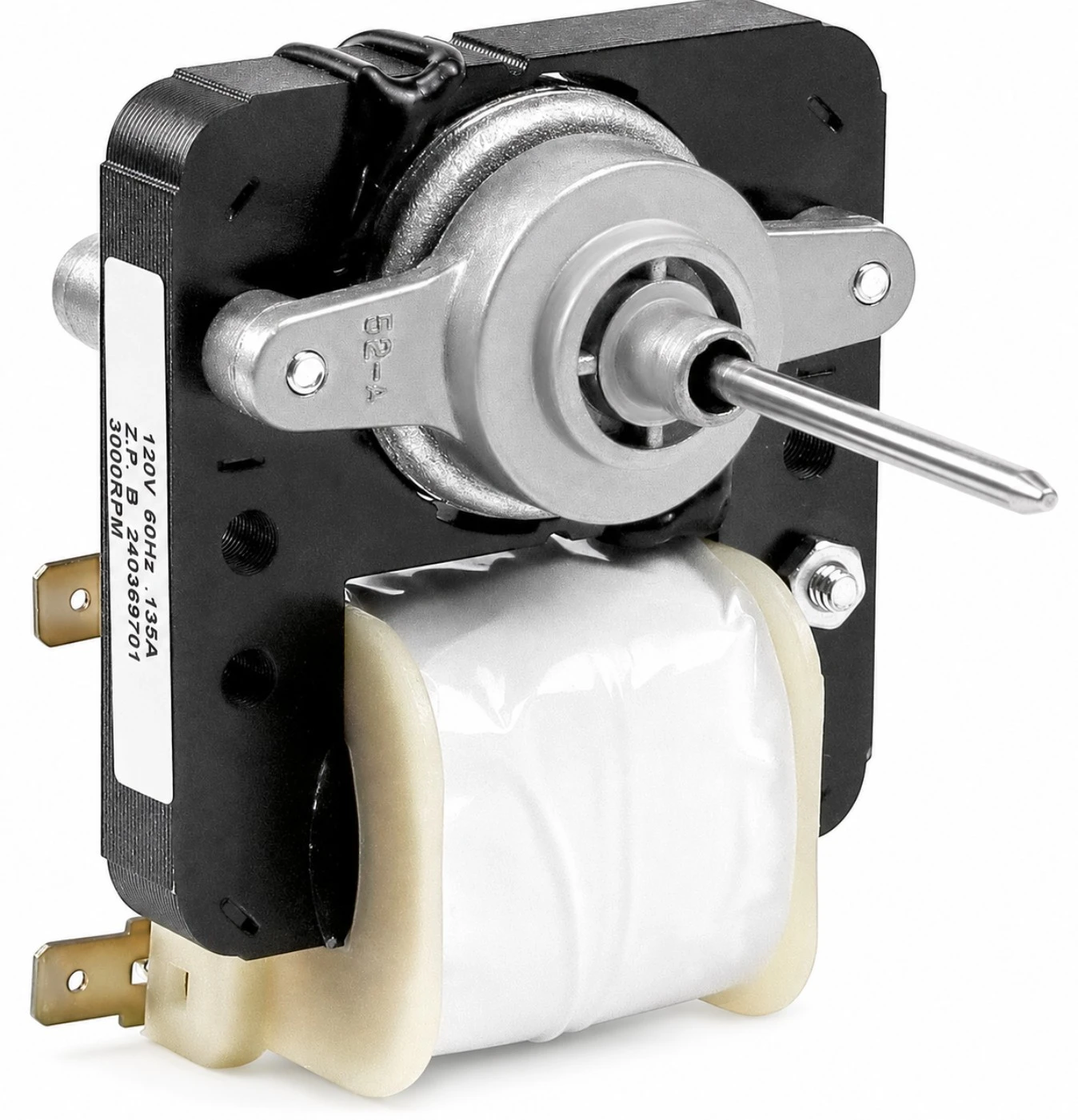

✓ The motor shown is labeled 240369701. This is normal for a listing cross-referenced under 240369702 because both numbers belong to the same replacement family.
✓ Confirm the complete refrigerator model number, including every letter and final revision character. Similar-looking refrigerators within the same family can use different motors.
✓ This motor has three male terminals—two 1/4" terminals and one 3/16" terminal. It is not a two-terminal motor.
✓ Confirm the original motor uses direct quick-connect terminals. Some later 241854301 or 5303918549 installations use an attached harness or require the terminal adapters supplied with the complete service kit.
✓ The updated 5303918549 service kit can look different from this original-style motor. This listing does not include that kit’s harness, splice connectors, clips, or instructions unless shown.
✓ Shaft measurements vary depending on whether the shaft is measured from the motor housing, mounting plate, or end of the complete shaft. Compare the actual shaft diameter, exposed length, and fan-blade position before ordering.
✓ Reuse the original fan blade only if it fits the shaft securely and remains undamaged. Replace a cracked, warped, or loose blade separately.
✓ Verify that the blade rotates freely without contacting the fan shroud, evaporator cover, wiring, or insulation.
✓ Do not assume compatibility with every FRT, FRS, GLRT, FFHT, FFHS, FGHS, FPHS, or EI-series refrigerator. Exact model and part-number verification are required.
