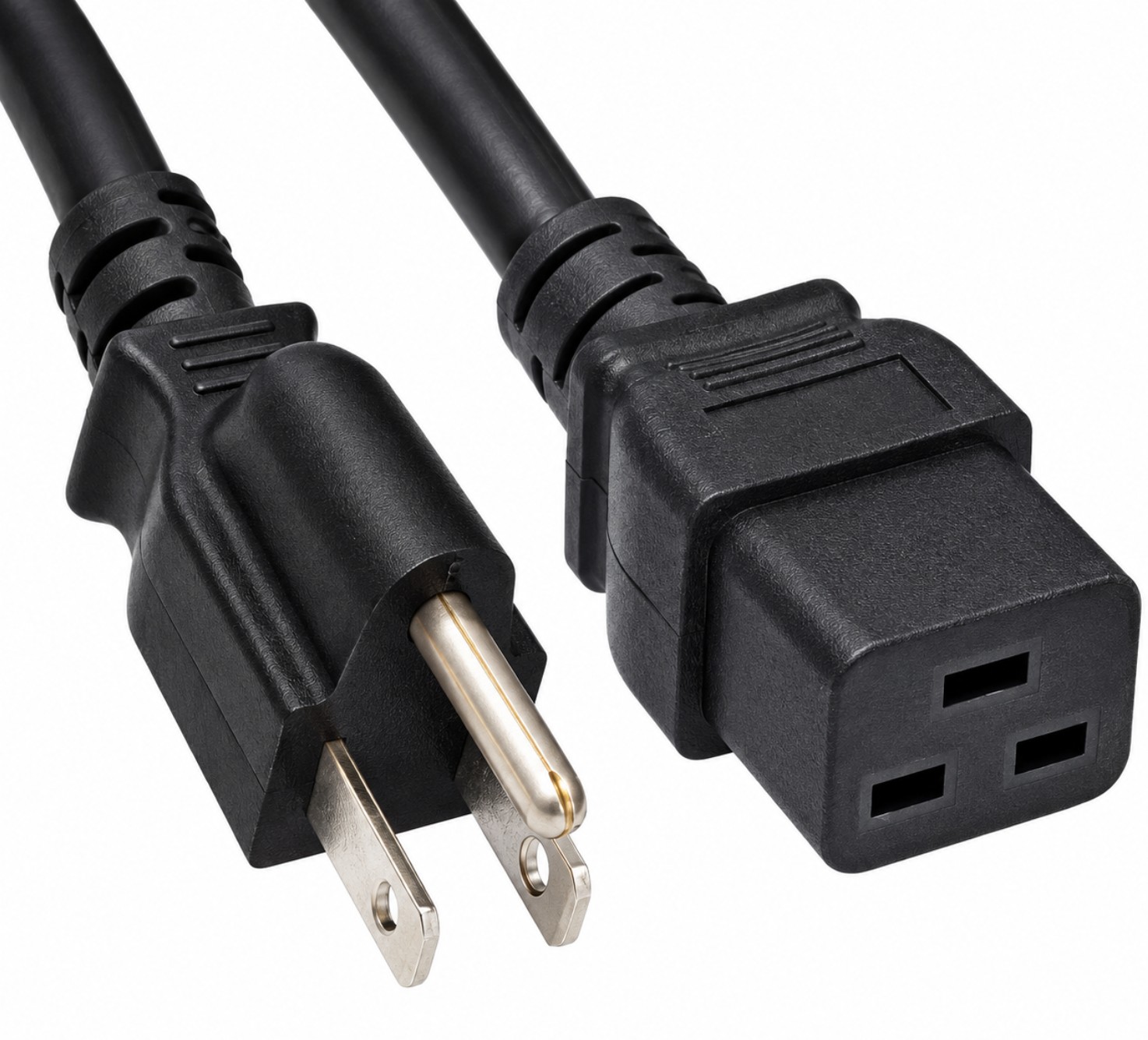

15A 125V NEMA 5-15P to IEC C19 Power Cord
This grounded AC power cord connects compatible power supplies with an IEC C20 inlet to a standard North American three-prong outlet. Its NEMA 5-15P wall plug and IEC C19 equipment connector support the matching 15A 125V power configuration used by select desktop and networking power supplies.
Technical Specifications
- Product Type: AC power cord
- Part Number: 2R328
- Wall Connector: NEMA 5-15P male
- Equipment Connector: IEC 60320 C19 female
- Compatible Equipment Inlet: IEC 60320 C20
- Cord Rating: 15A 125V AC
- Length: 6-Foot
- Grounding: Three-conductor grounded connection
- Application: External AC connection for compatible desktop and networking power supplies
Interchangeable / Replacement Part Numbers
Original part-number references:
✔️ 2R328, 02R328
Equivalent connector and electrical-rating references:
✔️ CAB-US515P-C19-US, CAB-US515P-C19-US=
✔️ 9350915
Equivalent references identify NEMA 5-15P-to-C19 cords rated 15A 125V. Cable length and construction can vary by part number.
⭐➕ Compatible Power Supplies Available Separately
800GY — 1500W Power Supply for Alienware Area 51
D1500EF-00 — 1500W Power Supply for Alienware Area 51
DPS-1500FB A — 1500W Power Supply for Alienware Area 51
1J62C Listing — 1350W Power Supply Showing the KV63M / D1350EPF-00 Configuration
PM480 — 1000W Power Supply for XPS 700 710 720
ND285 / N1000P-00 — 1000W Power Supply
✅ Confirmed Compatibility
Compatibility applies to the specific power-supply configurations listed below when operated within this cord’s 15A 125V rating.
Alienware Area 51 Power Supplies
✔️ 800GY, 0800GY — 1500W
✔️ D1500EF-00 — 1500W
✔️ DPS-1500FB A — 1500W
These references cover matching C20-equipped power supplies used in Area 51 R2, R3, R4, R5, R6 and R7 configurations.
1350W Desktop Power Supply
✔️ KV63M / D1350EPF-00 — C20-equipped configuration shown in the linked 1J62C listing
1000W Desktop Power Supplies
✔️ PM480 / N1000P-00 — C20-equipped configuration for XPS 700, 710 and 720
✔️ ND285 / N1000P-00 — C20-equipped configuration shown in the linked listing
Corsair Desktop Power Supplies
✔️ AX1500i / CP-9020057-NA — 1500W North American configuration with C20 inlet
✔️ HX1500i / CP-9020309-NA — 1500W North American configuration with C20 inlet
Cisco Catalyst 9400 Power Supplies
✔️ C9400-PWR-2100AC — 2100W AC power supply
✔️ C9400-PWR-2100ACT — 2100W AC Titanium power supply
These models support this cord for nominal 120V operation, with 950W total output available at low-line voltage.
Cisco Catalyst 4500 Power Supplies
✔️ PWR-C45-4200ACV — 4200W dual-input AC power supply
✔️ PWR-C45-6000ACV — 6000W dual-input AC power supply
✔️ PWR-C45-9000ACV — 9000W triple-input AC power supply
These models support this cord for nominal 120V operation at reduced output. Each connected AC input requires its own power cord; available output depends on input voltage and the number of powered inputs.
☑️ Key Features
☑️ IEC C19 equipment connector for compatible C20 power-supply inlets
☑️ NEMA 5-15P plug for matching North American outlets
☑️ 15A 125V cord rating
☑️ Grounded three-conductor connection
☑️ Replacement option for missing or damaged compatible AC cords
☑️ Supports the specific desktop and networking PSU configurations listed above
⚙️ Fit Notes
- Match the equipment inlet, wall outlet and required electrical rating before ordering.
- Compatibility is determined by the installed power supply, including its exact revision.
- Use this cord on AC service within its 125V rating.
- Power-supply wattage identifies the PSU model; available output can vary with input voltage.
- For multi-input power supplies, follow the equipment’s power-connection requirements.
- Package includes one AC power cord. Power supplies are sold separately.
