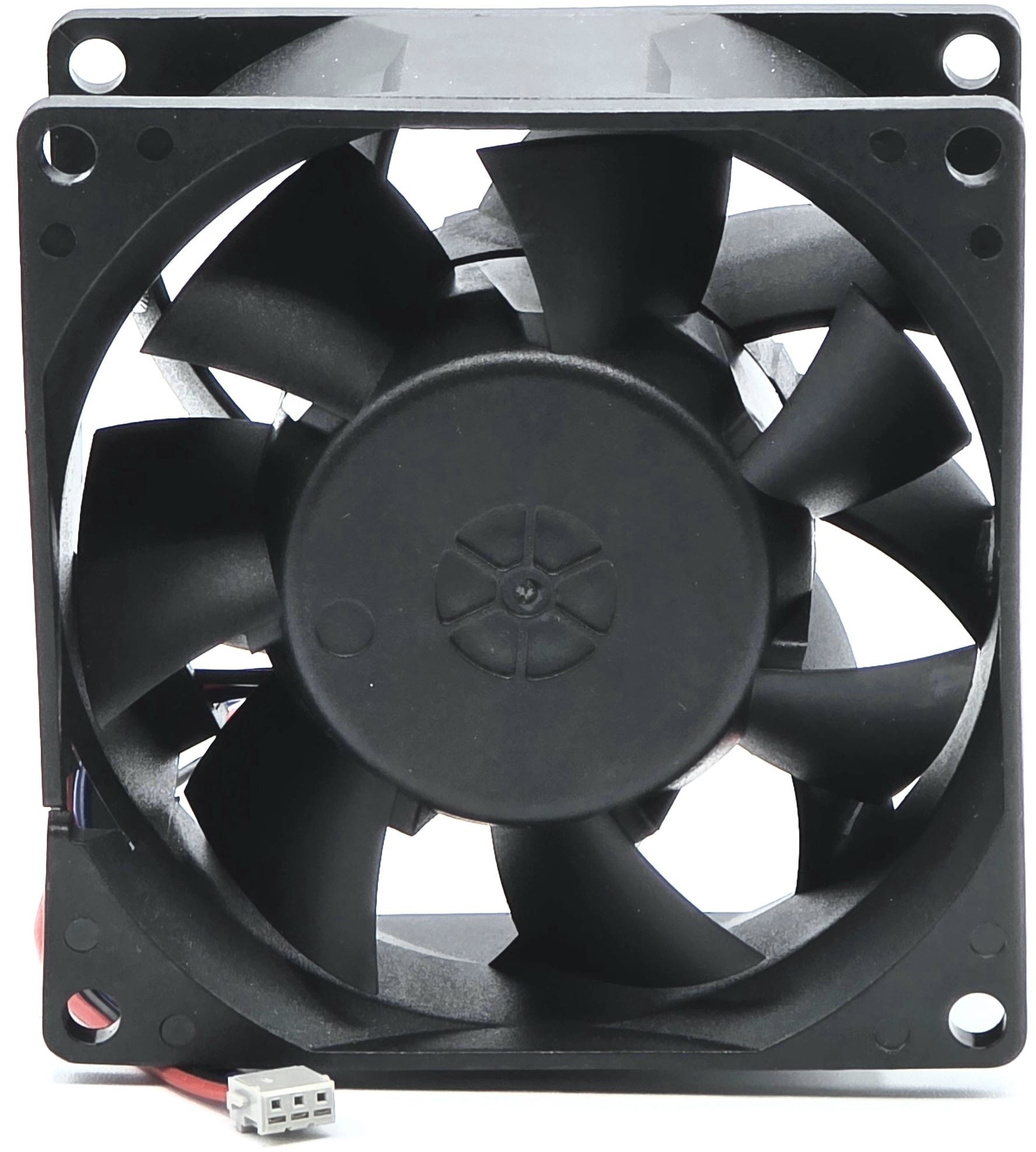

3115RL-05W-B69 - 80x80x38mm 8038 DC24V 0.50A 3-Pin Connector Schneider Inverter Cooling Fan
Description
Industrial-grade 80mm x 38mm DC brushless cooling fan designed for inverter and control-cabinet ventilation. The 3115RL-05W-B69 operates at 24V DC with a 3-wire lead set for tachometer monitoring, providing reliable airflow in continuous-duty environments.
Technical Specifications
- Dimensions: 80 x 80 x 38 mm
- Rated Voltage: 24V DC
- Rated Current: 0.50A
- Power: 12W (typical, based on 24V x 0.50A)
- Interface: 3-pin (3-wire with tachometer/sense)
- Bearing Type: Ball bearing
- Frame/Impeller: UL94V-0 thermoplastic
- Rotation/Flow Indicators: Molded arrows on housing
- Orientation: Standard square frame, 80mm mounting pattern
Interchangeable / Replacement Part Numbers
☑️ Key Features
- ☑️ 24V DC 3-wire design with tachometer output for RPM monitoring
- ☑️ Ball-bearing motor for long service life in continuous operation
- ☑️ 80x80x38mm thickness for higher static pressure in dense enclosures
- ☑️ Flame-retardant UL94V-0 materials suited for industrial panels
- ☑️ Drop-in fit for standard 80mm fan mounts
⚙️ Fit Notes
- Confirm your device requires a 24V DC, 80x80x38mm fan with a 3-wire/tach connection before ordering.
- Typical wiring: Red = +24V, Black = Ground, Yellow = Tach (verify your controller pinout).
- Install with airflow and rotation matching the arrows on the housing; keep intake/exhaust paths unobstructed.
