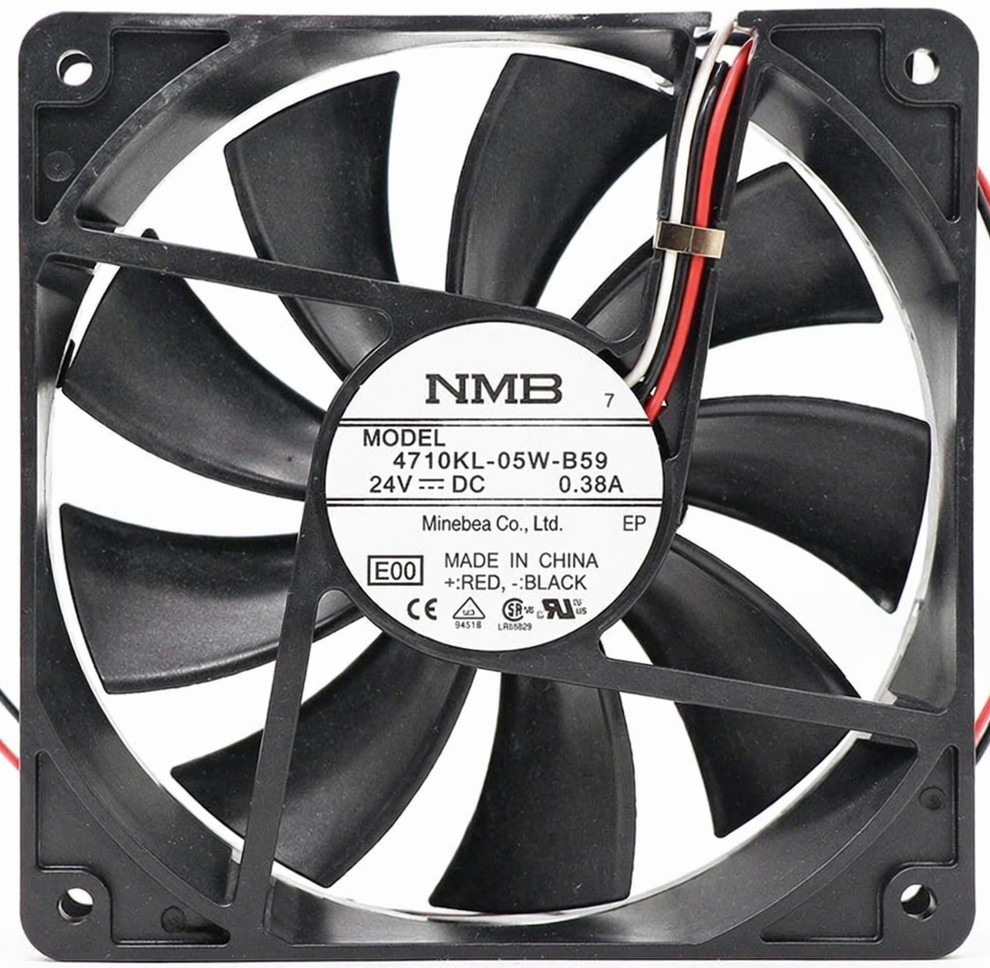

4710KL-05W-B59 - 120x120x25mm 24V 0.38A 3-Pin Inverter Cooling Fan

This 120mm x 120mm x 25mm DC cooling fan is designed for inverter, industrial, control, and electronic equipment applications that require a 24V axial fan with a 3-pin connection. It is a strong replacement option for matching assemblies that need reliable airflow in a standard 12025 form factor.

Built with a square frame and ball bearing design, this fan is suited for continuous-duty cooling in equipment where stable airflow, proper fitment, and dependable operation are important.

Technical Specifications

• Part Number: 4710KL-05W-B59
• Fan Type: DC axial cooling fan
• Dimensions: 120mm x 120mm x 25mm
• Alternate Size Reference: 12025
• Rated Voltage: 24V DC
• Rated Current: 0.38A
• Connector Type: 3-Pin
• Bearing Type: Ball Bearing
• Fan Speed: Approximately 2800 RPM
• Airflow: Up to approximately 114.7 CFM
• Noise Level: Approximately 41.5 dBA
• Signal / Sensor Lead: Locked rotor / sensor output
• Frame Style: Square flange mount

Interchangeable / Replacement Part Numbers

• 4710KL-05W-B59

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Industrial Cooling Assemblies: Systems requiring a 120mm x 120mm x 25mm 24V DC axial fan with a matching 3-pin connection
✔️ Inverter Equipment: Inverter and power electronics applications using a 12025 24V cooling fan with the same mounting pattern and airflow direction
✔️ Control Cabinets: Electronic control enclosures that use a 24V square-frame fan with matching dimensions and connector style
✔️ Power Supply and Telecom Equipment: Applications using a 12025 3-pin DC fan with equivalent physical clearance and electrical requirements

☑️ Key Features

☑️ Standard 120mm x 120mm x 25mm 12025 form factor
☑️ 24V DC operation for industrial and inverter cooling applications
☑️ 3-pin connector design for power and signal connection
☑️ Ball bearing construction for dependable long-term operation
☑️ Strong airflow performance for heat-sensitive equipment
☑️ Suitable replacement for matching inverter, cabinet, and electronics cooling assemblies

⚙️ Fit Notes

• Verify fan dimensions before purchase, especially thickness, mounting hole spacing, and connector clearance
• Confirm the connector shape and wire pinout match your original fan before installation
• Check airflow direction and fan orientation to ensure proper cooling performance
• Confirm the original fan uses 24V DC input before replacing
