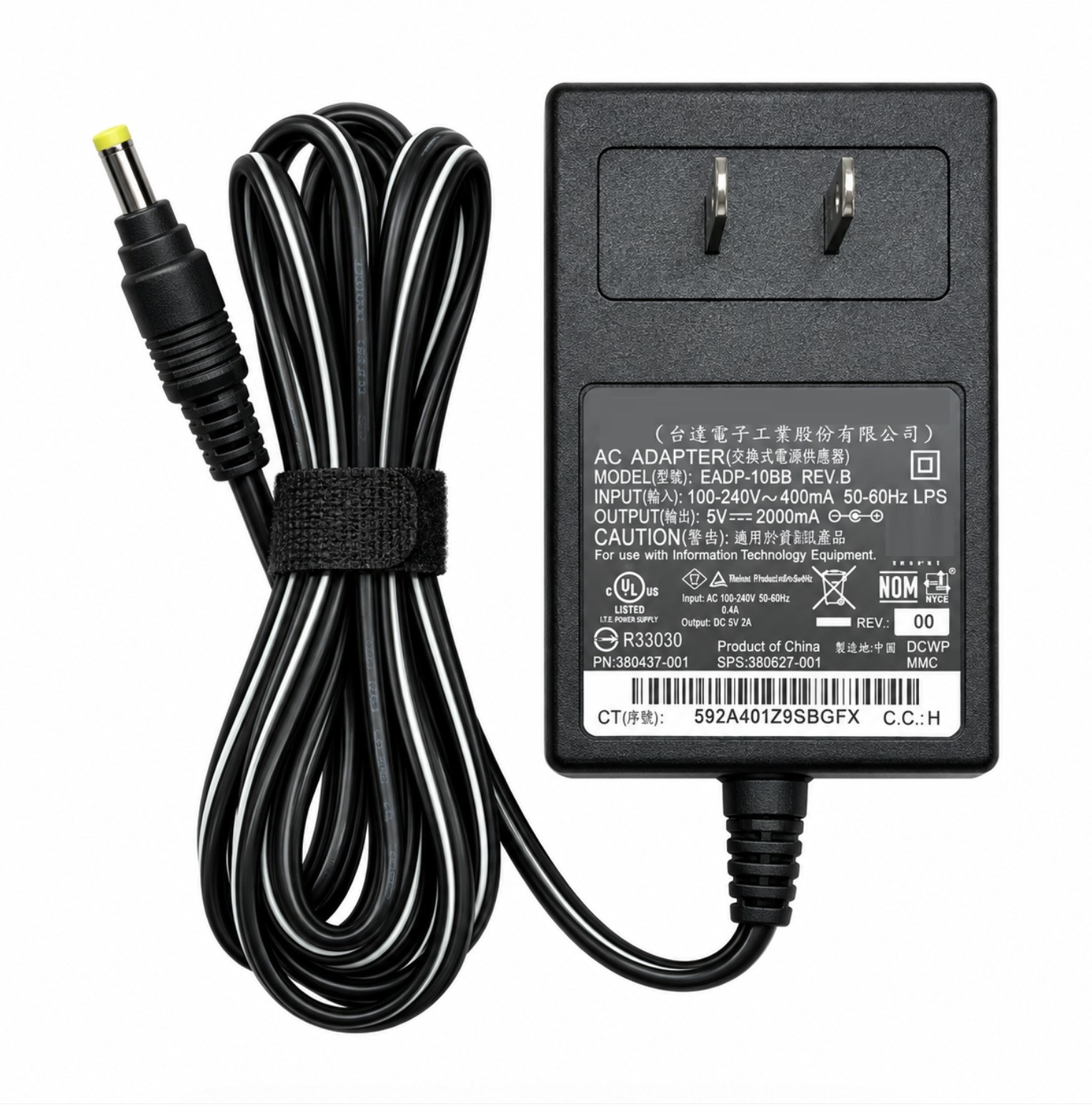

EADP-10BB / 380437-001 / 380637-001 - 10W 5V 2A 4.0mm x 1.7mm AC Adapter Charger for iPAQ

This genuine OEM 10W switching AC adapter supplies regulated 5V DC at 2A through a straight 4.0mm × 1.7mm yellow-tip barrel connector. It features universal 100–240V AC input, integrated North American two-prong wall blades, and a permanently attached DC output cable.

The adapter is compatible with supported iPAQ Pocket PC and Mobile Messenger devices when connected through the correct charging cradle or barrel-to-22-pin adapter. The 22-pin adapter is a separate accessory and is not included unless specifically stated.

Technical Specifications

• Product Type: Switching AC/DC power adapter
• Primary Model Number: EADP-10BB
• Documented Revision: Rev. B
• Part Number: 380437-001
• Spare Part Number: 380637-001
• Maximum Output Power: 10W
• Input Voltage: 100–240V AC
• Input Current: 0.4A / 400mA
• Input Frequency: 50–60Hz
• Output Voltage: 5V DC
• Output Current: 2A / 2000mA
• DC Connector Size: 4.0mm outside diameter × 1.7mm inside diameter
• Connector Type: Coaxial barrel connector
• Connector Color: Yellow tip
• Connector Orientation: Straight
• Center Identification Pin: No
• Polarity: Center positive
• AC Connection: Integrated North American two-prong wall plug
• DC Output Cable: Permanently attached
• Approximate DC Cable Length: 70 inches
• Power Cable Included: Yes — attached DC output cable
• Detachable AC Cord Required: No
• Safety Classification: Limited Power Source / double insulated
• Primary Application: Compatible iPAQ handheld computers, charging cradles, and 22-pin charging adapters requiring 5V DC at up to 2A

Interchangeable / Replacement Part Numbers

Confirmed adapter and service references:

EADP-10BB, EADP-10BB Rev. B, EADP-10BB-B, 380437-001, 380637-001, ADP-10SB, PSC11A-050, 389145-001, 254088-001, 364792-001, 355917-021, 364792-021, 380437-021, 380637-021, EADP10BB, EADP10BBB, ADP10SB, PSC11A050, 380437001, 380637001, 389145001, 254088001, 364792001

The regional -021 assemblies may use a different wall-plug configuration or regional packaging. They are electrically related to the 5V/2A adapter family, but the AC plug and complete assembly should be verified before substitution.

PSC11R-050 appears in some parts databases for compatible handhelds, but it was manufactured in multiple physical configurations. Do not treat every PSC11R-050 as interchangeable without verifying its 5V output, 2A capacity, center-positive polarity, and 4.0mm × 1.7mm DC connector.

⚠️ Critical Connector Compatibility Notice

This adapter has a 4.0mm × 1.7mm straight barrel plug. Matching the 5V and 2A ratings alone does not establish compatibility.

Before ordering, confirm all of the following:

• 5V DC output
• 2A or greater available output current
• 4.0mm × 1.7mm barrel dimensions
• Center-positive polarity
• Correct device-side charging adapter or cradle
• Correct wall-plug configuration for the intended country

Many supported iPAQ handhelds have a proprietary 22-pin charging connector rather than a direct barrel jack. Those devices require the appropriate barrel-to-22-pin adapter between the EADP-10BB power supply and the handheld.

Documented 22-pin charging-adapter references include:

253652-B21, 254089-001, FA125A, FA133A, FA133A#AC3, 383682-001, 383747-001

The 22-pin charging adapter, synchronization cradle, and handheld are not included unless specifically stated.

Do not substitute WA-10F05C solely because it is rated 5V/2A. Documented versions use a larger 5.5mm × 2.1mm plug and are not direct replacements for the 4.0mm × 1.7mm EADP-10BB connector.

✅ Confirmed Compatibility

Compatibility applies when the handheld, cradle, or charging adapter requires regulated 5V DC power and accepts the EADP-10BB 4.0mm × 1.7mm barrel connector. Models with a proprietary 22-pin connector require the correct barrel-to-22-pin charging adapter.

✔️ Directly Documented Models: iPAQ h2210, h4150, rx1950, rx1955, hx2190, hx2195, hx2490, hx2490c, hx2790, hx2795, hx4700
✔️ h1900 Series: h1900, h1910, h1915, h1920, h1930, h1935, h1937, h1940, h1945
✔️ h2200 Series: h2200, h2210, h2212e, h2215
✔️ h3100 Series: h3100, h3130, h3135, h3150
✔️ h3600 Series: h3600, h3630, h3635, h3641, h3650, h3660, h3670
✔️ h3700 Series: h3700, h3730, h3760, h3765
✔️ h3800 Series: h3800, h3815, h3825, h3830, h3835, h3845, h3850, h3870, h3875
✔️ h3900 Series: h3900, h3950, h3955, h3970
✔️ h4100 Series: h4100, h4150, h4155
✔️ h4300 Series: h4300, h4350, h4355
✔️ h5000 and h5100 Series: h5000, h5100, h5150, h5155
✔️ h5400 Series: h5400, h5450, h5455
✔️ h5500 Series: h5500, h5550, h5555
✔️ h6300 Series: h6300, h6305, h6310, h6315, h6320, h6325, h6330, h6335, h6340, h6345, h6350, h6355, h6360, h6365
✔️ hw6500 Mobile Messenger Series: hw6500, hw6510, hw6515
✔️ hx2000 and hx2100 Series: hx2000, hx2100, hx2110, hx2115, hx2190, hx2195
✔️ hx2400 Series: hx2400, hx2410, hx2415, hx2450, hx2455, hx2490, hx2490c, hx2495
✔️ hx2700 Series: hx2700, hx2710, hx2715, hx2750, hx2755, hx2790, hx2795
✔️ hx4700 Series: hx4700, hx4705, hx4710, hx4715, hx4800
✔️ rx1900 Series: rx1950, rx1955
✔️ rx3000 and rx3100 Series: rx3000, rx3100, rx3110, rx3115
✔️ rx3400 Series: rx3400, rx3410, rx3415, rx3417
✔️ rx3700 Series: rx3700, rx3710, rx3715, rx3717
✔️ rz1700 Series: rz1700, rz1710, rz1715, rz1717

☑️ Key Features

☑️ Genuine OEM 10W switching AC adapter
☑️ Regulated 5V DC output at 2A
☑️ EADP-10BB model with 380437-001 and 380637-001 references
☑️ Straight 4.0mm × 1.7mm yellow-tip barrel connector
☑️ Center-positive polarity without an identification pin
☑️ Universal 100–240V AC input
☑️ Integrated North American two-prong wall plug
☑️ Permanently attached DC output cable
☑️ No detachable AC power cord required
☑️ Supports compatible iPAQ handhelds, cradles, and 22-pin adapters
☑️ Cross-referenced with ADP-10SB and PSC11A-050 adapter families

⚙️ Fit Notes

• Confirm the original adapter is rated for 5V DC before connecting this power supply.
• Never substitute a 6V, 9V, 12V, or higher-voltage adapter.
• A replacement may provide more than 2A, but it must remain regulated at exactly 5V and use the correct connector and polarity.
• The adapter’s DC connector measures 4.0mm × 1.7mm; a 5.5mm × 2.1mm plug is not interchangeable.
• Many listed handhelds require a separate 22-pin charging adapter or compatible cradle.
• The 22-pin adapter is not the same component as the EADP-10BB power supply.
• Regional part numbers may have different wall plugs even when their DC output specifications match.
• “Includes power cable” refers to the permanently attached DC output cable; this wall-mount adapter does not use a detachable IEC AC cord.
• Compare the original model number, output voltage, current, polarity, barrel dimensions, wall plug, and required device-side adapter before ordering.
• Disconnect the adapter from AC power before attaching or removing any charging adapter, cradle, or handheld device.
