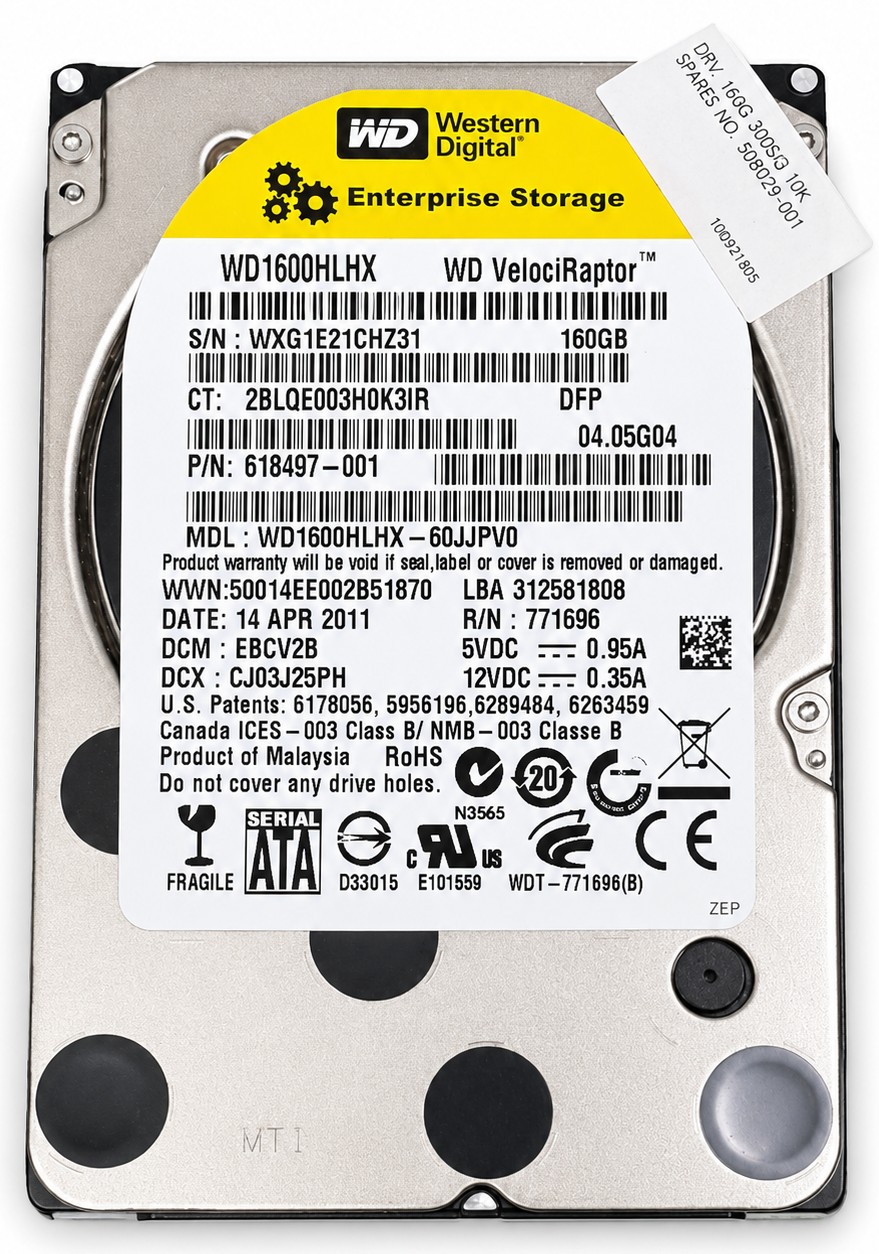

508029-001 - 160GB 10K RPM SATA 3.5" Hard Drive for HP Z-Series and xw-Series Workstations

Description

The HP 508029-001 is a 160GB 10,000 RPM SATA hard drive designed for select HP workstation systems. This drive uses a 2.5" 10K RPM hard drive mounted inside a 3.5" frame/tray assembly, making it suitable for compatible 3.5" workstation drive bays.

This is a high-speed legacy SATA hard drive commonly used in HP Z-Series and xw-Series workstations where 10K RPM performance is required. Please verify your system model, drive bay configuration, and required part number before ordering.

Technical Specifications

Product Type: Internal Hard Drive
Caddy Included? No - Hard Drive Only
Part Number: 508029-001
Capacity: 160GB
Drive Speed: 10,000 RPM
Interface: SATA
Form Factor: 3.5"
Cache: 16MB
Drive Type: HDD
SMART Support: Yes
NCQ Support: Yes
Operating Temperature: 5°C to 55°C
Non-Operating Temperature: -40°C to 70°C
Operating Shock: 65G / 2 ms
Non-Operating Shock: 300G / 2 ms
Dimensions: 1.028" x 5.787" x 4.00"
Weight: 1.08 lb

Key Features

☑️ 160GB storage capacity for legacy workstation applications
☑️ 10,000 RPM spindle speed for faster access times than standard 7200 RPM SATA drives
☑️ SATA interface for compatible HP workstation systems
☑️ 16MB cache for improved drive performance
☑️ 2.5" drive mounted in a 3.5" frame/tray assembly
☑️ Supports SMART monitoring and NCQ
☑️ Ideal replacement for select HP Z-Series and xw-Series workstations

Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system or motherboard manufacturer prior to installation.

✔ HP Z-Series Workstations: Z200 / Z210 / Z400 / Z600 / Z800
✔ HP xw-Series Workstations: xw4600 / xw8400 / xw8600
✔ Compatible HP Workstation Storage Accessories / Controllers: RY103AA / RY102AA / NB792AA / FZ576AA / EH417AA / XP310AA / GE258AA / WE465AA / EX830AA
✔ Compatible Controller Families: Integrated SATA Controller / LSI 3041E / LSI 9212 / LSI 8888ELP / LSI MegaRAID 9260-8i / LSI SAS 1068E / LSI SAS 1068X / LSI MegaRAID SAS 8344ELP

Interchangeable Part Numbers

508029-001, EW222AA, EW222UT, WD1600HLFS, WD1600HLFS-60G6U0, WD1600HLFS-60G6U1, WD1600HLFS-60G6U2, 490581-001

Replacement / Cross-Reference Part Numbers

The following part numbers are commonly seen as close-family replacements, alternate listings, or later-generation substitutes. Please verify compatibility before ordering.

405427-001, 637003-001, 618497-001, 508312-001, WD1600HLHX, WD1600ADFD, 0N963M, N963M, 0G605H, G605H

Fit Notes

• This drive is primarily intended for select HP workstation systems, not as a universal ProLiant hot-plug server drive.
• This is a 2.5" 10K RPM drive mounted inside a 3.5" frame/tray assembly.
• Some listings and sources may refer to the base drive as WD1600HLFS.
• Later substitute drives such as WD1600HLHX / 618497-001 may differ by interface generation, cache, firmware, or physical labeling.
• Always verify the required part number, drive bay style, and system configuration before ordering.
• This item may not include additional rails, cables, screws, or adapters unless specifically shown or stated.
