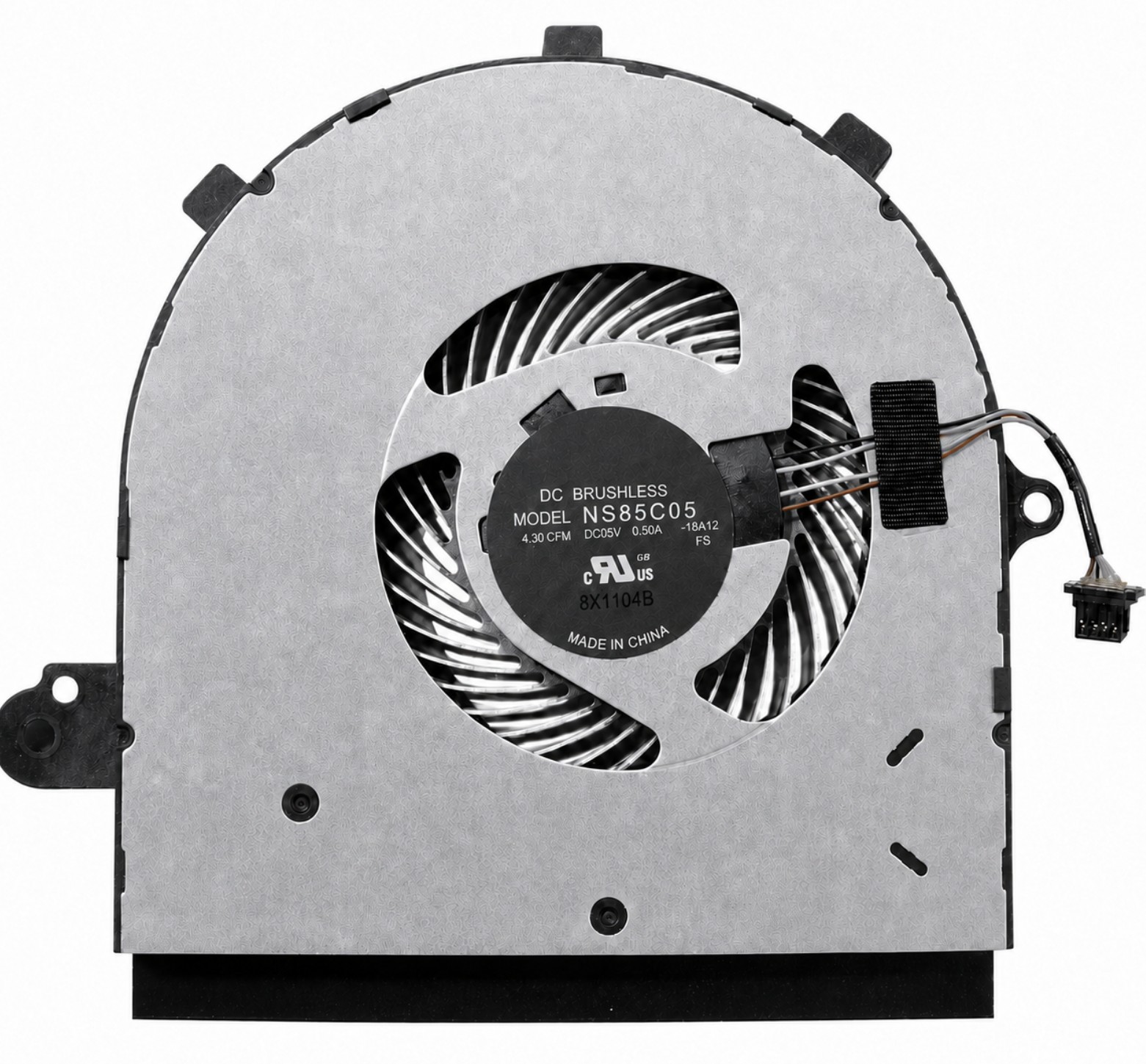

60MGH / 060MGH - DC5V 4-Pin CPU Cooling Fan for Inspiron 15 7586 2-in-1 P76F

This CPU cooling fan is a direct replacement for compatible Inspiron 15 7586 2-in-1 laptops using the 60MGH fan configuration. It provides system-controlled processor cooling through a four-wire, four-pin motherboard connection.

Several approved manufacturing revisions were used in this system. The label, manufacturer model number, and production markings may vary, but compatible versions share the required housing, mounting points, cable routing, connector, voltage, and airflow direction.

Technical Specifications

• Primary Part Number: 60MGH
• Product Type: Internal CPU cooling fan
• Application: Laptop processor cooling
• Rated Voltage: DC 5V
• Rated Current: 0.50A
• Airflow Rating: Varies by manufacturing revision; certain labels specify approximately 5.0 CFM
• Connector: 4-pin motherboard connector
• Wire Count: Four wires
• Speed Control: System-controlled PWM operation
• Fan Monitoring: Supported through motherboard tachometer connection
• Installation Location: Internal CPU cooling position
• Compatible Display Size: 15.6-inch system chassis
• Included Quantity: One cooling fan
• Heatsink Included: No
• Thermal Compound Included: No
• Installation Hardware Included: No

Interchangeable / Replacement Part Numbers

Primary System Part References:

60MGH, 060MGH

Normalized and Searchable Label Forms:

CN-060MGH, CN-60MGH

Fan Manufacturer Model References:

NS85C05-18A12, DFS551205WQ0T, DFS551205WQ0T-FKBF, DFS551205WQ0T EP, DFS551205W00T

Manufacturer Configuration and Label References:

FKBF, 19C308, 023.100D3.0001, 023.100D3.0001 A01, 023.100D3.0011, 023.100D3.0011 A01

DFS551205WQ0T is a base fan-motor family used in multiple products. Confirm the complete configuration, housing shape, cable position, connector, and mounting points instead of ordering from the base motor number alone.

⚠️ Product Appearance Notice

The item shipped may differ slightly from the listing photos. Label color, label layout, printed markings, sticker style, wire colors, and other minor cosmetic details may vary by production batch or supplier.

The actual fan will match the physical design shown, including the housing shape, mounting points, dimensions, cable configuration, connector, voltage, airflow direction, and intended compatibility. Any variation will be functionally interchangeable for the application described.

⭐➕ Related Heatsink Assemblies — Sold Separately

This listing includes the cooling fan only. The 7586 platform uses different heatsinks depending on the installed graphics configuration.

Integrated Graphics Heatsink References:

01W6V, 001W6V, CN-001W6V, 460.0EZ04.0001, 460.0EZ04.0011

Discrete Graphics Heatsink References:

JT0X8, 0JT0X8, CN-0JT0X8, 460.0EZ03.0001, 460.0EZ03.0011

✔️ Match the heatsink to the system’s original graphics configuration.
✔️ The two heatsink designs are not interchangeable solely because they use the same cooling-fan family.
✔️ Heatsink, heat pipes, mounting hardware, and thermal pads are not included with this fan.

⭐➕ Recommended Thermal Compound

If the heatsink is removed during installation, clean the old thermal compound from the processor and heatsink contact surface before reassembly.

Apply a fresh, properly sized amount of G751 High-Performance Thermal Grease to surfaces originally using thermal paste.

Thermal grease does not replace thermal pads. Preserve or replace each pad using the original location and correct thickness.

✅ Confirmed Compatibility

Compatibility has been organized by complete system family, regulatory designation, processor configuration, graphics configuration, and documented retail model. Confirm that the original fan matches one of the interchangeable references listed above.

Inspiron 15 7000 2-in-1 Series

✔️ Primary Models: Inspiron 15 7586 2-in-1, Inspiron 15-7586 2-in-1, Inspiron 7586 2-in-1, Inspiron i7586
✔️ Series Description: Inspiron 15 7000 Series 7586 2-in-1
✔️ Regulatory Model: P76F
✔️ Regulatory Type: P76F001
✔️ Processor Configurations: 8th Generation Core i5-8265U and Core i7-8565U configurations
✔️ Integrated Graphics Configurations: UHD Graphics 620 systems using the matching 60MGH fan layout
✔️ Discrete Graphics Configurations: GeForce MX150 systems using the matching 60MGH fan layout
✔️ Display Configurations: 15.6-inch Full HD touchscreen and Ultra HD 4K touchscreen configurations
✔️ Documented Retail Models: I7586-5045SLV-PUS, I7586-5502SLV-PUS, I7586-7205BLK-PUS, I7586-7502SLV-PUS
✔️ Documented Refurbished Retail References: GSRF I7586-5045SLV-PUS, GSRF-I7586-7502SLV-PUS

☑️ Key Features

☑️ Direct replacement for the 60MGH cooling-fan family
☑️ Supports multiple documented manufacturer revisions
☑️ DC 5V and 0.50A electrical rating
☑️ Four-wire, four-pin motherboard connection
☑️ System-controlled fan speed and monitoring
☑️ Compatible with documented Core i5 and Core i7 configurations
☑️ Supports matching integrated and discrete graphics configurations
☑️ Suitable for replacing a noisy, seized, damaged, intermittent, or non-operational fan
☑️ Related integrated and discrete graphics heatsinks documented separately

⚙️ Fit Notes

• Confirm the original part number, housing outline, mounting tabs, screw locations, exhaust opening, cable exit, connector, and wire arrangement.
• Do not order from DFS551205WQ0T alone. That motor family appears with multiple housings and configuration suffixes.
• DFS551205WQ0T and DFS551205W00T are both encountered in catalog and label records; character transcription varies between sources.
• This listing includes the fan only. It does not include the heatsink, heat pipes, thermal pads, screws, or thermal grease.
• Match either the 01W6V integrated-graphics heatsink family or the JT0X8 discrete-graphics heatsink family to the original configuration.
• Do not substitute the related GCN3G, 0GCN3G, NS85C05-18B01, FL1D, 023.100DI.0001, or 023.100DI.0011 fan family without a complete physical comparison. Those references are primarily associated with the larger 17-inch 7786 platform.
• Pay close attention to D3 versus DI in the manufacturer assembly number; these characters are frequently confused in online listings.
• Disconnect the AC adapter and internal battery before beginning installation.
• Hold the connector by its plastic body when disconnecting it; do not pull directly on the wires.
• Clean accumulated dust from the exhaust fins before installing the replacement.
• Route the cable exactly as originally installed so it cannot contact the blades or become pinched beneath another component.
