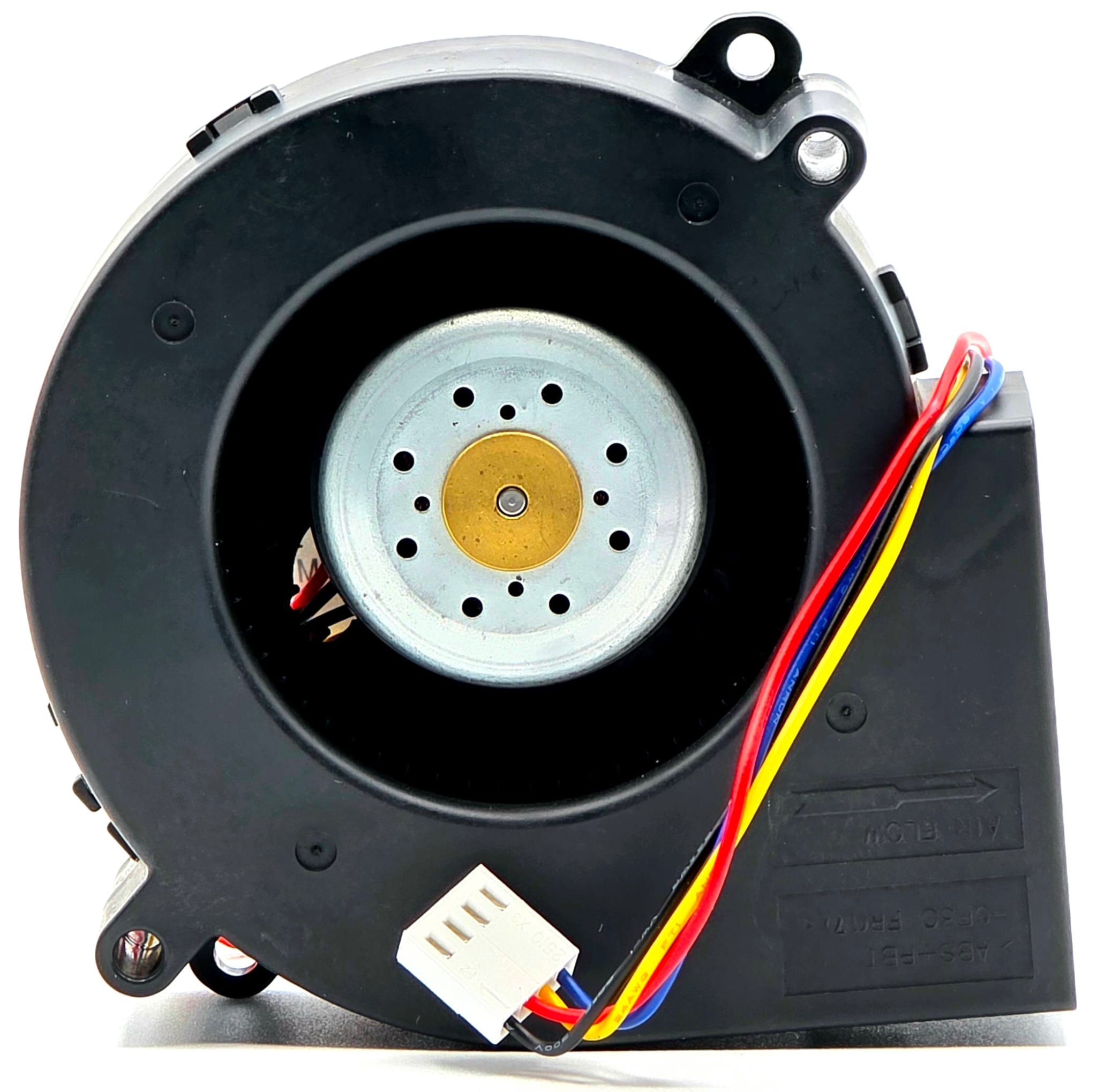

12V 3.8A 97mm 4-Pin Radiator Blower Fan for Alienware X51 R2 R3

This 12V high-output centrifugal blower fan is designed to move air through the compact processor liquid-cooling radiator used in compatible Alienware X51 systems. It uses a four-wire 4-pin connection for system-controlled speed regulation and fan-speed monitoring.

MVDCV, 0MVDCV, MVDCV-A00 and 9BMB12P2J619 identify the same fan configuration. This listing includes the fan shown only. The radiator, pump, cold plate, hoses and complete processor cooling assembly are not included.

Technical Specifications

• Product Type: Liquid-cooling radiator blower fan
• Fan Type: Centrifugal / side-discharge blower
• Series / Size Classification: B97 / 9733
• Nominal Voltage: 12V DC
• Rated Current: 3.8A
• Approximate Maximum Airflow: 55 CFM
• Approximate Overall Dimensions: 97.1mm × 95mm × 33mm
• Common Size Description: 97mm × 33mm
• Fan Lead: Four-wire cable
• Connector: 4-pin system connector
• Speed Control: PWM-controlled variable speed
• Speed Monitoring: Pulse / tachometer feedback
• Bearing Type: Ball bearing
• Airflow Design: High-static-pressure radiator airflow
• Mounting: System-specific screw-mount configuration
• Approximate Weight: 190 grams / 6.7 ounces
• Installation Location: Processor liquid-cooling radiator assembly
• Quantity Included: One blower fan with attached cable and connector
• Not Included: Radiator, pump, cold plate, hoses, mounting bracket or complete cooling assembly

Interchangeable / Replacement Part Numbers

Direct fan part numbers and label references:

MVDCV, 0MVDCV, MVDCV-A00, 9BMB12P2J619

Additional replacement-fan reference documented with the MVDCV-A00 configuration:

KFFB9733HH12B

Normalized searchable forms:

MVDCVA00, 9BMB12P2J619, KFFB9733HH12B

Related complete liquid-cooling assembly references:

5FGKT, 05FGKT, CN-05FGKT, G0FC5

The 5FGKT, 05FGKT, CN-05FGKT and G0FC5 references identify larger processor liquid-cooling assemblies that may use this blower. They are included for identification and search purposes but are not interchangeable fan-only part numbers.

⚠️ Critical Fan-Only Compatibility Notice

This listing is for the blower fan only. It is not a complete liquid-cooling system and cannot convert a standard air-cooled computer to liquid cooling by itself.

Before ordering, verify all of the following:

• The installed fan is marked MVDCV, MVDCV-A00 or 9BMB12P2J619.
• The fan is rated for 12V DC and 3.8A.
• The housing is the 97mm × 33mm centrifugal-blower design.
• The cable has four wires and the matching 4-pin connector.
• The connector keying, wire order and cable length match.
• The airflow outlet and mounting-hole locations match the installed fan.
• The computer already contains the compatible liquid-cooling radiator assembly.

A standard axial case fan, graphics-card blower or generic 97mm blower should not be substituted solely because its dimensions are similar. Connector wiring, speed control, sensor output, mounting points and airflow direction must all match.

✅ Confirmed Compatibility

Direct Liquid-Cooled Application

✔️ Alienware X51 R3
✔️ Alienware X51 R3 regulatory model D05S
✔️ Alienware X51 R3 regulatory type D05S003
✔️ X51 R3 configurations equipped with the processor liquid-cooling assembly
✔️ X51 R3 systems using MVDCV or 9BMB12P2J619
✔️ X51 R3 systems using the 5FGKT / 05FGKT liquid-cooling assembly
✔️ X51 R3 systems using the G0FC5 processor thermal module when only the blower fan requires replacement

Conditional X51 R2 Application

✔️ Alienware X51 R2 regulatory model D05S
✔️ Alienware X51 R2 regulatory type D05S002
✔️ X51 R2 systems already fitted with the compatible X51 R3-style liquid-cooling radiator assembly
✔️ X51 R2 systems in which the installed blower is specifically marked MVDCV, MVDCV-A00 or 9BMB12P2J619

The standard air-cooled X51 R2 configuration does not use this fan. Compatibility with an X51 R2 requires an existing compatible liquid-cooling conversion or installed cooling assembly.

☑️ Key Features

☑️ Direct replacement for MVDCV, 0MVDCV and MVDCV-A00
☑️ Cross-references fan model 9BMB12P2J619
☑️ High-output 12V 3.8A centrifugal-blower design
☑️ Approximately 55 CFM of radiator airflow
☑️ Compact 97mm × 33mm form factor
☑️ Four-wire 4-pin connection
☑️ PWM fan-speed control
☑️ Pulse / tachometer speed monitoring
☑️ High static pressure for restricted radiator airflow paths
☑️ Suitable for replacing a noisy, seized or nonresponsive radiator fan
☑️ No separate software driver required

⚙️ Fit Notes

• Shut down the computer and disconnect the external power adapter and all attached cables before opening the enclosure.
• Press and hold the power button briefly after disconnecting power to discharge residual power.
• Record the installed fan orientation, airflow direction and cable routing before removal.
• Disconnect the fan by holding the connector housing rather than pulling on the wires.
• Retain the existing mounting screws and hardware for installation of the replacement fan.
• Clean accumulated dust from the radiator fins while the fan is removed.
• Install the blower in the same orientation so its outlet directs air through the radiator correctly.
• Route the cable through the existing guides and keep it away from the impeller.
• Confirm that the 4-pin connector is fully seated before reassembling the computer.
• After startup, verify that the fan spins, changes speed under load and does not produce a fan error.
• If overheating continues after fan replacement, inspect the radiator for blockage and verify that the liquid-cooling pump is operating.
