A02B-0323-K102 A98L-0031-0028 - 3V 1750mAh 4-Pin Backup Battery for FANUC 0i 30i 31i 32i

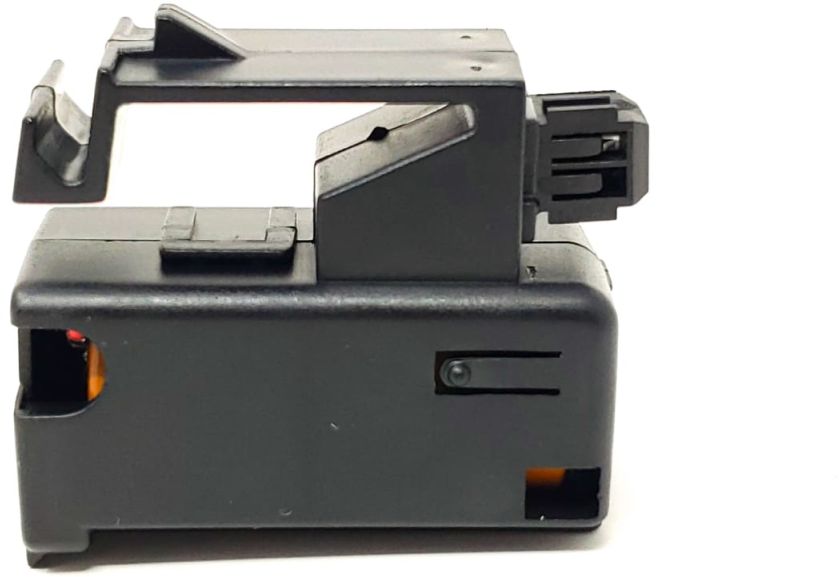

This 3V 1750mAh single-cell primary lithium battery cartridge is designed for compatible FANUC LCD-mounted CNC control units and select robot controllers that specify A02B-0323-K102 or A98L-0031-0028. The hard-plastic carrier includes an integral keyed 4-position female connector and molded locking latch. It supplies backup power for SRAM memory so essential control data can be retained while main power is off. This battery is non-rechargeable.

Technical Specifications

• Primary Part Number: A02B-0323-K102
• Product Type: Non-rechargeable industrial memory backup battery cartridge
• Marked Battery Part Number: A98L-0031-0028
• Nominal Voltage: 3.0V DC
• Rated Capacity: 1750mAh
• Nominal Energy: 5.25Wh
• Battery Chemistry: Lithium manganese dioxide (Li-MnO2)
• Rechargeable: No
• Cell Count: 1 cell
• Connector: Integral keyed 4-position female cartridge connector
• Housing: Black hard-plastic slide-in cartridge with molded locking latch
• Approximate Dimensions: 40mm x 32mm x 20mm measured with the locking carrier
• Primary Function: SRAM and control-memory backup
• Included: One battery cartridge

Interchangeable / Replacement Part Numbers

A02B-0323-K102, A98L-0031-0028

✅ Confirmed Compatibility

Compatibility depends on both the controller series and its physical construction. This slide-in cartridge is confirmed for compatible LCD-mounted control units that specify A02B-0323-K102 and select robot controllers that specify A98L-0031-0028. It is not the wired A02B-0200-K102 battery used by stand-alone control units. Verify the original part number, cartridge housing, latch, and connector before ordering.

✔️ Select FANUC Series 0i-D Controls: Series 0i-MODEL D and Series 0i Mate-MODEL D LCD-mounted revisions originally equipped with A02B-0323-K102; other 0i-D revisions use a different battery
✔️ FANUC Series 0i-F Controls: Series 0i-MODEL F and Series 0i-MODEL F Plus LCD-mounted control units, including matching 0i-TF Plus and 0i-MF Plus configurations specified for A02B-0323-K102
✔️ FANUC Series 30i 31i and 32i Controls: Series 30i-B, 31i-B, 31i-B5, and 32i-B Model B and Model B Plus LCD-mounted control units specified for A02B-0323-K102
✔️ FANUC Series 35i Controls: Series 35i-MODEL B and 35i-B LCD-mounted configurations that specify A02B-0323-K102
✔️ FANUC Power Motion Controls: Power Motion i-MODEL A and Power Motion i-MODEL A Plus LCD-mounted configurations specified for A02B-0323-K102
✔️ FANUC GALVANO SCANNER Controls: Controller i-A LCD-mounted configurations specified for A02B-0323-K102
✔️ FANUC Robot Controllers: R-30iB Mate and R-30iB Mate Plus standard and corresponding Open Air controllers that specify A98L-0031-0028 for controller-memory backup
✔️ Haas Robot Package: HRP-1 robot controller battery applications specified for A98L-0031-0028

☑️ Key Features

☑️ 3V 1750mAh single-cell memory backup battery
☑️ Non-rechargeable lithium manganese dioxide chemistry
☑️ Integral keyed 4-position female cartridge connector
☑️ Molded latch for supported slide-in battery locations
☑️ Helps retain SRAM programs, parameters, and control data when main power is off

⚙️ Fit Notes

• Match A02B-0323-K102 or A98L-0031-0028 and compare the complete cartridge shape, latch, and connector with the original.
• Do not substitute the wired A02B-0200-K102 battery used by stand-alone control units or a different battery with a similar voltage.
• Back up programs, parameters, and other control data before replacement because incorrect service or an extended loss of battery power can erase memory.
• Follow the exact machine or controller maintenance procedure. Power-state and replacement-time requirements vary, and service should be performed by qualified personnel.
• This is a primary non-rechargeable lithium battery. Do not charge, short-circuit, puncture, crush, or incinerate it, and dispose of it according to applicable regulations.
