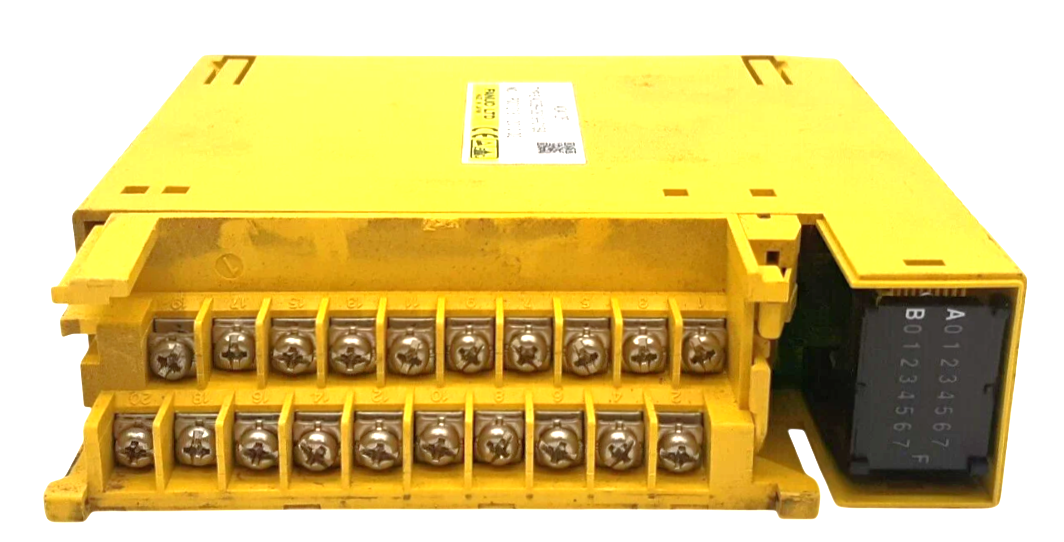

A03B-0819-C159 – 12-Point AC Output Module AOA12F – 100 VAC, 0.5 A/pt
Description
A03B-0819-C159 is a 12-point AC output I/O module (MDL AOA12F) for A03B-0819 series racks. It provides reliable switching of 100 VAC loads with compact, field-serviceable design suited for industrial automation panels.
Technical Specifications
- Part Number: A03B-0819-C159 (aka A03B0819C159)
- Module Designation: AOA12F
- Function: AC Output I/O module
- Output Points: 12
- Output Voltage (nominal): 100 VAC
- Current Rating: 0.5 A per point
- Category: PLC / Machine Control I/O
- Approx. Weight: ~0.97 lb (0.44 kg)
- Form Factor: A03B-0819 series I/O module, panel/rack mount
Interchangeable / Replacement Part Numbers
- A03B0819C159 (hyphenless print variant)
- GE Fanuc A03B-0819-C159 (labeling variant)
Notes: Interchangeability is based on identical MDL code AOA12F and matching electrical specs.
✅ Confirmed Compatibility
- ✔ A03B-0819 series I/O racks/backplanes supporting MDL AOA12F
- ✔ Control cabinets requiring 100 VAC, 12-point, 0.5 A/pt AC output modules within the A03B-0819 family
☑️ Key Features
- ☑️ 12 independent AC outputs for driving contactors, solenoids, lamps, and other 100 VAC loads
- ☑️ MDL AOA12F designation for drop-in replacement where the same model is specified
- ☑️ Compact module footprint for dense I/O panels
- ☑️ Industrial-grade construction for continuous operation
