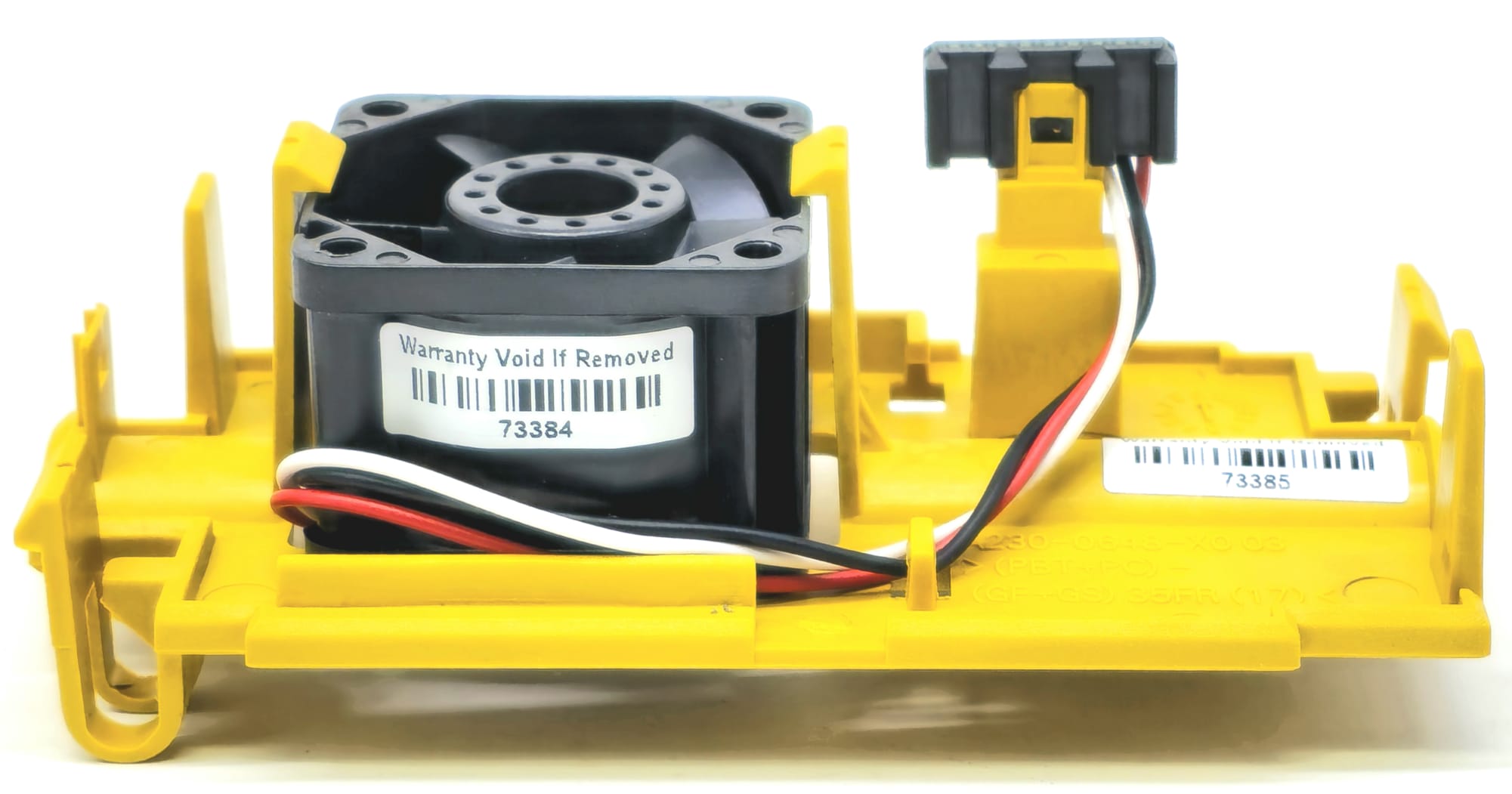

A230-0648-X003 Yellow Housing Bracket and 24V Cooling Fan Assembly for Fanuc R-30iB and R-30iB Plus Servo Amplifiers
Complete removable cooling fan assembly for compatible Fanuc R-30iB and R-30iB Plus servo-amplifier and controller configurations. This assembly includes the yellow molded mounting bracket, A90L-0001-0580#A 24V cooling fan, attached wiring and black 9-pin connector. It replaces the entire slide-in fan module when the original fan, bracket, retaining latch or connector is damaged.
Technical Specifications
- Primary Part Number: A230-0648-X003
- Product Type: Cooling fan and housing bracket assembly
- Application: Servo-amplifier / robot-controller internal cooling
- Included Fan Part Number: A90L-0001-0580#A
- Common Fan Model - : 9PF0424H303
- Common Fan Model - : 1611VL-05W-B49
- Fan Type: Brushless DC axial cooling fan
- Fan Dimensions: 40mm x 40mm x 28mm
- Rated Voltage: DC 24V
- San Ace Current Rating: 0.095A
- NMB Current Rating: 0.07A
- San Ace Rated Input: 2.28W
- NMB Rated Input: 1.68W
- Fan Wiring: 3-wire power and rotation-sensor arrangement
- Assembly Connector: Black 9-position controller / amplifier connector
- Approximate Fan Cable Length: 100mm
- Housing Color: Yellow

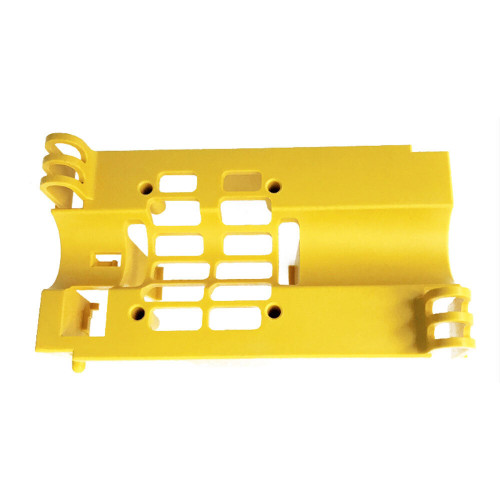

- Housing Type: Molded plastic mounting bracket
- Mounting Design: Slide-in rail and retaining-latch installation
- Fan Orientation: Fixed by the molded housing
- Installation Location: Internal control-section or servo-amplifier cooling position
- Installation Method: Tool-free bracket removal and insertion on supported configurations
- Servo Amplifier Included: No
- Controller Included: No
Interchangeable / Replacement Part Numbers
- Complete Assembly / Housing References: A230-0648-X003, A230-0648-X003#B
- Included Fan / Fan Motor References: 1611VL-05W-B49, 9PF0424H303, A90L-0001-0580#A
The fan motor references identify the 40mm fan installed inside the assembly. A bare fan does not include the yellow A230-0648-X003 bracket or its complete connector arrangement.
⭐ Fan-Only Replacement Option - Sold Separately
If the original yellow bracket, retaining latches and connector are undamaged, the 40mm fan may be replaced separately and the existing housing reused.
A90L-0001-0580#A 40x40x28mm DC24V Cooling Fan with 9-Pin Connector
The fan-only option does not include the yellow A230-0648-X003 mounting bracket.
✅ Confirmed Compatibility
Please note that compatibility depends on the controller and servo-amplifier configuration—not solely on the attached robot model. Verify the original A230 housing number, included fan number, bracket dimensions, retaining latches, rail geometry and connector arrangement before ordering.
✔️ Fanuc R-30iB Controller Series: R-30iB controller and servo-amplifier configurations originally equipped with the A230-0648-X003 slide-in cooling fan assembly
✔️ Fanuc R-30iB Plus Controller Series: R-30iB Plus controller and servo-amplifier configurations originally equipped with the A230-0648-X003 or matching A230-0648-X003#B housing
✔️ Supported Cabinet Configurations: Applicable R-30iB and R-30iB Plus A-cabinet or B-cabinet configurations using this exact fan-unit rack, latch system and connector interface
☑️ Key Features
☑️ Complete cooling assembly with fan, housing, wiring and connector
☑️ Includes A90L-0001-0580#A 24V internal cooling fan
☑️ Yellow molded housing correctly positions and supports the fan
☑️ Slide-in installation with integrated retaining latches
☑️ Black 9-position connector for compatible amplifier or controller interfaces
☑️ Three-wire fan design supports power and fan-rotation monitoring
☑️ Available with interchangeable 0.095A San Ace or 0.07A NMB fan revisions
☑️ Fixed fan orientation maintains the intended airflow direction
☑️ Replaces assemblies with a failed fan, cracked bracket, broken latch or damaged connector
☑️ Complete-module replacement avoids transferring the original fan into another housing
⚙️ Fit Notes
- Match A230-0648-X003 or the complete original housing geometry whenever possible.
- This listing includes the yellow bracket, 40mm fan, attached wiring and connector shown.
- The included fan is A90L-0001-0580#A. Compatible assemblies may contain either 9PF0424H303 or 1611VL-05W-B49.
- The 0.095A San Ace and 0.07A NMB revisions are electrically compatible when the Fanuc reference, wiring, sensor output, airflow direction and connector arrangement match.
- Do not determine complete-assembly compatibility using only the A90L fan number. The same bare fan may be used in other housings and amplifier modules.
- Compare the yellow bracket’s length, rails, retaining tabs, locating guides, fan position and connector location with the original assembly.
- Confirm the black 9-position connector, populated terminals and wire positions match the original. Do not force a similar-looking connector into the controller.
- A230-0648-X003#B may appear as a housing revision. Verify the included fan and connector configuration when replacing a differently suffixed assembly.
- This part cools an internal controller or servo-amplifier section; it does not mount directly on a servo motor.
- R-30iB, R-30iB Plus, Mate, Compact and Mini controller configurations are not automatically interchangeable. Match the original assembly before ordering.
