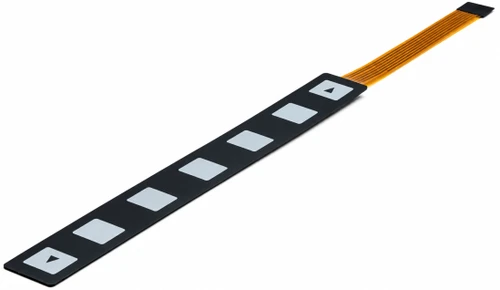

A86L-0001-0289#A - 12-Key Keyboard Button Protective Strip with Ribbon Cable for A86L-0001-0289#A

This 12-key softkey keyboard is designed for compatible CNC control panels with an under-display keypad. It connects through an attached flat ribbon cable. Listed applications include 16i, 18i, and 21i series control panels; confirm the exact panel version and cable arrangement before ordering.

Technical Specifications

• Part Number: A86L-0001-0289#A
• Product Type: 12-key softkey keyboard
• Connection: Attached flat ribbon cable
• Cable Length: Approximately 20 cm
• Mounting Position: Under the display

Interchangeable / Replacement Part Numbers

• A86L-0001-0289#A — listed part number
• A86L-0001-0289 — earlier part number listed as superseded by the #A version; verify the original part number before ordering

✅ Confirmed Compatibility

✔️ 16i Series control panels using the matching under-display keyboard configuration
✔️ 18i Series control panels using the matching under-display keyboard configuration
✔️ 21i Series control panels using the matching under-display keyboard configuration

Compatibility depends on the panel version and ribbon-cable arrangement.

☑️ Key Features

☑️ 12-key softkey layout

☑️ Attached flat ribbon cable

☑️ Under-display panel configuration

☑️ Replacement part number for compatible control panels

⚙️ Fit Notes

• Compare the original part number and key layout before ordering.
• Check the ribbon-cable length, contact orientation, and connector arrangement against your existing keyboard.
• Control series alone may not confirm fit; panel version and display configuration also matter.
