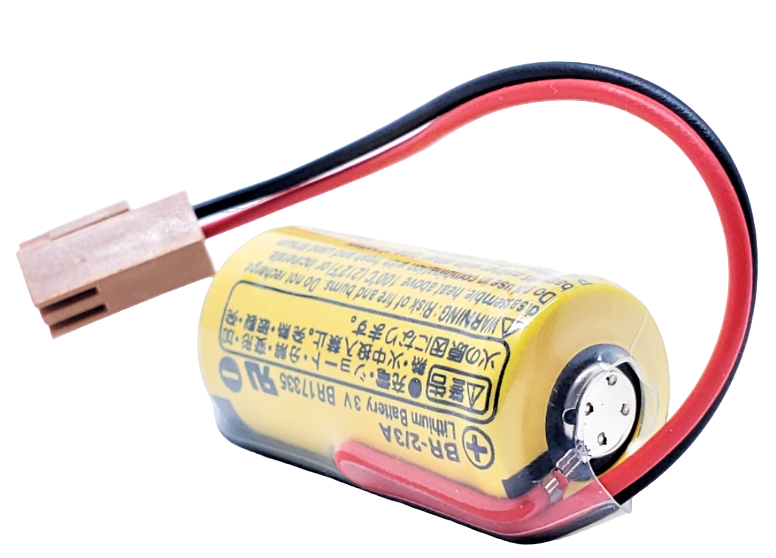

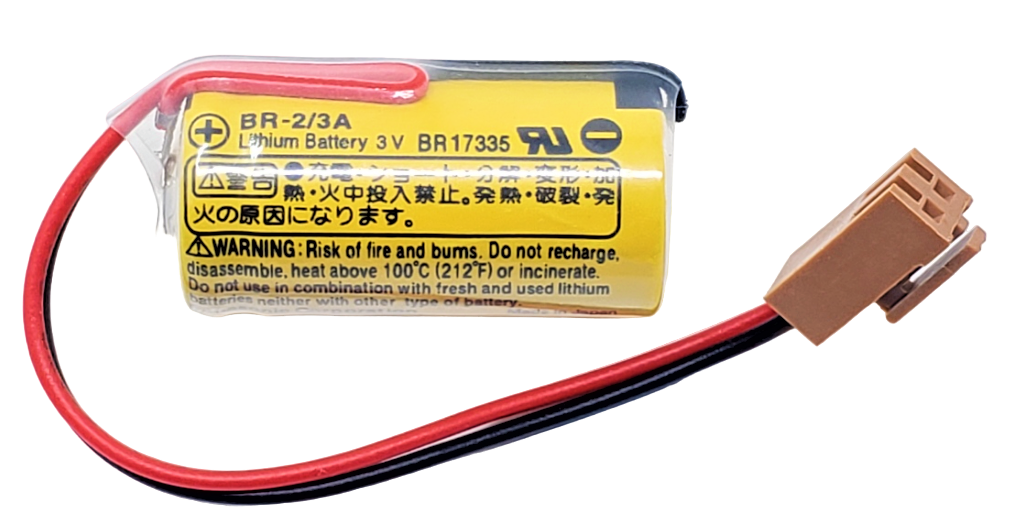

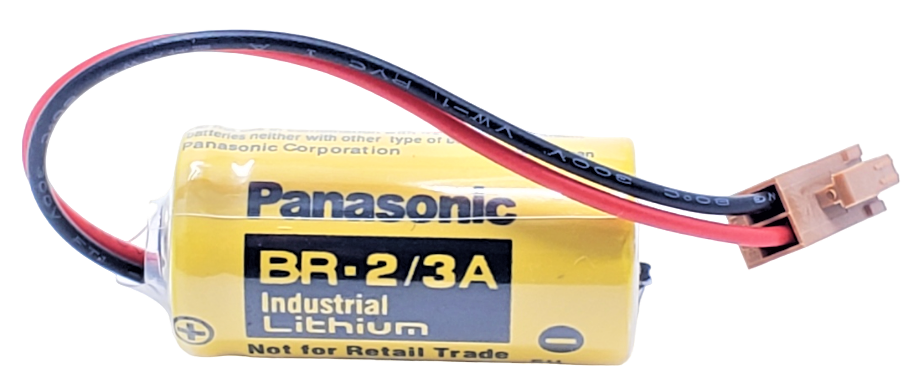

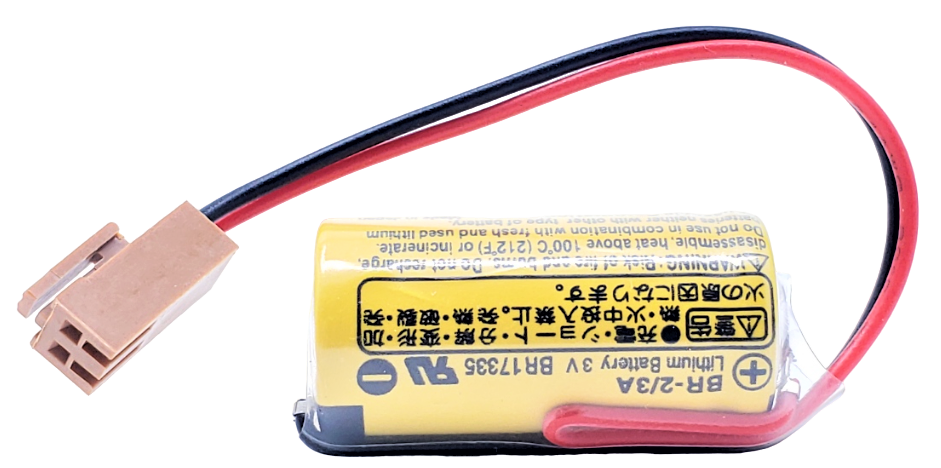

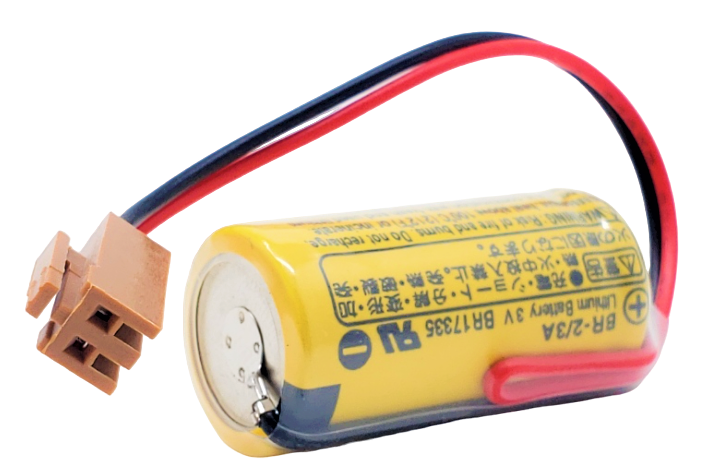

A98L-0031-0006 - BR-2/3A 3V PLC Battery Replacement for Panasonic Fanuc A98L-0031-0006

BR-2/3A 3V PLC Battery Replacement for Fanuc

Tech Specs

• Cell type: BR-2/3A (Primary Lithium)
• Voltage: 3.0V
• Capacity (label): 1200mAh
• Dimensions: Ø17mm × 33.5mm (2/3A size)
• Approx. weight: 19g
• Connector: 2-pin plug
• Package: Single cell with lead/connector assembly

Key Features

☑️ Direct-fit replacement for common Panasonic/Fanuc PLC and CNC memory/RTC packs
☑️ 2-pin connector for quick, tool-light swaps in control cabinets
☑️ BR chemistry for long-life standby in industrial controllers
☑️ Compact 2/3A size for tight control panel layouts

✅ Confirmed Compatibility

✔️ Fanuc battery assembly A02B-0177-K106
✔️ Fanuc battery assembly A98L-0031-0006
✔️ Panasonic BR-2/3A cell applications
✔️ Sanyo CR17335SE-R cell form-factor applications

Interchangeable / Related Part Numbers

BR-2/3A, A98L-0031-0006, A02B-0177-K106, CR17335SE-R, CR17450SE-R

What’s Included

• 1× BR-2/3A 3V battery with 2-pin connector
