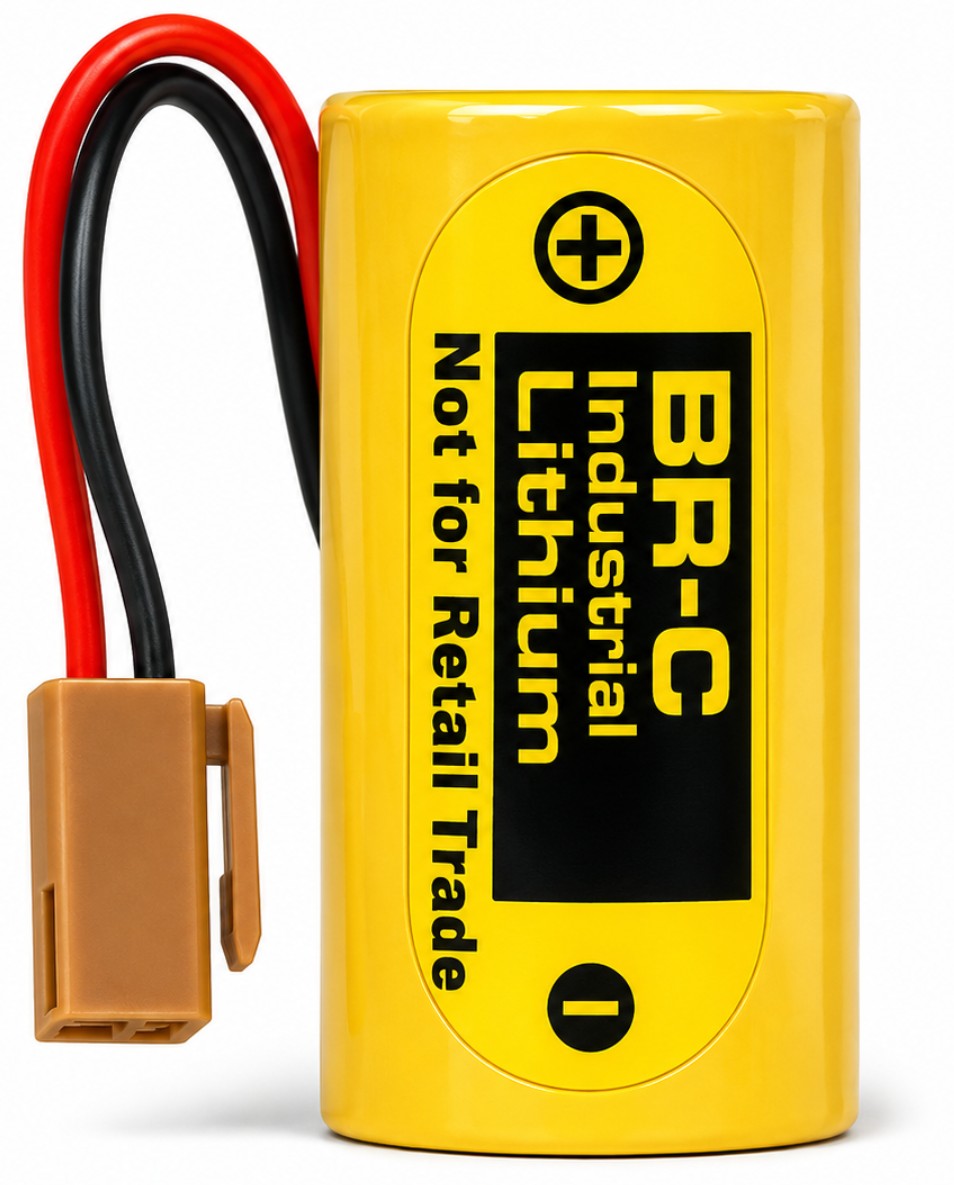

A98L-0031-0007 - BR-C 3V 5000mAh Lithium Battery with Plug for Fanuc CNC Controls

BR-C 3V 5000mAh lithium backup battery with plug for compatible Fanuc CNC controls, servo amplifier battery circuits, PLC systems, and industrial control equipment using the A98L-0031-0007 battery configuration. This replacement battery is used for memory, parameter, encoder, and control backup applications where the original battery matches A98L-0031-0007, A20B-0130-K106, or BR-CCF1TH.

Technical Specifications

• Primary Part Number: A98L-0031-0007
• Part Type: CNC / PLC backup battery
• Battery Size / Cell Type: BR-C lithium battery
• Battery Chemistry: Lithium
• Voltage: 3V
• Capacity: 5000mAh
• Connector Type: 2-pin female plug
• Approximate Dimensions: W: 1.02" x L: 1.97"
• Rechargeable: No, primary lithium battery
• Application Type: CNC control, PLC, memory backup, parameter backup, and industrial equipment battery replacement
• Installation Type: Internal plug-in battery connection

Connector Details

• Battery Connector: 2-pin female plug
• Connection Style: Pre-wired battery lead with plug
• Installation Method: Connects directly to compatible Fanuc battery harness / control battery port
• Polarity Note: Always compare the plug shape, wire position, and polarity orientation with the original battery before installation

Interchangeable / Replacement Part Numbers

A98L-0031-0007, A98L00310007, A20B-0130-K106, A20B0130K106, BR-CCF1TH

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your machine’s specific control configuration, original battery part number, connector type, voltage, polarity, and battery location. It’s essential to verify compatibility with your original battery label and equipment manual prior to installation.

✔ Fanuc / GE Fanuc Battery Applications: Compatible with systems requiring A98L-0031-0007, A20B-0130-K106, or BR-CCF1TH BR-C 3V lithium battery packs
✔ Fanuc CNC Control Systems: Compatible with Fanuc CNC controls and industrial control equipment that use the same 3V BR-C lithium battery with 2-pin female plug
✔ Fanuc Servo / Encoder Backup Applications: Compatible with supported Fanuc servo amplifier, encoder backup, and control memory backup circuits requiring this exact battery style
✔ PLC / Industrial Computer Applications: Compatible with select PLC, programmable controller, and industrial computer systems that cross-reference to A98L-0031-0007 / A20B-0130-K106 / BR-CCF1TH

☑️ Key Features

☑️ 3V BR-C lithium backup battery for compatible Fanuc control systems
☑️ 5000mAh capacity for CNC, PLC, memory, and parameter backup applications
☑️ Includes pre-wired 2-pin female plug for compatible battery ports
☑️ Interchangeable with A98L-0031-0007, A20B-0130-K106, and BR-CCF1TH
☑️ Helps maintain stored CNC parameters, memory data, and backup functions in supported equipment
☑️ Useful replacement for weak, depleted, missing, or end-of-life control backup batteries
☑️ Compact battery size for internal control cabinet or machine electronics installation
☑️ Direct-fit replacement when the original battery part number, connector, and polarity match

⚙️ Fit Notes

• Match your original battery part number whenever possible
• Confirm your original battery is a 3V BR-C lithium battery
• Confirm your system requires 5000mAh capacity and the same physical battery size
• Confirm the battery uses the same 2-pin female plug
• Compare the connector shape, wire color position, polarity, and cable orientation before ordering
• This battery is not rechargeable and should not be charged
• This is not a replacement for AA lithium battery packs, D-cell battery packs, capacitor modules, or rechargeable battery assemblies
• Some machines may require battery replacement while control power is maintained to avoid losing stored parameters; follow your machine manufacturer’s service procedure
• Back up CNC parameters before replacing the battery whenever possible
• Always follow proper safety and ESD procedures when servicing CNC controls or industrial electronics
