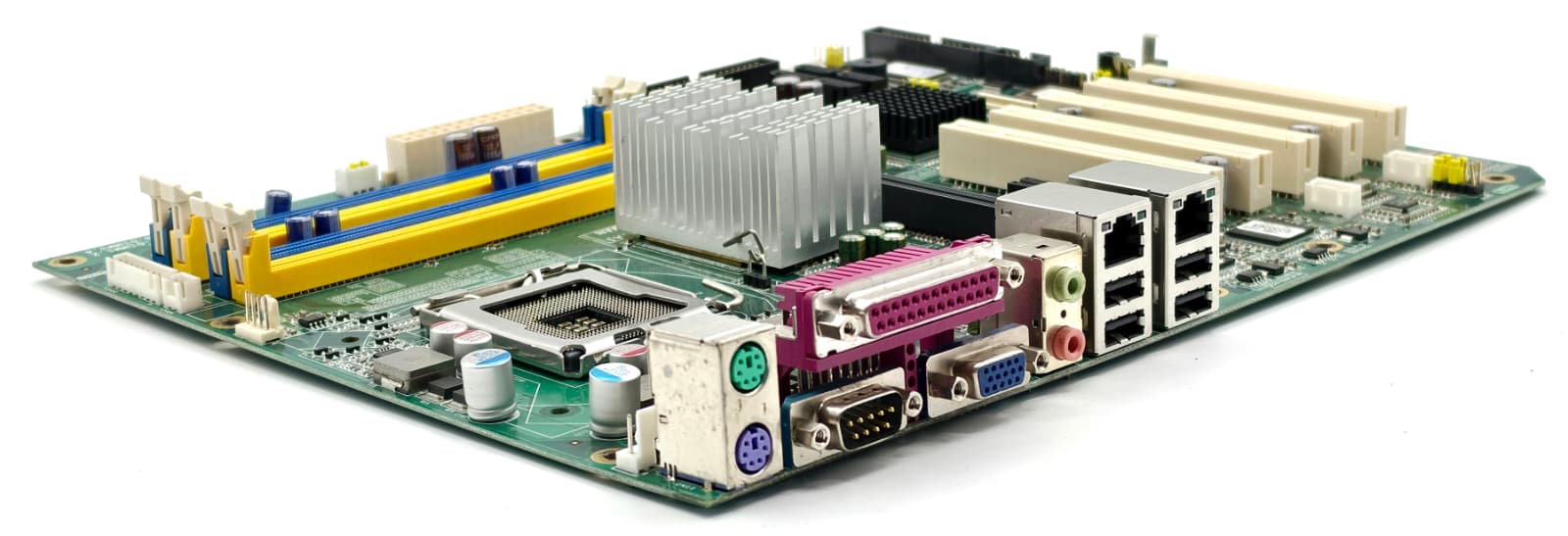

AIMB-762 Rev. A1 19C2076203 - Advantech LGA775 Intel 945G DDR2 Dual Gigabit LAN ATX Industrial Motherboard

This industrial ATX motherboard is built for legacy control systems, embedded workstations, machine automation platforms, and industrial PC repairs that require the AIMB-762 layout. It uses the Intel 945G + ICH7R chipset, supports LGA775 Pentium D, Pentium 4, and Celeron D processors, and provides a versatile expansion layout with PCIe x16, PCIe x4, and five PCI slots. With dual Gigabit LAN, onboard VGA, DDR2 memory support, four SATA II ports, and legacy IDE connectivity, it is a strong replacement option for older industrial systems that still rely on proven I/O and expansion flexibility.

Technical Specifications

• Form Factor: ATX
• PCB Revision: Rev. A1
• Board Marking: 19C2076203
• CPU Socket: LGA775
• Chipset: Intel 945G + ICH7R
• Supported CPU Families: Intel Pentium D, Pentium 4, Celeron D
• Supported CPU Process: 65nm / 90nm
• Front Side Bus: 533MHz / 800MHz
• Maximum CPU Support: Pentium D up to 3.2GHz, Pentium 4 up to 3.8GHz, Celeron D up to 3.06GHz
• Memory Type: 240-Pin DDR2 SDRAM
• Memory Speeds: DDR2-400 / DDR2-533 / DDR2-667
• Memory Channels: Dual Channel
• Maximum Memory Capacity: 4GB
• Memory Support: Non-ECC unbuffered DDR2
• Graphics: Integrated Intel 945G VGA controller with dynamically shared system memory
• Video Output: VGA
• Maximum Resolution: Up to 2048 x 1536
• LAN: Dual Gigabit Ethernet
• LAN Controllers: 2 x Intel 82573
• Expansion Slots: 1 x PCIe x16, 1 x PCIe x4, 5 x PCI 32-Bit / 33MHz
• SATA: 4 x SATA II 3.0Gb/s with software RAID 0 / 1 / 5 / 10
• IDE / PATA: 1 x ATA100/66/33 channel
• FDD: 1 x floppy connector
• USB: Up to 8 x USB 2.0 ports total
• Serial Ports: 2
• COM Support: 1 x RS-232, 1 x RS-232/422/485
• Parallel Port: 1
• PS/2 Ports: 2
• Audio: Onboard audio with rear audio jacks and front-panel audio header
• GPIO: 8-pin header with 4 GPI / 4 GPO
• Watchdog Timer: 1 to 255 seconds
• Power Connectors: 24-pin ATX and 4-pin ATX12V
• Dimensions: 12 inch x 9.6 inch
• Operating Temperature: 0°C to 60°C depending on CPU and cooling solution

Interchangeable / Replacement Part Numbers

• AIMB-762
• AIMB-762 Rev. A1
• AIMB-762-00A1
• AIMB-762G2-00A1
• AIMB-762G2-00A1E

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Intel LGA775 CPUs: Pentium D processors up to 3.2GHz, Pentium 4 processors up to 3.8GHz, Celeron D processors up to 3.06GHz, 65nm and 90nm CPUs, 533MHz and 800MHz FSB models
✔️ DDR2 UDIMM Memory: 240-pin DDR2-400, DDR2-533, DDR2-667, dual-channel, non-ECC unbuffered modules, supported capacities from 256MB to 1GB per slot, up to 4GB total
✔️ PCI Express Expansion Cards: PCIe x16 graphics cards, PCIe x4 industrial I/O cards, compatible RAID / storage controllers, network adapters, and other add-in cards that match the board's slot layout and chassis clearance
✔️ PCI Expansion Cards: 32-bit / 33MHz PCI cards such as data acquisition cards, motion control cards, serial interface cards, legacy network cards, audio cards, and industrial communication cards
✔️ Storage Devices: SATA II hard drives, SATA II solid-state drives, IDE / PATA hard drives, IDE optical drives, and floppy drives using the onboard connectors
✔️ Advantech Industrial Chassis: ACP-4360, ACP-4362, IPC-603MB, and other compatible 2U, 4U, 5U, and 7U ATX industrial chassis that support the AIMB-762 board footprint

☑️ Key Features

☑️ Full-size industrial ATX motherboard for legacy system repair and replacement
☑️ Supports LGA775 Pentium D, Pentium 4, and Celeron D processors
☑️ Intel 945G + ICH7R chipset with onboard VGA for legacy industrial display support
☑️ Dual Gigabit LAN for networked control systems, machine interfaces, and industrial communications
☑️ Four SATA II ports plus IDE support for older storage configurations and mixed-drive environments
☑️ Flexible expansion with PCIe x16, PCIe x4, and five PCI slots
☑️ Dual-channel DDR2 memory architecture for stable legacy platform deployment
☑️ Strong fit for industrial PCs, embedded control cabinets, machine automation systems, and replacement service applications

⚙️ Fit Notes

• This board uses the LGA775 platform and requires a separate compatible CPU, heatsink, cooling solution, and DDR2 memory.
• It is designed for standard ATX mounting and requires both a 24-pin ATX main power connector and a 4-pin ATX12V CPU power connector.
• For best results, match the replacement board by the AIMB-762 model family, PCB revision, rear I/O layout, slot arrangement, and onboard connector locations.
• The dual-LAN layout shown here aligns with the AIMB-762G2 family configuration.
• This platform does not support ECC memory.
• Systems with 4GB installed may report less usable memory depending on the operating system and shared graphics allocation.
• Please confirm CPU support, BIOS compatibility, chassis clearance, and required legacy I/O before ordering.
