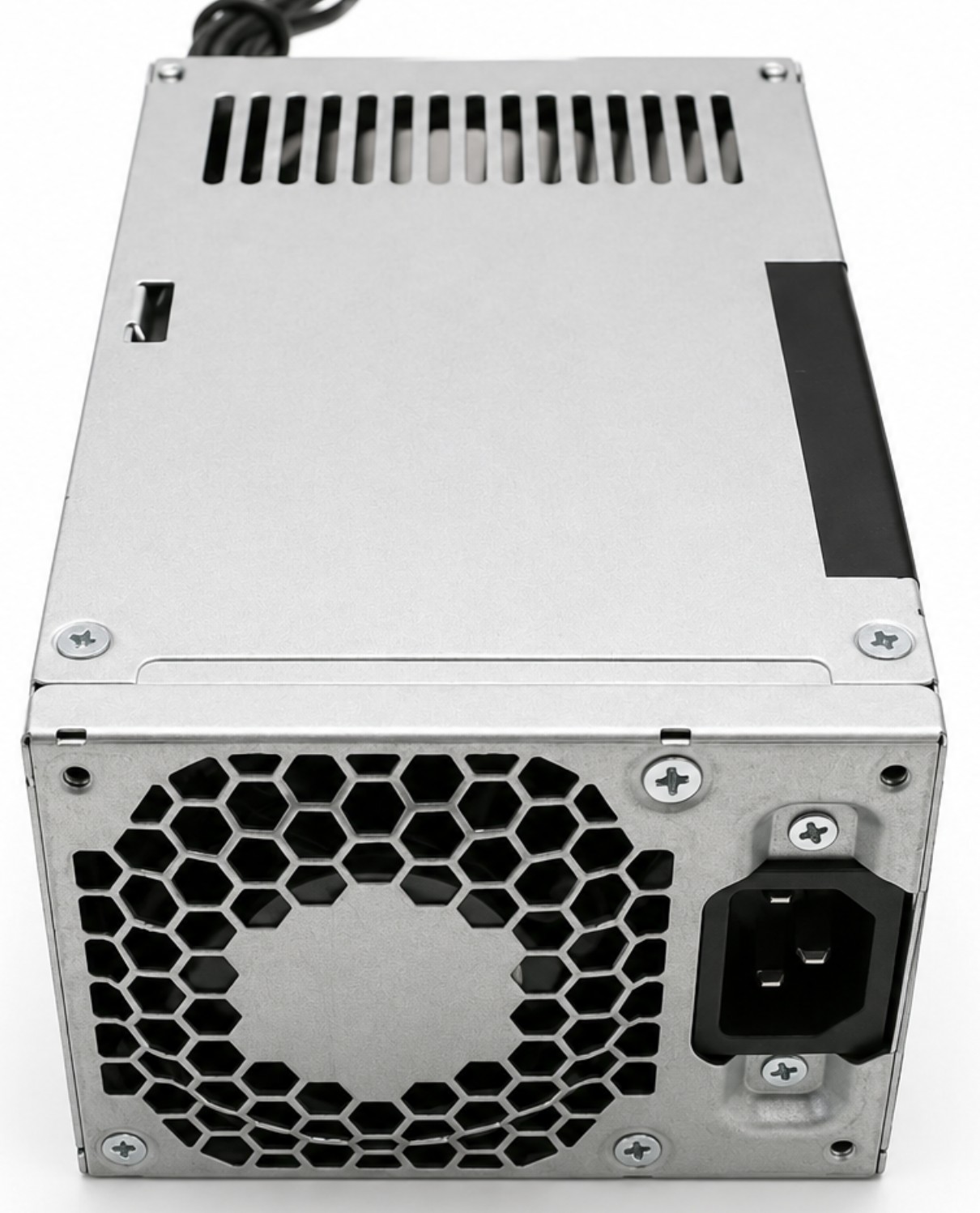

N97953-002 / D23-180P1A - 180W 80 Plus Gold Power Supply for HP OmniDesk Slim S03-0031

Description

The HP N97953-002 / D23-180P1A is a 180W internal desktop power supply for select HP OmniDesk Slim Desktop systems using the same proprietary HP power supply layout. This unit features an 80 Plus Gold 115V efficiency rating, single 12V output design, and a proprietary connector configuration with two separate 4-pin power connectors plus one horizontal 7-pin P2 connector.

What’s Included

1 x HP N97953-002 / D23-180P1A 180W Internal Desktop Power Supply

Technical Specifications

Maximum Output Power: 180W
Efficiency Rating: 80 Plus Gold 115V
AC Input: 100-240V
Input Current: 2.3A
Input Frequency: 50-60Hz
DC Output Type: 1x12V / Single 12V Output Design
Main Output Rail: +12.1V
Maximum +12V Output: Up to 14.88A
Maximum Combined Output: 180W
Power Supply Style: HP proprietary slim desktop internal PSU
Approximate Dimensions: 7" long x 4" wide x 3" tall
Wire Harness Color: Black
Use Type: HP OmniDesk Slim Desktop replacement power supply

Connector Details

• Connector 1: 4-pin power connector
• Connector 2: 4-pin power connector
• Connector 3: Horizontal black 7-pin P2 connector
• P2 Pin Layout: Left 3 positions empty / right 4 positions populated

Rail / Output Information

• +12V Single Rail Output
• Maximum Output: 180W
• Maximum +12V Output: Up to 14.88A

Key Features

☑️ 180W maximum output for compatible HP OmniDesk Slim Desktop systems
☑️ 80 Plus Gold 115V efficiency rating
☑️ Single 12V output design
☑️ Proprietary HP connector layout
☑️ Includes two separate 4-pin power connectors
☑️ Includes one horizontal 7-pin P2 connector
☑️ Direct replacement when matching D23-180P1A / N97953-002 and the same connector layout

Confirmed Compatibility

✔️ HP OmniDesk Slim Desktop PC: S03-0031 / Product No. BH0J1AA#ABA / Regulatory Model TPC-P073-SF
✔️ HP OmniDesk Slim Desktop S03 Series: Only configurations originally equipped with D23-180P1A / N97953-series 180W power supplies and the same connector layout

Interchangeable Part Numbers

• D23-180P1A, N97953-001, N97953-002, N97953-003

Related Accessories

• HP 121565-001 6 FT C13 Power Cable - compatible AC power cord for connecting this power supply to a standard wall outlet when a replacement power cable is needed.

Fit Notes

• This power supply is for HP OmniDesk Slim Desktop systems using the D23-180P1A / N97953-series 180W power supply.
• Verify that your original unit is labeled D23-180P1A, N97953-001, N97953-002, or N97953-003 before ordering.
• Verify that your system uses two separate 4-pin connectors and one horizontal 7-pin P2 connector.
• The P2 connector has 3 empty positions on the left and 4 populated positions on the right.
• This power supply is rated for a maximum output of 180W.
• Approximate physical size is 7" long x 4" wide x 3" tall.
