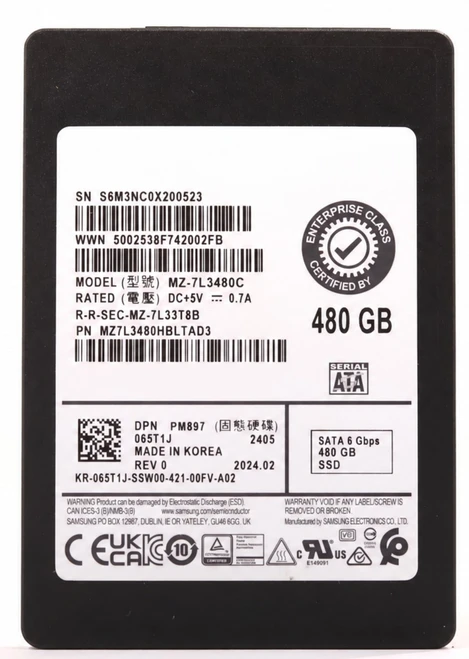

2RGGR / D35F3 / GYD5H / MZ-7KM480B / MTFDDAK480TDN / MZ-7LH480A - 480GB SATA 6Gb/s 2.5-Inch Enterprise SSD

This genuine OEM 480GB enterprise solid-state drive uses a SATA 6Gb/s interface and standard 2.5-inch 7mm form factor. Available production builds carry dual labels combining a DPN with the corresponding manufacturer model number.

The listed drives share the same capacity, SATA interface, physical dimensions, and connector arrangement. Workload classification, sector format, firmware, performance, and endurance can vary between production models. Confirm the exact model and sector format when replacing a drive in an existing RAID array.

Technical Specifications

• Product Type: Enterprise solid-state drive
• Storage Capacity: 480GB
• Interface: SATA III
• Maximum Interface Rate: 6Gb/s
• Form Factor: 2.5-inch
• Drive Height: 7mm
• Connector: Standard SATA power and data connectors
• Installation Type: Internal / hot-plug when supported by the host system and carrier
• Workload Classification: Mixed Use or Read Intensive depending on model
• Logical Sector Format: 512n or 512e depending on model
• Encryption Support: Model and firmware dependent
• Power-Loss Protection: Enterprise power-loss protection
• Firmware Type: OEM-qualified enterprise firmware
• Carrier Included: No unless specifically shown in the listing photographs
• Application: Compatible servers, storage systems, workstations, and SATA-equipped systems supporting 2.5-inch 7mm enterprise SSDs

Interchangeable / Replacement Part Numbers

2RGGR, 02RGGR, H38F7, 0H38F7, D35F3, 0D35F3, GYD5H, 0GYD5H, MZ-7KM480B, MZ7KM480HMHQ0D3, MZ7KM480HMHQ-000D3, MTFDDAK480TDN, MTFDDAK480TDN-1AT1ZABDA, MZ-7LH480A, MZ7LH480HAHQ0D3

Dual-Label Cross-Reference

✔️ DPN 2RGGR / 02RGGR: MZ-7KM480B, MZ7KM480HMHQ0D3, MZ7KM480HMHQ-000D3
✔️ DPN H38F7 / 0H38F7: Alternate service reference associated with the MZ-7KM480B 480GB Mixed Use drive
✔️ DPN D35F3 / 0D35F3: MTFDDAK480TDN, MTFDDAK480TDN-1AT1ZABDA
✔️ DPN GYD5H / 0GYD5H: MZ-7LH480A, MZ7LH480HAHQ0D3

⚠️ Important Model and Workload Notice

These drives are physically and electrically compatible as 480GB 2.5-inch SATA 6Gb/s SSDs, but differences exist between the production models:

✔️ 2RGGR / H38F7 / MZ-7KM480B: SM863a family, Mixed Use, 512n sector format
✔️ D35F3 / MTFDDAK480TDN: 5200 MAX family, Mixed Use, 512e sector format
✔️ GYD5H / MZ-7LH480A: PM883 family, Read Intensive, 512e sector format

The GYD5H Read Intensive drive should not automatically replace a Mixed Use drive in a write-heavy application. For active RAID member replacement, use the same model, workload class, sector format, firmware family, and capacity whenever possible.

⚠️ RAID and Sector-Format Compatibility

A server may recognize all three drive families individually, but recognition does not guarantee safe interchangeability within an existing RAID array.

Before replacing an active RAID member, confirm:

• 480GB capacity
• SATA 6Gb/s interface
• 2.5-inch form factor
• Correct carrier generation
• 512n or 512e sector format
• Mixed Use or Read Intensive workload classification
• Controller firmware compatibility
• Matching RAID stripe and sector configuration
• Sufficient endurance for the intended workload

Do not mix 512n and 512e drives in an existing array unless the storage controller and array configuration specifically support the combination.

⭐➕ Compatible Drive Caddies Sold Separately

This listing includes the SSD only. A compatible drive caddy, carrier, adapter, and mounting screws are not included unless specifically shown in the product photographs.

For compatible 11th–13th generation 2.5-inch SFF systems:

G176J 2.5-Inch SAS SATA Hot-Plug Drive Caddy
Interchangeable caddy numbers: G176J, KG7NR, G281D, WX387, XN394, T961C, Y961D, 1VFM9, NTPP3, 8FKXC

For compatible 14th-generation and selected later-generation 2.5-inch SFF systems:

DXD9H 2.5-Inch SAS SATA SFF Hot-Plug Drive Caddy
Caddy part numbers: DXD9H, 0DXD9H

For compatible systems equipped with 3.5-inch LFF drive bays:

9W8C4 2.5-Inch to 3.5-Inch Drive Caddy Adapter
Adapter part numbers: 9W8C4, 09W8C4, WWGPK

✅ Confirmed Compatibility

Compatibility requires a supported 2.5-inch SATA or SAS/SATA drive bay, the correct carrier, and a storage controller that accepts SATA SSDs. SFF and LFF configurations can differ within the same system model.

✔️ PowerEdge C-Series: C4130, C4140, C6320, C6320p, C6400, C6420, C6520, C6525
✔️ PowerEdge FC-Series: FC630, FC640, FC830, FD332
✔️ PowerEdge M-Series: M520, M620, M630, M640, M820, M830, M910, M915, M630 for VRTX, M640 for VRTX, M830 for VRTX
✔️ PowerEdge MX-Series: MX5016s, MX740c, MX750c, MX840c
✔️ PowerEdge R200-Series: R220, R230, R240, R250
✔️ PowerEdge R300-Series: R320, R330, R340, R350
✔️ PowerEdge R400-Series: R415, R420, R430, R440, R450
✔️ PowerEdge R500-Series: R515, R520, R530, R530xd, R540, R550
✔️ PowerEdge R600-Series: R610, R620, R630, R640, R6415, R650, R650xs, R6515, R6525, R660, R6615, R6625
✔️ PowerEdge R700-Series: R710, R715, R720, R720xd, R730, R730xd, R740, R740xd, R740xd2, R7415, R7425, R750, R750xa, R750xs, R7515, R7525, R760, R760xd2, R7615, R7625
✔️ PowerEdge R800-Series: R815, R820, R830, R840
✔️ PowerEdge R900-Series: R910, R920, R930, R940, R940xa
✔️ PowerEdge T100-Series: T110 II, T130, T140
✔️ PowerEdge T300-Series: T320, T330, T340
✔️ PowerEdge T400-Series: T420, T430, T440
✔️ PowerEdge T600-Series: T620, T630, T640
✔️ Rugged and Edge Servers: XR2, XR11, XR12, XE2420
✔️ VRTX Systems: Supported VRTX configurations equipped with compatible 2.5-inch SATA-capable storage bays
✔️ DSS Systems: Supported DSS configurations equipped with compatible SATA drive bays and controllers
✔️ vSAN Ready Nodes: C6420, MX740c, R440, R640, R6415, R740, R740xd
✔️ Precision Tower Workstations: Precision 5820 Tower, 7820 Tower, 7920 Tower
✔️ Precision Rack Workstations: Precision 7920 Rack
✔️ Storage Systems: Storage NX3230 configurations using compatible 2.5-inch SATA drive bays

Not every drive model was factory validated in every system listed above. Compatibility is based on documented system support associated with the corresponding dual-label drive families. The installed carrier, storage controller, firmware, workload, and sector format must still be verified.

☑️ Key Features

☑️ Genuine OEM enterprise solid-state drive
☑️ 480GB storage capacity
☑️ SATA 6Gb/s host interface
☑️ Standard 2.5-inch 7mm drive construction
☑️ Standard SATA power and data connectors
☑️ Dual-label DPN and manufacturer-model identification
☑️ Enterprise power-loss protection
☑️ Available in Mixed Use and Read Intensive configurations
☑️ No mechanical moving components
☑️ Suitable for compatible server and workstation applications
☑️ Supports hot-plug operation when installed in a compatible carrier and backplane
☑️ Cross-referenced to multiple OEM service and manufacturer model numbers

⚙️ Fit Notes

• Confirm the complete DPN and manufacturer model number printed on the original drive.
• Confirm whether the original drive uses 512n or 512e sectors before replacing an active RAID member.
• 2RGGR and H38F7 identify a Mixed Use 512n configuration.
• D35F3 identifies a Mixed Use 512e configuration.
• GYD5H identifies a Read Intensive 512e configuration.
• The three drive families share the same capacity, interface, and physical dimensions but may have different workload and firmware specifications.
• A GYD5H Read Intensive drive may have lower write endurance than a Mixed Use model.
• For a new standalone installation, any listed model may be used when the system accepts a standard 480GB 2.5-inch SATA SSD and the workload rating is appropriate.
• For an existing RAID array, an exact model and sector-format match is strongly preferred.
• Confirm that the system supports SATA drives; some backplanes or controller configurations may be SAS-only.
• A drive carrier is not included unless shown in the product photographs or condition notes.
• Different server generations may require different carriers even when the bare drive is compatible.
• Transfer the SSD into the correct original carrier when necessary.
• Update the storage-controller firmware before installation when recommended for the target system.
• Back up all important data before replacing, initializing, formatting, or updating the drive.
• RAID initialization, secure erase, and firmware-update procedures can permanently delete stored data.
