D6HHF - M.2 2230 to 2280 PCIe NVMe SSD Converter Bracket for Latitude 5420 5421 5430 5431 Precision 3470

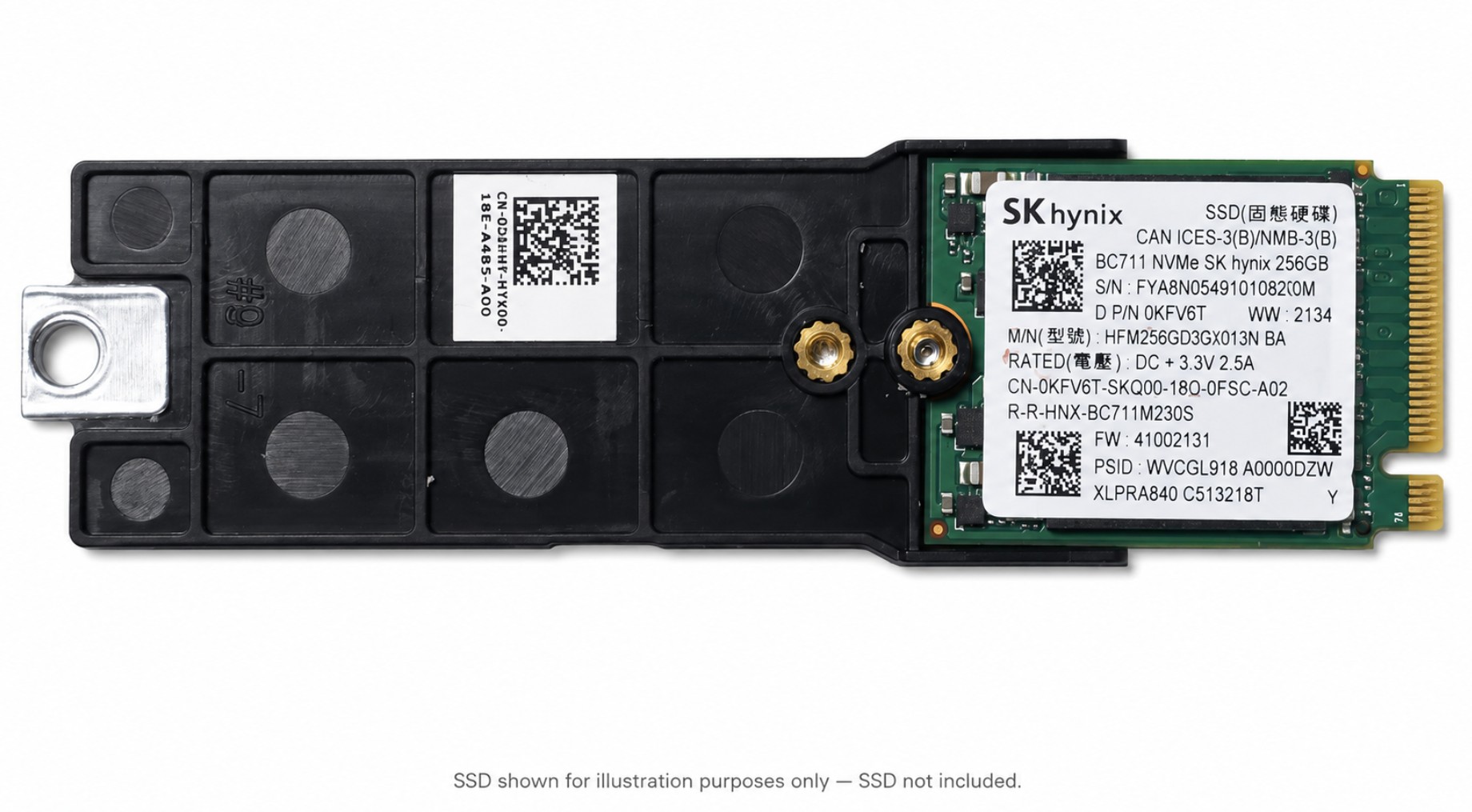

D6HHF mechanical form-factor converter and support holder for installing a short M.2 2230 PCIe NVMe SSD at the 2280-length mounting position in compatible systems. This passive carrier supports and aligns the 22mm x 30mm drive without changing its electrical interface or PCIe generation. This listing is for the converter bracket only; the SSD shown in the reference photos is for illustration and is not included. Mounting screws and any model-specific thermal plate or pad are also not included.
Technical Specifications
- Primary Part Number: D6HHF
- Product Type: M.2 2230 to 2280 PCIe NVMe SSD form-factor converter bracket
- Alternate Part Number: 0D6HHF
- Printed Part Number Format: CN-0D6HHF
- Photographed Label Example: CN-0D6HHF-ATK00-18E-A4BS-A00
- Part Description: M.2 2230 SSD holder and mechanical extension carrier
- Supported SSD Form Factor: M.2 2230
- Supported SSD Dimensions: 22mm x 30mm
- Host Mounting Position: 2280-length M.2 mounting location
- Nominal Form-Factor Extension: 50mm between the 2230 and 2280 mounting positions
- Intended Drive Interface: PCIe NVMe
- Electrical Conversion: None; the SSD edge connector plugs directly into the system-board M.2 slot
- PCIe Generation Conversion: None; operating generation and lane count are determined by the SSD and host system
- Construction: Molded black support carrier with metal reinforcement and threaded brass inserts
- Required Screw Type: M2 x 3mm where specified by the system service procedure
- Included: One D6HHF converter bracket assembly as shown
- Not Included: M.2 SSD, mounting screws, thermal plate, thermal pad, system, or installation tools
- Application Type: Internal M.2 2230 SSD mounting support for compatible laptop configurations
Important Note
SSD shown in the photos is for illustration purposes only and is NOT INCLUDED.
Interchangeable / Replacement Part Numbers
D6HHF, 0D6HHF, CN-0D6HHF
Related M.2 Hardware - Mounting Screw - Not Included
The mounting screw is not included with this converter. The M.2-Screw - M2 x 3mm Phillips Pan Head Screw for M.2 NGFF SSD Mounting is available separately. Each related screw listing contains one M2 x 3mm screw; confirm the exact quantity required by the system service procedure before installation.
✅ Confirmed Compatibility
Compatibility is limited to chassis configurations designed for this exact D6HHF holder. Confirm the original holder part number, M.2 slot layout, thermal plate, and screw locations before ordering. The presence of an M.2 slot by itself does not confirm compatibility.
✔️ Latitude 14 Laptop Models: Latitude 5420, Latitude 5421, Latitude 5430, Latitude 5431
✔️ Precision Mobile Workstation: Precision 3470
✔️ Supported SSD Form Factor: M.2 2230 PCIe NVMe SSD measuring 22mm x 30mm
✔️ Confirmed Holder References: D6HHF, 0D6HHF, CN-0D6HHF
☑️ Key Features
☑️ Converts the physical mounting length of a 2230 SSD assembly to the 2280 mounting position
☑️ Supports and aligns a 22mm x 30mm M.2 PCIe NVMe SSD in compatible systems
☑️ Passive mechanical design contains no bridge chip, circuit board, or electrical connector
☑️ Preserves the SSD's direct connection to the system-board M.2 slot
☑️ Does not alter PCIe generation, lane count, drive capacity, or operating speed
☑️ Molded carrier and metal reinforcement help maintain drive alignment and mounting stability
☑️ Exact D6HHF geometry for confirmed Latitude 5420, 5421, 5430, 5431, and Precision 3470 configurations
☑️ Clearly separated from similar-looking holders with different tabs and chassis mounting geometry
☑️ M2 x 3mm replacement mounting screw is available separately through the related product link above
⚙️ Fit Notes
- This carrier is intended for an M.2 2230 PCIe NVMe SSD measuring 22mm x 30mm.
- The converter changes only the mechanical mounting length from the 2230 position to the 2280 position. It does not convert SATA to NVMe, change M.2 keying, or provide an electrical interface.
- Do not use this carrier for M.2 2242, 2260, or 2280 drives.
- Do not use it for WLAN or WWAN cards solely because they may also measure 22mm x 30mm.
- Confirm the host system has the correct M.2 slot, 2280-length mounting location, clearance, and D6HHF holder geometry.
- The SSD shown in the reference photographs is for installation illustration only and is not included.
- Mounting screws are not included. Compatible service procedures use M2 x 3mm screws, but the exact number of screws required varies by chassis and thermal-plate arrangement.
- A separate model-specific SSD thermal plate, shield, or thermal pad may be required and is not included with this holder.
