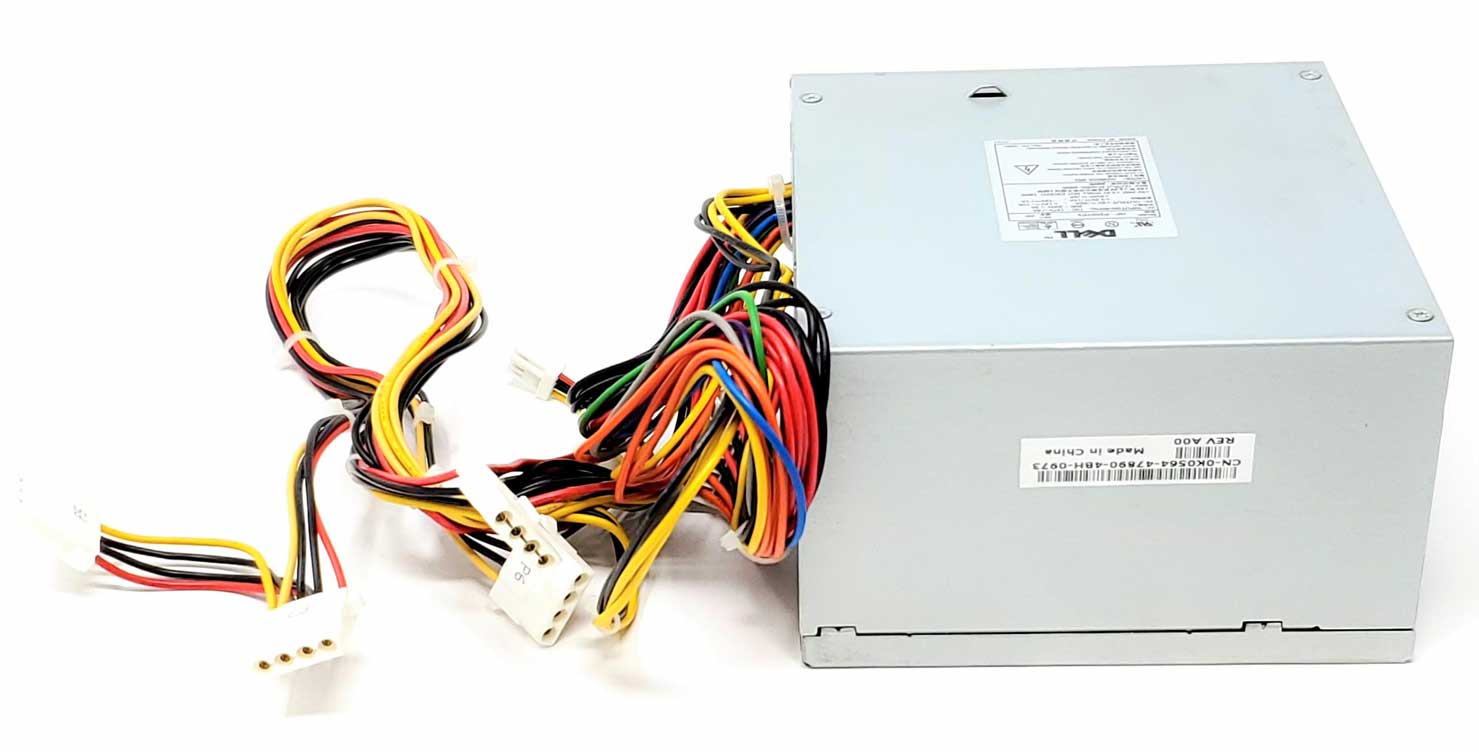

200W Mini-ATX Power Supply for Dimension OptiPlex PowerEdge Precision

This compact 200W Mini-ATX power supply provides a direct replacement for systems using the listed service and manufacturer part numbers. It features a fixed legacy power harness with 20-pin motherboard power, 4-pin processor power, five IDE/Molex connectors, and one floppy-drive connector.

✔️ Genuine OEM Power Supply!
✔️ Grade A, Cleaned, Fully Tested!
✔️ Includes Warranty!

Technical Specifications

• Maximum Output Power: 200W
• Form Factor: Mini-ATX / Compact-Depth ATX
• Dimensions: 150mm x 86mm x 140mm
• Cooling: Internal Cooling Fan
• Construction: Fixed-Cable / Non-Modular
• AC Inlet: IEC C14
• AC Input: 100–127V~, 5–7A or 200–240V~, 2.5–3.5A, 50–60Hz
• Voltage Selection: Some revisions use a manual 115V/230V selector
• Input amperage varies by manufacturer revision. The original power-supply label takes precedence.

DC Output

• +5V: 22A
• +3.3V: 14A
• +12V: 10A
• -12V: 1A
• +5VSB / +5VFP: 2A
• Combined +5V and +3.3V Maximum: 135W

Rail-label formatting and individual ratings may vary slightly between interchangeable manufacturer revisions. Always follow the specifications printed on the original unit.

Connectors

• (1) 20-Pin ATX Motherboard Connector
• (1) 4-Pin ATX12V Processor Connector
• (1) 4-Pin Berg / Floppy Connector
• (5) 4-Pin IDE / Molex Connectors

Interchangeable / Replacement Part Numbers

Primary Service Part Numbers:
0W848, 3T938, 4W004, 79WPJ, K0564, N0836, P0304

Manufacturer / Model Numbers:
HP-P2037F3, HP-P2037F3P, HP-P2037F3-1, HP-P2007F3, PS-5022-2DF, PS-5201-8D1, SA202-3556-825, DPS-200PB-146B, DPS-200PB-146-B, X-200/12V

Label and Search Variants:
00W848, CN-00W848, 03T938, CN-03T938, 04W004, CN-04W004, 079WPJ, CN-079WPJ, 0K0564, CN-0K0564, 0N0836, CN-0N0836, 0P0304, CN-0P0304

⭐ Related Parts and Cross-Sell

➕ 2N333 - 250W Power Supply Upgrade for Dimension OptiPlex PowerEdge and Precision
➕ F0894 - 250W Power Supply Upgrade for Dimension OptiPlex PowerEdge and Precision
➕ 121565-001 - 6 FT NEMA 5-15P to IEC C13 Power Cable

✅ Confirmed Compatibility

Compatibility is determined by the original power-supply part number, wattage, housing, connector layout, and wiring—not by the computer model alone. Several systems below were offered with different power-supply configurations.

Direct 200W Part-Family Applications

✔️ Dimension: 2300, 2350, 2400, 3000
✔️ OptiPlex Tower: GX150

Additional Cataloged Legacy Applications — Exact Original-Part Match Required

✔️ Dimension: B110, 1100, 2200, 4300, 4400, 4500, 4550, 4600, 8200, 8250, 8300
✔️ OptiPlex Tower: GX60, 160L, 170L, GX240, GX260, GX270
✔️ PowerEdge: 400SC, 600SC
✔️ Precision Workstation: 340, 350, 360

For the additional applications above, install this 200W unit only when the original supply matches one of the listed 200W part or model numbers and the system’s required output does not exceed 200W. Use the linked 250W upgrade for systems originally equipped with a 250W supply.

☑️ Key Features

☑️ Compact 140mm-depth Mini-ATX housing
☑️ Legacy 20-pin ATX motherboard connection
☑️ Dedicated 4-pin ATX12V processor connector
☑️ Five IDE/Molex peripheral power connectors
☑️ Floppy-drive power connector
☑️ Fixed non-modular wiring harness
☑️ Multiple interchangeable service and manufacturer revisions
☑️ Compatible 250W upgrade options available

⚙️ Fit Notes

• A 20-pin ATX connector alone does not confirm compatibility. Verify the housing dimensions, mounting holes, 4-pin processor lead, wiring arrangement, rail capacity, and cable lengths.
• Some listed computer families were manufactured with 200W, 250W, or higher-wattage power supplies. Match the original label before ordering.
• If the original supply is rated at 250W, use the linked 2N333 or F0894 upgrade instead of reducing the system to 200W.
• This factory harness does not include SATA or PCIe graphics-card power connectors.
• Some revisions use a manual 115V/230V input selector. Confirm the selector position before connecting AC power.
• PFC and non-PFC construction may vary between interchangeable revisions.
• The cross-sold C13 cable is rated for North American 100–125V operation. Use a properly rated region-specific grounded IEC C13 cable for 200–240V operation.
• PowerEdge 500SC is not included because its published configurations require a 250W or 330W power supply.
