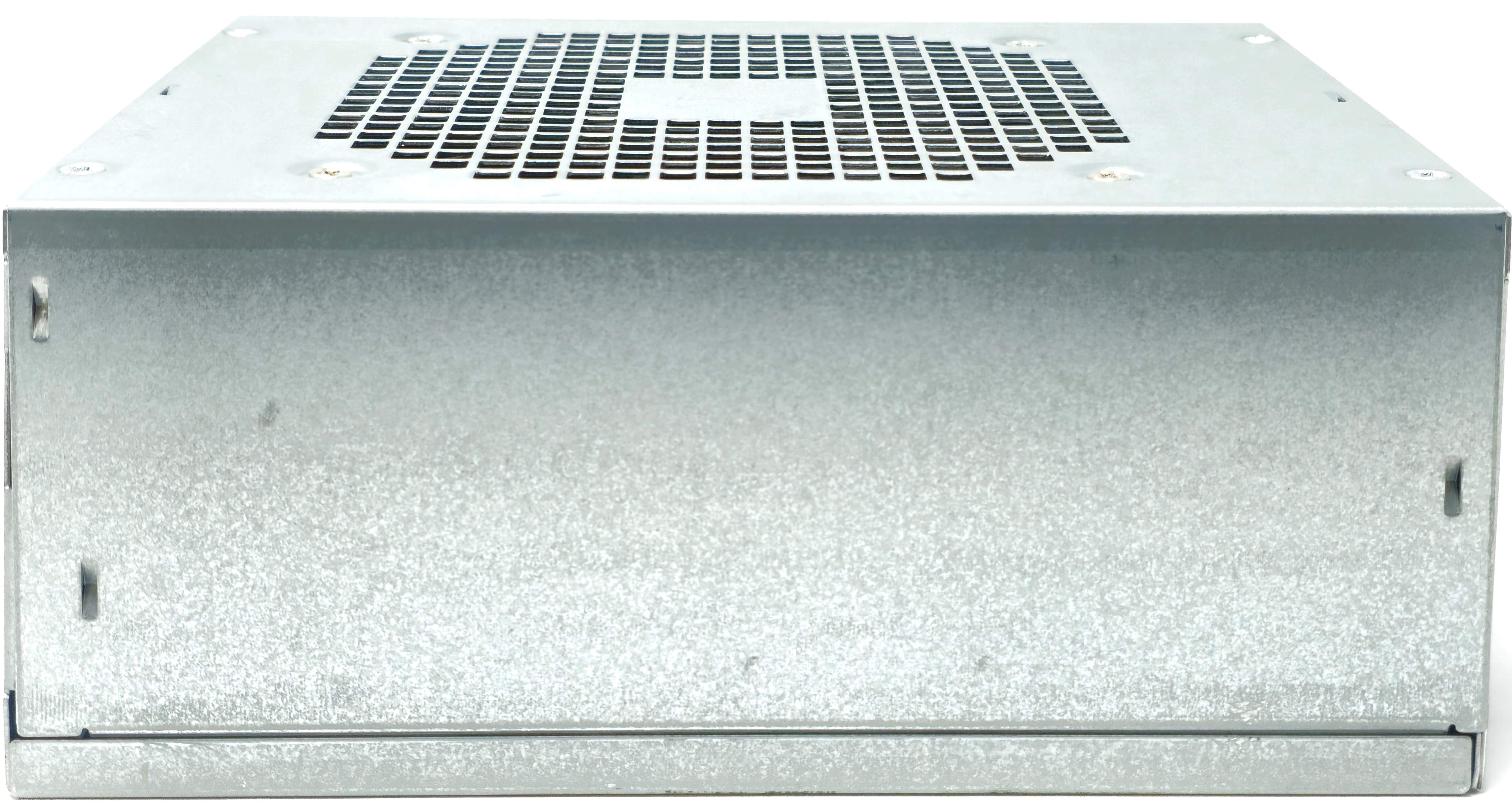

1000W fully modular 80 PLUS Gold internal power supply for compatible Alienware Aurora and Area-51 gaming desktops, XPS and Inspiron desktops, and Precision tower workstations. This ATX-size PSU is a direct replacement for systems originally equipped with one of the listed 1000W part numbers and can serve as an 850W-to-1000W upgrade in select systems when the chassis, mounting points, modular cable pinout, and system connectors match. Modular output cables and the AC power cord are sold separately unless shown or specifically stated as included.
0PDJK, 0WTGN, D1000EGM-00, DPS-1000AB-13A, H1000EGM-00, HU1000EGM-00, RGJRX
All part numbers above identify service-equivalent 1000W power supplies within this family.
The following are common 850W power-supply part numbers and model numbers that may be replaced by this 1000W unit in supported systems. These are upgrade cross-references, not interchangeable 1000W identifiers. The system must have compatible mounting dimensions and the correct modular cable set.
48Y6D, 9XG5C, D1J02, D850EF-00, D850EF-01, HK950-11PP, HK950-51PP, HU850EF-00, HU850EF-01, J2GNJ, N1WJD, NJVDN
The required modular cables vary by system model, motherboard, graphics card, and drive configuration. Select only the cables required for your exact installation.
☑️ JX68G - 6+2-Pin PCIe Graphics Power Cable - Approx. 14" cable commonly used in Aurora R3 and R4 configurations. Common quantity: 2.
☑️ G9Y40 - 6+2-Pin PCIe Graphics Power Cable - Approx. 10" cable commonly used in Aurora R5 and R6 configurations. Common quantity: 2.
☑️ MD63V - 8-Pin PSU-to-Motherboard Power Cable - 8-pin auxiliary power cable used in compatible Aurora R7 configurations.
☑️ GP6MV - 4-Pin PSU-to-Motherboard Power Cable - Approx. 17" 4-pin power cable used in compatible Aurora R9 configurations.
☑️ G2GX9 - Angled Dual SATA Power Cable - Approx. 16" angled dual SATA power cable used in compatible Aurora R10 configurations.
☑️ 4NT8R - Dual SATA HDD and Mini-SATA ODD Power Cable - Approx. 7.5" cable with two SATA drive connectors and one mini-SATA / slimline optical-drive connector for compatible Aurora R12 configurations.
☑️ 654MT - 24-Pin Main Power Cable to Motherboard - Approx. 9" 24-pin ATX system-board power cable for compatible configurations.
Never use an unverified modular cable merely because it fits the PSU port. Modular cable pinouts can differ and an incorrect cable can damage the power supply, motherboard, graphics card, or drives.
This power supply has a standard IEC C14 AC inlet. Add the cable below if the original AC power cord is missing, damaged, or not included.
⭐ 5120P - 6 FT 125V NEMA 5-15P to IEC C13 Power Cord - Grounded North American AC power cable for compatible IEC C14 power inlets. Sold separately.
Please note that the following list is not exhaustive. Compatibility depends on the system’s specific configuration. Verify the original power-supply part number, chassis clearance, mounting pattern, modular port layout, motherboard connector, CPU power connector, GPU power requirements, and drive-power cables before installation.
✔️ Direct 1000W Replacement Models: Alienware Aurora Ryzen Edition R10, Alienware Aurora R11, Alienware Aurora R12, Precision 3640 Tower, Precision 3650 Tower, Precision 3650XE Tower
✔️ Alienware Aurora Cable-Dependent Upgrade Models: Alienware Aurora R2, Aurora R5, Aurora R6, Aurora R7, Aurora R8, Aurora R9 when using the correct system-specific modular cables and compatible PSU mounting hardware
✔️ Alienware Area-51 Cable-Dependent Upgrade Models: Alienware Area-51 R2, Area-51 R3, Area-51 R4, Area-51 R5, Area-51 R6, Area-51 R7 configurations using the matching factory-style modular harness
✔️ XPS Upgrade Models: XPS 8920 and XPS 8930 configurations with compatible ATX mounting and the correct 24-pin, CPU, graphics, and drive-power cables
✔️ Precision Upgrade Model: Precision 3630 Tower / T3630 configurations with compatible ATX mounting, adequate 190mm depth clearance, and the correct modular cable set
✔️ Inspiron Gaming Upgrade Models: Inspiron 5675 and Inspiron 5680 after confirming ATX mounting, 190mm PSU depth clearance, and every required system-specific power cable
☑️ 1000W maximum output for compatible gaming desktops and tower workstations
☑️ 80 PLUS Gold efficiency rating
☑️ Multi-rail +12V output for processor, graphics, and system loads

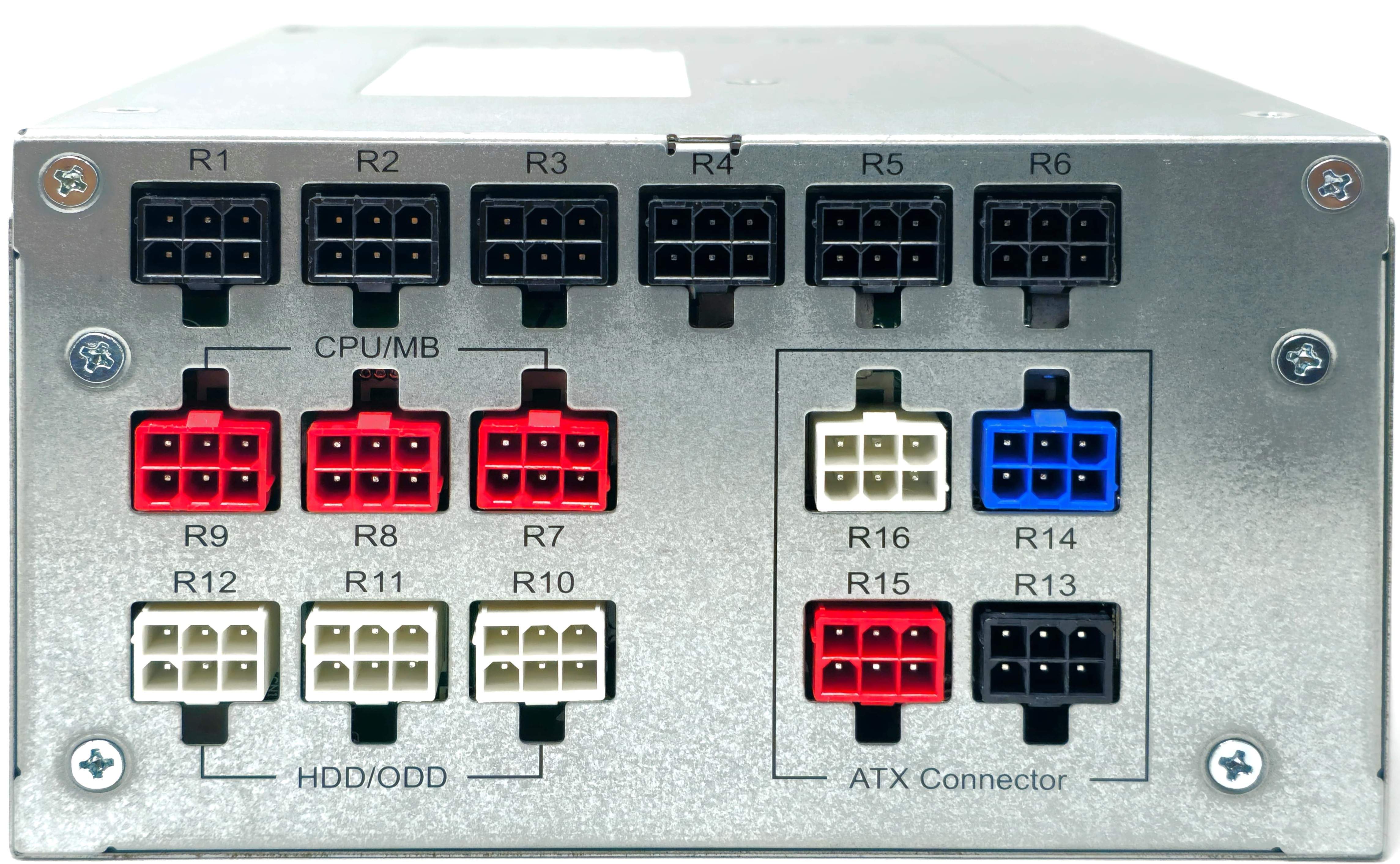

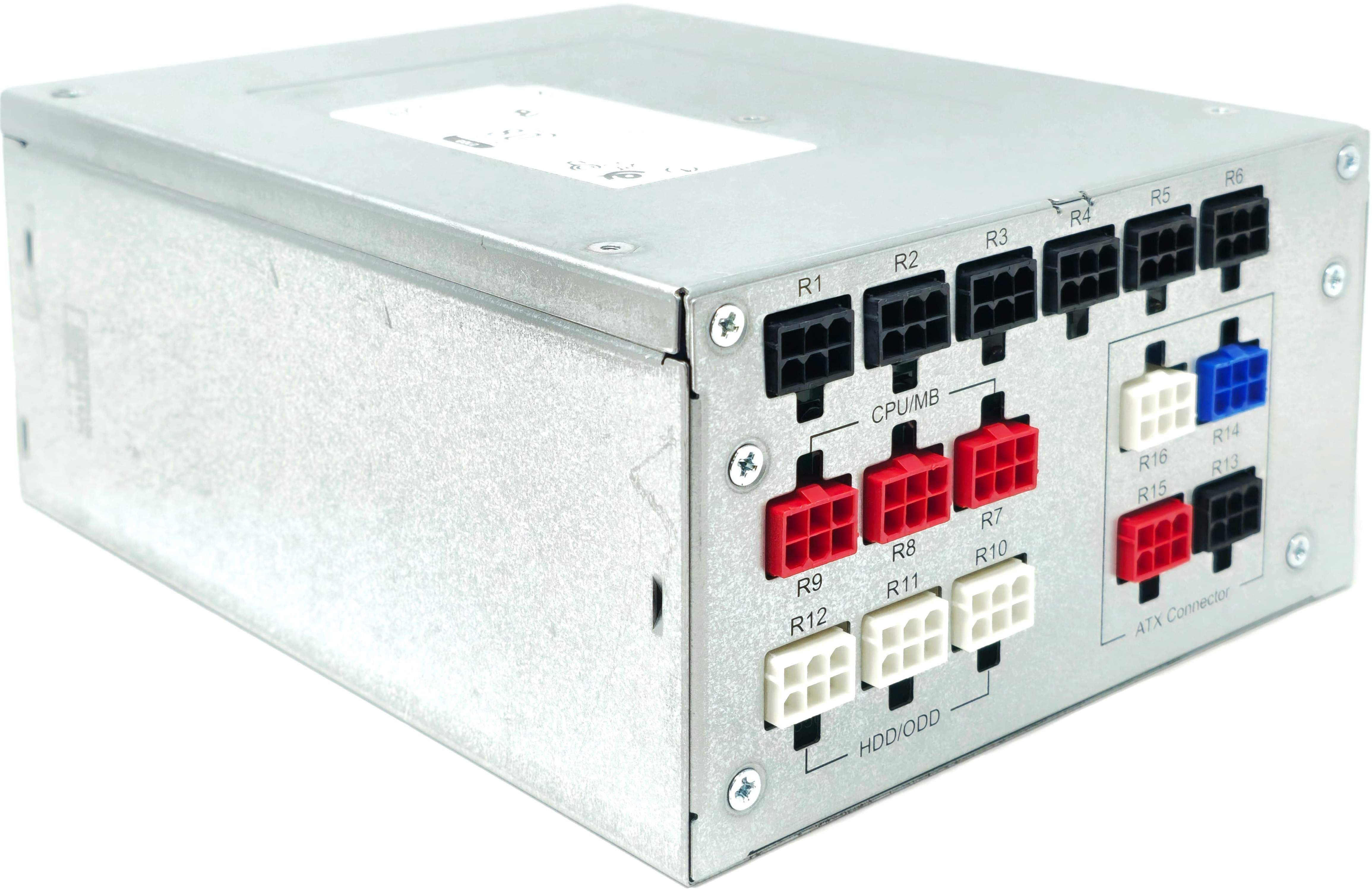

☑️ Fully modular design allows chassis-specific cable configurations
☑️ ATX-size 150mm x 86mm x 190mm enclosure
☑️ Direct replacement for systems using one of the listed 1000W part numbers
☑️ Cable-dependent upgrade path from compatible 850W power supplies
☑️ Wide-range AC input for compatible regional power sources
☑️ Standard IEC C14 inlet accepts a compatible IEC C13 AC power cord
☑️ Compatible modular cable and AC power-cord options linked above
✓ Match the original 1000W power-supply part number whenever possible.
✓ This PSU is fully modular and may be supplied without any internal cables. Confirm exactly what is included before ordering.
✓ Never connect random, generic, or unverified modular cables. Identically shaped PSU-side connectors can have different electrical pinouts.
✓ The cables linked above are cross-sell options and are not all required for every system. Cable selection and quantity depend on the motherboard, graphics card, storage devices, and chassis.
✓ Systems originally equipped with a non-modular 550W PSU may have permanently attached cables that cannot be transferred to this modular 1000W unit.
✓ When upgrading from an 850W modular PSU, reuse the original cable set only after confirming that the original PSU family and modular pinout match this 1000W family.
✓ The listed 850W part numbers are upgrade cross-references and must not be represented as interchangeable 1000W part numbers.
✓ Confirm the 190mm PSU depth and available cable-management space. Some Aurora systems use a swing-out PSU cage with limited clearance behind a longer power supply.
✓ The +12VA, +12VB, and +12VD ratings are individual rail limits and must not be added together. Total combined output remains limited to 1000W.
✓ Installing a 1000W PSU does not automatically make every graphics card compatible. Verify GPU dimensions, cooling requirements, BIOS support, connector type, connector quantity, and total system demand.
✓ This is not the slim 62mm-high PSU family used in systems such as Alienware Aurora R13/R14, XPS 8950, or Precision 3660. Those systems require a different power supply and motherboard connector layout.
✓ The AC power cord is not included unless shown. Use a properly rated IEC C13 power cord suitable for the local voltage, outlet, and intended load.
✓ Disconnect the AC power cord, press the power button to discharge residual power, and follow the system service procedure before replacing the power supply.
