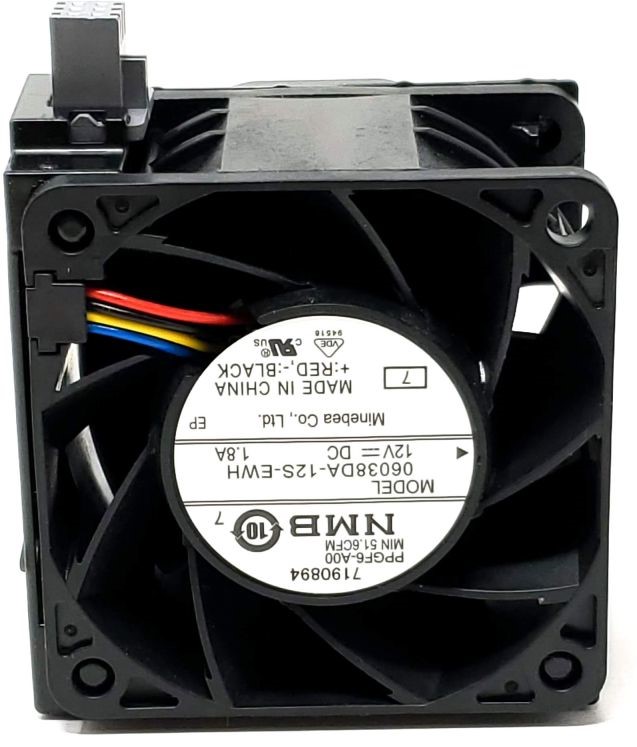

4VXP3 / N5T36 / CT3RT – EMC PowerEdge R740 / R740XD Cooling Fan Module – 12V 1.8A Hot-Swap System Fan
Description
High-performance hot-swap system fan module designed for the EMC PowerEdge R740 and R740XD servers. Built to maintain optimal airflow through high-density chassis configurations, this fan provides precise PWM control and N+1 redundancy support. The module installs tool-free and is engineered for long-duty operation under enterprise workloads.
Technical Specifications
- Type: Hot-swap system fan module
- Voltage: 12V DC
- Current: 1.8A
- Connector: 6-pin fan header (server midplane)
- Fan models used: Sunon, Nidec, Delta, or NMB (interchangeable OEMs)
- Part Markings: PPGF6-A00, 06038DA-12S-EWH, VF60381B1-Q070-S99
- Control: PWM speed regulation via system firmware
- Redundancy: N+1 cooling configuration supported
- Typical use: CPU/memory zone system cooling
Interchangeable / Replacement Part Numbers
- 4VXP3 – System fan FRU for R740 / R740XD
- N5T36 – System fan FRU for R740 / R740XD
- CT3RT – System fan FRU for R740 / R740XD
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on the device’s design and cooling requirements. It’s essential to verify compatibility with the device manufacturer.
✔️ EMC PowerEdge: R740, R740XD
☑️ Key Features
- ☑️ Hot-swap capable – Replace failed fans without powering down the system
- ☑️ PWM speed control – Intelligent RPM adjustment for thermal balance
- ☑️ OEM fit and design – Exact dimensions and airflow profile for R740 chassis
- ☑️ High-reliability bearings – Designed for continuous data center operation
- ☑️ Cross-manufacturer build – May ship as Sunon, Nidec, Delta, or NMB (all approved OEMs)
⚙️ Fit Notes
- Replace only with verified fan modules matching 4VXP3, N5T36, or CT3RT.
- Do not mix 1U/2U or different generation fan types. Use identical modules across all fan bays.
- After installation, confirm fan detection and RPM readings in the system management console.
- Apply OEM-grade thermal paste when reseating or servicing CPUs (sold separately):
? Shin-Etsu G751 High-Performance Thermal Grease
