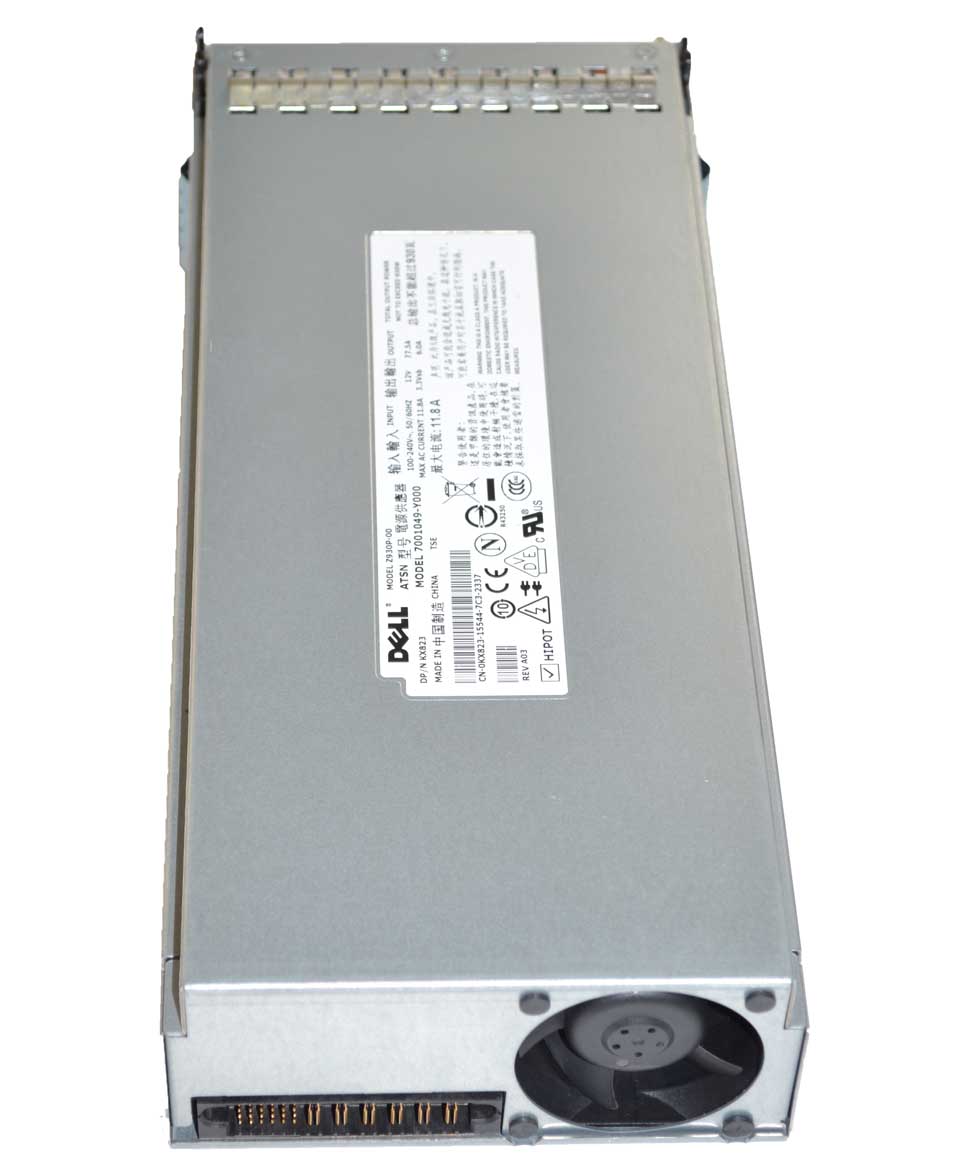

930W Redundant Hot-Swap Power Supply for PowerEdge 2900 PowerVault DP600 NF600

This 930W redundant hot-swap power supply is a direct replacement for compatible PowerEdge 2900 servers and PowerVault DP600 and NF600 storage systems. Housing shape, labeling, fan grille, and supplier model may vary by production revision. All part numbers listed below are electrically and mechanically interchangeable.

Technical Specifications

• Maximum Output Power: 930W
• Power Supply Type: Redundant hot-swap server power supply
• AC Input: 100–240V AC
• Input Frequency: 50/60Hz
• Input Current: Varies by production revision
• Main DC Output: +12V = 77.5A
• Standby Output: +3.3VSB = 6.0A
• Maximum Combined Output: 930W
• Redundancy Configuration: One or two modules; two modules provide 1+1 redundancy

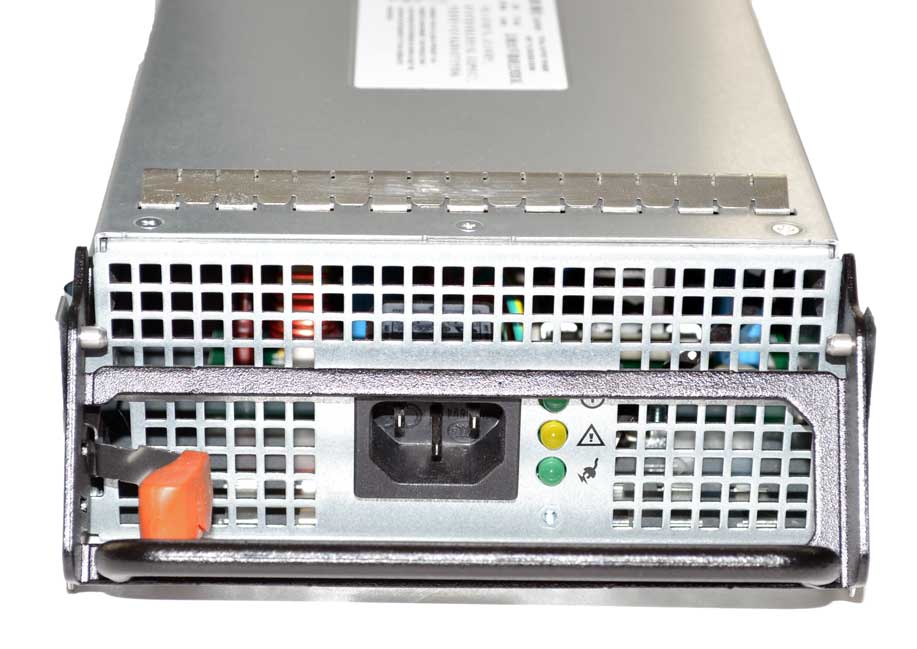

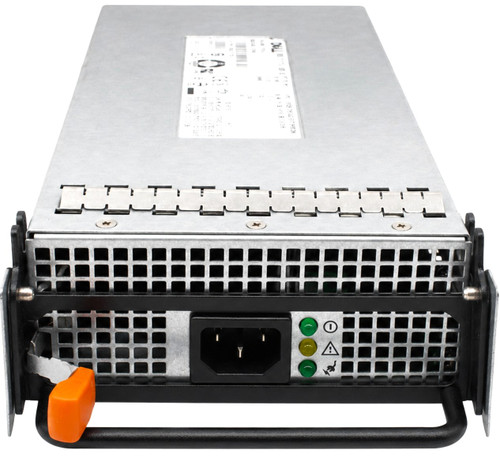

• AC Receptacle: IEC C14

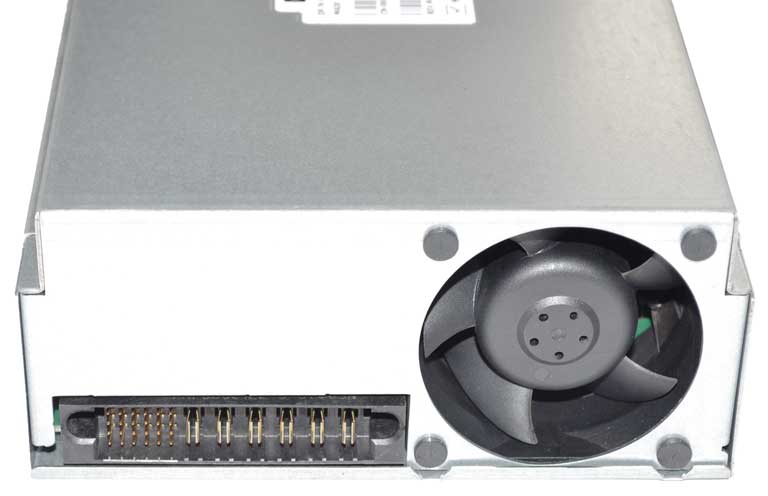

• System Connection: Integrated proprietary hot-plug backplane connector
• Cooling: Integrated cooling fan

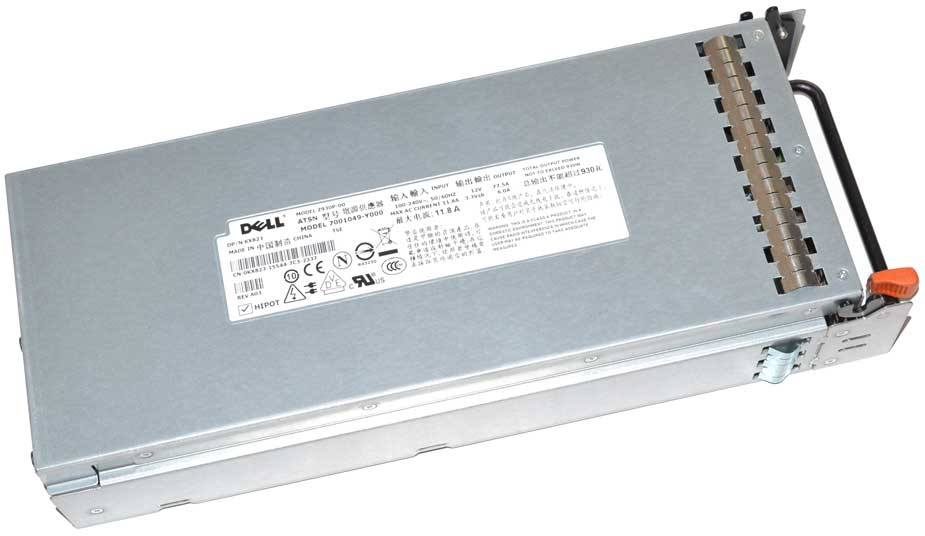

• Installation: Tool-free slide-in module with release latch and handle

Interchangeable / Replacement Part Numbers

U8947, 0U8947, WJ910, 0WJ910, X8668, 0X8668, D9064, 0D9064, KX823, 0KX823, Z930P, Z930P-00, 0Z930P, A930P, A930P-00, 7001049-Y000

⭐ Related Parts and Cross-Sell

➕ 5120P - 6FT 125V NEMA 5-15P to IEC C13 Power Cord for PowerEdge PowerVault Servers and AC Adapters

The power supply uses an IEC C14 AC inlet and accepts the linked IEC C13 power cord. Power cord sold separately.

✅ Confirmed Compatibility

Compatibility requires the original 930W hot-plug power-supply bay. Verify the existing module and chassis connector before installation.

✔️ PowerEdge 2900: Tower servers equipped with the 930W hot-plug power subsystem
✔️ PowerVault DP600: Storage systems using the PowerEdge 2900-style 930W hot-plug module
✔️ PowerVault NF600: Storage systems using the PowerEdge 2900-style 930W hot-plug module

☑️ Key Features

☑️ Full 930W maximum output capacity
☑️ Supports single-supply and dual-supply configurations
☑️ Provides 1+1 power redundancy when two working modules are installed
☑️ Hot-swappable design allows replacement without shutting down when another working supply remains online
☑️ Wide-range 100–240V AC input
☑️ High-current +12V output with dedicated +3.3V standby power
☑️ Direct connection to the chassis power-distribution backplane
☑️ Integrated cooling fan, release latch, carrying handle, and status indicators
☑️ All listed part numbers are interchangeable despite differences in housing shape, labeling, or production revision

⚙️ Fit Notes

• This is a proprietary server power supply and is not a standard ATX or EPS desktop power supply.
• Housing shape, label layout, fan grille, input-current marking, and supplier model may vary between interchangeable revisions.
• Live hot-swapping requires another working power supply to remain installed and online.
• If the system contains only one power supply, shut down the system and disconnect AC power before removal.
• Two installed supplies operate in a redundant configuration; they do not provide 1,860W of usable system power.
• The listed part numbers can replace one another. Matching the exact label revision is preferred when available but is not required.
• A standard IEC C13 power cord connects to the module’s IEC C14 inlet.
• This module is intended specifically for compatible PowerEdge 2900, PowerVault DP600, and PowerVault NF600 power bays.
