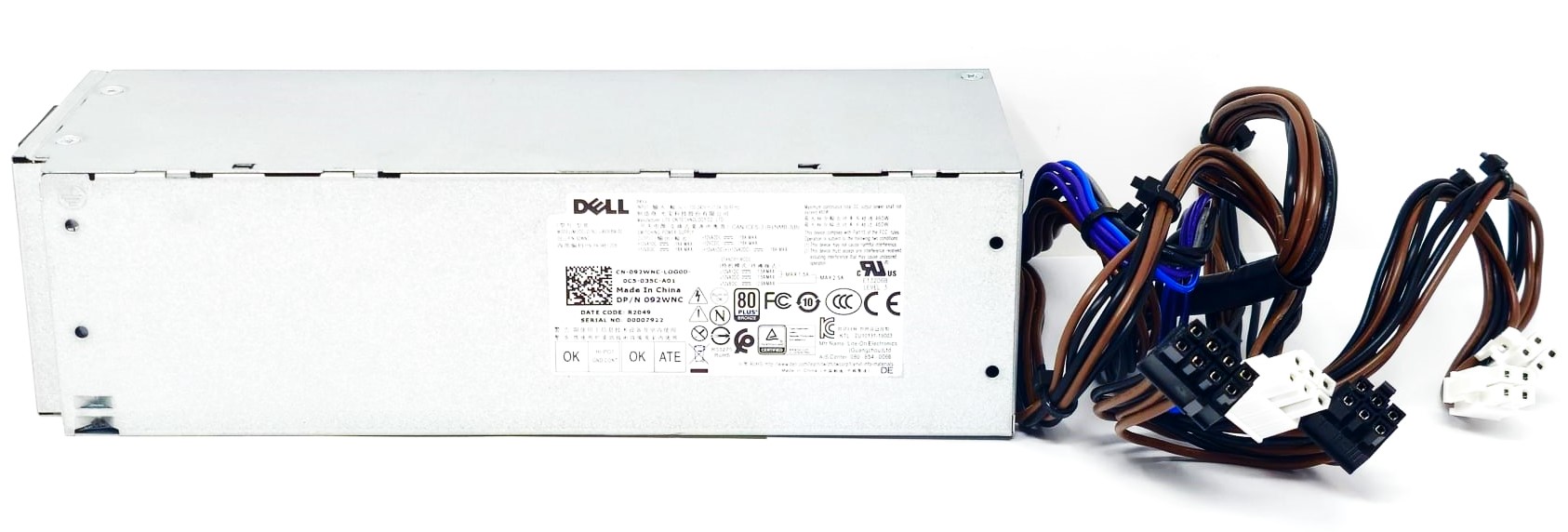

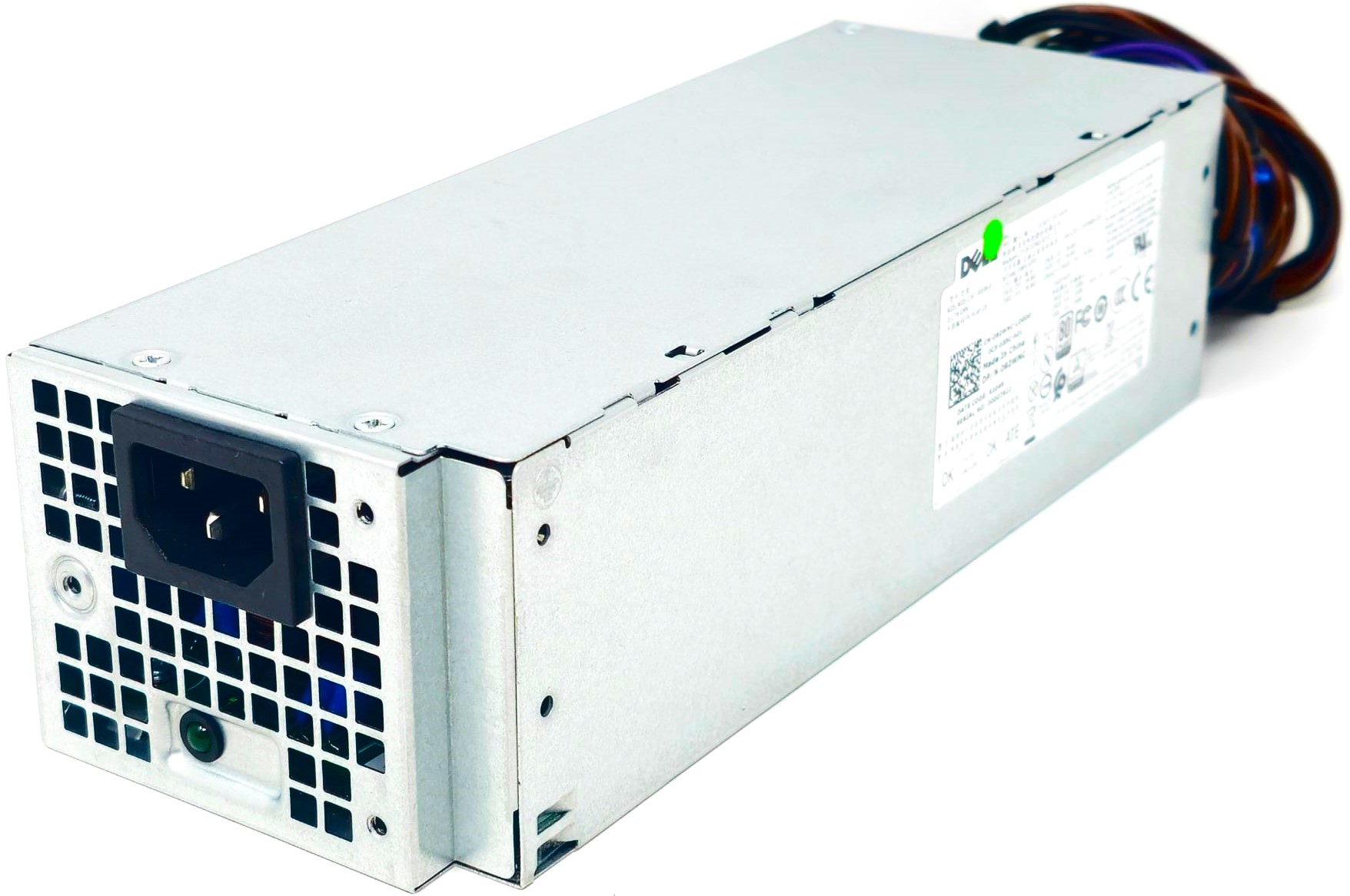

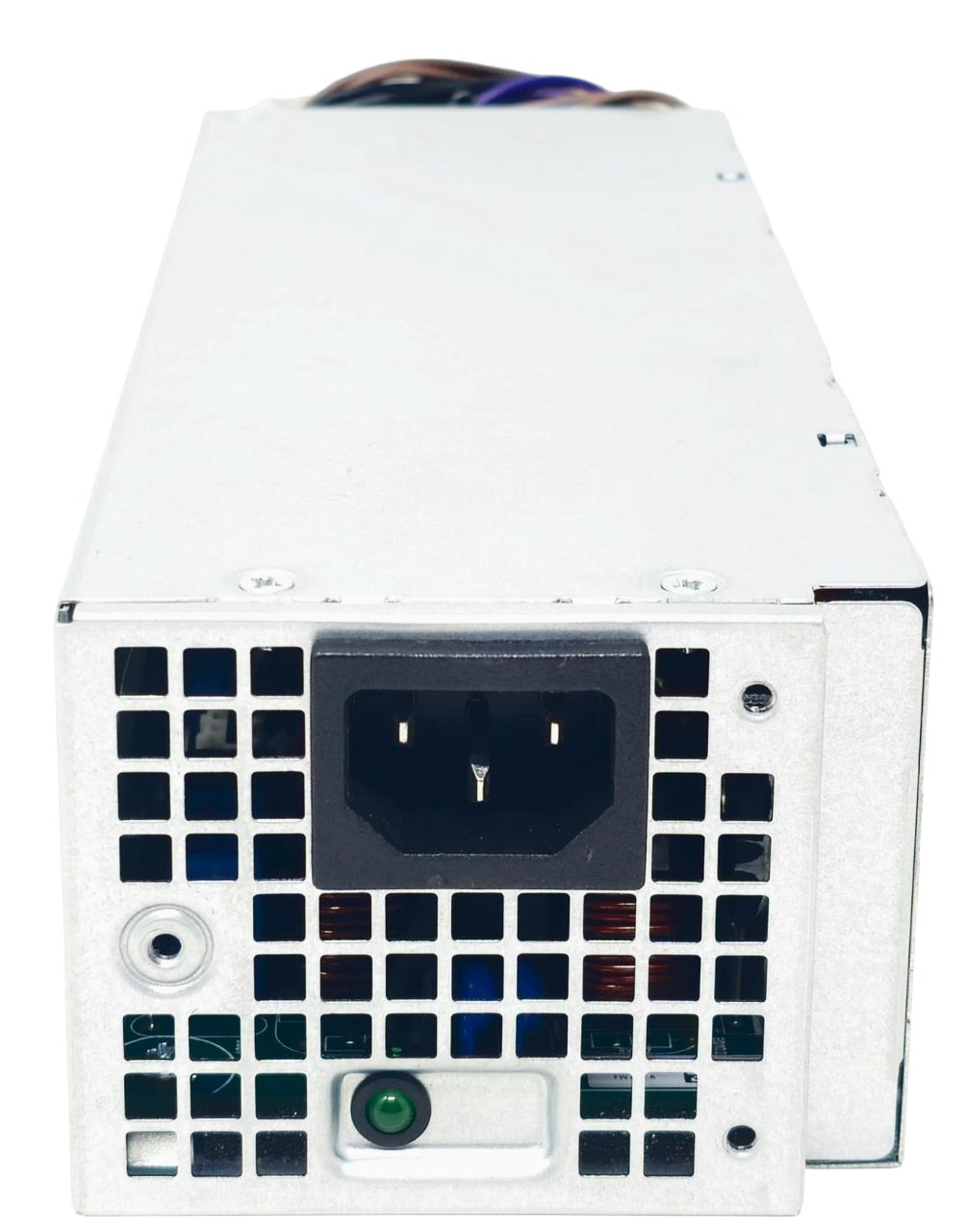

460W Power Supply for 7070 7060 5060 G5-5090 XPS 8940

This 460W power supply is a direct replacement PSU designed for compatible desktop systems that use the compact OEM-style 460W unit. It’s ideal for resolving power-related issues such as no power, intermittent shutdowns, random reboots, or instability under load, and it’s a solid replacement when upgrading or restoring a system that requires the correct connector layout.

Interchangeable / Replacement Part Numbers

H460EBM-00, PA-3461-2DB, L460EBM-00, 4FWF7, D460E001P, 92WNC

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔ OptiPlex: 5060, 7060, 7070, 5090
✔ G5: 5090
✔ XPS: 8940

☑️ Key Features

☑️ Correct 460W rating for supported desktop systems
☑️ Includes the expected OEM-style connector set for supported configurations
☑️ Helps fix common PSU failure symptoms (no power, random shutdowns, unstable booting)

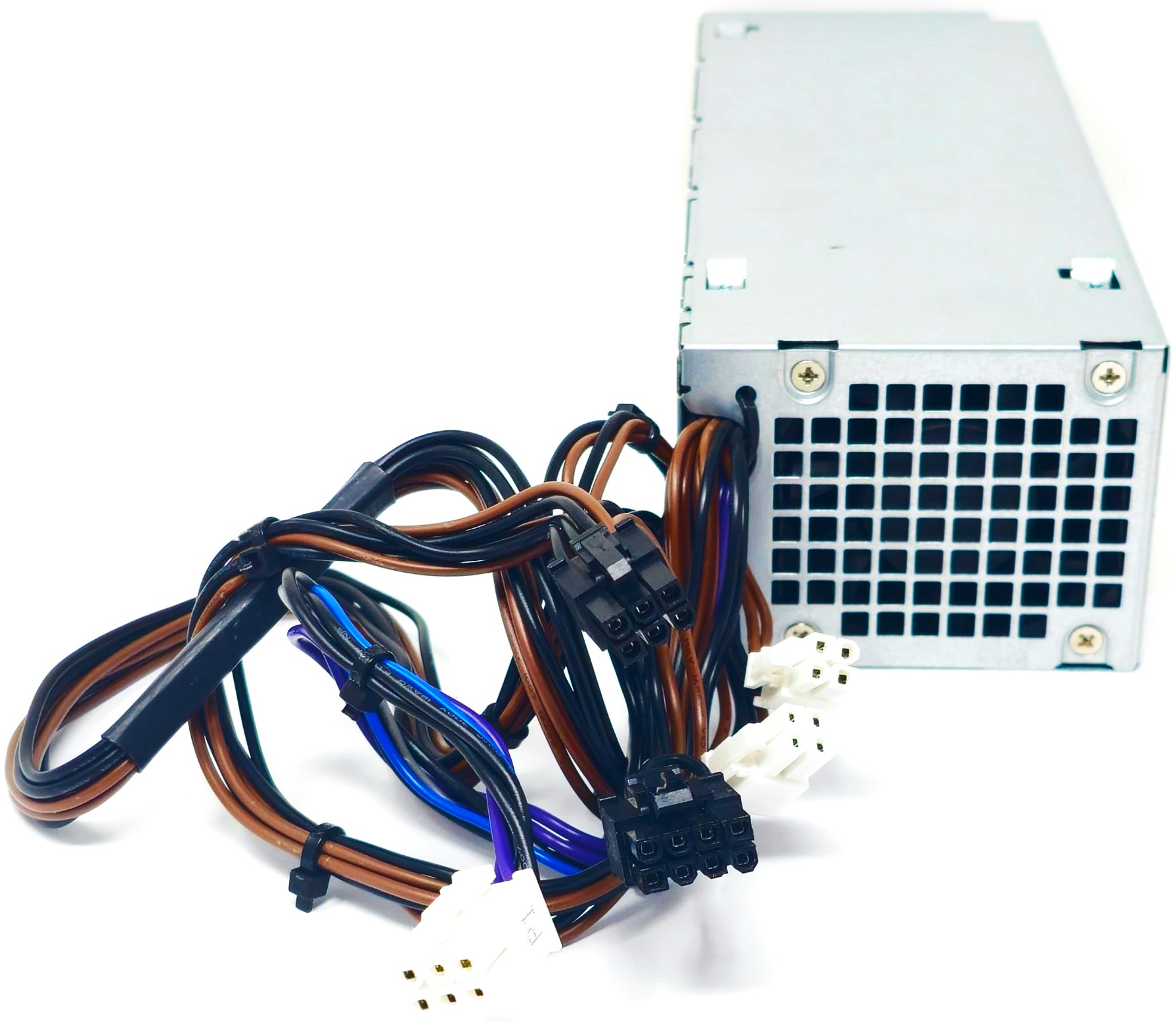

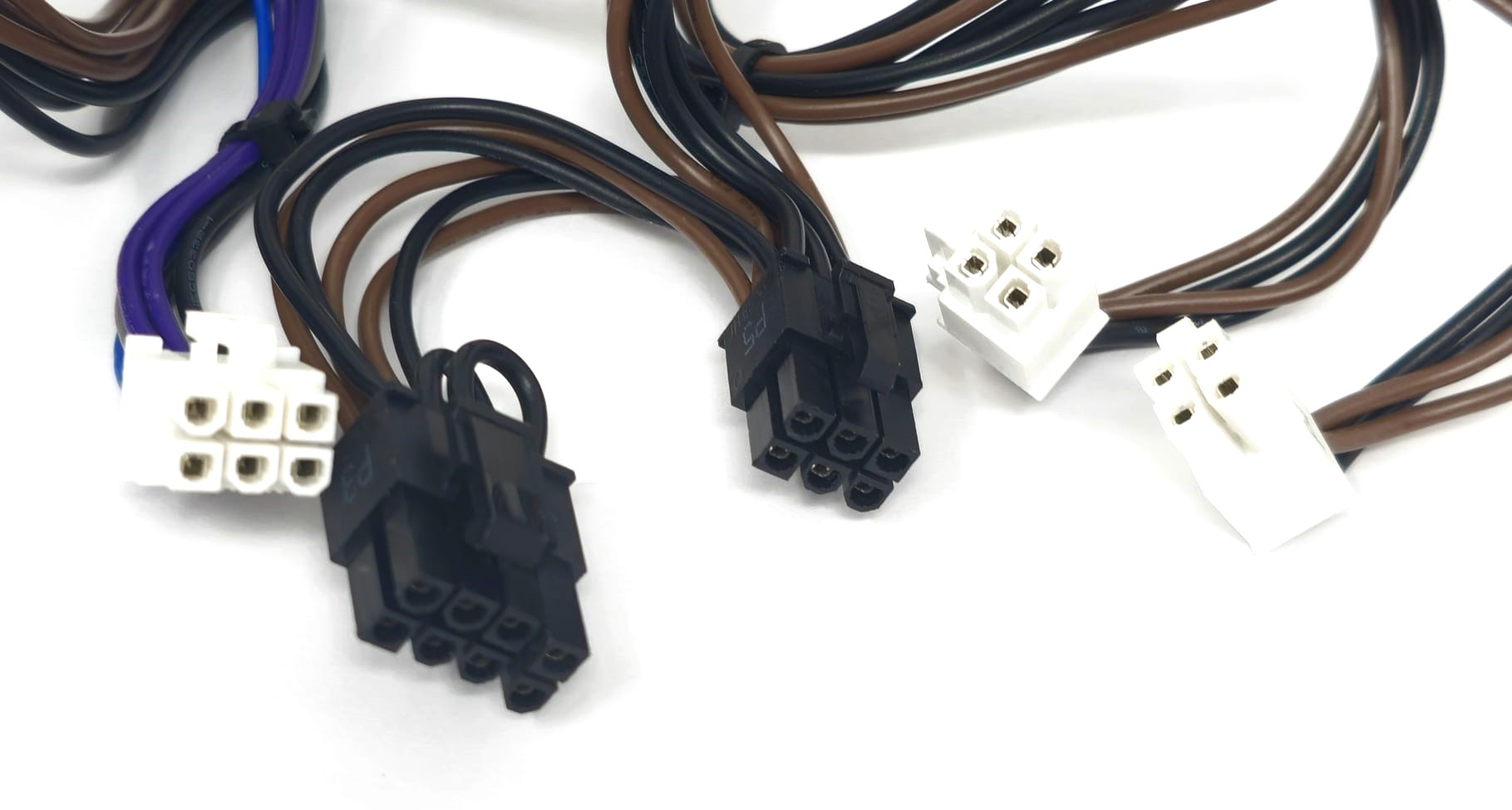

☑️ Supports systems requiring both 6-pin and 6+2-pin power connections
☑️ Multiple interchangeable part numbers supported (see list above)

⚙️ Fit Notes

• Confirm your original PSU matches the same physical size (82mm x 62mm x 220mm) and connector layout listed above.
• Some systems have different PSU options depending on GPU/CPU configuration—verify the part number match or compare connectors before ordering.
• If you perform internal service that involves removing the CPU heatsink, reapply thermal paste for best results (recommended: Shin-Etsu G751).
