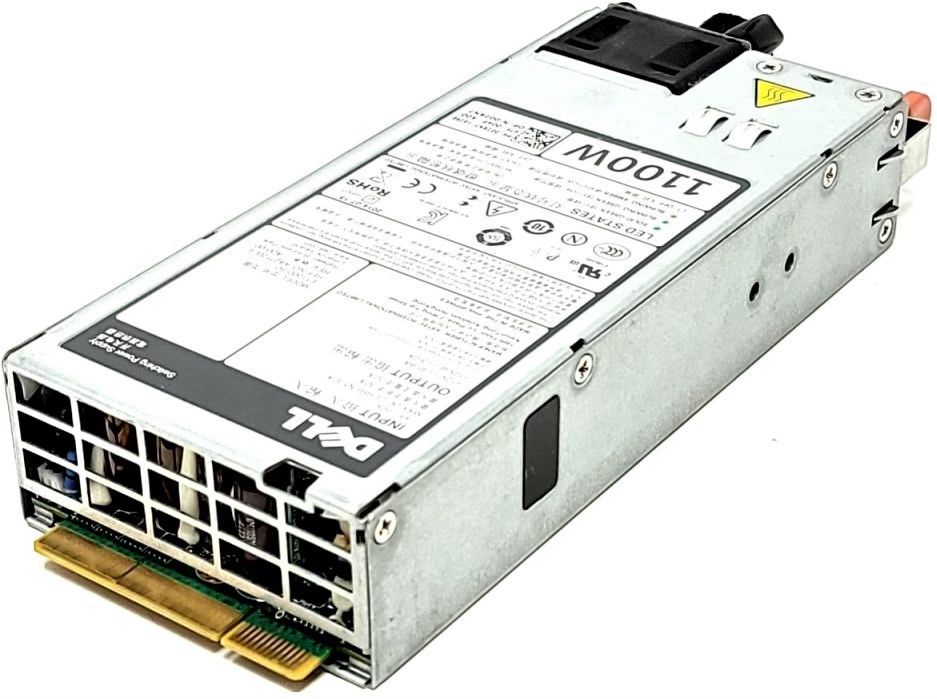

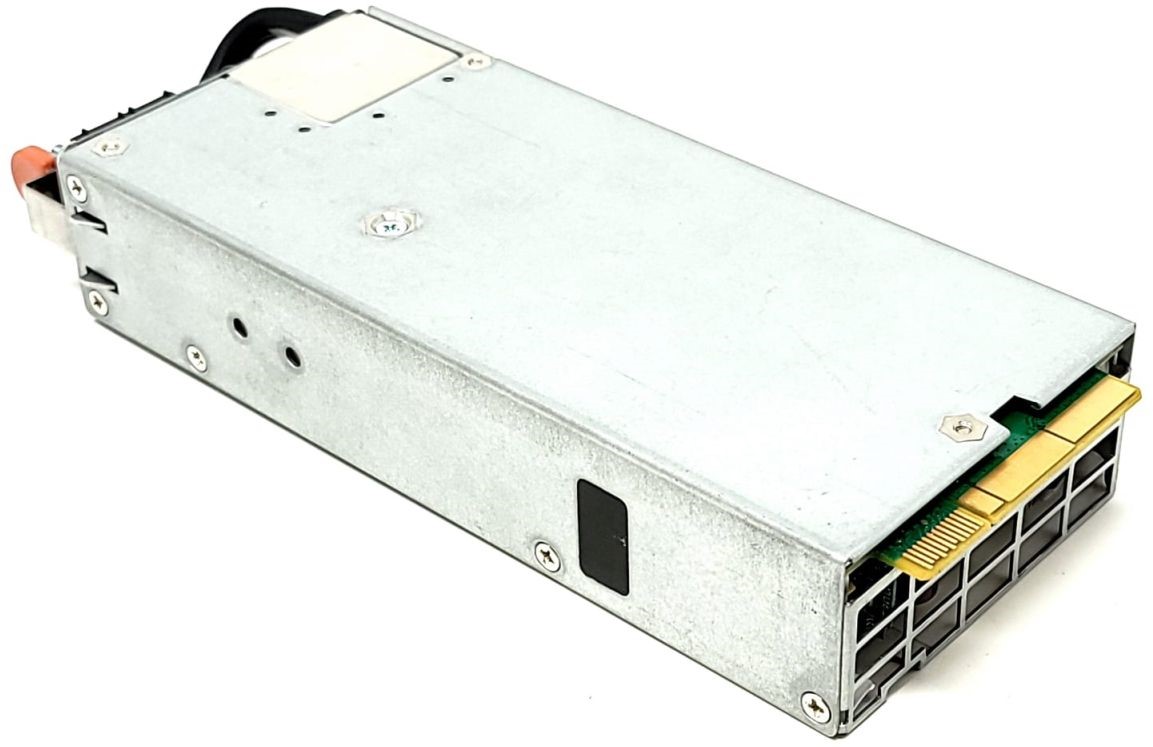

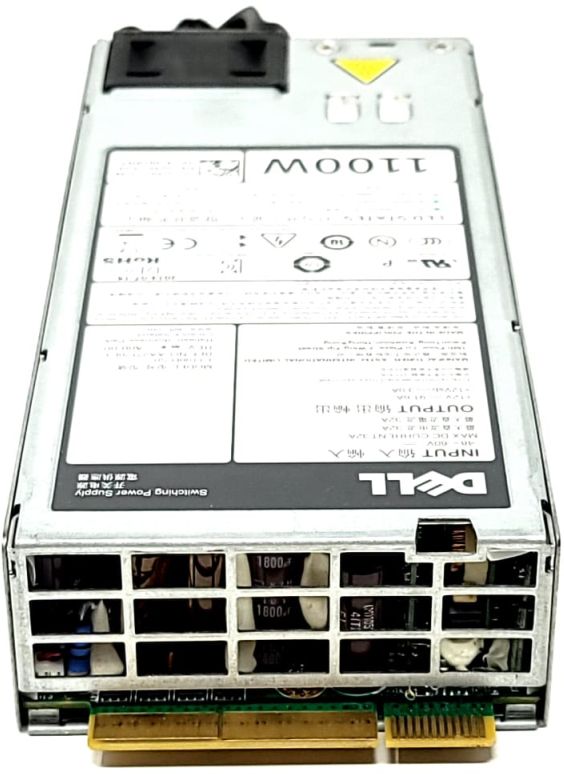

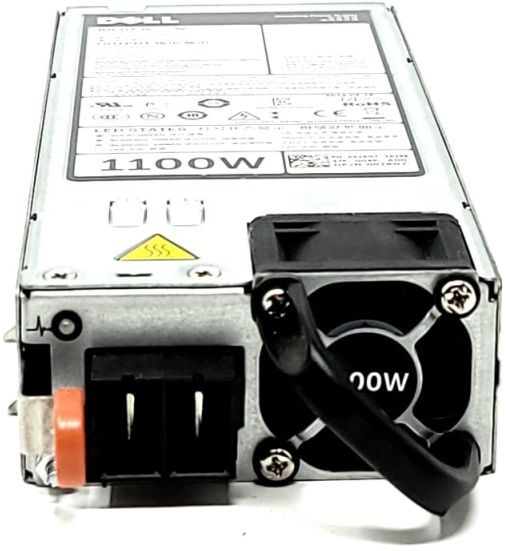

1100W 48V DC Hot-Plug Power Supply for PowerEdge R520 R620 R720 R730 R740 R820 R920

This 1100W hot-plug power supply is designed for supported servers, storage appliances and ready-node systems factory-configured for −48 to −60V DC input. It supplies +12V main power and +12V standby power in the 86mm redundant PSU form factor. C7JTF, 02RN7, Y1MGX, 5G4WK, E1100D-S0 and AA27120L E identify verified revisions or markings from the same DC power-supply family.

Technical Specifications

• Maximum Output Power: 1100W
• Product Type: Redundant hot-plug DC server power supply
• DC Input Voltage: −48 to −60V DC
• Maximum Input Current: 32A
• Main DC Output: +12V at 91.6A
• Standby Output: +12VSB at 3.0A
• Maximum Inrush Current: 55A for 10ms or less
• Efficiency: Up to 91%
• Efficiency at 10% Load: 80%
• Efficiency at 20% Load: 88%
• Efficiency at 50% Load: 91%
• Efficiency at 100% Load: 88%
• Maximum Heat Dissipation: 4,416 BTU/hr
• Form Factor: 86mm redundant hot-plug PSU
• Approximate Dimensions: 196mm × 86mm × 38mm
• DC Input Connector: 6RYJ9 terminal block or approved equivalent
• System Connection: Hot-plug PSU bay connection
• AC Frequency: Not applicable
• Package Quantity: One power supply

Interchangeable / Replacement Part Numbers

C7JTF, 0C7JTF, 02RN7, 002RN7, Y1MGX, 0Y1MGX, 5G4WK, 05G4WK, E1100D-S0, AA27120L, AA27120LE, AA27120L E, 2MCCT, 02MCCT, 450-ADZC, 331-5927

AA27120L E is the printed manufacturer marking. AA27120L and AA27120LE are catalog formatting variants. The leading-zero references are full DPN or search aliases rather than different electrical designs.

⭐ Related Parts and Cross-Sell

➕ 02RN7 – 1100W −48V DC Hot-Plug Power Supply
➕ Y1MGX – 1100W −48V DC Hot-Plug Power Supply
➕ 5G4WK – 1100W −48V DC Hot-Plug Power Supply
➕ E1100D-S0 – 1100W −48V DC Hot-Plug Power Supply
➕ AA27120L – 1100W −48V DC Hot-Plug Power Supply
➕ AA27120LE – 1100W −48V DC Hot-Plug Power Supply
➕ 6RYJ9 – DC Input Terminal Block / Mating Connector: Required for the field-wired −48 to −60V DC connection unless an approved equivalent connector is already installed.

✅ Confirmed Compatibility

Compatibility is limited to systems factory-configured for the 1100W −48 to −60V DC power option. The chassis must have the matching hot-plug PSU bay, power-distribution hardware and DC input wiring. A model name alone does not guarantee compatibility.

✔️ PowerEdge 12th-Generation Rack Servers: R520, R620, R720, R720xd, R820, R920
✔️ PowerEdge 12th-Generation Tower Servers: T620
✔️ PowerEdge 13th-Generation Rack Servers: R530, R630, R730, R730xd
✔️ PowerEdge 13th-Generation Tower Servers: T630
✔️ PowerEdge 14th-Generation and Selected Later Rack Servers: R540, R640, R6415, R740, R740xd, R740xd2, R7415, R7425, R7515, R840, R940, R940xa
✔️ PowerEdge 14th-Generation Tower Servers: T640
✔️ PowerEdge XL Systems: R630XL, R730XL, R730xd XL and supported factory-configured XL variants
✔️ XC and XC Core Systems: XC630, XC720XD, XC730, XC730XD, XC Core XC640, XC Core XC740xd, XC Core XC940
✔️ vSAN Ready Nodes: R640, R6415, R740, R740xd, R7515, R840
✔️ Storage Spaces Direct Ready Nodes: R640, R740xd, R740xd2
✔️ VxFlex Ready Nodes: R640, R740xd, R840
✔️ PowerFlex Appliances: R640, R740xd, R840
✔️ Storage and Appliance Systems: DR6000, Storage NX3230, PowerVault NX3200, SD630-S
✔️ OEMR Systems: R540, R620, R630, R640, R720, R720xd, R730, R730xd, R740, R740xd, R740xd2, R7415, R7425, R7515, R840, R920, R940, R940xa, T620, T630
✔️ OEMR XL Systems: R620, R630, R640, R720, R720xd, R730, R730xd, R740, R740xd and T640 configurations equipped for −48 to −60V DC input

☑️ Key Features

☑️ 1100W maximum DC output
☑️ Designed for isolated −48 to −60V DC power infrastructure
☑️ Redundant hot-plug server PSU form factor
☑️ +12V main and +12V standby outputs
☑️ Up to 91% conversion efficiency
☑️ Supports 1+1 redundancy in qualifying two-PSU systems
☑️ Compatible with selected rack servers, tower servers, storage appliances and ready nodes
☑️ Integrated PSU monitoring and firmware support in qualifying systems

⚙️ Fit Notes

• This is a DC-input power supply. It does not accept 100–240V AC power.
• A standard IEC C13, C14, C19 or C20 power cable cannot be connected to this unit.
• The input requires a 6RYJ9 terminal block or an approved equivalent mating connector.
• Installation requires an electrically isolated and reliably grounded −48 to −60V DC SELV source.
• Source and return wiring must use 10-AWG copper conductors rated for at least 90°C.
• Maximum recommended conductor length is 2 meters.
• The DC branch circuit requires 50A overcurrent protection with a high DC interrupt rating.
• Use black wire for the negative −48/−60V source, red wire for DC return and green/yellow wire for safety ground.
• Reversing input polarity may permanently damage the power supply or system.
• DC input wiring should be completed by a qualified electrician or properly trained service technician.
• Never mix AC-input and DC-input power supplies in the same system.
• When multiple PSUs are installed, they must be the same input type and maximum output wattage.
• R520 and R620 systems configured for the 1100W option require both PSU bays to be populated.
• R720 and R720xd systems support two matching supplies in a 1+1 redundant configuration.
• R920 systems may support as many as four matching 1100W DC modules.
• Hot replacement is permitted only when the system is operating in a supported redundant configuration and the applicable service procedure is followed.
• Not compatible with PowerEdge T320 or T420. Those systems’ service documentation specifies AC power supplies.
