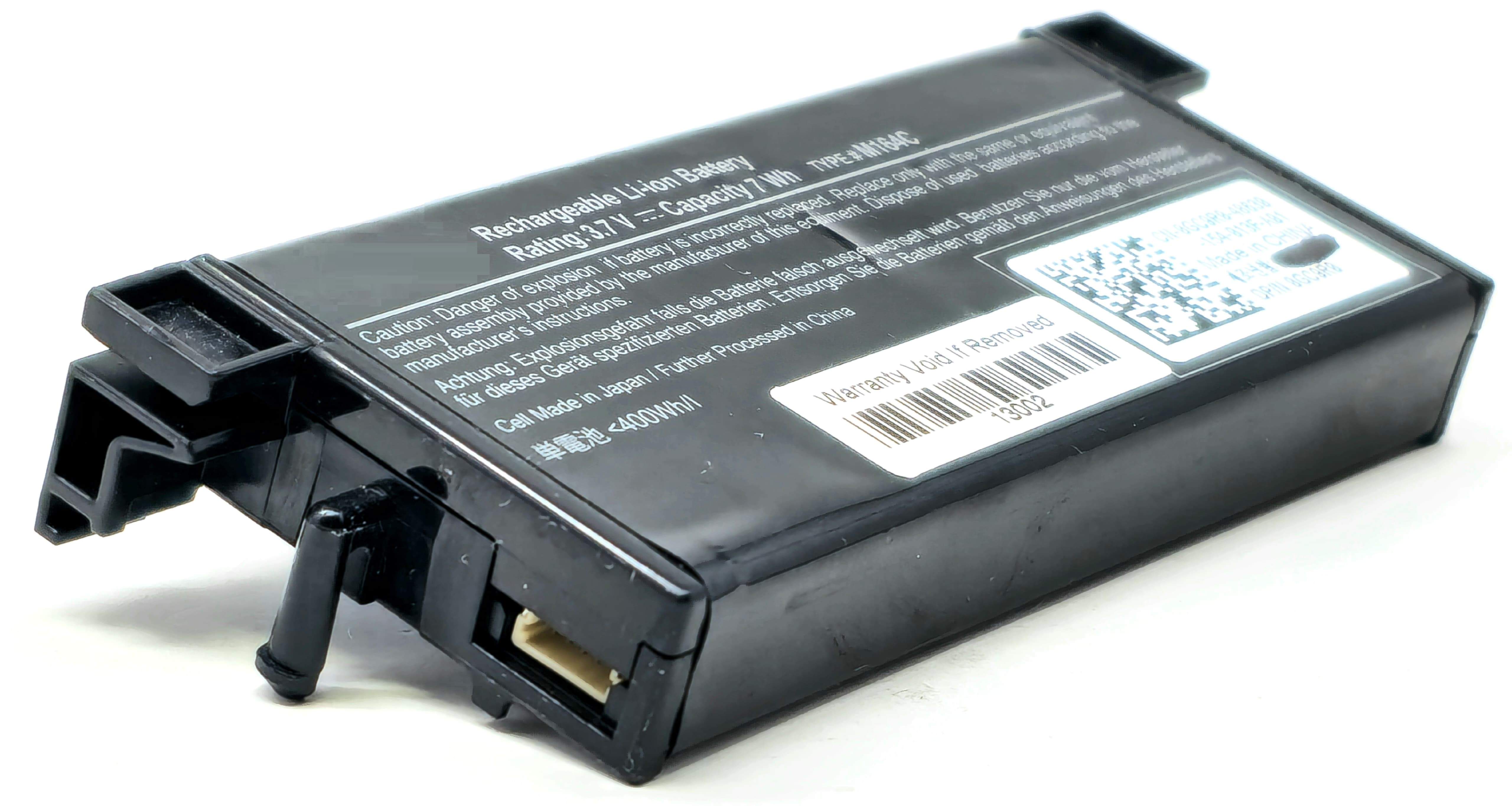

3.7V 7Wh Li-Ion RAID Cache Battery for PERC 5E 6E

This rechargeable lithium-ion battery backup unit is designed for PERC 5/E and PERC 6/E external PCIe SAS RAID controllers. It supports the controller’s cache-protection system during a power interruption, helping preserve cached write data until normal power is restored.

This listing includes one battery module only. The controller, battery cable and mounting hardware are not included.

Technical Specifications

• Product Type: RAID controller cache battery / Battery Backup Unit
• Nominal Voltage: 3.7V DC
• Energy Capacity: 7Wh
• Nominal Capacity: Approximately 1900mAh
• Battery Chemistry: Rechargeable lithium-ion
• Application: RAID write-cache protection
• Supported Controller Families: PERC 5/E and PERC 6/E external PCIe SAS RAID controllers
• Connector: Proprietary RAID battery connector
• Form Factor: Controller-specific molded battery pack
• Package Quantity: One battery
• Battery Cable: Not included
• Controller Card: Not included

Interchangeable / Replacement Part Numbers

GC9R0, X8483, M9602, M164C, KR174, RF479, 0GC9R0, 0X8483, 0M9602, 0M164C, 0KR174, 0RF479, GC9R0-03, X8483-03, M9602-03, M164C-03, KR174-03, 0GC9R0-03, 0X8483-03, 0M9602-03, 0M164C-03, 0KR174-03

The leading zero and “-03” suffix are service-label, packaging or assembly-revision formats of the same battery family. Always compare the connector, molding and mounting arrangement before installation.

⭐ Related Parts and Cross-Sell

➕ YH927 - 14-Inch RAID Controller Battery Cable — sold separately; CPU Medics cross-references this cable to GC9R0, X8483, M9602, M164C and KR174. Confirm that its length and pinout match the original installation.
➕ RY631 - 24-Inch RAID Controller Battery Cable — longer routing option sold separately. Confirm the original cable length, connector orientation and chassis routing before ordering.
➕ GP297 - PERC 5E 256MB External SAS PCIe RAID Controller Card — related external RAID controller sold separately. Verify the controller’s included battery and cable before purchasing additional components.
➕ FY374 - PERC 6E 512MB External SAS PCIe RAID Controller Card with Battery — complete controller-card assembly sold separately. Verify the listing contents to avoid purchasing a duplicate battery.

✅ Confirmed Compatibility

Compatibility is based on the installed RAID controller rather than the server model alone. The system must be configured with a supported PERC 5/E or PERC 6/E external controller and the correct battery cable, molding and mounting hardware.

✔️ RAID Controllers: PERC 5/E and PERC 6/E external PCIe SAS RAID adapters using the GC9R0, X8483, M9602, M164C, KR174 or RF479 battery family
✔️ PowerEdge Rack Servers: 1950, 2950, 2970, 6950, R200, R210, R220, R300, R310, R410, R415, R510, R515, R610, R710, R715, R805, R810, R815, R900, R905, R910, R920
✔️ PowerEdge Tower Servers: 1900, 2900, T110, T300, T310, T410, T610, T710
✔️ PowerEdge Modular Servers: 1955, M610, M710, M910
✔️ PowerVault Storage Enclosures: MD1000 and MD1120 when connected to a supported host system through a PERC 5/E or PERC 6/E external RAID controller

☑️ Key Features

☑️ Rechargeable 3.7V 7Wh lithium-ion battery
☑️ Approximately 1900mAh nominal capacity
☑️ Supports RAID controller write-cache protection
☑️ Helps preserve cached data during power interruptions
☑️ Supports write-back cache operation when the controller reports a healthy battery
☑️ Direct replacement for multiple external-controller battery part numbers
☑️ Proprietary molded housing for compatible RAID installations
☑️ Suitable for supported rack, tower and modular server configurations

⚙️ Fit Notes

• Confirm the printed battery part number, connector, molded housing and mounting arrangement before ordering.
• This battery family is intended primarily for PERC 5/E and PERC 6/E external controllers.

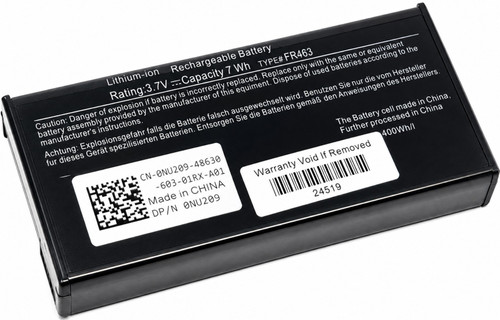

• Do not substitute an internal-controller battery solely because it has the same 3.7V and 7Wh ratings. Internal PERC 5/i and 6/i batteries such as NU209, U8735, FR345, FR463, P9110, XJ547 and UF302 can use different exterior molding or mounting arrangements.
• The battery cable is not included. Cable length and routing vary by controller and chassis.
• Some PERC 5/E assemblies specify cable U9203. Match the original cable part number whenever possible.
• The linked YH927 and RY631 cables should only be used when their connector, pinout and length match the original installation.
• After installation, allow the battery to charge and verify its status through the controller-management utility.
• The controller may temporarily disable write-back caching until the replacement battery completes its initial charge, health verification or learn cycle.
• Shut down the system, disconnect power and follow proper electrostatic-discharge precautions before servicing the controller.
• Recycle the removed lithium-ion battery through an approved battery-recycling facility.
