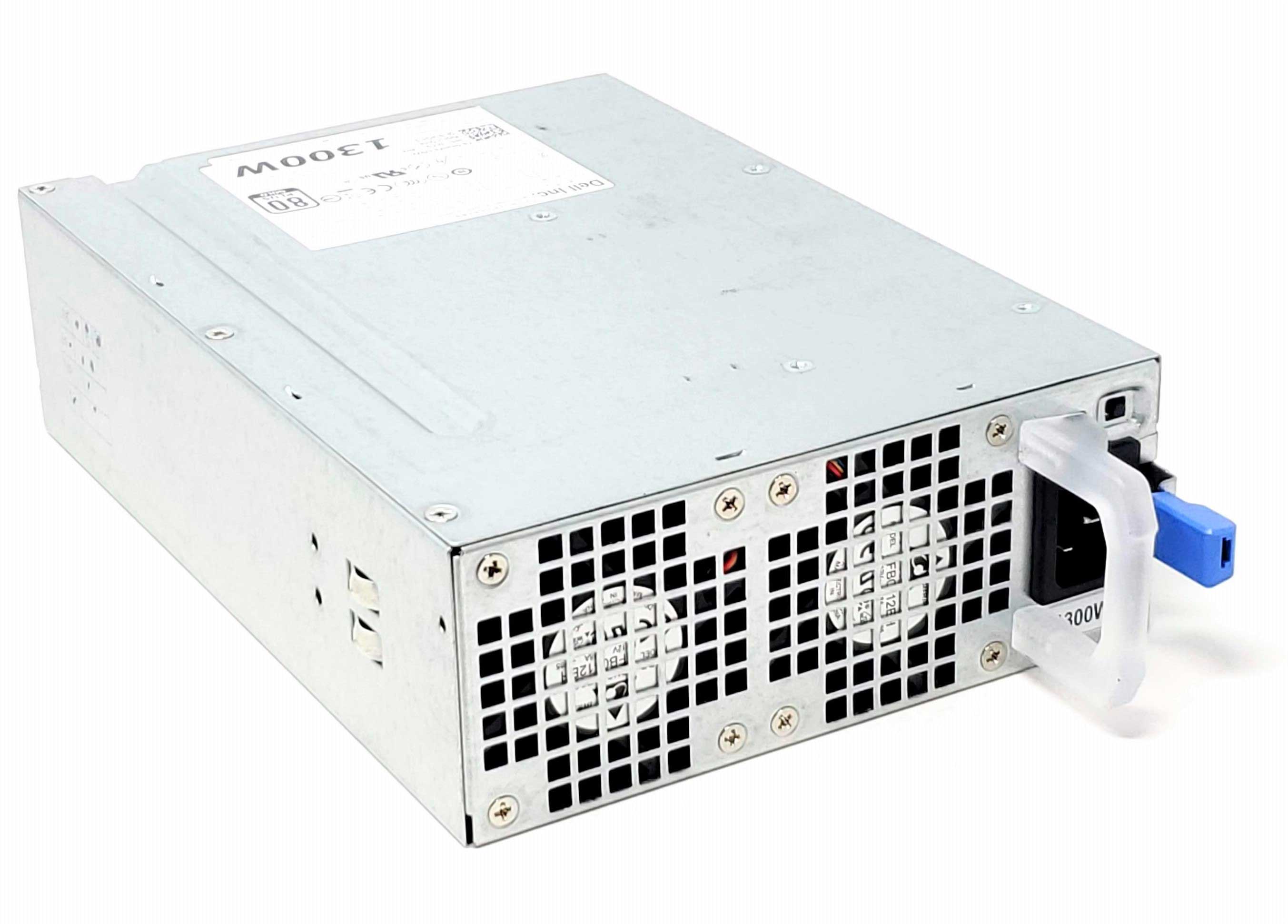

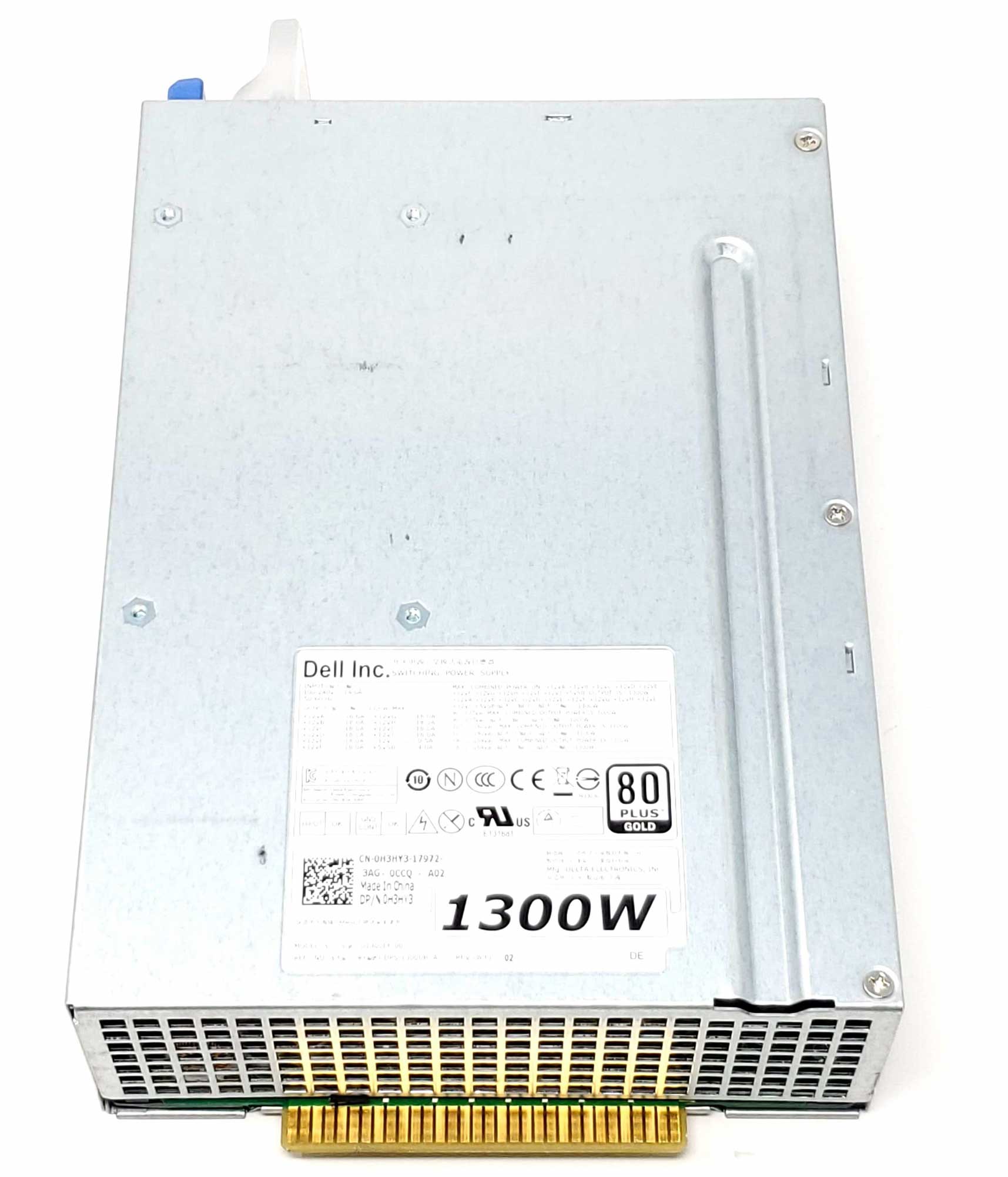

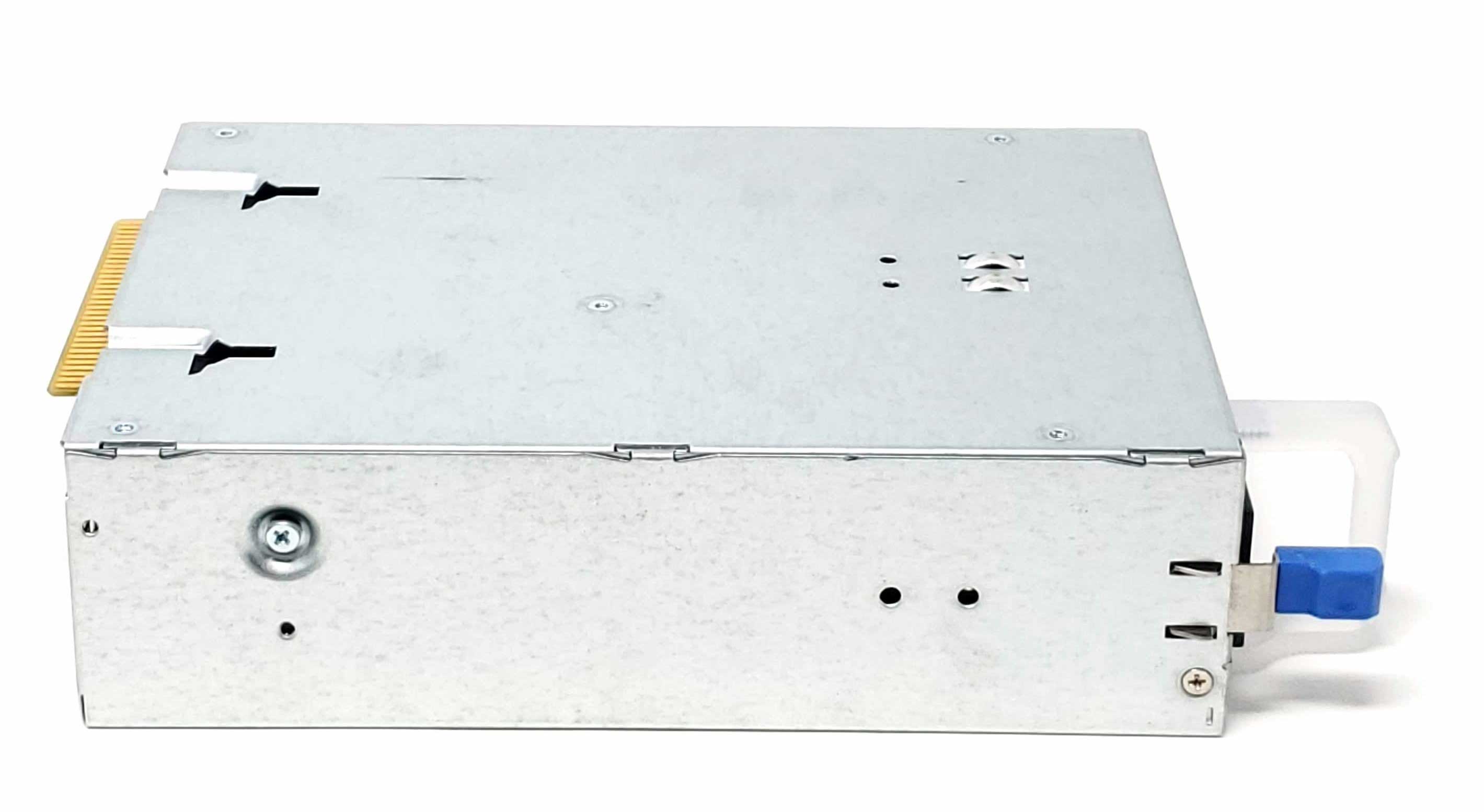

D1300EF-00 D1300EF-01 H1300EF-00 H1300EF-01 1300W Power Supply for Precision T7600

This genuine OEM 1300W power supply is designed for Precision T7600 tower workstations equipped with the matching removable power-supply bay and proprietary rear blade connector.

The D1300EF-00, D1300EF-01, H1300EF-00, H1300EF-01 and associated DPN and manufacturer references listed below are interchangeable within the supported Precision T7600 1300W configuration.

Technical Specifications

• Product Type: Internal workstation power supply
• Form Factor: Proprietary removable hot-plug-style module
• Maximum Output Power: 1300W
• AC Input Voltage: 100–240V AC
• Maximum Input Current: 14A
• Input Frequency: 50–60Hz
• Efficiency Certification: 80 PLUS Gold
• AC Inlet: IEC 60320 C14
• Required Power Cord Connector: IEC 60320 C13 female
• North American Power Cord: NEMA 5-15P to IEC C13

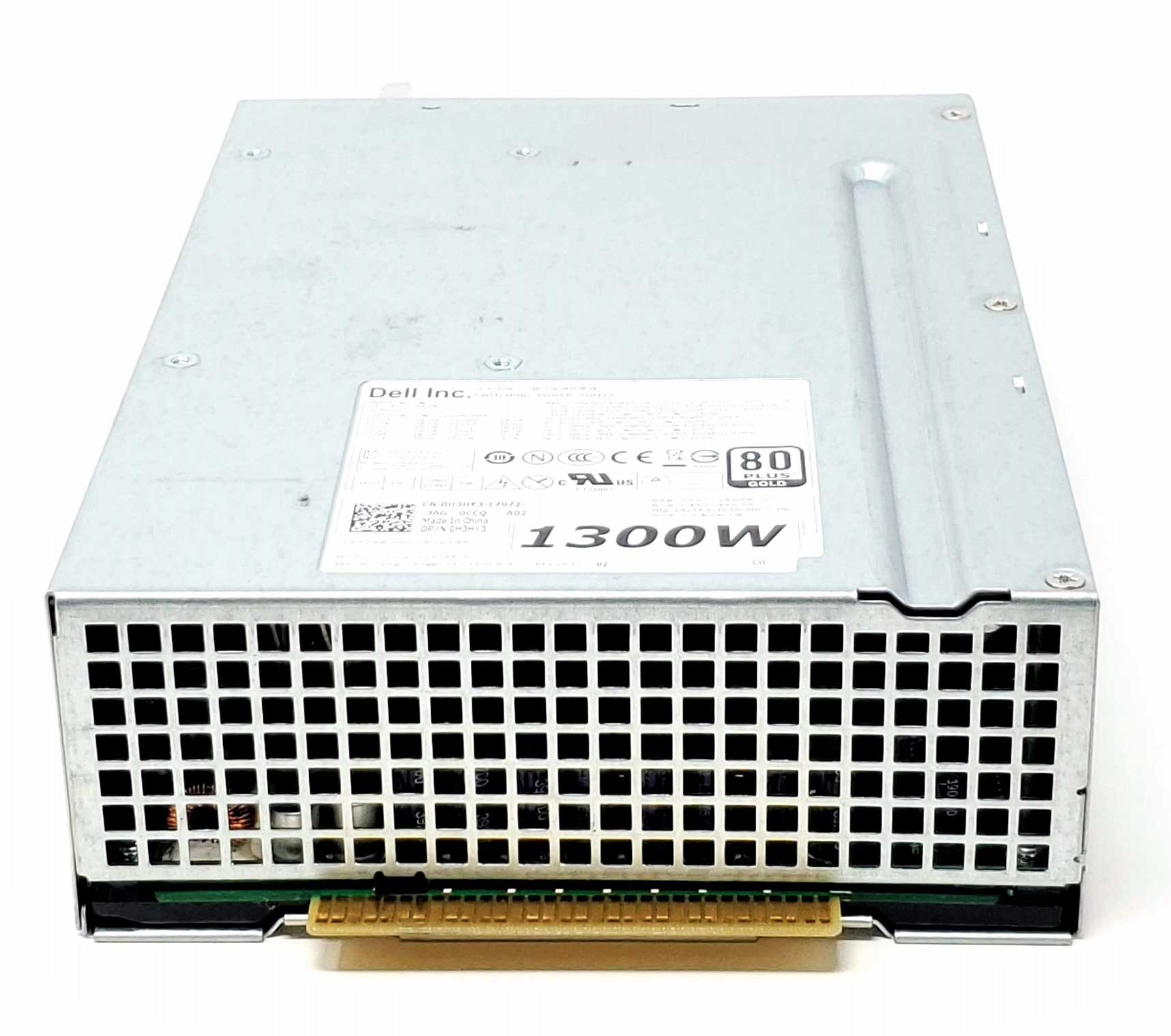

• System-Side Connection: Proprietary gold-plated blade connector
• Cooling: Integrated cooling fans

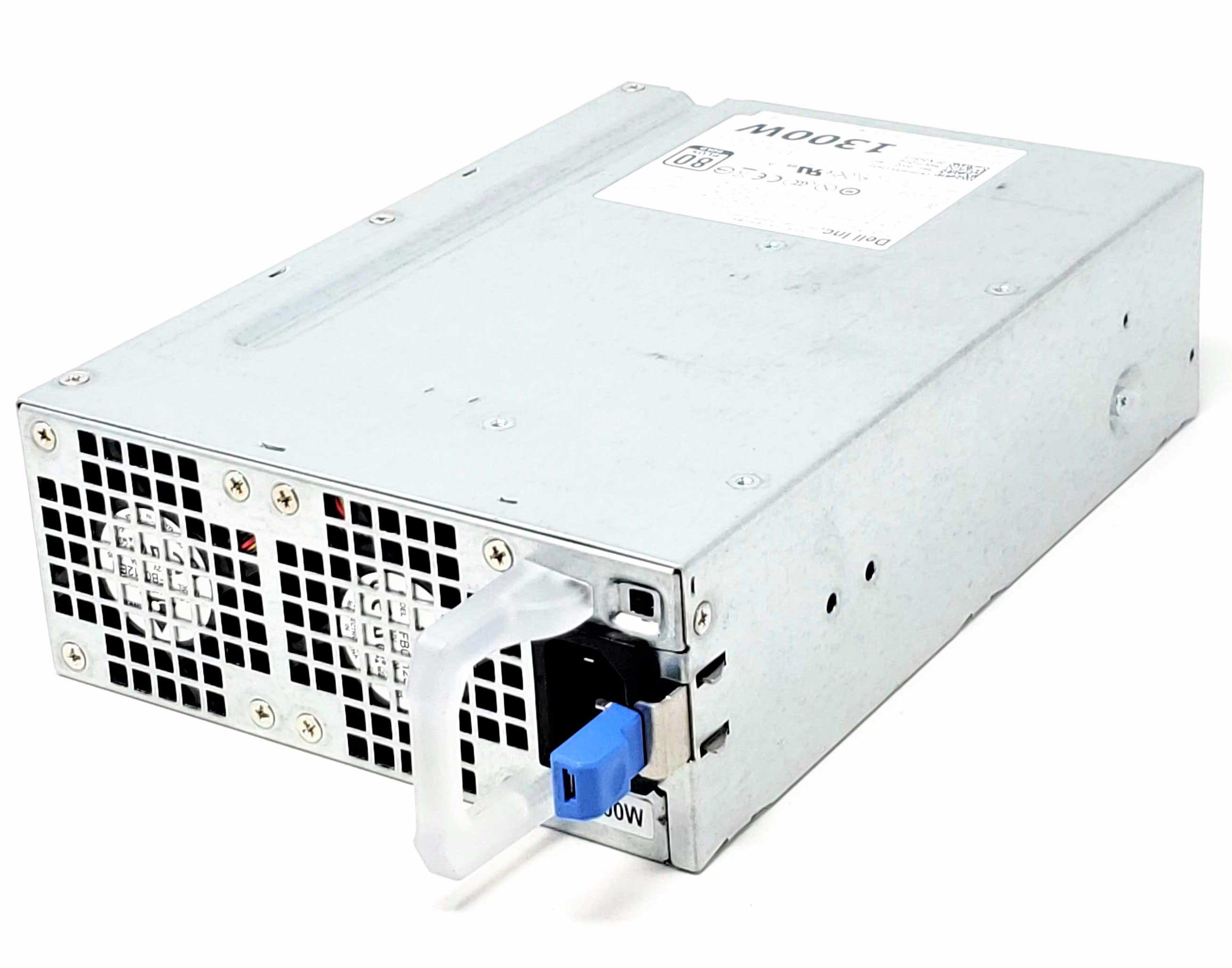

• Removal Mechanism: Tool-free pull handle with locking release latch
• Approximate Dimensions: 160mm × 64mm × 225mm
• Compatible System: Precision T7600
• Power Cord Included: No — available separately
• Warranty: Includes CPU Medics standard 30-day warranty

Interchangeable / Replacement Part Numbers

Confirmed interchangeable references:

D1300EF-00, D1300EF-01, H1300EF-00, H1300EF-01, DPS-1300DB A, DPS-1300EB A, D1K3E001L, D1K3E002L, H3HY3, MF4N5, 6MKJ9, 09JX5

Documented label combinations:

H3HY3 / D1300EF-00 / DPS-1300DB A
MF4N5 / D1300EF-01 / DPS-1300EB A
6MKJ9 / H1300EF-00 / D1K3E001L
09JX5 / H1300EF-01 / D1K3E002L

Extended label and searchable forms:

0H3HY3, 0MF4N5, 06MKJ9, 009JX5, CN-0H3HY3, CN-0MF4N5, CN-06MKJ9, CN-009JX5, D1300EF00, D1300EF01, H1300EF00, H1300EF01, DPS1300DBA, DPS1300EBA

All four documented builds provide the same 1300W function and are interchangeable in the supported Precision T7600 configuration. Available inventory may ship under any of the listed DPN or manufacturer model combinations.

⚠️ Critical Power-Supply Compatibility Notice

This power supply uses a proprietary chassis shape, locking mechanism and system-side blade connector. A similar-looking 1300W power supply should not be selected solely by wattage or by the D1300EF/H1300EF base model family.

Before ordering, confirm:

• The original power supply carries one of the interchangeable references listed above.
• The replacement has the same rear gold-plated blade connector.
• The housing dimensions and guide-rail arrangement match.
• The pull handle and blue release latch match the original module.
• The workstation is configured for the Precision T7600 1300W power-supply assembly.

Later Precision workstation power supplies may have similar housings or related model numbers but different system-side connections.

⭐➕ Compatible AC Power Cord Sold Separately

This power supply has an IEC C14 AC inlet and requires a grounded power cord ending in an IEC C13 female connector.

A compatible North American 13A 125V replacement cord is available separately:

9350889 13A 125V NEMA 5-15P to IEC C13 Power Cord

The power cord is sold separately and is not included with the power supply unless explicitly stated in the product options or package contents.

✅ Confirmed Compatibility

✔️ Precision T7600 Tower Workstation configurations originally equipped with the matching 1300W removable power-supply module
✔️ Systems originally using DPN H3HY3, MF4N5, 6MKJ9 or 09JX5
✔️ Systems originally using D1300EF-00, D1300EF-01, H1300EF-00 or H1300EF-01
✔️ Systems originally using DPS-1300DB A, DPS-1300EB A, D1K3E001L or D1K3E002L

☑️ Key Features

☑️ Genuine OEM 1300W Precision workstation power supply
☑️ All listed DPN and manufacturer references are interchangeable
☑️ 80 PLUS Gold efficiency certification
☑️ Wide-range 100–240V AC input
☑️ Standard IEC C14 AC inlet
☑️ Proprietary Precision T7600 rear blade connection
☑️ Tool-free pull handle and locking release latch
☑️ Integrated cooling fans
☑️ Compatible IEC C13 replacement power cord linked above
☑️ Cleaned and fully tested before shipment
☑️ Includes CPU Medics standard 30-day warranty

⚙️ Fit Notes

• Stock may ship under any of the interchangeable part-number combinations listed on this page.
• Compare the complete original label whenever possible, including the DPN and manufacturer model number.
• This module connects directly to the workstation’s internal power-distribution assembly and does not use a conventional desktop ATX wiring harness.
• The required IEC C13 AC power cord is sold separately.
• Use a properly rated grounded power cord and wall outlet.
• The 1300W specification is the power supply’s maximum output capacity, not its constant electrical consumption.
• Power down the workstation, disconnect the AC cord and allow stored power to discharge before removing or installing the module.
• Inspect the system-side blade connector and chassis power-distribution connector for heat damage, bent contacts or contamination before installation.
• Do not assume that a similar 1300W module intended for a later Precision model is interchangeable without confirming the exact rear connector and complete part-number family.
