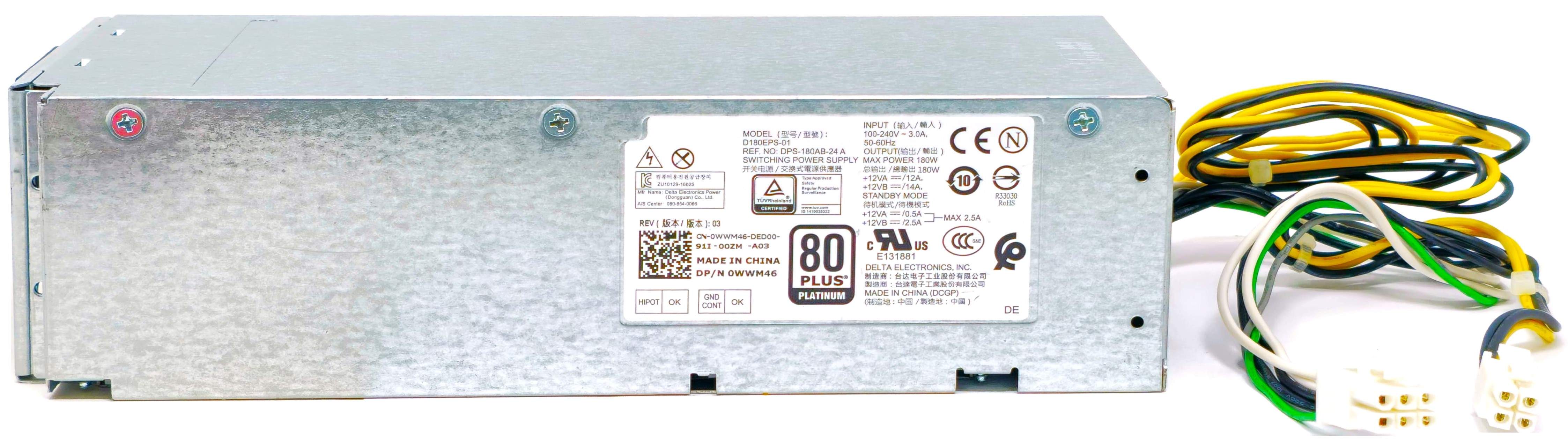

This 180W internal power supply is designed for select OptiPlex, Inspiron, Vostro, and Precision Small Form Factor systems. It features one proprietary 6-pin system power connector and one 4-pin processor power connector. This power supply is Grade A, professionally cleaned, and fully tested for proper operation.
Part Type: Internal Desktop Power Supply
Maximum Output Power: 180W
Efficiency Rating: 80 Plus Platinum
Form Factor: Small Form Factor
Dimensions: 82mm × 62mm × 219mm

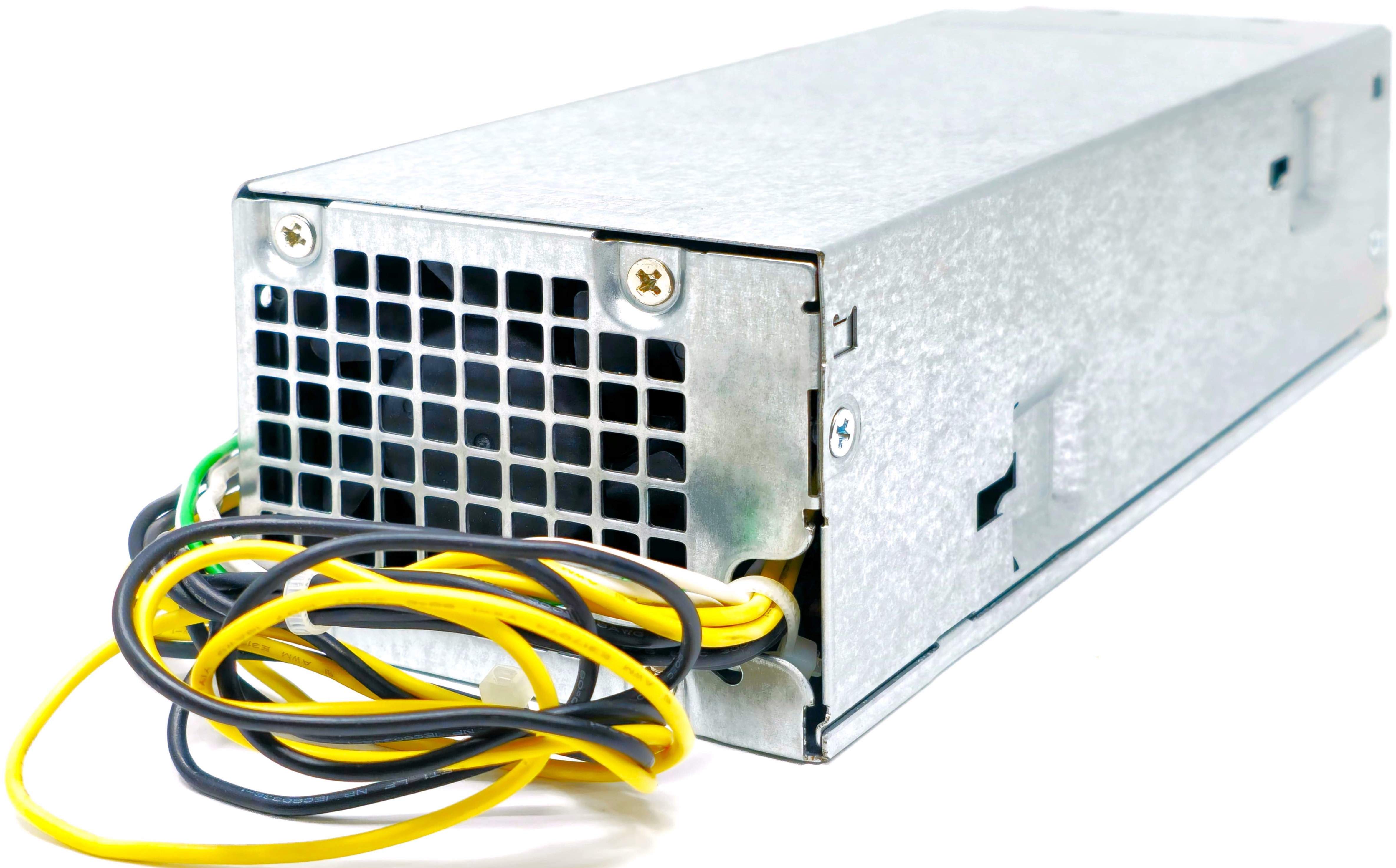

Cooling: Integrated Cooling Fan
AC Input: 100–240V AC, 3.0A
Input Frequency: 50–60Hz

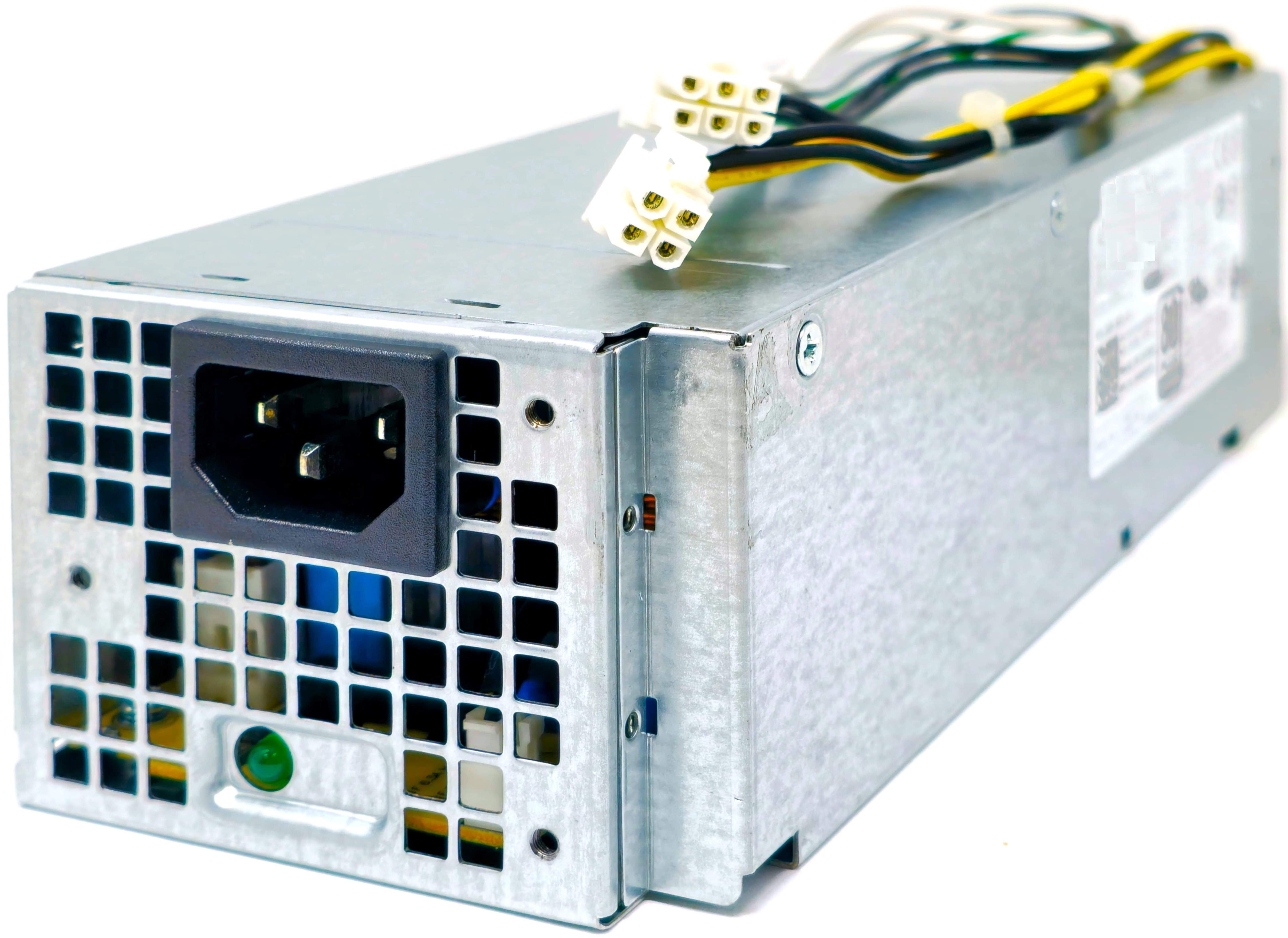

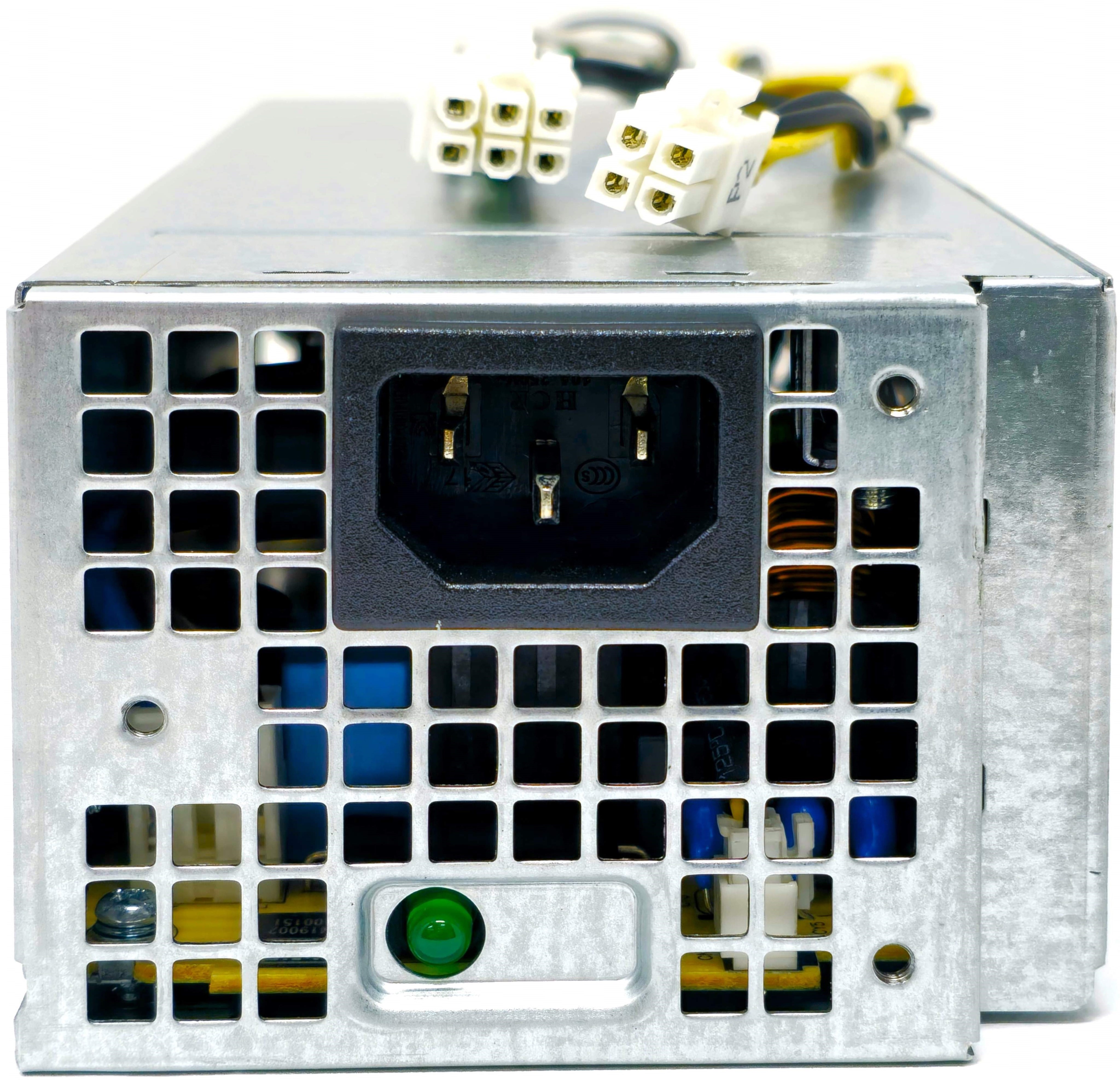

AC Power Receptacle: IEC C14
Required AC Power Cord: NEMA 5-15P to IEC C13
Condition: Grade A
Testing Status: Cleaned and Fully Tested
Warranty: CPU Medics 30-Day Limited Warranty
+12VA: 12A
+12VB: 14A
Maximum Combined Output: 180W

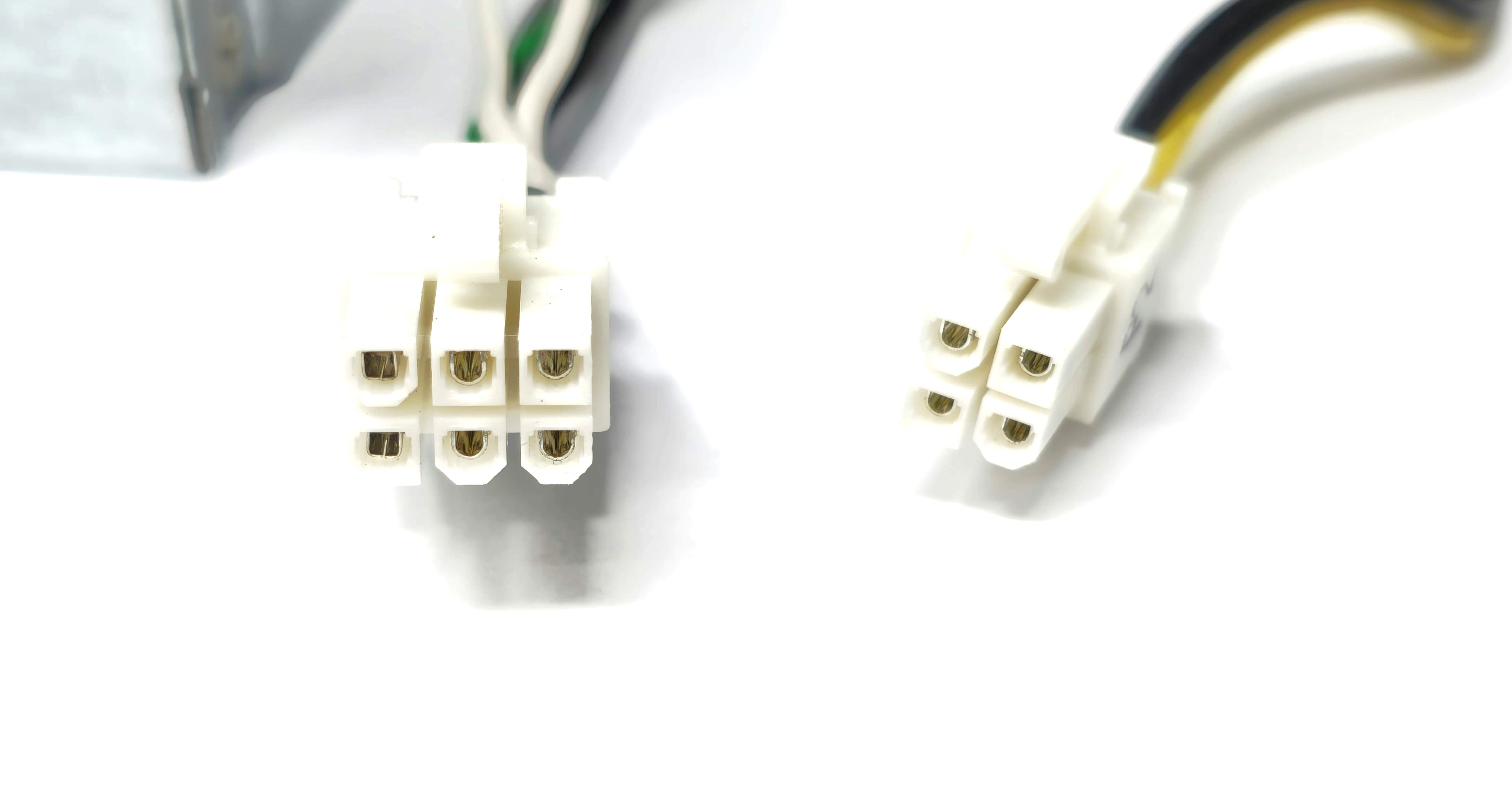

System Power Connector: (1) 6-Pin Connector
Processor Power Connector: (1) 4-Pin Connector
Total Attached Power Connectors: Two
1TG7T, 2GXHK, 66P44, 82DRM, AC180AS-01, AC180ES-01, B180AS-02, D180A006L, D180E006L, D180EPS-01, DE-ZD181WGF, DN9CD, DP3DV, DPS-180AB-24 A, H180AS-02, H180ES-00, HK280-81FP, HK280-81PP, HU180AS-01, HU180ES-01, HU180NS-00, L180AS-02, L180EPS-01, L180ES-01, MR5J6, MVDJR, N8D59, PA-2181-1DB, PCF006, PCF007, TDFTP, WWM46, YR0FT
This power supply requires a standard NEMA 5-15P to IEC C13 AC power cord. The AC power cord is not included with this listing and is available separately:
5120P / 05120P – 6FT 125V 5-15P to C13 AC Power Cord
Compatibility requires the correct Small Form Factor chassis, 82mm × 62mm × 219mm power-supply dimensions, one 6-pin system power connector, and one 4-pin processor power connector.
✔️ OptiPlex Small Form Factor: 3040 SFF, 3050 SFF, 3060 SFF, 5040 SFF, 5050 SFF, 7040 SFF, 7050 SFF
✔️ Inspiron: Inspiron 3268, Inspiron 3668
✔️ Vostro: Vostro 3267, Vostro 3268, Vostro 3660, Vostro 3667, Vostro 3668, Vostro 3669
✔️ Precision Small Form Factor: Precision 3420 SFF
☑️ 180W maximum output power
☑️ 80 Plus Platinum efficiency rating
☑️ Universal 100–240V AC input support
☑️ Proprietary 6-pin system power connector
☑️ Dedicated 4-pin processor power connector
☑️ Compact Small Form Factor design
☑️ Grade A, professionally cleaned, and fully tested
☑️ Includes CPU Medics 30-Day Limited Warranty
✓ Verify the original power supply’s part number before ordering whenever possible.
✓ This power supply uses one 6-pin system power connector and one 4-pin processor power connector. It does not use a standard 24-pin ATX motherboard connector.
✓ The replacement must match the original unit’s 82mm × 62mm × 219mm dimensions, mounting points, connector configuration, and rear AC receptacle position.
✓ Compatibility applies to the appropriate Small Form Factor configurations unless the original power-supply part number matches one listed above.
✓ Do not order solely by wattage or system series. Systems within the same product family may use different power supplies depending on chassis size and configuration.
✓ This listing includes the power supply only. The C13 AC power cord and all other accessories are sold separately.
