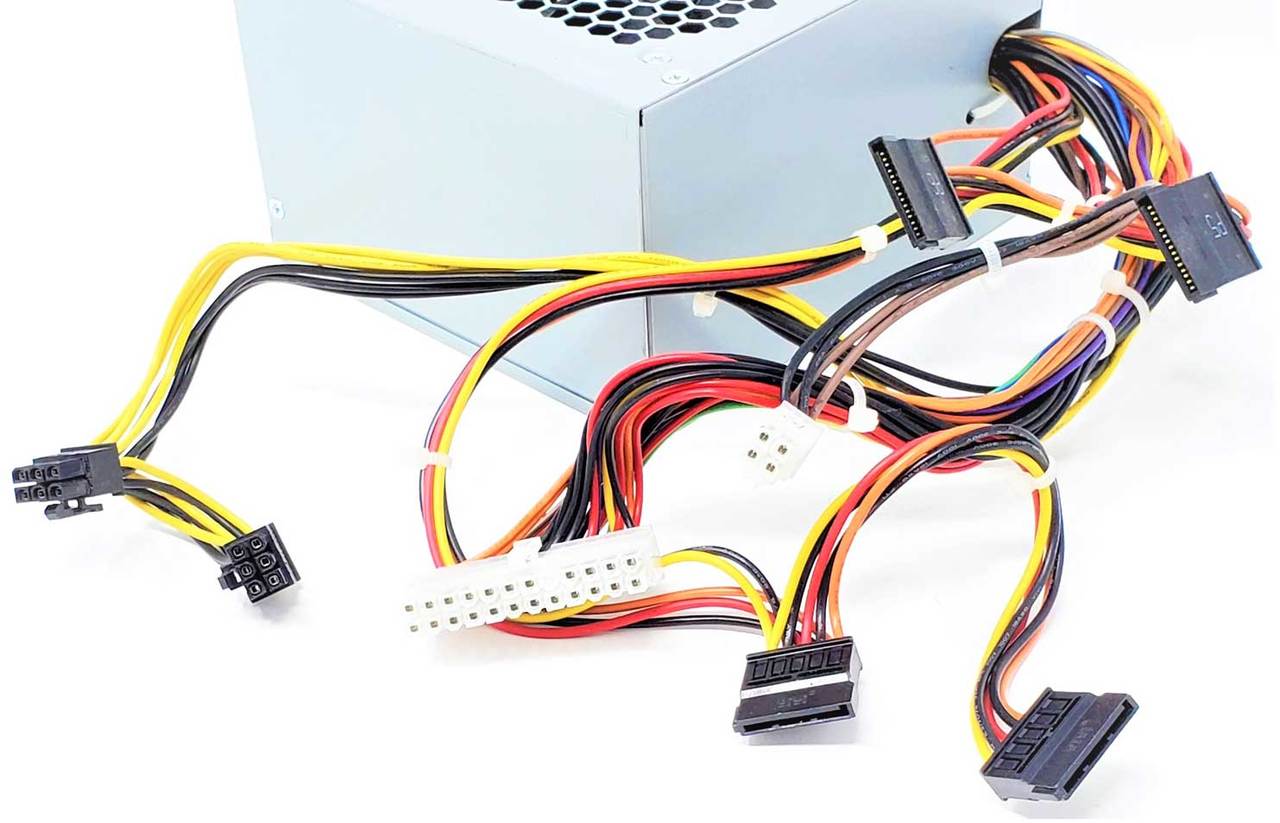

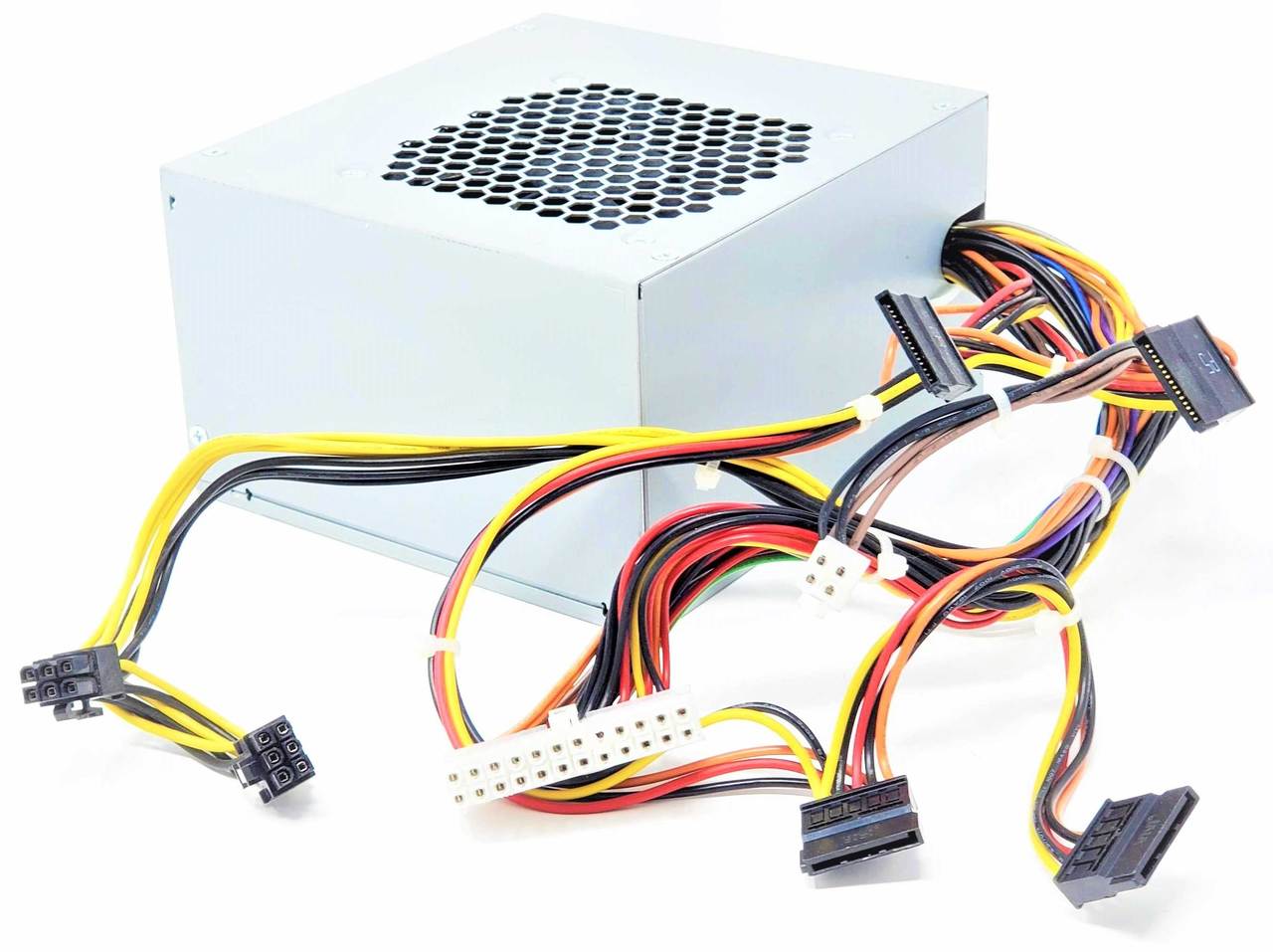

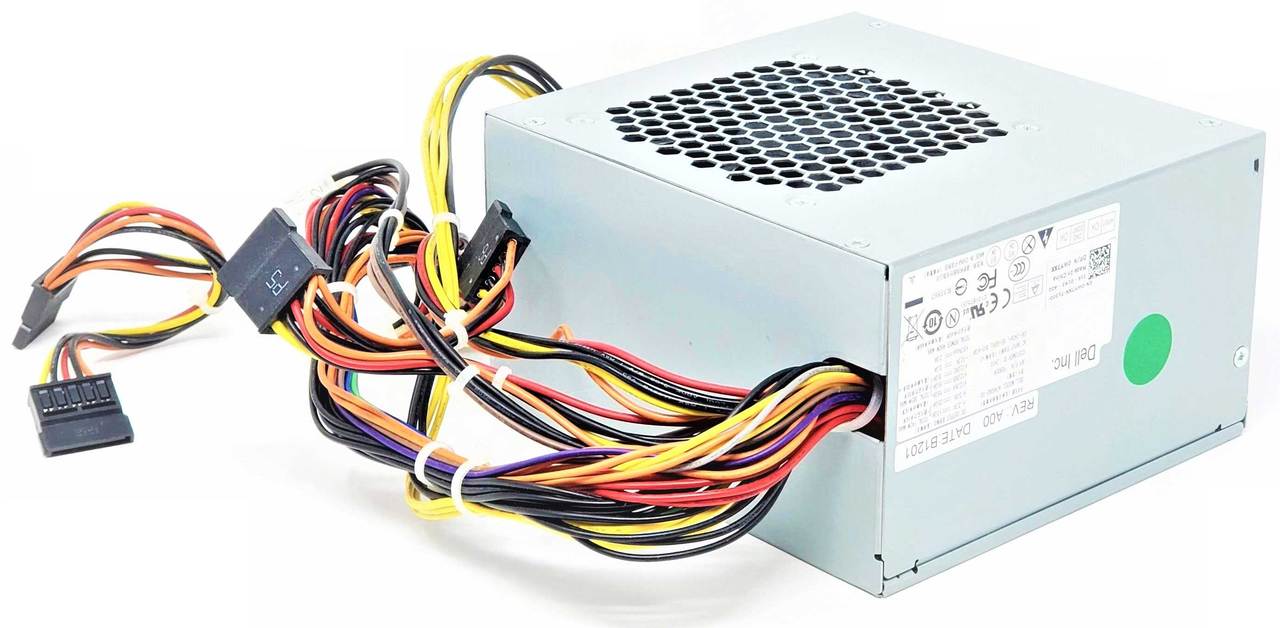

460W internal ATX-style desktop power supply for compatible Studio XPS, XPS, and Inspiron mini tower systems. This non-modular PSU includes a 24-pin ATX motherboard connector, 4-pin CPU power connector, one 6-pin PCIe connector, one 6+2-pin PCIe connector, and four SATA power connectors. This page covers the earlier cable-set version and does not apply to D460AM-03 units requiring an extended CPU cable and Micro SATA optical-drive connector.
Input-current and auxiliary-output markings may vary slightly among the interchangeable manufacturers and revisions. Maximum output remains 460W.
1XMMV, 2Y8X1, 6GXM0, 7P3WV, 7YC7C, 82WHM, 8FC6W, AC460AD-00, AC460AD-01, AC460AM-00, AC460EM-00, D460AD-00, D460AM-01, D460AM-02-Rev:04, DGX9R, DPS-460DB-10A, DPS-460DB-4B, DPS-460DB-7A, FVGCW, H460AD-00, H460AD-01, HK560-11FP, HK560-16FP, HK560-18FP, HMCPC, HU460AD-01, HU460AM-00, PC8030, PC9004, PCB021, PCB030, RH8P5, WY7XX

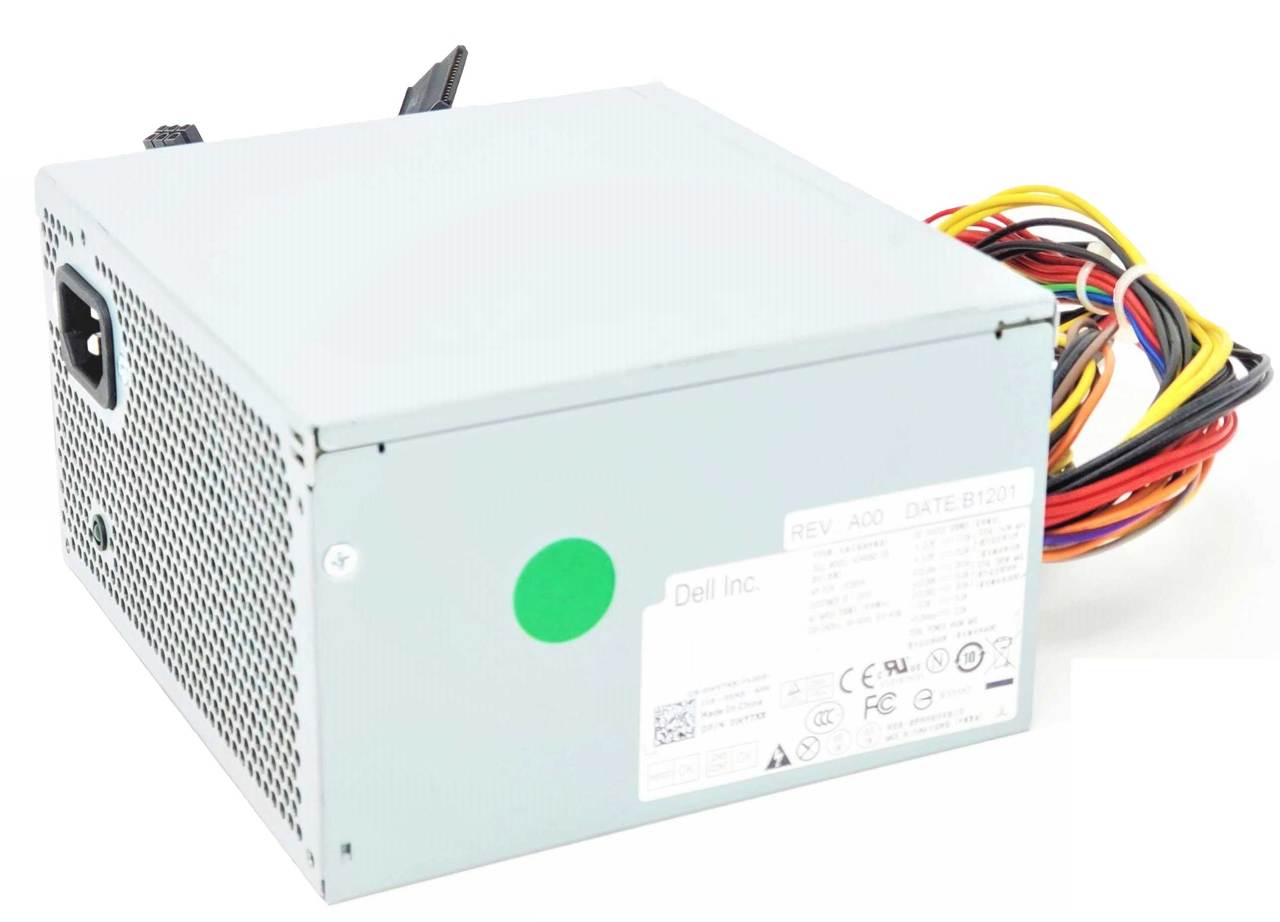

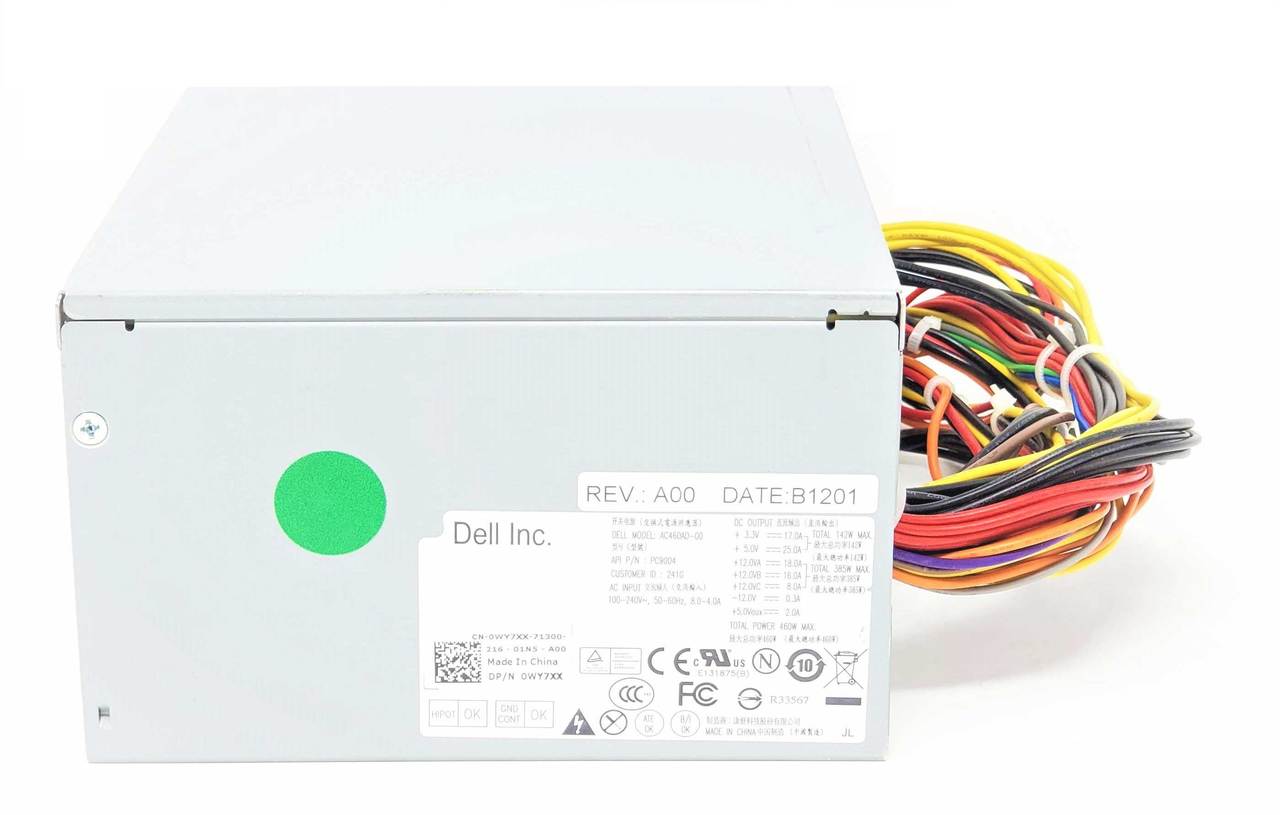

Manufacturer, label design, wire colors, and minor electrical markings may vary. These part numbers identify compatible 460W units using the earlier fixed cable configuration described above.
This power supply has a standard IEC C14 AC inlet. Add the cable below if the original AC power cord is missing, damaged, or not included.
⭐ 5120P - 6FT 125V NEMA 5-15P to IEC C13 Power Cord - Grounded North American AC power cable for connecting the power supply to a standard wall outlet. Sold separately.
This power supply is not the D460AM-03 version. Although D460AM-03 has the same 460W maximum output and similar ATX enclosure, it uses a different attached cable set that includes:
Select the alternate version when replacing D460AM-03 or when the system requires the extended CPU lead and Micro SATA optical-drive connector, particularly in select XPS 8910, 8920, and 8930 configurations.
⭐ D460AM-03 - 460W Power Supply with Micro SATA 6+2-Pin PCIe and Extended 12V Cable - Sold separately.
Please note that the following list is not exhaustive. Compatibility depends on the system’s specific configuration. Verify the original power-supply part number, 460W rating, 150mm x 86mm x 140mm enclosure, mounting points, connector layout, cable lengths, and drive-power requirements before installation.
✔️ Studio XPS Desktop: Studio XPS 7100 configurations requiring the listed 460W power-supply family
✔️ XPS Desktop: XPS 8300, XPS 8500, XPS 8700, XPS 8900 configurations requiring the earlier fixed cable set
✔️ Inspiron Mini Tower Application: Inspiron 560 Mini Tower configurations using standard ATX mounting, a 24-pin motherboard connector, 4-pin CPU connector, and matching drive and graphics-power requirements
☑️ 460W replacement power supply for compatible desktop tower systems
☑️ Standard 150mm x 86mm x 140mm ATX-style enclosure
☑️ 24-pin ATX motherboard and 4-pin CPU power connectors
☑️ Includes one 6-pin and one 6+2-pin PCIe graphics-power connector
☑️ Four SATA power connectors for compatible hard drives SSDs and optical drives
☑️ Non-modular design with all required output cables permanently attached
☑️ Wide-range 100-240V AC input

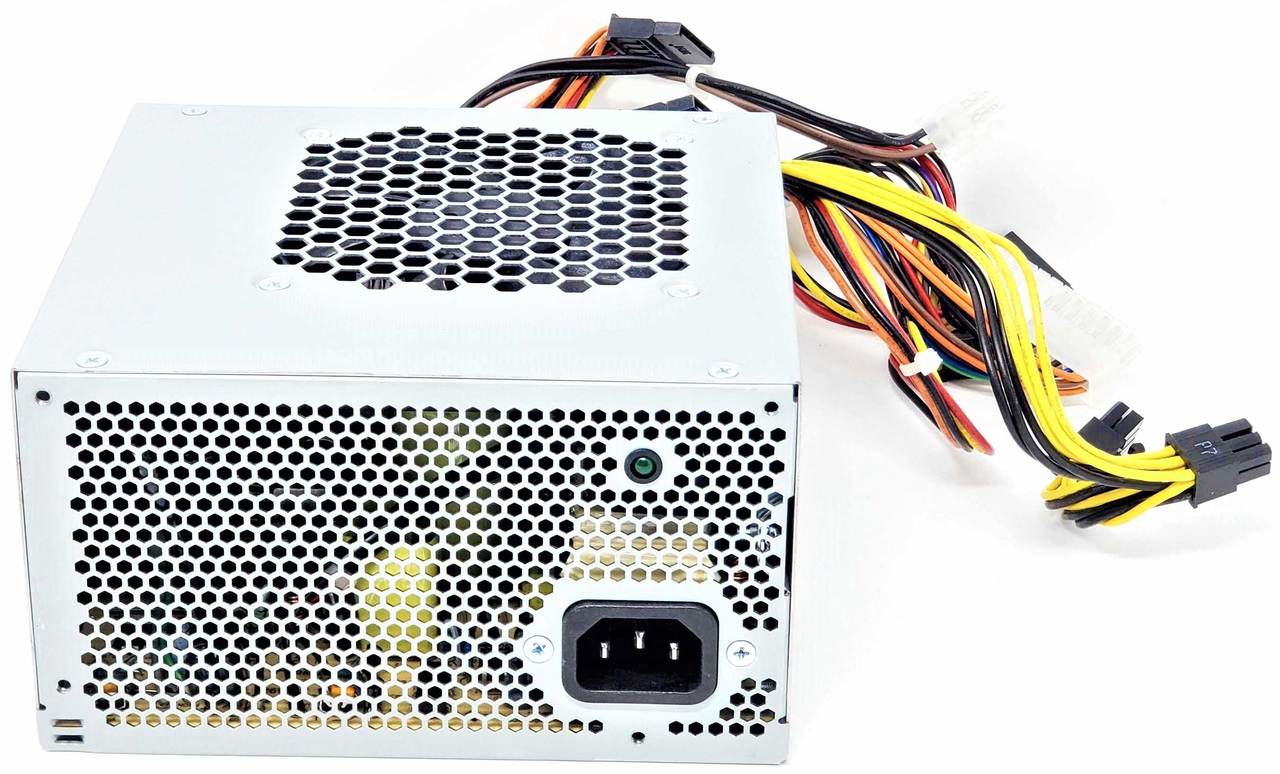

☑️ Rear self-test button and power-supply status indicator

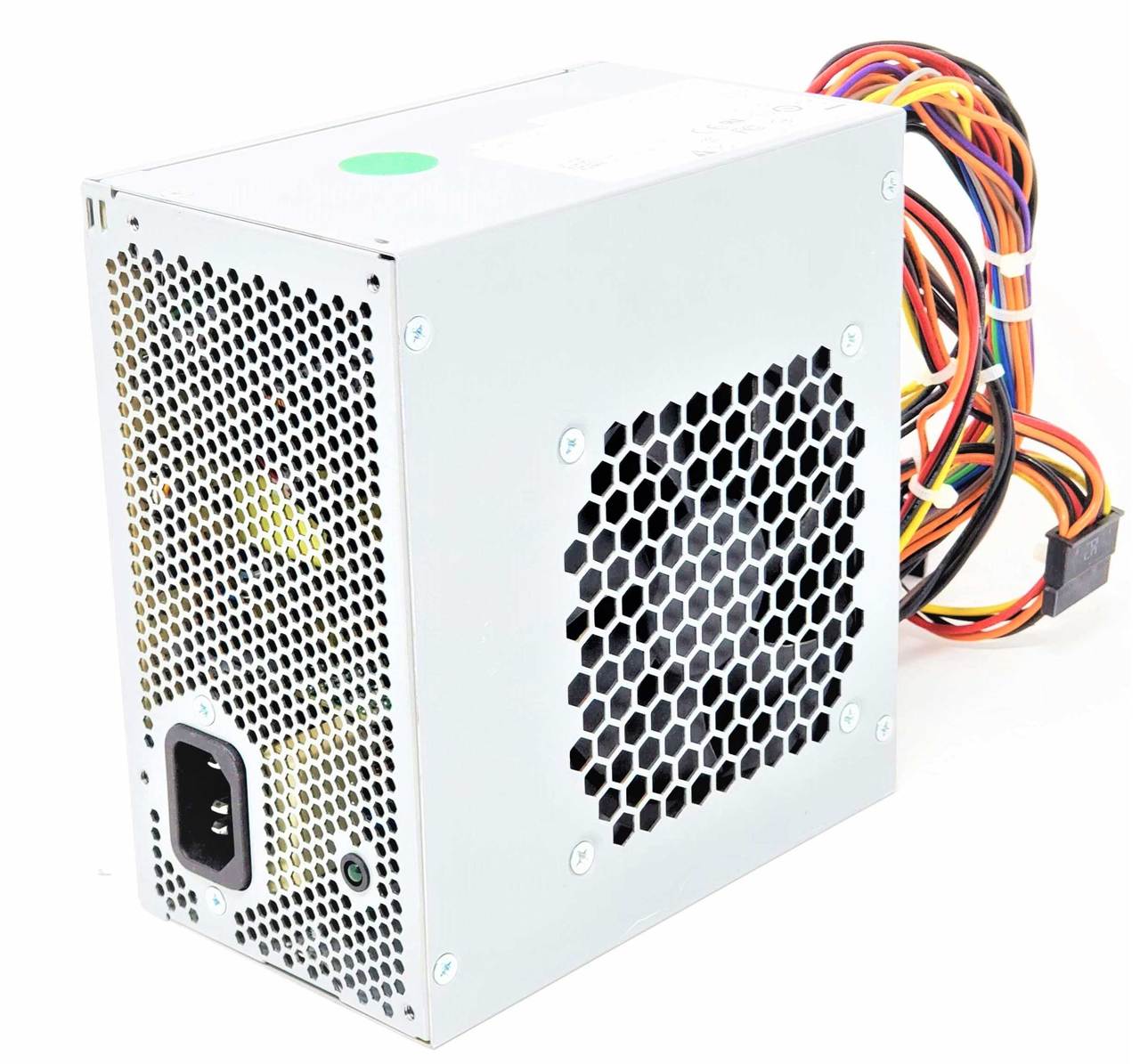

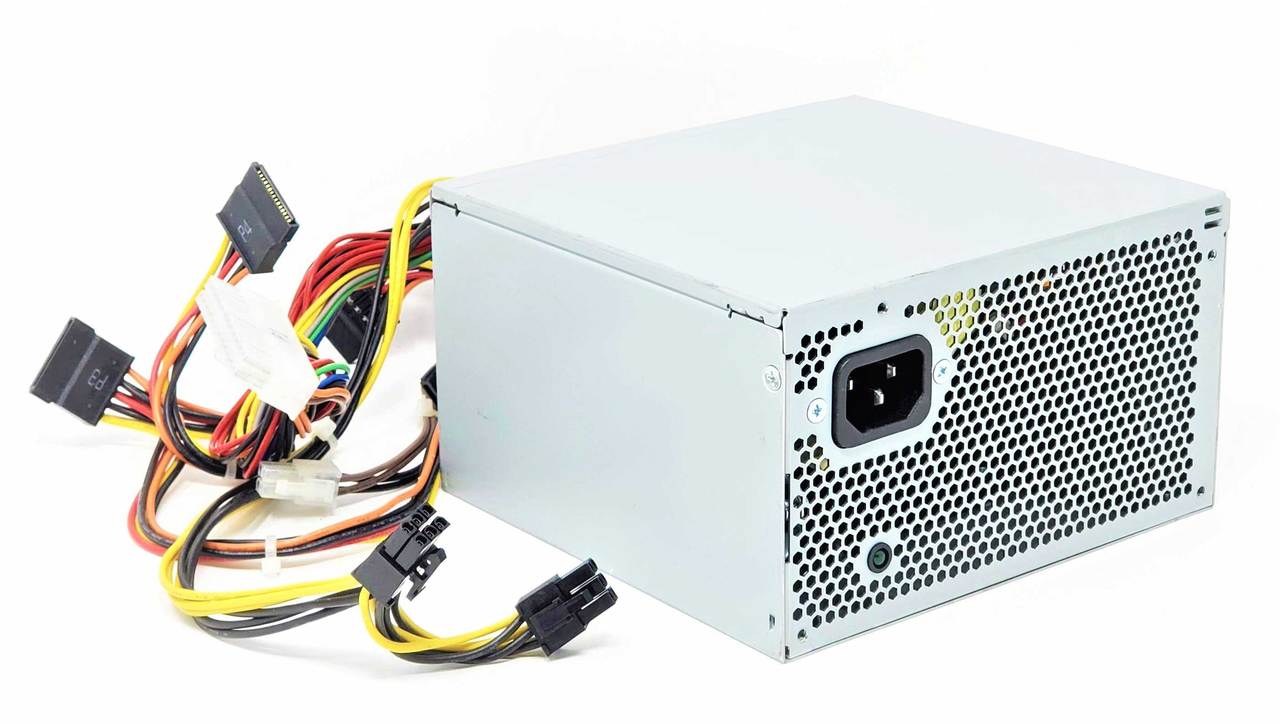

☑️ Standard IEC C14 inlet accepts a compatible IEC C13 power cord
☑️ Direct-fit replacement when the original part number and complete cable layout match
✓ Match the original part number whenever possible and compare the complete cable configuration before ordering.
✓ This version requires a 24-pin ATX motherboard connector, 4-pin CPU connector, one 6-pin PCIe connector, one 6+2-pin PCIe connector, and four SATA connectors.
✓ This is not D460AM-03. It does not include a Micro SATA optical connector or the later extended 4-pin CPU cable. Use the linked alternate version when those features are required.
✓ Confirm that the 460W maximum output and available PCIe connectors satisfy the graphics card’s requirements. Do not add the individual +12V rail ratings together.
✓ This cable set provides four SATA power connectors and does not include a legacy 4-pin Molex or Micro SATA connector.
✓ Input-current, standby-output, wire-color, and label markings can vary among interchangeable manufacturers and revisions.
✓ The AC power cord is not included unless shown. A compatible IEC C13 power cord is available separately above.
✓ Disconnect the AC power cord, press the system power button to discharge residual power, and follow the system service procedure before replacing the PSU.
