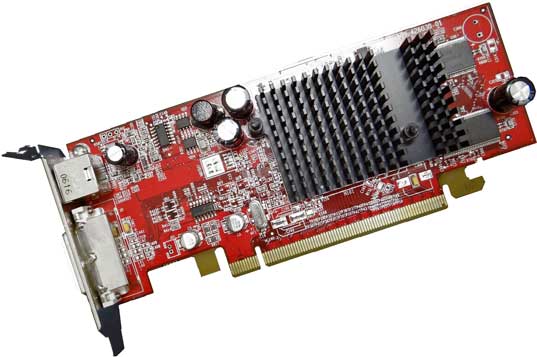

128MB ATI Radeon X600 PCIe x16 Low Profile Graphics Card DVI TV-Out
128MB ATI Radeon X600 video / graphics card designed for small form factor systems using a low-profile (half-height) bracket. Provides DVI output plus TV-Out (S-Video) for legacy display compatibility.
Technical Specifications
- GPU: ATI Radeon X600
- Memory: 128MB DDR
- Interface: PCI Express x16
- Form factor: Low Profile / Half-Height (SFF)
- Cooling: Passive heatsink (fanless) design (varies by revision)
- Included bracket: Low-profile bracket (verify what your system requires)
- Outputs:
- (1) DVI-I
- (1) S-Video (TV-Out)
Interchangeable / Replacement Part Numbers
J9133, 0J9133, 0CD453, 102A2605502, 102A2604400, 109-A26030-01, E-G012-05-1638(B)
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔️ OptiPlex GX280 Series: GX280 (Small Form Factor)
✔️ OptiPlex GX620 Series: GX620 (Small Form Factor)
✔️ Dimension 5150C Series: 5150C (Small Desktop)
☑️ Key Features
- Low-profile (half-height) card ideal for small form factor desktops
- DVI output for digital displays (DVI-I supports adapter use where applicable)
- S-Video TV-Out for legacy TV/display setups
- PCIe x16 interface for compatible desktop motherboards
⚙️ Fit Notes
- This is a low-profile PCIe x16 card—confirm your system has a PCIe x16 slot and supports low-profile brackets.
- Confirm the rear I/O matches your needs: DVI-I + S-Video (TV-Out).
- Part numbers may vary by label (ex: J9133 / 0J9133 / 0CD453) while remaining the same core card family—match form factor + ports if your label differs.
- If you’re re-seating the heatsink during service, refresh thermal interface material using Shin-Etsu G751.
