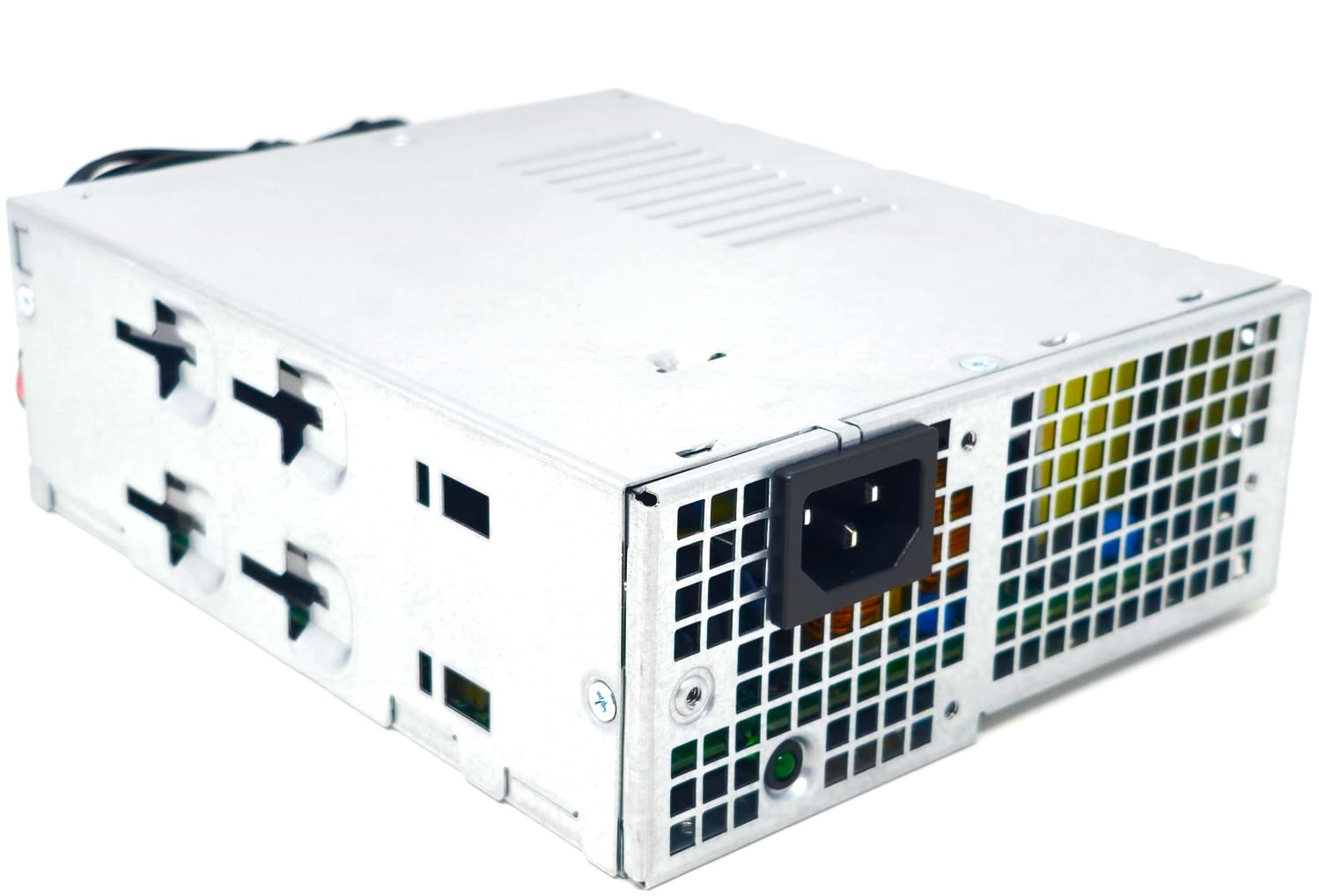

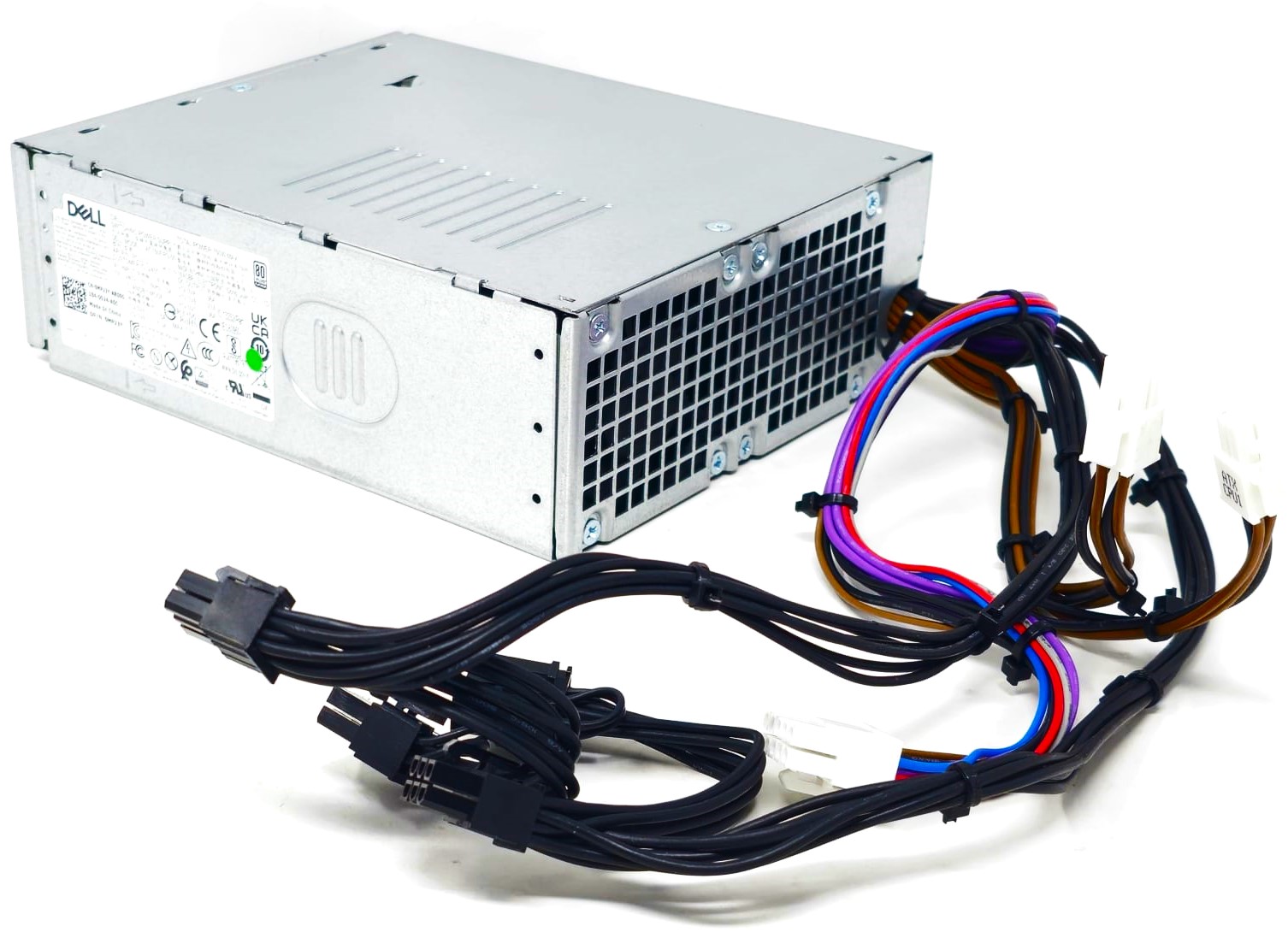

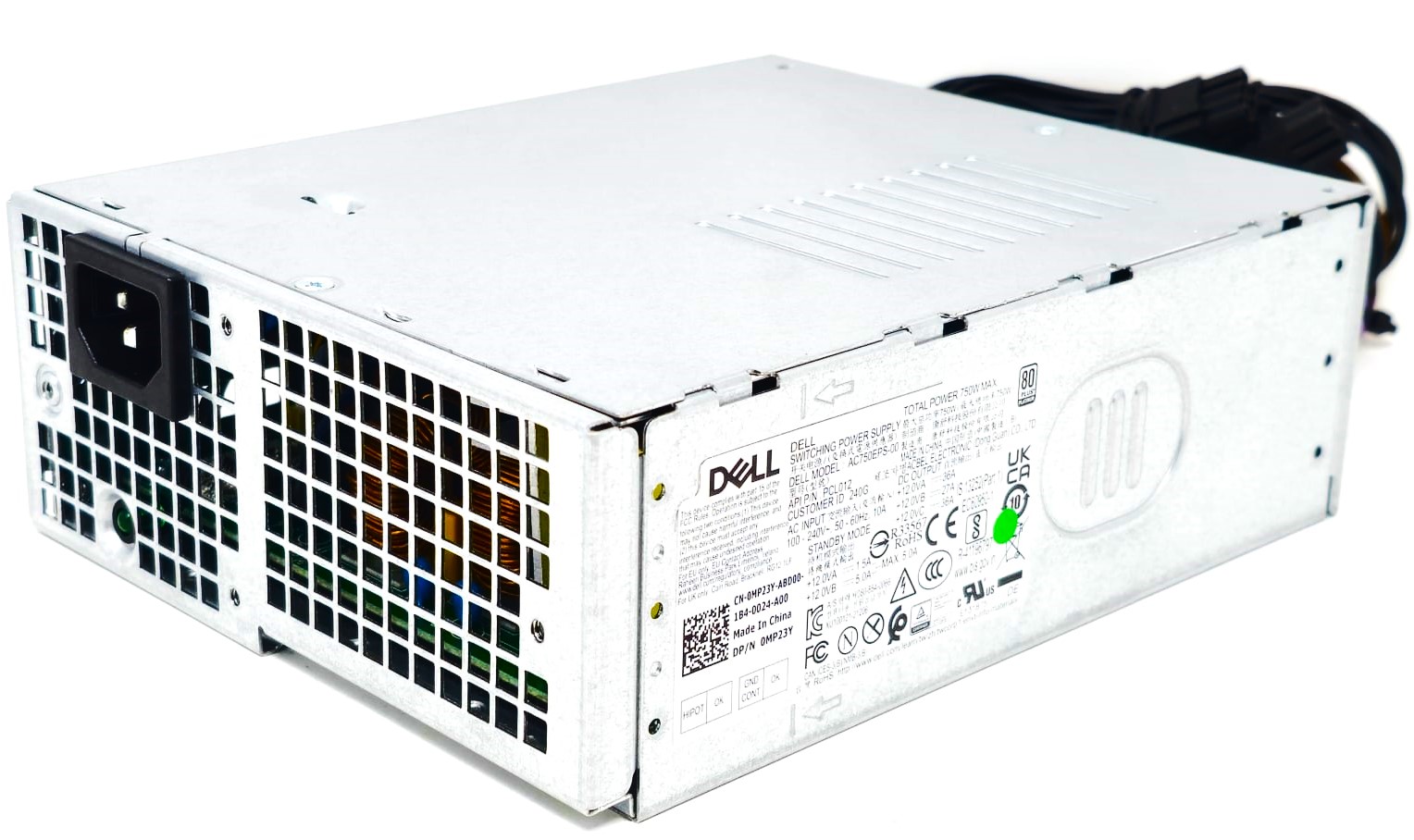

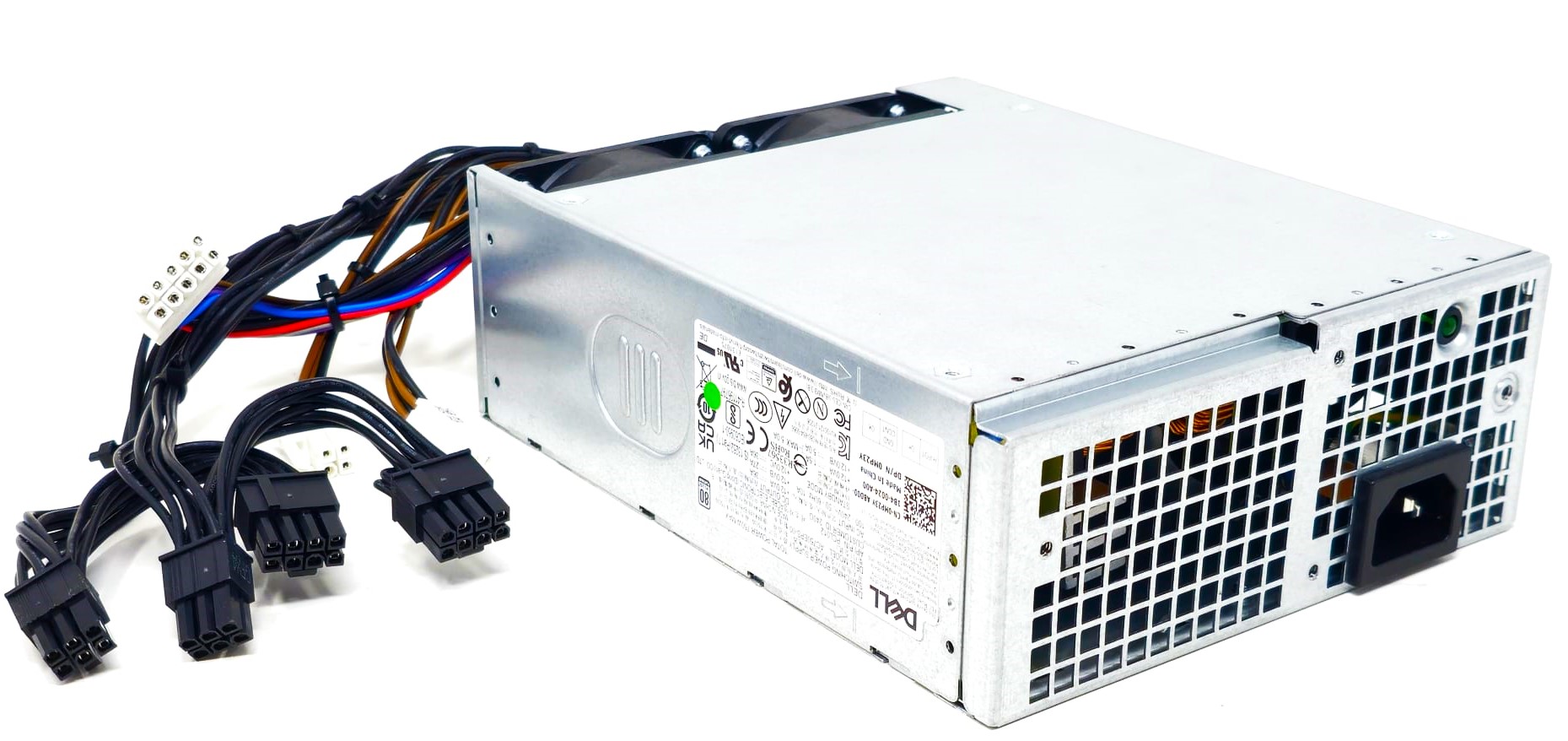

750W 80 PLUS Platinum internal power supply for compatible Alienware Aurora gaming desktops, Precision tower workstations, and XPS desktop systems. This slim proprietary PSU uses a 10-pin system-board connector, two 4-pin processor connectors, and two graphics-power harnesses providing two 6+2-pin and two 6-pin PCIe connectors. It is designed for matching systems that require the same wattage, dimensions, mounting points, and connector layout.
5TVR6, PA-3751-6DA, H750EPS-00, M2G8X, D750E011P, PCL012, D750E013P, NW4C3, MP23Y, FT44X, M92DC, L750EPS-00, PA-3751-61DA, AC750EPS-00
This power supply uses a standard IEC C14 AC inlet. Add the cable below if your original power cord is missing, damaged, or not included with the replacement PSU.
⭐ 121565-001 - 6 FT IEC C13 Power Cable - North American NEMA 5-15P grounded wall plug to IEC C13 female equipment connector. Sold separately.
Please note that the following list is not exhaustive. Compatibility depends on the system’s specific configuration. Verify the original power supply part number, 750W rating, 10-pin system-board connector, CPU and graphics connector layout, dimensions, and mounting points prior to installation.
✔️ Alienware Aurora Models: Alienware Aurora R13 750W configurations, Alienware Aurora Ryzen Edition R14 750W configurations
✔️ Alienware Aurora R15 Models: Alienware Aurora R15 Intel and Alienware Aurora R15 AMD configurations using the 750W SFFX Platinum PSU with a 10-pin system-board connector
✔️ Precision 3660 Tower Workstations: Precision 3660 Tower / T3660 and Precision 3660XE Tower 750W configurations
✔️ Precision 5860 Tower Workstations: Precision 5860 Tower and Precision 5860XL Tower configurations using the 750W PSU with a 10-pin system-board connector
✔️ XPS Desktop Models: XPS 8950 750W configurations
✔️ XPS 8960 Desktop: Configurations originally equipped with one of the listed 750W part numbers and the same 10-pin system-board and graphics-power connector layout
☑️ 750W maximum output for compatible gaming desktops and tower workstations
☑️ 80 PLUS Platinum efficiency rating
☑️ Proprietary 10-pin system-board power connector
☑️ Two 4-pin processor power connectors

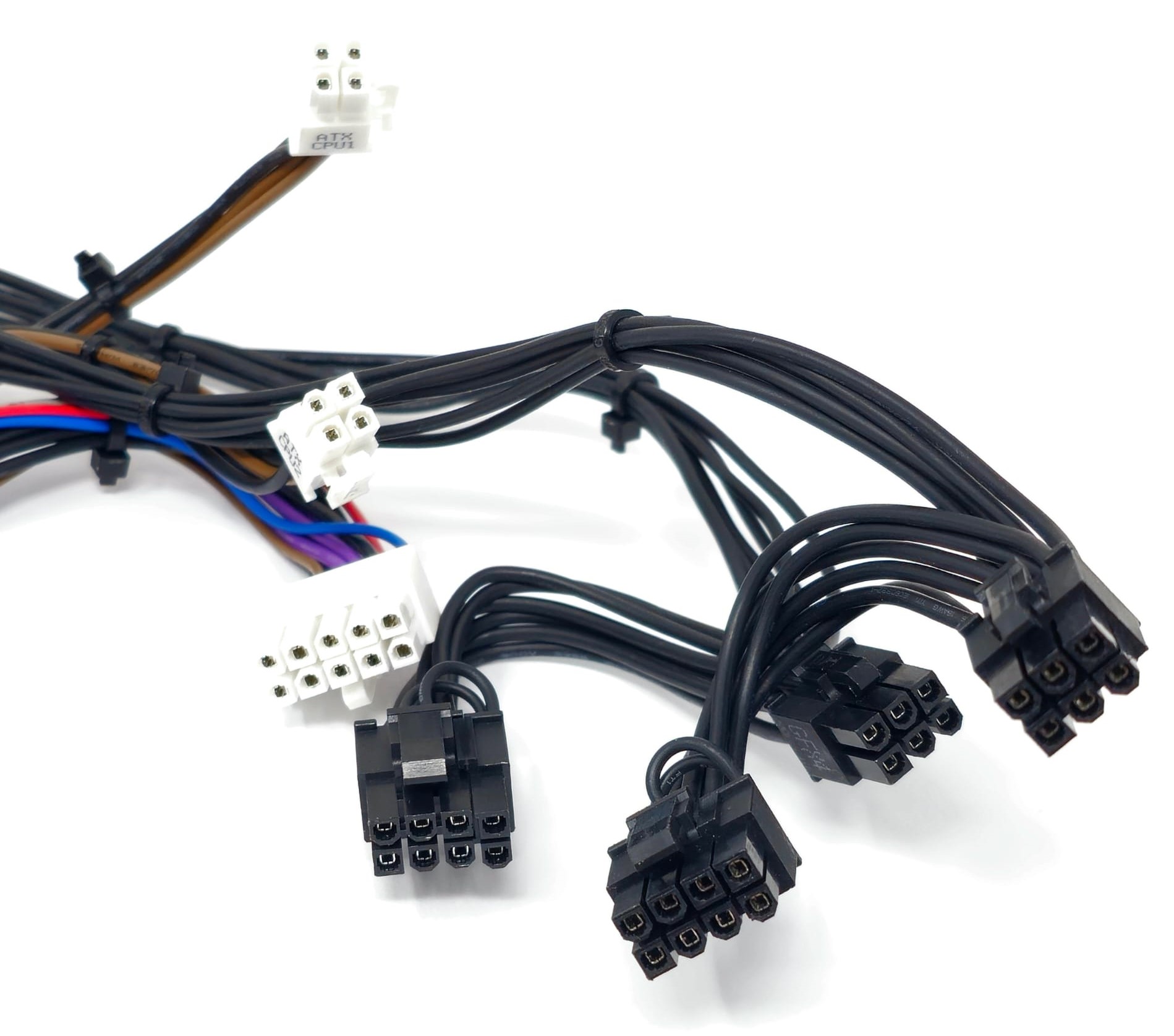

☑️ Two 6+2-pin and two 6-pin PCIe graphics-power connectors
☑️ Two dedicated graphics-power harnesses for compatible GPU configurations
☑️ Slim 150mm x 62mm x 185mm chassis-specific dimensions
☑️ Wide-range AC input for compatible regional power sources

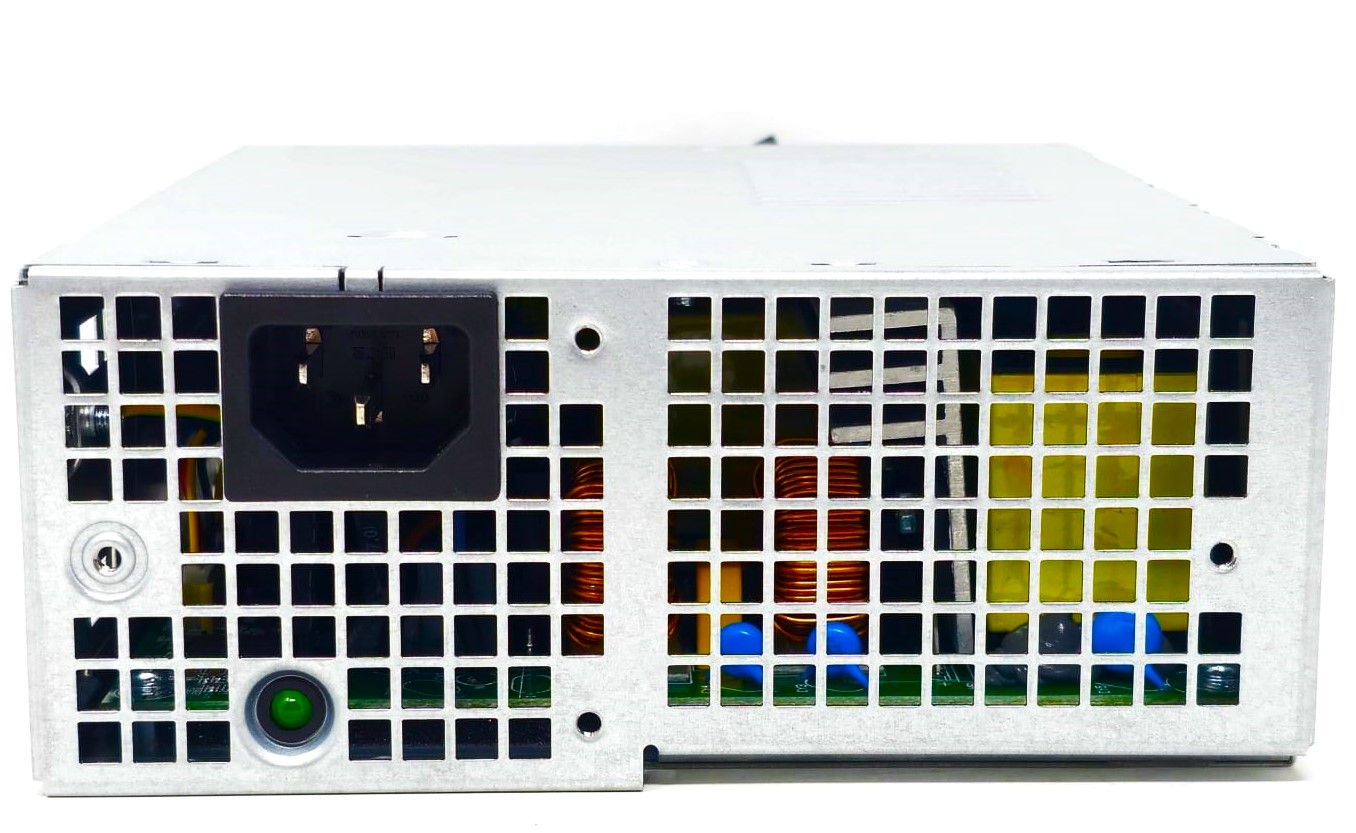

☑️ Standard IEC C14 inlet accepts a compatible IEC C13 power cable
☑️ Direct-fit replacement when the original PSU matches one of the listed part numbers
✓ This is a proprietary power supply and is not a standard ATX, SFX, or TFX replacement.
✓ This unit does not use a standard 24-pin ATX motherboard connector. Confirm that your system requires the proprietary 10-pin system-board connector.
✓ Match the original PSU part number whenever possible. Do not order by wattage or exterior appearance alone.
✓ The four graphics connectors are arranged across two shared cable harnesses. Each harness contains one 6+2-pin connector and one 6-pin connector; these are not four independent GPU cables.
✓ This PSU does not include a native 12VHPWR or 12V-2x6 graphics connector. Do not use unsupported splitter cables or adapters to operate a graphics card beyond the system’s approved power configuration.
✓ Supported systems generally supply SATA drive power through a separate system-board or chassis cable assembly. This PSU does not use standard ATX-style SATA or 4-pin peripheral leads.
✓ Aurora R15 and Precision 5860 systems were also available with 1350W power supplies using a different 12-pin system-board connector. This 750W 10-pin PSU is not a replacement for those 1350W configurations.
✓ Do not use this 750W unit as a replacement for an original 1000W or 1350W PSU unless the system’s exact hardware configuration is specifically approved for 750W operation.
✓ The +12VA, +12VB, and +12VC current ratings are individual rail limits and must not be added together. Total PSU output remains limited to 750W.
✓ A higher-wattage PSU alone does not guarantee support for a graphics-card upgrade. Confirm GPU dimensions, cooling requirements, BIOS support, power connectors, and total system demand.
✓ The AC power cable is not included unless shown. A compatible IEC C13 power cable is available separately above.
✓ Disconnect the AC cable, press the power button to discharge residual power, and follow the system service procedure before replacing the PSU.
