YN945 Wiring Harness for Precision T5400 875W Power Supply
Internal power supply wiring harness for Precision T5400 workstation systems using the 875W GM869 power supply family. This harness connects the chassis-specific 875W PSU output connector to the system board, CPU power leads, graphics power leads, drive power leads, and internal auxiliary power connections required for proper workstation operation.
What’s Included
Technical Specifications
- Primary Part Number: YN945
- Part Type: Internal power supply wiring harness
- Application: Power supply harness for Precision T5400 workstation systems
- Compatible PSU Wattage: 875W
- Compatible PSU Family: GM869 / H875E-00 / HP-D8751A001 / N875E-00 / NPS-875ABA / YN642
- Harness Type: Multi-branch workstation power distribution harness
- PSU-Side Connector: Large black proprietary multi-pin power supply connector
- System-Side Connectors: Motherboard power, auxiliary board power, CPU / PCIe power, SATA drive power, and peripheral power connectors
- Installation Type: Internal cable harness replacement
- System Type: Tower workstation
- Application Type: Internal power distribution harness for matching workstation power supply installation

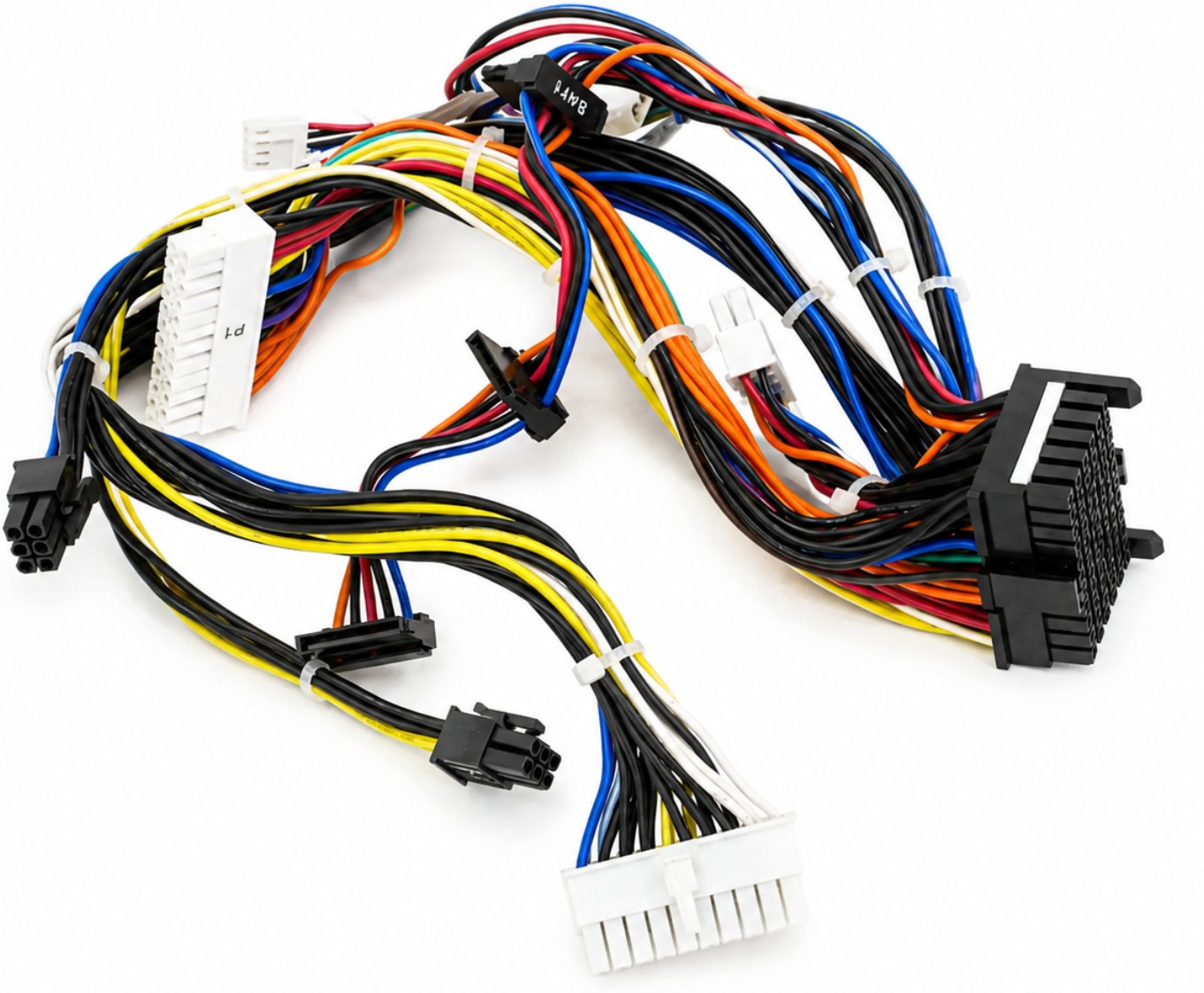

Connector & Cable Layout
- Power Supply Connector: 1x large black proprietary PSU connector, 56-position style, designed to connect directly to the matching 875W power supply output port
- Main System Board Connector: 1x large white multi-pin motherboard power connector
- Secondary System Board / Auxiliary Power Connector: 1x second large white multi-pin board power connector
- PCIe / Auxiliary Power Connectors: 2x black 6-pin auxiliary power connectors for supported internal hardware configurations
- SATA Power Connectors: 2x black SATA power connectors for internal drive bay power
- Peripheral Power Connector: 1x white 4-pin Molex-style peripheral power connector
- Small Auxiliary / Sense Connectors: 2x small low-current auxiliary connectors used for internal board, sense, or chassis power routing depending on system configuration
- Harness Branches: Separate cable branches for motherboard power, CPU / auxiliary power, drive bay power, peripheral power, and power-sense routing
- Connector Style Note: Connector labels, branch positions, and wire routing can vary slightly by production run, but the original harness part number and full connector layout must match before installation
Interchangeable / Replacement Part Numbers
YN945, 0YN945, CN-0YN945
Compatible Power Supply Sold Separately

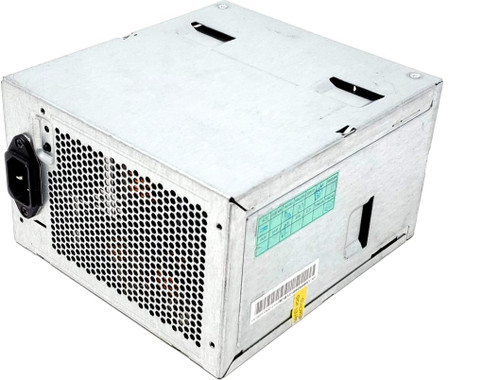

This harness is designed for use with the matching 875W power supply, sold separately: GM869 875W Power Supply for Precision T5400
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s original harness part number, power supply model, internal connector layout, chassis configuration, and cable routing. It’s essential to verify compatibility with your original harness and power supply before installation.
✔ Precision T5400 Workstation Models: Precision T5400 tower workstation systems using the matching YN945 internal power supply wiring harness
✔ Precision T5400 875W PSU Configurations: T5400 systems configured with the 875W GM869 / H875E-00 / HP-D8751A001 / N875E-00 / NPS-875ABA / YN642 power supply family
✔ GM869 PSU Harness Configurations: Systems requiring the YN945 harness to connect the chassis-specific 875W power supply to the motherboard, auxiliary power headers, PCIe / graphics power connectors, SATA drive power connectors, and internal peripheral power connectors
☑️ Key Features
☑️ Internal power supply wiring harness for Precision T5400 workstation systems
☑️ Required when using the compatible 875W GM869 power supply family
☑️ Large proprietary PSU-side connector for the matching 875W power supply
☑️ Includes motherboard power, auxiliary power, PCIe power, SATA power, and peripheral power branches
☑️ Provides the necessary cable routing between the power supply and internal workstation components
☑️ Useful replacement for missing, damaged, cut, burned, brittle, modified, or unreliable harness assemblies
☑️ Helps complete a proper PSU replacement when the original harness is not reusable
☑️ Designed for matching T5400 chassis routing and internal power layout
☑️ Compatible 875W power supply available separately
☑️ Direct-fit replacement when the original harness part number and connector layout match
⚙️ Fit Notes
- Match your original wiring harness part number whenever possible
- Confirm your original harness is marked or identified as YN945
- Confirm your system is a Precision T5400 using the compatible 875W power supply family
- This harness is intended for the GM869 / H875E-00 / HP-D8751A001 / N875E-00 / NPS-875ABA / YN642 875W PSU family
- This listing is for the wiring harness only
- Power supply is not included; use the compatible GM869 875W power supply if needed
- This harness is not a universal ATX power cable set
- Do not use with different workstation models, different PSU wattages, or different PSU connector layouts unless the original harness part number and full connector layout match
- Compare the large PSU connector, white motherboard connectors, black auxiliary power connectors, SATA power connectors, 4-pin peripheral connector, small auxiliary leads, cable lengths, routing points, clips, and branch locations before installation
