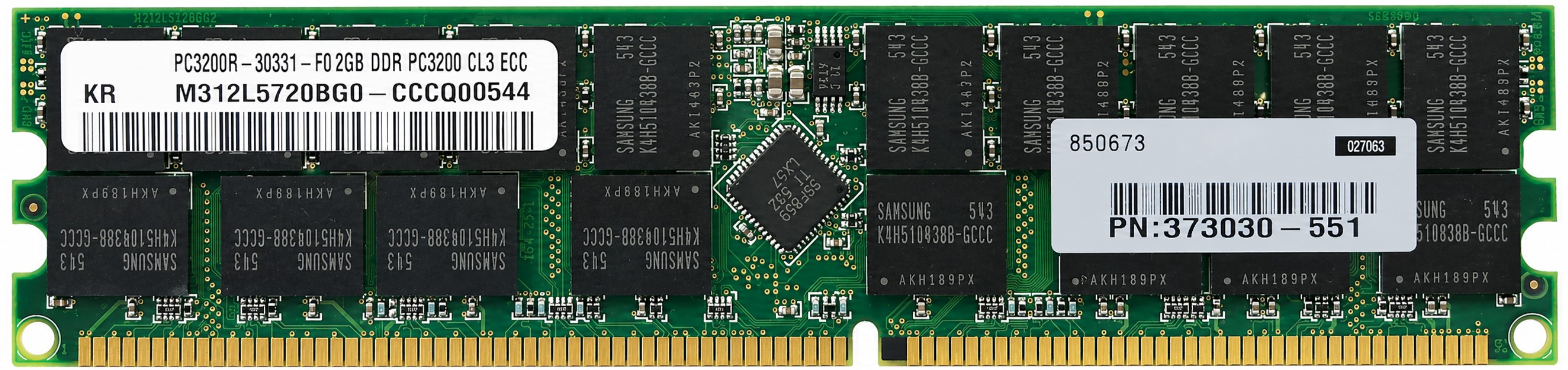

2GB 2Rx4 PC-3200R ECC Registered DDR-400 184-Pin Server Memory for ProLiant xSeries Sun Fire Opteron Systems

2GB 400MHz DDR ECC Registered server memory module for compatible legacy servers, workstations, blade systems, and Socket 940 / DDR Registered platforms using 184-pin PC-3200R memory. This module is intended for systems requiring 2GB 2Rx4 PC-3200R ECC Registered DDR SDRAM and is commonly used in older enterprise servers, Opteron-based workstations, blade platforms, and compatible server motherboards that specifically call for registered / buffered DDR-400 memory.

What’s Included

• Included Item: 1x 2GB 2Rx4 PC-3200R ECC Registered server memory module

Technical Specifications

• Memory Capacity: 2GB
• Configuration: 1x2GB
• Memory Technology: DDR SDRAM / DDR1
• Memory Speed: 400MHz / DDR-400
• Speed Rating: PC-3200R
• Effective Transfer Rate: 400 MT/s
• Module Type: ECC Registered DIMM / RDIMM
• Form Factor: 184-pin DIMM
• Rank / Organization: 2Rx4
• Bus Width: 72-bit ECC
• Density Class: 256Mx72 module class
• ECC Support: Yes
• Buffered / Registered: Yes
• Voltage Class: 2.5V / 2.6V DDR class
• Latency Class: CL3 class depending on supplied module
• Application Type: Legacy server, rack server, blade server, Opteron workstation, industrial system, and enterprise motherboard memory replacement

Interchangeable / Replacement Part Numbers

373030-051, 373030-551, 373030-851, 373030-951, 373030-B21, 378915-001, 378915-005, 381819-001, 416107-001, M312L5628CZ0-CCC, M312L5628ET0-CCC, M312L5628FG0-CCC, MT36VDDF25672G-40B, MT36VDDT25672G-40B, MT36VDDT25672Y-40B, HYMD525G726B8R-D43, HYMD525G726C8R-D43, HYS72D256320GBR-5-A, HYS72D256320GBR-5-B, HYS72D256320GBR-5-C, EBE20RD4ABFA-5C-E, EBE20RD4AGFA-5C-E

Bulk / Project Orders

Need multiple modules for a repair center, industrial deployment, telecom rack, lab rebuild, server refresh, or legacy equipment support project? Add the quantity needed to your cart and proceed through checkout. Orders of 10+ units are processed with care and shipped promptly from our warehouse.

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system’s processor platform, chipset, BIOS, DIMM population rules, installed CPU count, memory-bank layout, maximum supported memory per slot, and whether the board requires DDR ECC Registered memory. It is essential to verify your original memory label, server documentation, and supported DIMM type before ordering.

✔ ProLiant AMD Opteron / DDR Registered Server Models: ProLiant BL25p, BL35p, BL45p G1, DL145 G2, DL385 G1, DL585 G1
✔ IBM / Lenovo AMD Opteron Server Platforms: eServer 325, eServer 326, eServer 326m, xSeries 325-class Opteron configurations, xSeries 326-class Opteron configurations, BladeCenter LS20
✔ IBM / Lenovo Opteron Workstation Platforms: IntelliStation A Pro Type 6217, IntelliStation A Pro Type 6224
✔ Sun / Oracle Opteron Server Platforms: Sun Fire V20z, Sun Fire V40z, Sun Fire X4100
✔ Sun / Oracle Opteron Workstation Platforms: Sun Java Workstation W1100z, Sun Java Workstation W2100z, Sun Ultra 40
✔ Fujitsu / Fujitsu Siemens Opteron Server Platforms: PRIMERGY RX220, RX330, RX330 S2, BX630 and similar DDR Registered Opteron-based configurations that use 184-pin PC-3200R DIMMs
✔ Socket 940 AMD Server / Workstation Platforms: Compatible single-socket, dual-socket, and multi-socket AMD Opteron systems whose documentation specifies registered DDR SDRAM and supports 2GB PC-3200R 2Rx4 ECC Registered DIMMs
✔ Legacy Rack / Tower / Blade / Industrial Systems: Compatible with select industrial servers, embedded control systems, lab systems, telecom appliances, and legacy enterprise platforms using 184-pin DDR ECC Registered memory

✅ Compatible Motherboard / System Board Families

✔ Supermicro Socket 940 Server Boards: H8SSL-i, H8SSL-R10, H8DCE, H8DC8, H8DAE, H8DAR-8, H8DAR-i, H8QCE, H8QCi, H8QC8
✔ Tyan Socket 940 Server / Workstation Boards: Tiger K8W S2875, Thunder K8S S2880, Thunder K8S Pro S2882, Thunder K8W S2885, Thunder K8SRE S2891, Thunder K8SE S2892, Thunder K8WE S2895, Thunder K8QS Pro S4882, Thunder K8QW S4885
✔ ASUS Socket 940 Server / Workstation Boards: K8N-DL, K8N-DRE, K8N-DRE/2L, K8N-LR
✔ Gigabyte Socket 940 Server / Workstation Boards: GA-7A8DW, GA-7A8DRH, GA-7A8DRL
✔ MSI Socket 940 Workstation Boards: K8T Master2-FAR, K8N Master2-FAR
✔ Iwill Socket 940 Workstation / Server Boards: DK8N, DK8S2, DK8X, DK8HTX

☑️ Key Features

☑️ 2GB 400MHz DDR ECC Registered server memory module
☑️ 2Rx4 organization for supported legacy server platforms
☑️ PC-3200R speed class for DDR-400 registered systems
☑️ 184-pin RDIMM form factor
☑️ ECC support for compatible enterprise platforms
☑️ Registered / buffered design for supported servers and workstations
☑️ Useful replacement for failed, missing, mismatched, or under-capacity legacy server memory
☑️ Common fit for Socket 940 Opteron server and workstation platforms
☑️ Suitable for server refresh, maintenance, repair, restoration, lab, industrial, and legacy application support projects
☑️ Compatible replacement when the original memory part number, rank, speed, and system requirements match

⚙️ Fit Notes

• Match your original memory part number whenever possible
• Confirm your system supports 2GB 2Rx4 PC-3200R ECC Registered DDR memory
• Confirm your board uses 184-pin DDR RDIMM slots
• This memory is for registered / buffered ECC server platforms only
• This is not for standard PC-3200 desktop DDR, unbuffered DDR, SODIMM laptops, or PC2 / DDR2 / DDR3 / DDR4 systems
• This is also not the correct module for PC-2700R-only platforms unless the board specifically supports PC-3200R downclocking
• Many older servers are sensitive to rank, chip organization, and buffered vs. unbuffered differences
• For best stability, use matching capacity, speed, rank, and type across memory banks whenever possible
• Some systems require memory to be installed in matched pairs, matched quads, or balanced CPU-local banks
• On many multi-socket Opteron boards, memory slots are attached to specific CPUs; if a CPU socket is empty, its related memory banks may be disabled
• Some legacy systems may require a BIOS update for full 2GB DIMM support
• If the system does not boot after installation, confirm DIMM seating, bank population order, CPU population order, BIOS support, and mixed-memory compatibility
