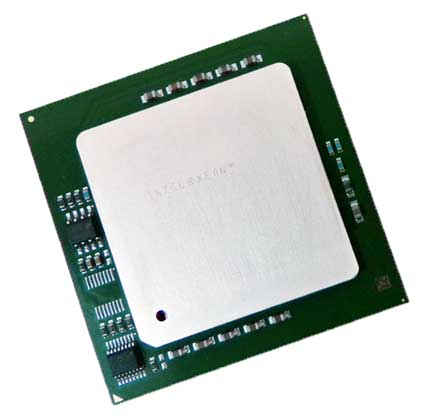

3.20GHz 800MHz 2MB L2 Socket 604 Xeon Server CPU Processor

This Socket 604 Intel Xeon processor runs at 3.20GHz with an 800MHz front-side bus and 2MB L2 cache. Commonly used in select 2U/4U servers and blade platforms that support 800MHz FSB PPGA604 Xeon CPUs.

Technical Specifications

• Cores / Threads: 1 / 1
• Base Frequency: 3.20GHz
• L2 Cache: 2MB
• Front Side Bus (FSB): 800MHz
• Socket / Package: PPGA604 (Socket 604)
• Max TDP: 110W
• 64-bit Support: Yes
• Execute Disable Bit: Yes

Interchangeable / Replacement Part Numbers

• SL7ZE, SL8P5, SL8T3, SL8ZP, SL943

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ PowerEdge: 1800, 1850, 1855, 2800, 2850
✔️ ProLiant: DL360 G4p, DL380 G4, DL380 G4 Packaged Cluster with MSA1000, DL380 G4 Packaged Cluster with MSA500 G2, ML350 G4p
✔️ System x xSeries: 236, 336, 346

☑️ Key Features

☑️ Socket 604 Xeon CPU for supported server/workstation platforms
☑️ 3.20GHz core clock with 800MHz FSB
☑️ 2MB L2 cache (commonly required to match when pairing CPUs)
☑️ Supports 64-bit operation on compatible chipsets/BIOS

⚙️ Fit Notes

• Must be installed in a Socket 604 (PPGA604) system that supports 800MHz FSB Xeon processors.
• If installing as a second CPU in a dual-processor system, match key specs (FSB, frequency, and cache requirements per your system documentation).
• Clean and reapply thermal interface material before installation (recommended: Shin-Etsu G751).
• BIOS updates may be required on some systems for proper CPU recognition.
