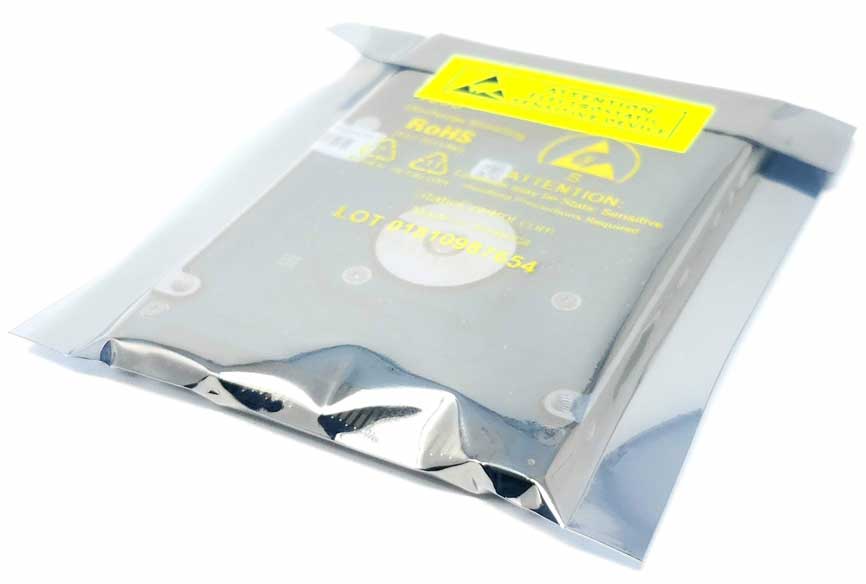

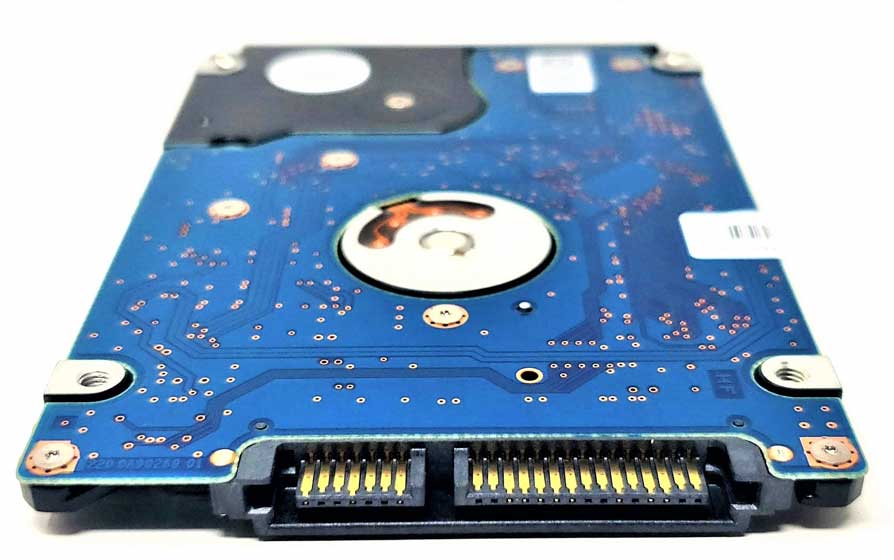

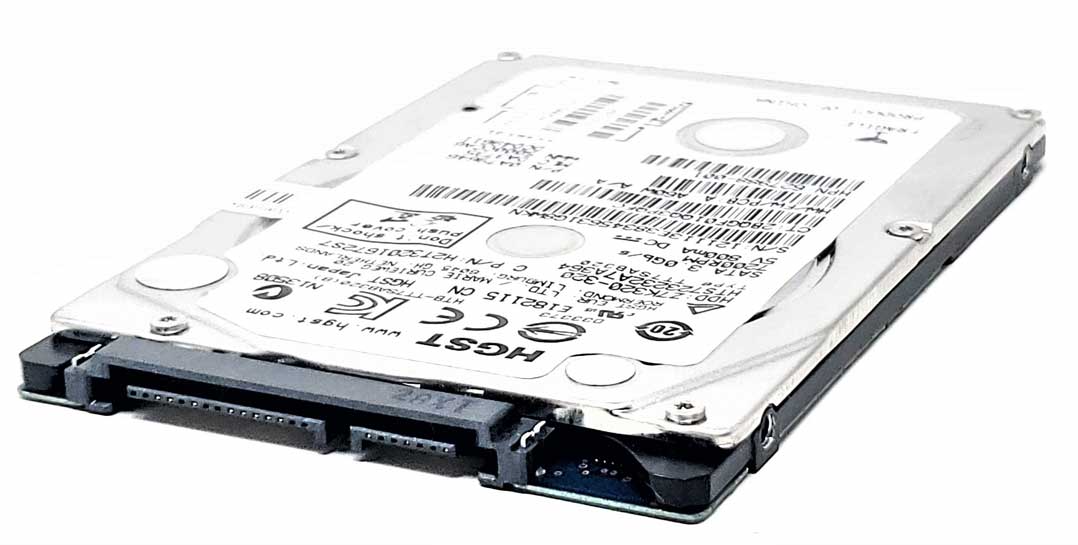

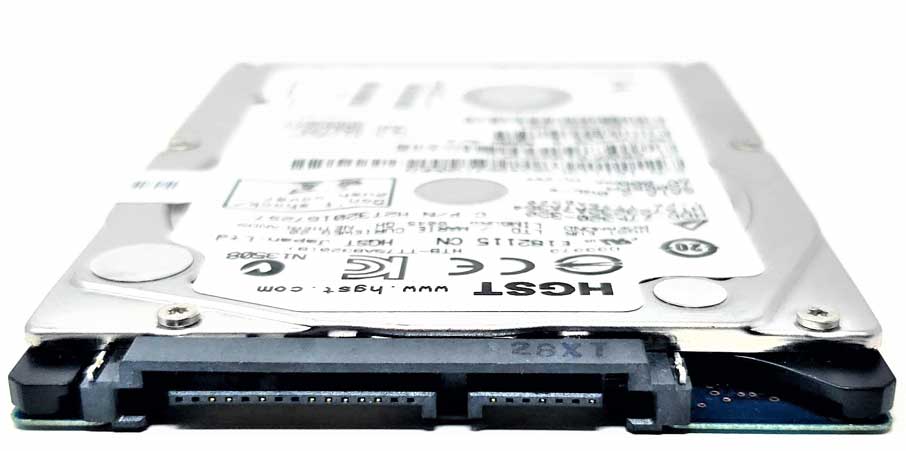

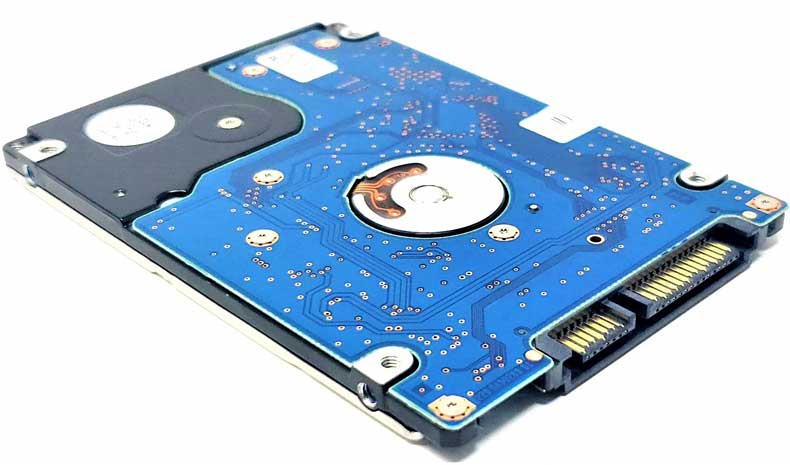

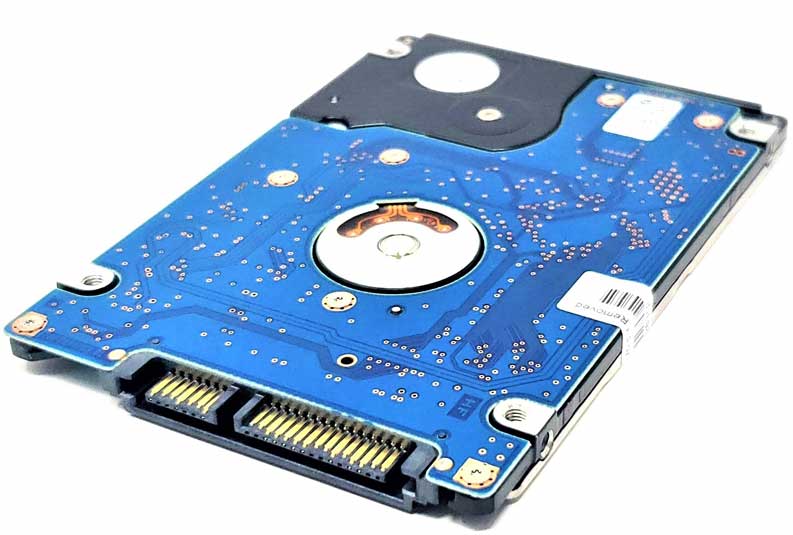

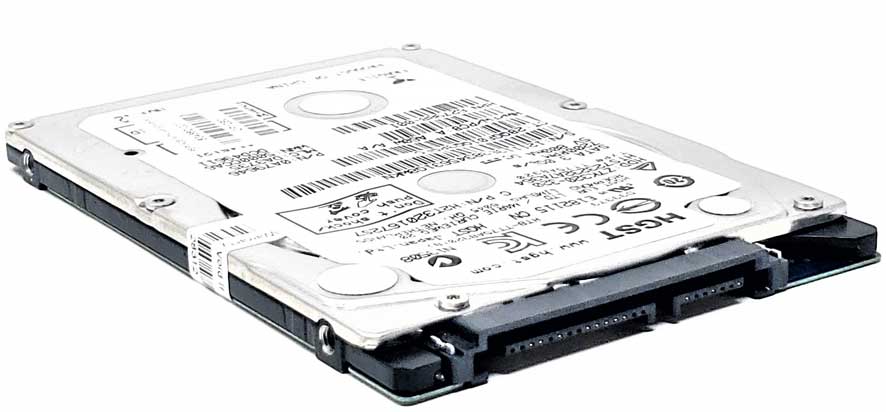

320GB 5.4K RPM SATA 7mm 2.5-Inch Hard Drive for Laptop Notebook Computers

This 320GB 5400 RPM mechanical hard drive is a slim 7mm 2.5-inch SATA replacement for compatible laptops, notebooks, compact desktops, and all-in-one computers. It can replace many original 250GB, 320GB, and 500GB drives when the system uses a standard 22-pin SATA connection and 320GB provides sufficient capacity. The exact manufacturer, label, cache, and SATA revision may vary by interchangeable part number while maintaining the same core 320GB, 5400 RPM, 7mm, 2.5-inch SATA fit.

Technical Specifications

Capacity: 320GB
Drive Type: Mechanical Hard Disk Drive (HDD)
Form Factor: 2.5-Inch
Drive Height: 7mm
Spindle Speed: 5400 RPM / 5.4K RPM
Interface: Serial ATA (SATA)
Connector: Standard 22-Pin SATA (7-Pin Data + 15-Pin Power)
Power Requirement: 5V DC
Approximate Dimensions: 100mm x 69.85mm x 7mm
Operating-System Capacity: Approximately 298GiB before formatting and recovery partitions
Compatible Bays: Native 7mm bays and most standard 9.5mm 2.5-inch SATA bays when the original caddy or spacer is reused

Interchangeable / Replacement Part Numbers

691917-003, 691917-010, 691917-011, 697242-001, 726840-001, M4VY5, N12F5, PPY4K, ST320LT012, ST320LT020, ST320LT025, SH20A00031, SH20D70212, SH20D70233, SH20E38261, SH20E82687, SH20F32815, G8BC0007J322, MQ01ABF032, P000539140, WD3200LPCX, WD3200LPCX-00VHAT0, WD3200LPCX-24C6HT0, WD3200LPVX, WD3200LPVX-00V0TT0, 16200434, 16200627, 42T1154, 42T1155, 42T1209, 42T1210, 42T1352, 42T1363, 42T1368, 42T1377, 42T1382, 0J31003, G8BC0008C320, H2T320854S7, HTS543232A7A384, HTS545032A7E380, HTS545032A7E680, X858353-001, Z5K320-320, Z5K500-320, 622643-005, 627985-001

★ Cross Reference / Cross-Sell

Turn this internal hard drive into portable USB storage or connect it externally for file transfers, cloning, recovery, and backups with the SuperSpeed USB 3.0 2.5-Inch SATA Hard Drive External Enclosure. The enclosure accepts 2.5-inch SATA drives and is powered through USB, so it does not require a separate AC adapter.

✅ Confirmed Compatibility

The following list is not exhaustive. Some model families were offered with multiple storage configurations. Compatibility requires a removable 2.5-inch SATA drive bay. Verify the existing drive, connector, caddy, and available height before ordering.

✔️ 1000 and Business Notebooks: 1000-1100, 1000-1200, 1000-1300, 1000-1400, 1000-1b00, 215 G1, 242 G1, 3115m, 3125, 340 G1, 431, 435, 455, 630, 635
✔️ EliteBook and ProBook: EliteBook 820 G1, 840 G1, 850 G1; ProBook 4230s, 430 G1, 4341s, 440 G1, 4435s, 4436s, 445 G1, 450 G0, 450 G1, 4530s, 4540s, 4545s, 455 G1, 470 G0, 4740s
✔️ Pavilion ENVY and Mini: ENVY dv4-5200, dv4-5300; Pavilion dm4-3000, dm4-3000 Beats Edition, dv4-5100, dv6-6b00, dv6-6c00, dv6-7000, dv7-6000, g4-2200, g6-1200, g6-2000, g6-2200, g6-2300, 15-e000, 17-e000, 17-e100, TouchSmart 11-e000; Mini 110-3800, 1104, 110-4100, 110-4200, 110-4300, 200-4200, 200-4300, 210-3000, 210-4000, 210-4100
✔️ Compaq: 435, 436, CQ45-700, CQ45-800, CQ45-900, CQ45-d00, CQ45-m00, Mini CQ10-1100
✔️ Inspiron 14 and 15: 3421, 3437, 3442, 3443, 3451, 3452, 5421, 5437, 3520, 3521, 3531, 3537, 3541, 3542, 3543, 3552, 5558, 5559
✔️ Inspiron 15R and 17: 15R N5010, 15R N5050, 15R 5520, 15R 5521, 15R 5537, 17 3721, 17 3737, 17 5748, 17 5758
✔️ Latitude: 3330, 3340, 3350, 3440, 3450, 3540, 3550, E5430, E5440, E5450, E5530, E5540, E5550, E6430, E6440, E6530, E6540
✔️ Precision and Vostro: Precision M2800, M4700, M4800, M6700, M6800; Vostro 2420, 2520, 3446, 3546, 3558, 3560
✔️ ThinkPad T and X Series: T430, T430i, T440, T440p, T450, T450s, T460, X230, X230i, X240, X250, X260
✔️ ThinkPad L E and W Series: L430, L440, L450, L460, E430, E430c, E431, E440, E450, E530, E531, E540, E550, W530, W540, W541
✔️ Essential and IdeaPad: B475e, B480, B490, B590, G400, G405, G410, G500, G505, G510, G580, G585, IdeaPad U310, U410, Z400, Z500, Z510, Flex 14, Flex 15
✔️ Acer Aspire E Series: E1-431, E1-471, E1-521, E1-531, E1-571, E5-411, E5-421, E5-471, E5-511, E5-521, E5-571, E5-573, E5-722, E5-772
✔️ Acer Aspire V and ES Series: V3-471, V3-551, V3-571, V3-572, V3-731, V3-771, V3-772, V5-431, V5-471, V5-531, V5-571, ES1-411, ES1-512, ES1-520, ES1-521, ES1-531
✔️ Acer TravelMate and Gateway: TravelMate P243, P253, P245, P255, P246, P256; Gateway NE56R, NV52L, NV53A, NV55C, NV56R, NV57H, NV75S
✔️ ASUS X Series: X450CA, X450CC, X450LA, X450LB, X550CA, X550CC, X550LA, X550LB, X550LC, X551CA, X551MA, X552CL, X552EA, X552EP, X555LA, X555LB
✔️ ASUS K and A Series: K55A, K55N, K550CA, K550CC, K555LA, K555LB, A55A, A55N
✔️ ASUS R Series and VivoBook: R510CA, R510CC, R510LA, R510LB, VivoBook S400CA, S500CA
✔️ Toshiba Satellite C and L Series: C50-A, C50-B, C50-C, C55-A, C55-B, C55-C, C70-A, C70-B, C75-A, C75-B, L50-A, L50-B, L50-C, L55-A, L55-B, L55-C, L70-A, L70-B, L75-A, L75-B
✔️ Toshiba Satellite P and S Series: P50-A, P50-B, P55-A, P55-B, P70-A, P70-B, P75-A, P75-B, S50-A, S50-B, S55-A, S55-B, S70-A, S70-B, S75-A, S75-B
✔️ Toshiba Satellite Pro Tecra and Portege: Satellite Pro C50-A, C50-B, C50-C, L50-A, L50-B, L50-C; Tecra A50-A, A50-B, A50-C, R940, R950; Portege R30-A, R30-B, R930, R940
✔️ Apple MacBook: MacBook 13-Inch Aluminum A1278 Late 2008; MacBook A1342 Late 2009 and Mid 2010
✔️ Apple MacBook Pro: A1278 13-Inch Mid 2009, Mid 2010, Early 2011, Late 2011, Mid 2012; A1286 15-Inch Mid 2009, Mid 2010, Early 2011, Late 2011, Mid 2012; A1297 17-Inch Mid 2009, Mid 2010, Early 2011, Late 2011
✔️ Apple Mac mini: A1347 Mid 2010, Mid 2011, Late 2012, and Late 2014 configurations originally equipped with a 2.5-inch SATA hard drive
✔️ Sony VAIO: E Series SVE14, SVE15, SVE17; Fit 14E SVF142, SVF143, SVF144; Fit 15E SVF152, SVF153, SVF154; S Series VPCSA, VPCSB, VPCSC, VPCSE; C Series VPCCA, VPCCB
✔️ Samsung Notebook and ATIV: NP300E4A, NP300E5A, NP300E5C, NP300E5E, NP350V4C, NP350V5C, NP350V5E, NP355V5C, NP550P5C, NP550P7C, NP270E4E, NP270E5E, NP470R5E
✔️ Fujitsu LIFEBOOK: A512, A514, A544, E733, E743, E753, E734, E744, E754, S752, S762

☑️ Key Features

☑️ 320GB storage capacity for operating systems, applications, and personal files
☑️ 5400 RPM mobile hard drive designed for lower power consumption and quiet operation
☑️ Slim 7mm 2.5-inch form factor for compatible laptops and compact computers
☑️ Standard 22-pin SATA data and power connection
☑️ Suitable as a replacement for many original 250GB, 320GB, and 500GB SATA drives
☑️ Compatible with native 7mm bays and most standard 9.5mm SATA bays
☑️ Can be installed internally or used with a compatible 2.5-inch SATA USB enclosure
☑️ Multiple interchangeable manufacturer and system part numbers available

⚙️ Fit Notes

• Confirm that the computer uses a removable 2.5-inch SATA drive. Model-family compatibility alone is not sufficient because some systems were offered with different storage configurations.
• This 7mm drive fits native 7mm bays and most 9.5mm 2.5-inch SATA bays. Reuse the original caddy, rails, screws, connector interposer, rubber filler, or height spacer when required.
• This drive is not compatible with M.2 SATA, M.2 NVMe, mSATA, PCIe, 1.8-inch, IDE/PATA, or SAS-only connections.
• Replacing a 500GB drive with this 320GB drive reduces available capacity. Confirm that all source data will fit before attempting to clone the original drive.
• A replacement hard drive may require operating-system installation, recovery media, partitioning, formatting, or cloning. Software and recovery media are not included.
• Apple installations require the original SATA cable, mounting bracket, mounting posts, screws, and any model-specific carrier components.
• A 320GB drive displays approximately 298GiB before formatting and recovery partitions because drive manufacturers and operating systems calculate capacity differently.
• The exact manufacturer, label, cache size, and SATA link revision may vary by interchangeable model.
