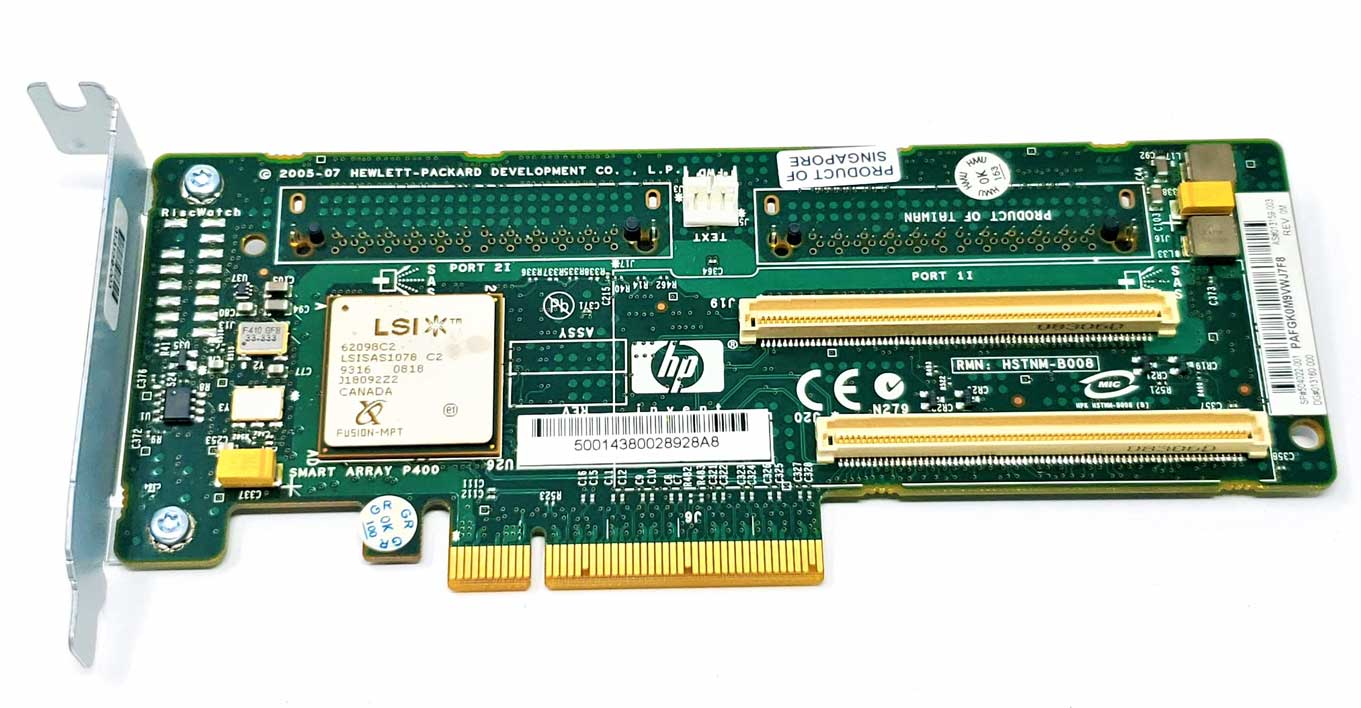

Smart Array P400 512MB BBWC SAS PCIe RAID Controller Kit

The 405162-B21 is a complete Smart Array P400 internal SAS and SATA RAID controller kit featuring a low-profile PCIe x8 controller and 512MB of battery-backed write cache. The included BBWC module protects unwritten cached data during a power interruption and enables advanced controller functions such as RAID 6 with ADG, online array expansion, logical drive extension, RAID migration and stripe-size migration.

This kit includes the P400 controller board, 512MB cache module, 4.8V Ni-MH battery, 11.5-inch battery cable and two 24-inch internal SAS data cables.

Technical Specifications

• Part Number: 405162-B21
• Controller Model: Smart Array P400
• Controller Type: Internal SAS and SATA RAID controller
• Host Interface: PCI Express x8
• PCIe Maximum Bandwidth: Up to 2GB/s
• Form Factor: Low-profile PCIe
• Controller Processor: 440 PowerPC
• Internal SAS Ports: Two SFF-8484 x4 wide-port connectors
• Physical SAS Links: Eight
• SAS Interface Speed: Up to 3Gb/s per physical link
• Maximum Aggregate SAS Bandwidth: Up to 2.4GB/s
• Cache Capacity: 512MB
• Cache Technology: 72-bit DDR2-533 BBWC
• Maximum Cache Bandwidth: Up to 4.2GB/s
• Battery Type: 4.8V Ni-MH battery module with integrated charger
• Supported RAID Levels: RAID 0, RAID 1, RAID 1+0, RAID 5 and RAID 6 with ADG
• Maximum Logical Drives: Up to 32
• Maximum Physical Drives: Up to 18 depending on server implementation
• Logical Drive Capacity: Supports logical drives greater than 2TB with appropriate firmware and configuration
• Controller Dimensions: Approximately 6.61 x 2.75 x 0.7 inches excluding the mounting bracket
• Supported Devices: Internal SAS and compatible SATA hard drives, solid-state drives and disk arrays

Kit Contents

• Controller Board: 504022-001 Smart Array P400 PCIe x8 controller
• Cache Module: 405835-001 512MB 72-bit DDR2-533 BBWC module
• Battery Module: 398648-001 4.8V Ni-MH battery with integrated charger
• Battery Cable: 409124-001 / 408658-001 11.5-inch 16-pin cable
• SAS Data Cables: Two 361316-011 24-inch internal SAS cables

Interchangeable / Replacement Part Numbers

• Primary Complete Kit Reference: 405162-B21
• Related P400 512MB BBWC Controller Option: 411064-B21
• Controller Board Spare References: 504022-001, 405831-001, 447029-001
• Controller Board Assembly References: 012760-001, 013159-001, 013159-003, 013159-005
• 512MB Cache Spare: 405835-001
• 512MB Cache Assembly References: 012764-003, 013126-000
• 512MB Cache Upgrade Kit: 405148-B21
• Battery Spare References: 398648-001, 381573-001
• Battery Assembly Reference: 012695-001
• Battery Regulatory Model: HSTNM-B011
• Battery Upgrade Kit: 383280-B21
• 11.5-Inch Battery Cable: 409124-001, 408658-001
• 24-Inch Battery Cable: 409125-001, 408658-002
• 24-Inch Battery Attach Kit: 417836-B21
• 24-Inch SAS Data Cable: 361316-011

The 411064-B21 option provides the same P400 and 512MB BBWC controller configuration, but its supplied bracket, battery cable and other accessories may differ from the 405162-B21 kit.

Related Lower-Capacity Controller References

• P400 256MB Controller Options: 405132-B21, 405133-B21
• P400 256MB Factory-Integrated Option: 405160-B21
• 256MB Cache Module: 405836-001

These are related lower-capacity configurations and should not be treated as complete 512MB kit replacements unless the cache and battery components are upgraded separately.

Related Parts Available

• Controller Board: 504022-001 Smart Array P400 PCIe x8 RAID Controller Board
• 512MB Cache Module: 405835-001 512MB BBWC Cache Memory Module
• Compatible Battery: 398648-001 4.8V Ni-MH RAID Controller Battery Pack
• Included Battery Cable: 408658-001 / 409124-001 11.5-Inch 16-Pin Battery Cable
• Longer Battery Cable: 408658-002 / 409125-001 24-Inch 16-Pin Battery Cable
• Included SAS Data Cable: 361316-011 24-Inch Internal SAS HDD Data Cable
• Lower-Capacity Cache Option: 405836-001 256MB BBWC Cache Memory Module
• Lower-Capacity Controller Option: 405133-B21 Smart Array P400 SAS RAID Controller

✅ Confirmed Compatibility

Complete-kit compatibility requires a suitable PCIe x8 slot, the correct mounting bracket, compatible internal SAS backplane connections and sufficient battery-cable length. The exact 405162-B21 factory-integrated option was specifically offered for DL380 G5 and DL385 G2 configurations.

✔️ Exact 405162-B21 Factory-Integrated Applications: ProLiant DL380 G5 and ProLiant DL385 G2
✔️ ProLiant DL100 Series: DL160 G5, DL160 G5p, DL165 G5, DL165 G5p, DL180 G5 and DL185 G5 configurations supporting an internal P400 controller
✔️ ProLiant DL300 Series: DL320 G4, DL320 G5, DL320 G5p, DL320s, DL360 G5, DL365 G5, DL380 G5, DL385 G2 and DL385 G5 configurations supporting an internal P400 controller
✔️ ProLiant DL500 Series: DL580 G4, DL580 G5, DL585 G2 and DL585 G5 configurations supporting an internal P400 controller
✔️ ProLiant DL700 Series: DL785 G5 and DL785 G6 configurations equipped with or supporting a P400 controller
✔️ ProLiant ML300 Series: ML310 G3, ML310 G4, ML310 G5, ML310 G5p, ML350 G5 and ML370 G5 configurations supporting a P400 controller
✔️ ProLiant ML500 Series: ML570 G4 configurations supporting a P400 controller
✔️ Integrity Servers: rx3600 configurations equipped with a compatible PCIe slot and internal P400 controller cabling
✔️ LeftHand Storage: P4000 SAN Solutions, P4000 G2 SAN Solutions and NSM Storage configurations originally equipped with a P400 controller
✔️ StorageWorks Systems: 1200 All-in-One Storage System, 1200r All-in-One Storage System, 4400 Scalable NAS File Services, Enterprise File Services Clustered Gateway and Enterprise Virtual Array File Services configurations using a P400 controller
✔️ Storage Appliances: Applicable High Availability Storage Server, Data Protection Storage Server and StoreOnce configurations originally equipped with a P400 controller

☑️ Key Features

☑️ Complete P400 controller kit with cache, battery and internal cables
☑️ Eight internal SAS physical links across two SFF-8484 connectors
☑️ 512MB 72-bit DDR2-533 battery-backed write cache
☑️ Up to 4.2GB/s maximum cache bandwidth
☑️ Supports SAS and compatible SATA storage devices
☑️ Supports RAID 0, RAID 1, RAID 1+0, RAID 5 and RAID 6 with ADG
☑️ Battery-backed protection for unwritten cached data during power interruptions
☑️ Supports online array expansion and logical drive extension
☑️ Supports online RAID-level and stripe-size migration
☑️ Recovery ROM protects against controller firmware corruption
☑️ Supports read-ahead caching and battery-protected write-back caching
☑️ Supports up to 32 logical drives and up to 18 physical drives depending on system implementation

⚙️ Fit Notes

• The P400 is an internal controller with two internal SFF-8484 connectors. It does not provide an external SAS port.
• Verify that the system has a compatible PCIe x8 slot and the correct low-profile or full-height mounting bracket.
• Confirm that the included 361316-011 SAS cables match the server’s backplane connectors and required routing length.
• The included battery cable is the 11.5-inch 409124-001 / 408658-001 version.
• Some tower and full-height rack installations require the longer 24-inch 409125-001 / 408658-002 battery cable or the 417836-B21 battery attach kit.
• The battery may require charging before protected write-back cache becomes active.
• A failed or discharged battery can cause the controller to temporarily disable write-back caching and RAID 6 functionality.
• The complete PCIe controller kit is not a direct replacement for an integrated P400i controller. Individual cache, battery and cable components may still cross-fit supported P400i configurations.
• P410, P410i, P411 and later controller generations use different cache modules, battery arrangements and cabling.
• Verify controller firmware support before installing newer drives or creating logical drives larger than 2TB.
• Power down the system and use proper electrostatic-discharge precautions during installation.
